DZ41 500C SW102 Bafang BBS01 BBS02 M500 M600 дисплей
US $25.00-$45.00
Цветной экран ЖК-дисплей 930 + регулятор вентильного двигателя 24V/36V/48V/60V 250W350W детали для электрического велосипеда горный велосипед Скутер инструмент
- Категория: Other Electric Bicycle Parts >>>
- Поставщик: Shanghai,Moreway,International,Trade,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.14 $* | 0.24 $* |
| Aug-19-2025 | 0.88 $* | 0.39 $* |
| Jul-19-2025 | 0.11 $* | 0.34 $* |
| Jun-19-2025 | 0.56 $* | 0.74 $* |
| May-19-2025 | 0.93 $* | 0.66 $* |
| Apr-19-2025 | 0.40 $* | 0.85 $* |
| Mar-19-2025 | 0.43 $* | 0.18 $* |
| Feb-19-2025 | 0.85 $* | 0.5 $* |
| Jan-19-2025 | 0.35 $* | 0.45 $* |
Характеристики
Product Description

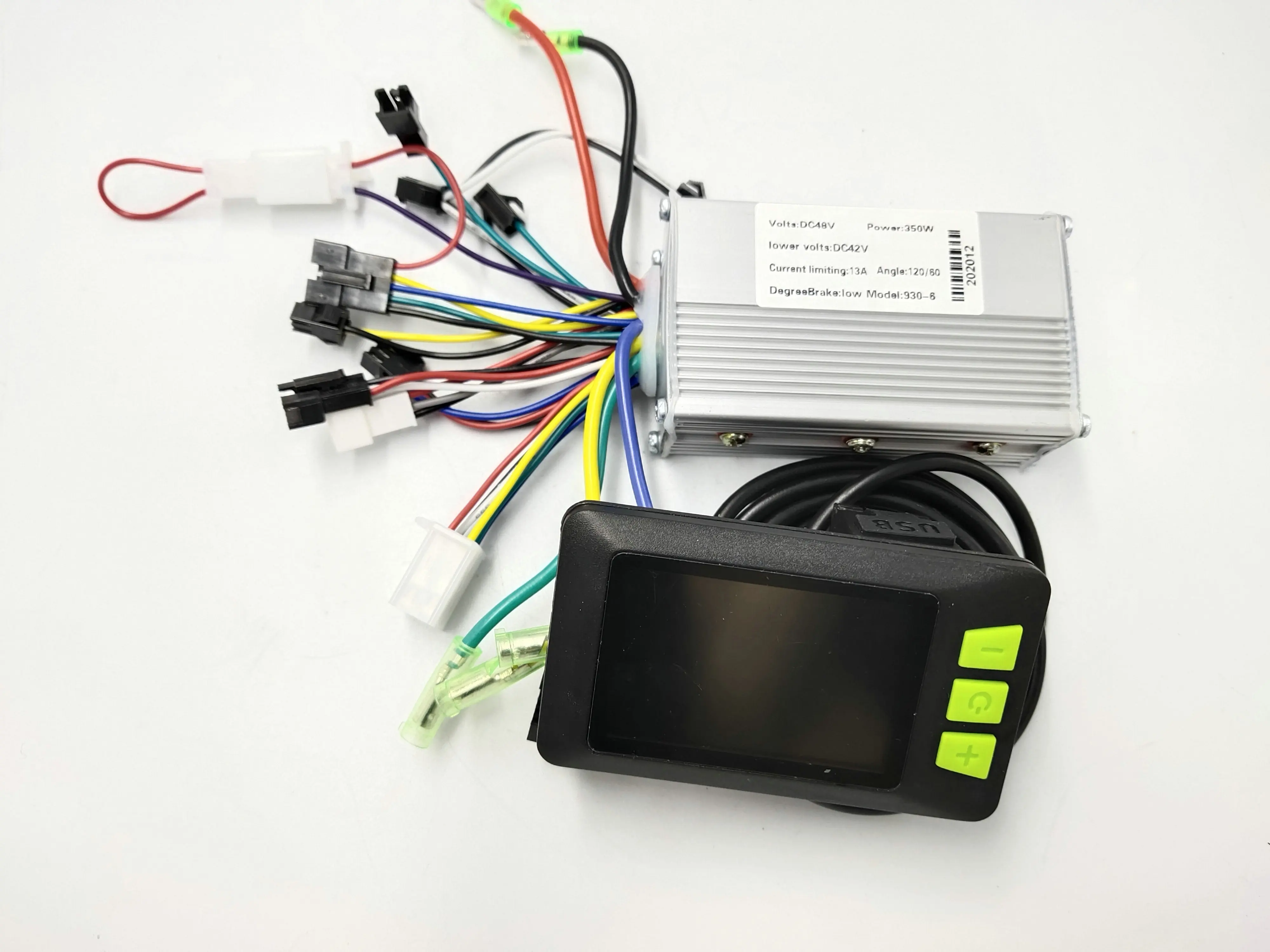

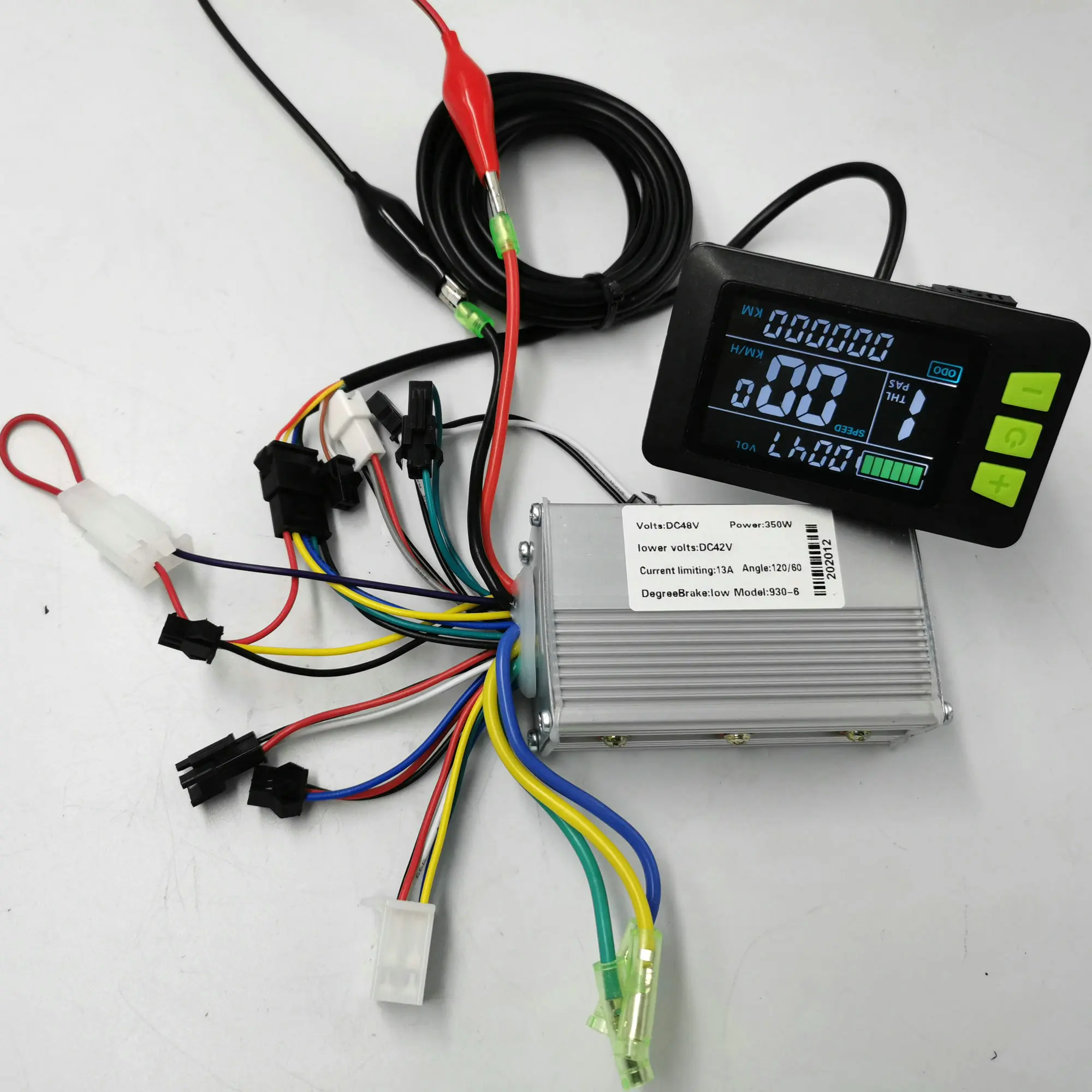

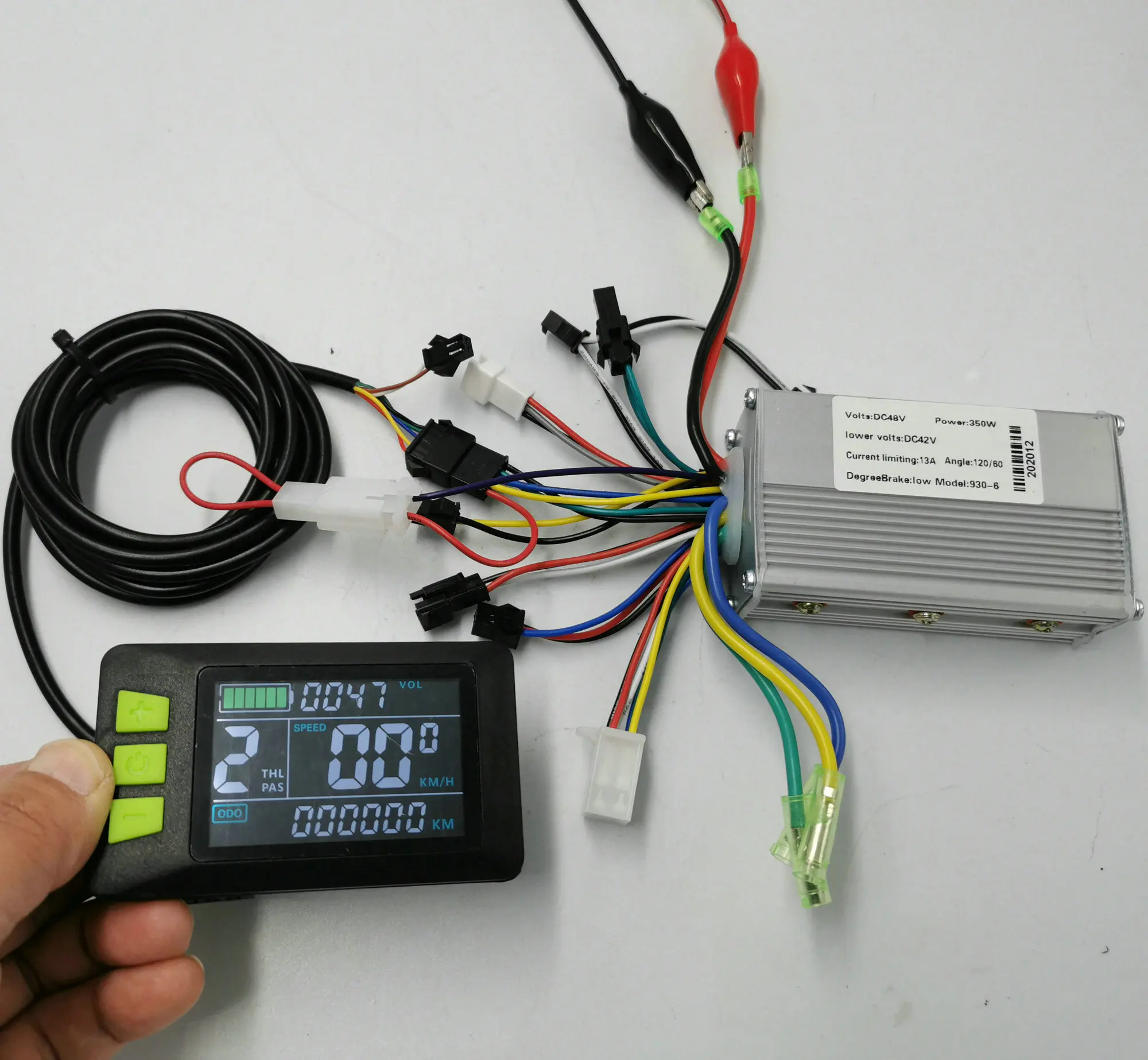

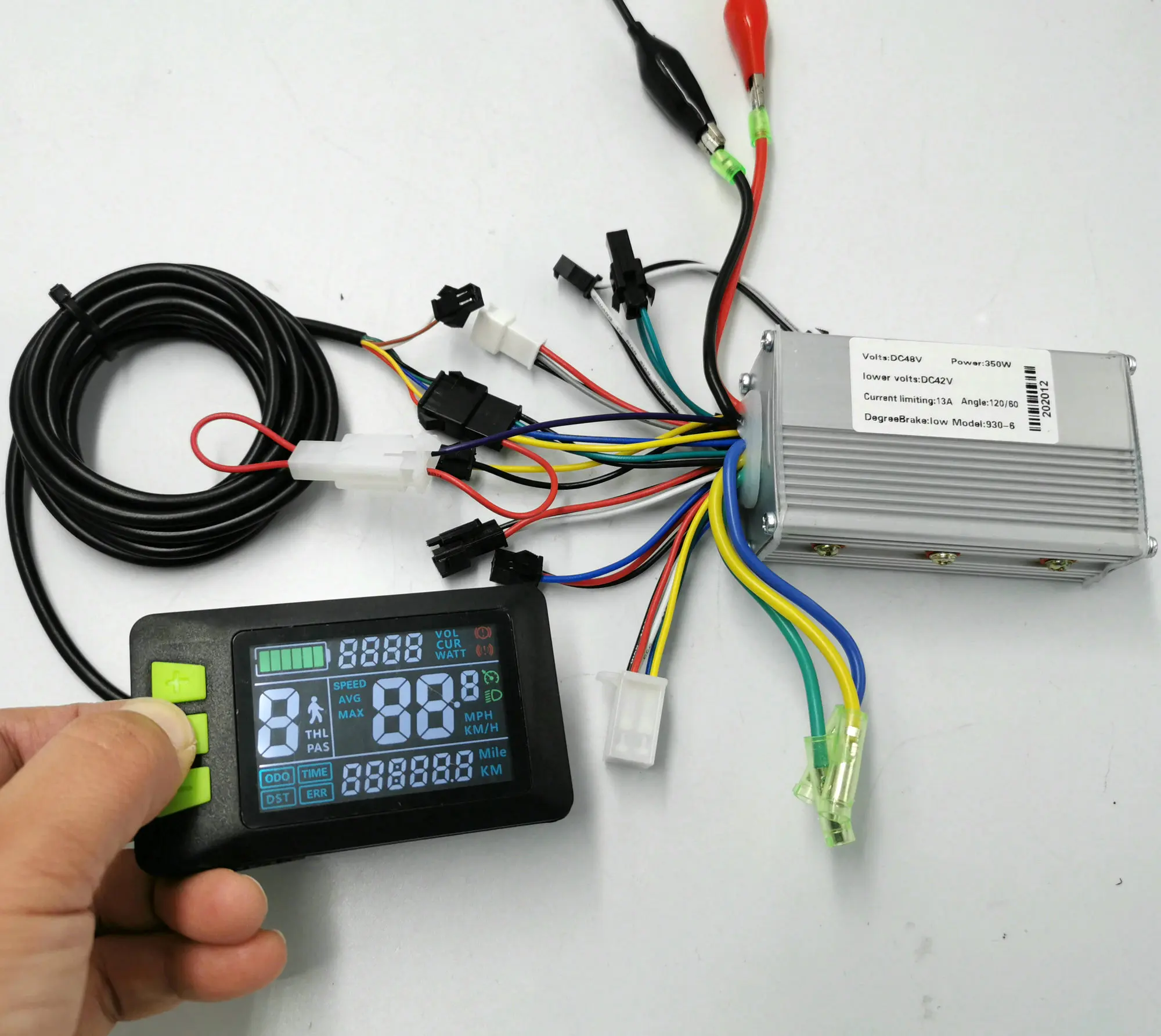

Color Screen LCD DISPLAY 930+BLDC Controller 24V/36V/48V/60V 250W350W Electric Bicycle PARTS Mountain Bike Scooter Instrument
PRICE IS FOR ONE DISPLAY AND CONTROLLER,
IF NEED other parts please leave message, need extra cost,
for one group please take what we have,
only quantity order accept customized,
PRICE IS FOR ONE DISPLAY AND CONTROLLER,
IF NEED other parts please leave message, need extra cost,
for one group please take what we have,
only quantity order accept customized,

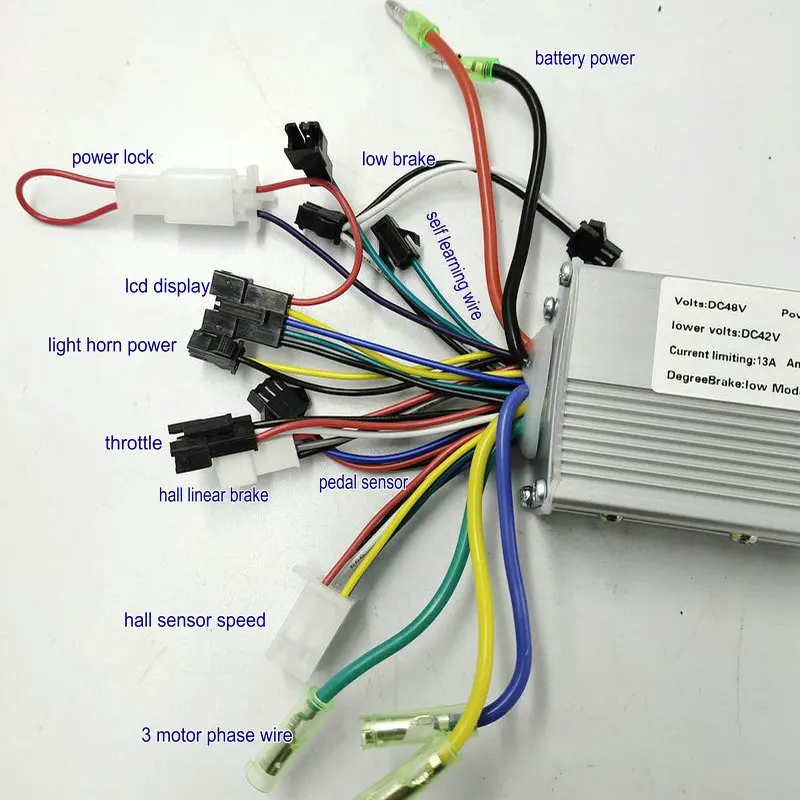

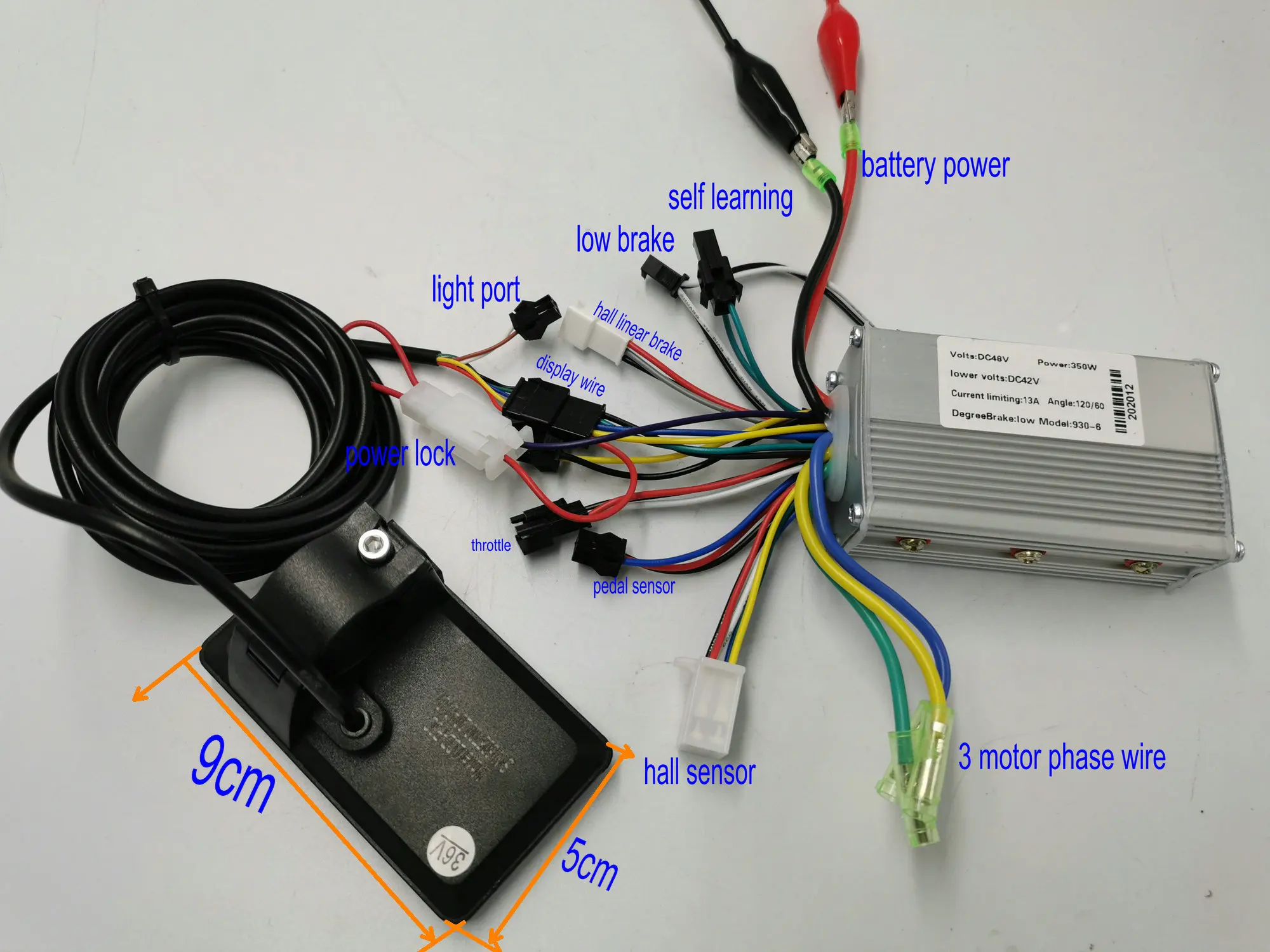

brief introduction to 6 mosfet controller dual mode type for lithium battery
rated working voltage: 36v/48v
power available :150w-350w
max current available: 10A-20A (default setting 13a)
if need change please leave message in advance
battery voltage undervoltage protection point : 30v/41v
fit for motor phase angle: 60degree/120 degree (automatic learn )
default setting controller size : 88*52*30mm 6 mosfet controller
rated working voltage: 36v/48v
power available :150w-350w
max current available: 10A-20A (default setting 13a)
if need change please leave message in advance
battery voltage undervoltage protection point : 30v/41v
fit for motor phase angle: 60degree/120 degree (automatic learn )
default setting controller size : 88*52*30mm 6 mosfet controller
controller program and the gears
acoording to different controller program, the controller has two models
MODEL H: WHEN P21=0, BOTH thROTTLE and
pedal speed has 3/5/6/9 gears , under each gear, the vehicle speed will raise from slow to fast. 0gear , no output,
when p21=1, throttle 1-9gears full speed, pedal speed 3/5/6/9 gears . for 0 gear, no pedal power output, throttle 0-9 full speed,
model A: throttle 0-9gear full sped, pedal power has 3/5/6/9 gears.
under each gear the vehicle power raise from weak to strong
0 gear, throttle full speed, pedal shut off output,
model A POWER GEAR IS LIKE THE TORQUE SENSOR TYPE,
PLEASE LEAVE MESSAGE TO CHOOSE, IF NOT WE WILL SEND ANY,
acoording to different controller program, the controller has two models
MODEL H: WHEN P21=0, BOTH thROTTLE and
pedal speed has 3/5/6/9 gears , under each gear, the vehicle speed will raise from slow to fast. 0gear , no output,
when p21=1, throttle 1-9gears full speed, pedal speed 3/5/6/9 gears . for 0 gear, no pedal power output, throttle 0-9 full speed,
model A: throttle 0-9gear full sped, pedal power has 3/5/6/9 gears.
under each gear the vehicle power raise from weak to strong
0 gear, throttle full speed, pedal shut off output,
model A POWER GEAR IS LIKE THE TORQUE SENSOR TYPE,
PLEASE LEAVE MESSAGE TO CHOOSE, IF NOT WE WILL SEND ANY,
Specification
item | value |
Place of Origin | China |
Shanghai | |
Brand Name | PHOEBEVPARTSTOLS |
Model Number | 930 |
model | 930 |
Voltage | 24V36V48V60V |
Packing & Delivery
each in pp bag bubble sheet
all in carton box
all in carton box
Company Profile
FAQ
1. who are we?
We are based in Shanghai, China, start from 2020,sell to North America(10.00%),South America(10.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),Western Europe(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Africa(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%). There are total about 1-4 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
display,controller,motor,electric scooter,electric bike
4. why should you buy from us not from other suppliers?
we focus on the EV industry for 6years, mainly aims to provide high quality electric bike, scooter, tricycle, ATV, and parts for EV conversion, such as display /instrument for EV /motorcycle, controller, motor, battery, charger, tyre,throttle and so on
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Shanghai, China, start from 2020,sell to North America(10.00%),South America(10.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),Western Europe(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Africa(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%). There are total about 1-4 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
display,controller,motor,electric scooter,electric bike
4. why should you buy from us not from other suppliers?
we focus on the EV industry for 6years, mainly aims to provide high quality electric bike, scooter, tricycle, ATV, and parts for EV conversion, such as display /instrument for EV /motorcycle, controller, motor, battery, charger, tyre,throttle and so on
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
