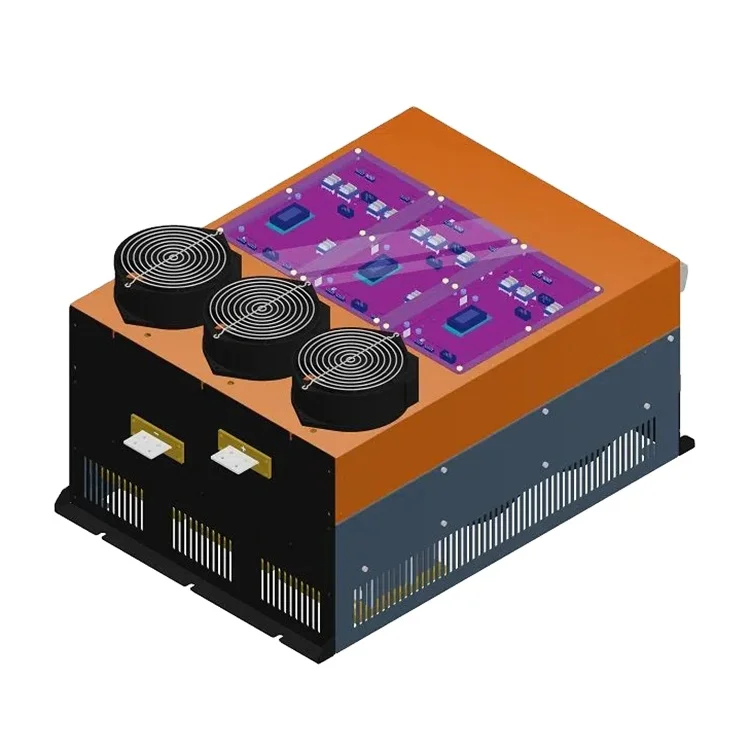

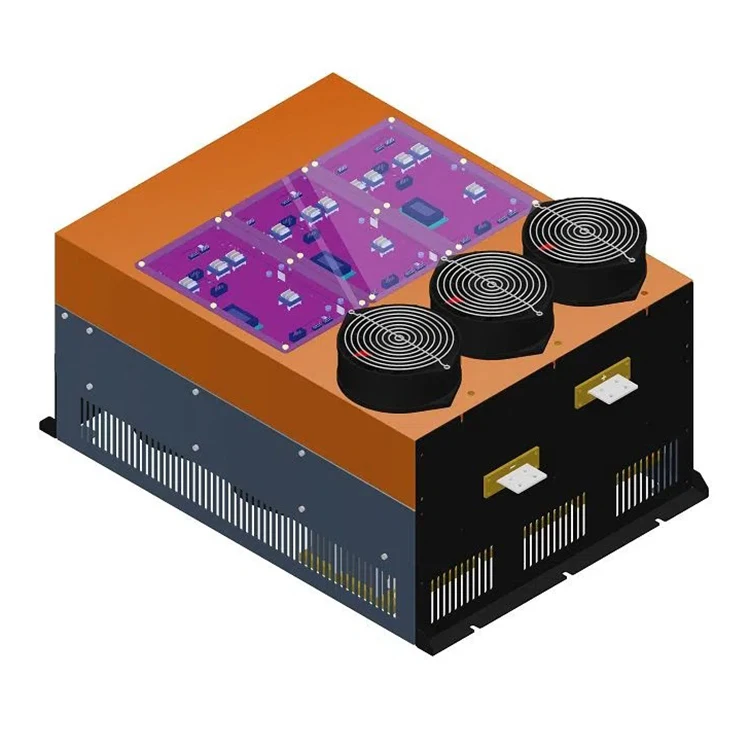

HPE-POWER высокий ток экспонирующая установка источник электропитания для

HPE-POWER высокий ток экспонирующая установка источник электропитания для

Категория: Industrial Power Supply >>>
Поставщик: Xiamen,Powertron,Electric,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.9 $*	0.68 $*
Aug-16-2025	0.80 $*	0.67 $*
Jul-16-2025	0.14 $*	0.51 $*
Jun-16-2025	0.28 $*	0.72 $*
May-16-2025	0.32 $*	0.23 $*
Apr-16-2025	0.25 $*	0.23 $*
Mar-16-2025	0.84 $*	0.40 $*
Feb-16-2025	0.5 $*	0.0 $*
Jan-16-2025	0.72 $*	0.16 $*

Характеристики

Input Section
Main Input Voltage	200~440Vac
Frequency	>47Hz
COS∅	1
Power Factor	0.96
THD （current）	30%
Efficiency	Typ.>87%
Output Section
Working Frequency	Variable from 6Khz to 16Khz
Ignition Voltage	>30KVpp
Ignition Frequency	270Khz
Max. Output Power	10Kw(40℃ ambient Temp)
Output Voltage	Up to 150Vdc
Output Current	Up to 250Adc
Control Port	MODBUS/Analog and Digital I/O
Lamp Monitoring	Voltage/current/power/status code/error code
Protections	Input under/over Voltage； Phase Loss Output Open/Short Output Over voltage Over Temperature Ground & Leakage Fault
Auxiliary Section
Voltage	21Vdc-30Vdc
Current	1.5Adc
Working Environment
Max. ambient Temperature	40℃(up to 1000meters Sea Level)
Max. Humidity	<80%
Protection Class	IP20
Cooling	Forced Air Cooling
Dimension (LWH)mm	682473360
Weight	92Kg

Q1. Can all the products be customized?

A: We are the factory of making UV lamp,UV accessories,UV curing system and IR lamps. All the our products can be made by the details you provide.

Q2. What is the outer package of the product?

A: We use very strong export-specific carton packaging and wooden box packaging to ensure that the goods can be safely delivered to customers.

Q3. Processing cycle?

A: Some of products we have in stock.
IR lamps and UV lamps usually need about 5-30 days to make.
If you need urgently,we will make the UV lamp as soon as our possible.
UV curing system need about 14-28days to prepare.
UV accessories need about 1-7 days to prepare.

Q4. Minimum Order quantity?

A: Customized UV lamps and IR lamps usually is 3-5 pieces for your testing first.Other products MOQ is 1 set/unit.

Q5: Do you accept OEM?

A: Yes.

Q6: Can we be your distributor?

A: Yes, if your annuals sales much more than our other customers in your market that you can be our distributor. Over rich OEM experience, we can provide professional solutions for customers.
