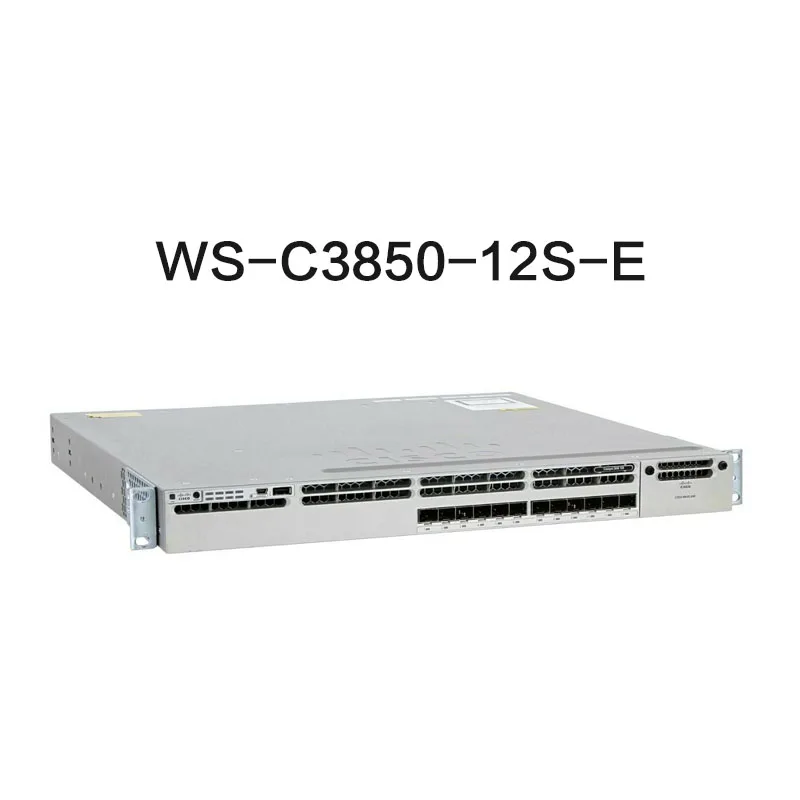

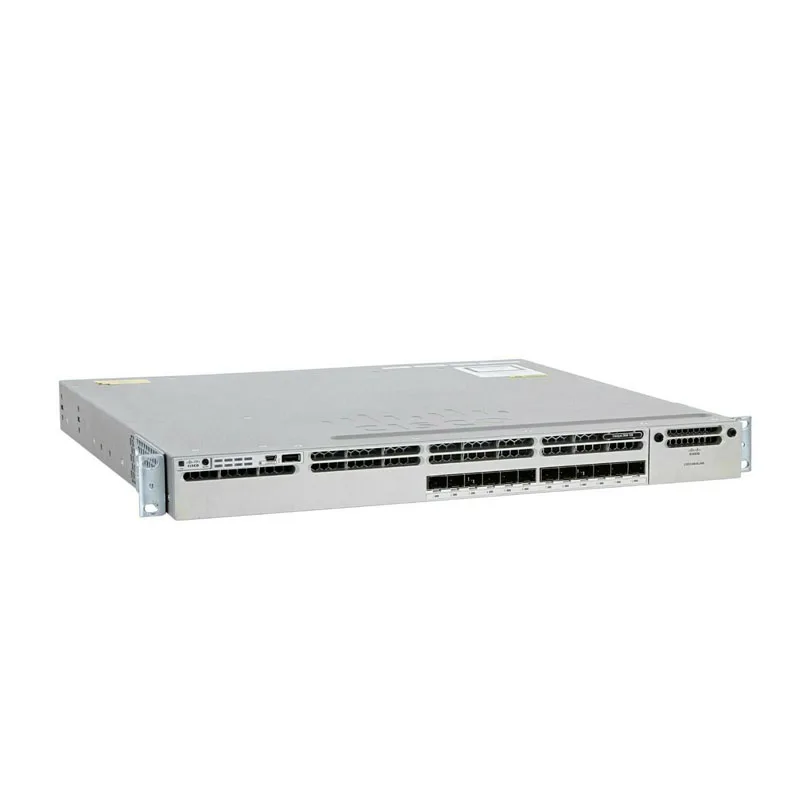

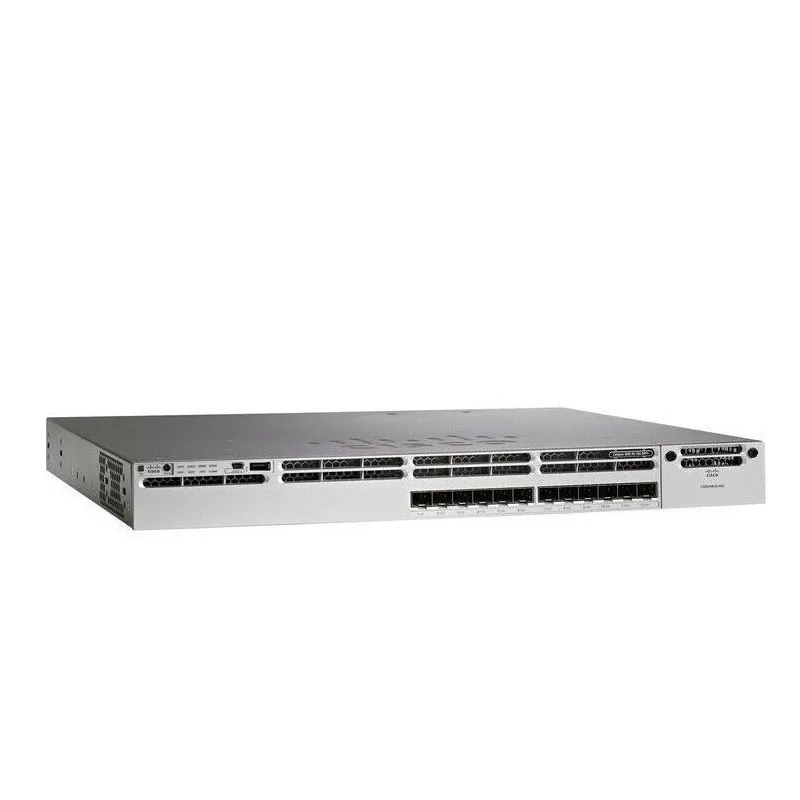

Новый WS-C3850-12S-S WS-C3850-12S-E для 3850 переключатель 12 Порт sfp 1
- Категория: Network Switches >>>
- Поставщик: Henan,Juetai,Information,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.29 $* | 0.90 $* |
| Aug-18-2025 | 0.12 $* | 0.37 $* |
| Jul-18-2025 | 0.58 $* | 0.60 $* |
| Jun-18-2025 | 0.73 $* | 0.46 $* |
| May-18-2025 | 0.62 $* | 0.41 $* |
| Apr-18-2025 | 0.43 $* | 0.63 $* |
| Mar-18-2025 | 0.82 $* | 0.78 $* |
| Feb-18-2025 | 0.1 $* | 0.12 $* |
| Jan-18-2025 | 0.42 $* | 0.97 $* |
Характеристики
Product Description
Specification
Performance numbers for all switch models | ||
Switching capacity | 176 Gbps on 48-port Gigabit Ethernet model 92 Gbps on 24-port Gigabit Ethernet model 68 Gbps on 12-port Gigabit Ethernet model 640 Gbps on 24-port Multigigabit Ethernet model* 472 Gbps on 48-port Multigigabit Ethernet model 1280 Gbps on 48-port 10 Gigabit Ethernet SFP+ model* 640 Gbps on 24-port 10 Gigabit Ethernet SFP+ model* 320 Gbps on 12-port 10 Gigabit Ethernet SFP+ model* | |
Stacking bandwidth | 480 Gbps | |
Total number of MAC addresses | 32,000 | |
Total number of IPv4 routes (ARP plus learned routes) | 24,000 | |
FNF entries | 48,000 flow on 48-port Gigabit Ethernet models 24,000 flows on 12-port and 24-port Gigabit Ethernet models 96,000 flows on 48-port 10 Gigabit Ethernet SFP+ model 48,000 flows on 24-port 10 Gigabit Ethernet SFP+ model 24,000 flows on 12-port 10 Gigabit Ethernet SFP+ model | |
DRAM | 4 GB (8 GB on 48-port SFP+ model) | |
Flash | 2 GB (4 GB on 12-port and 24-port SFP+ models, 8 GB on 48-port SFP+ model) | |
VLAN IDs | 4,000 | |
Total Switched Virtual Interfaces (SVIs) | 1,000 | |
Jumbo frame | 9198 bytes | |
Total routed ports per 3850 stack | 208 | |
Wireless | ||
Number of access points per switch/stack | 100 | |
Number of wireless clients per switch/stack | 2000 | |
Total number of WLANs per switch | 64 | |
Wireless bandwidth per switch | Up to 40 Gbps on 48-port Gigabit Ethernet model Up to 20 Gbps on 24-port Gigabit Ethernet model | |
Supported Aironet access point series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 | |
Forwarding rate of switch models (with 2 x 10 Gigabit + 2 x 1 Gigabit Ethernet uplinks for 12-port and 24-port models and 4 x 10 Gigabit Ethernet uplinks for 48‑port models) | ||
Model | Forwarding rate | |
WS-C3850-12S | 50.5 Mpps | |
WS-C3850-24T WS-C3850-24P WS-C3850-24S | 68.4 Mpps | |
WS-C3850-48T WS-C3850-48P WS-C3850-48F | 130.95 Mpps | |
WS-C3850-24XU | 500 Mpps (80B packets) | |
WS-C3850-12X48U | 460 Mpps (64B packets) | |
WS-C3850-12XS | 227.28 Mpps | |
WS-C3850-24XS | 454.55 Mpps | |
WS-C3850-48XS | 909 Mpps | |
Switch Model | Cisco IOS Image | Description |
WS-C3850-12S-S | IP Base | Stackable 12 SFP module slots, 1 network module slot, 350-W power supply |
WS-C3850-24S-S | IP Base | Stackable 24 SFP module slots, 1 network module slot, 350-W power supply |
Network modules
The Cisco Catalyst 3850 Series Switches support five optional network modules for uplink ports. The default switch configuration
does not include the network module. At the time of switch purchase the customer has the flexibility to choose from the network
modules described in Table 2.
Figure 5 shows the following network modules:
● 4 x Gigabit Ethernet with Small Form-Factor Pluggable (SFP) receptacles
● 2 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP receptacles
● 4 x 10 Gigabit Ethernet with SFP+ receptacles (supported only on the 48-port Gigabit Ethernet models or on the 12-port or higher
10 Gigabit Ethernet models)
The Cisco Catalyst 3850 Series Switches support five optional network modules for uplink ports. The default switch configuration
does not include the network module. At the time of switch purchase the customer has the flexibility to choose from the network
modules described in Table 2.
Figure 5 shows the following network modules:
● 4 x Gigabit Ethernet with Small Form-Factor Pluggable (SFP) receptacles
● 2 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP receptacles
● 4 x 10 Gigabit Ethernet with SFP+ receptacles (supported only on the 48-port Gigabit Ethernet models or on the 12-port or higher
10 Gigabit Ethernet models)
Network modules with four Gigabit Ethernet, two 10 Gigabit Ethernet SFP+, or four 10 Gigabit Ethernet SFP+ interfaces
Figure 6 shows the following network modules:
● 8 x 10 Gigabit Ethernet with Small Form-Factor Pluggable+ (SFP+) receptacles
● 2 x 40 Gigabit Ethernet with Quad Small Form-Factor Pluggable+ (QSFP+) receptacles
Figure 6 shows the following network modules:
● 8 x 10 Gigabit Ethernet with Small Form-Factor Pluggable+ (SFP+) receptacles
● 2 x 40 Gigabit Ethernet with Quad Small Form-Factor Pluggable+ (QSFP+) receptacles
Network modules with two 40 Gigabit Ethernet QSFP+ or eight 10 Gigabit Ethernet SFP+ interfaces
The C3850-NM-4-10G module is supported only on the 48-port Gigabit Ethernet models or on the 12-port or higher 10 Gigabit Ethernet
models. The C3850-NM-8x10G and C3850-NM-2x40G modules are supported on the 24-port and 48-port multigigabit switches and also on
the 24-port 10G SFP+ switch model. The C3850-NM-4-1G and C3850-NM-2-10G modules are not supported on the 12-port and 24-port SFP+
models.
The C3850-NM-4-10G module is supported only on the 48-port Gigabit Ethernet models or on the 12-port or higher 10 Gigabit Ethernet
models. The C3850-NM-8x10G and C3850-NM-2x40G modules are supported on the 24-port and 48-port multigigabit switches and also on
the 24-port 10G SFP+ switch model. The C3850-NM-4-1G and C3850-NM-2-10G modules are not supported on the 12-port and 24-port SFP+
models.
Model | Network modules |
WS-C3850-12S | C3850-NM-4-1G, C3850-NM-2-10G |
WS-C3850-24S | C3850-NM-4-1G, C3850-NM-2-10G |
Dimensions (H x W x D) | Inches | Centimeters |
WS-C3850-12S WS-C3850-24S WS-C3850-24T WS-C3850-24P WS-C3850-48T WS-C3850-48P | 1.75 x 17.5 x 17.7 | 4.45 x 44.5 x 45.0 |
WS-C3850-48F WS-C3850-48U WS-C3850-24U WS-C3850-24XU WS-C3850-12X48U | 1.75 x 17.5 x 19.2 | 4.45 x 44.5 x 48.8 |
WS-C3850-12XS WS-C3850-24XS | 1.75 x 17.5 x 17.7 | 4.45 X 44.5 x 45.0 |
WS-C3850-48XS | 1.75 x 17.5 x 20.1 | 4.45 X 44.5 x 51.1 |
Weight | Pounds | Kilograms |
WS-C3850-12S | 15.48 | 7.02 |
WS-C3850-24S | 15.5 | 7.03 |
WS-C3850-24T | 15.9 | 7.2 |
WS-C3850-24P | 16.3 | 7.4 |
WS-C3850-24U | 16.5 | 7.5 |
WS-C3850-48T | 17.0 | 7.7 |
WS-C3850-48P | 17.4 | 7.9 |
WS-C3850-48F | 17.6 | 8.0 |
WS-C3850-48U | 17.6 | 8.0 |
WS-C3850-24XU | 17.6 | 8.0 |
WS-C3850-12X48U | 17.6 | 8.0 |
WS-C3850-12XS | 12.9 | 5.8 |
WS-C3850-24XS | 13.5 | 6.1 |
WS-C3850-48XS | 16.42 | 7.45 |
C3850-NM-4-1G | 0.66 | 0.30 |
C3850-NM-2-10G | 0.71 | 0.32 |
C3850-NM-4-10G | 0.75 | 0.34 |
C3850-NM-8-10G | 0.74 | 0.34 |
C3850-NM-2-40G | 0.62 | 0.28 |
