Характеристики

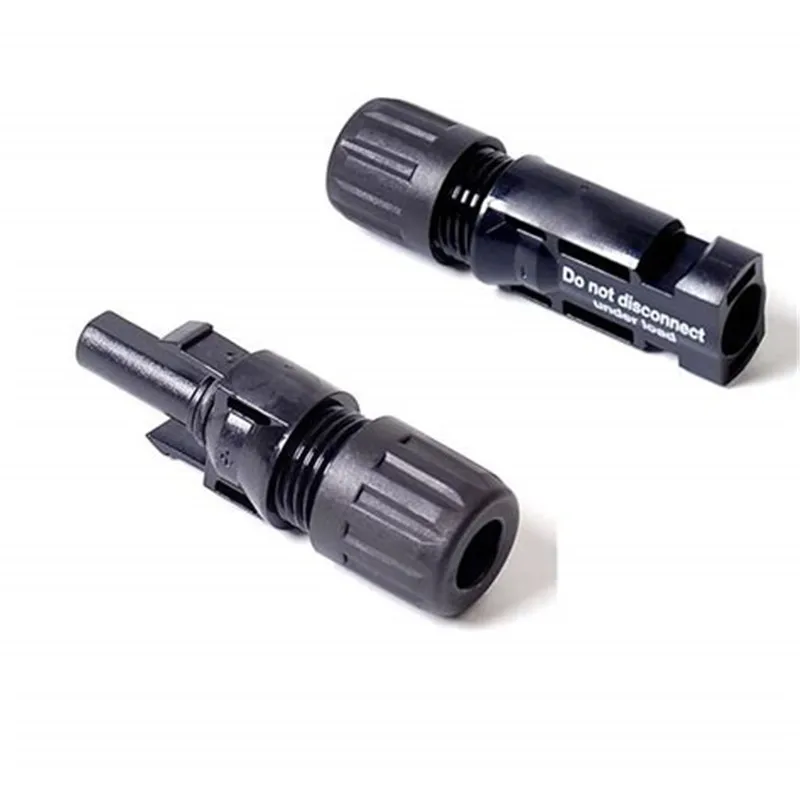

solar cable connector
1.Water proof and dust proof 2.Simple,quick installation 3.compatible with MC4 solar connector 4.competitive price
Main feature: 1.With excellent aging resistance and UV endurance. 2.It can be used in harsh environment. 3.It does not need extra instruments for the removal of plugs 4.Removal will not cause any harm to plugs. 5.Load capablility with big current and high voltage 6.Good ability of resistance and machine shocking 7.Lower contact resistance 8.Created seal ,design of water proof and dust proof 9.Eligible plastic material has marvelous performances of high low temperature,fireproof,anti- Ultraviolet rays and applied to the long-time operation outside.
Technical data: Mode: RO-1T Insulation material: PPO Rated current: 30A Rated voltage: 1000V Test voltage:6KV(50Hz,1Min) Contact material:Copper,Tin plated Contact resistance:5mΩ Protection degree: IP67 Safety class: Ⅱ Flame class:**94-V0 Insertion force: ≤50N Withdrawal force: ≥50N Ambient temperature range:-40℃~+90℃ Pin dimensions: φ4.0mm Suitable cable: 2.5~6.0mm2AWG14/12/10
Package:
|
