  • Подшипник хорошее послепродажное обслуживание завод цилиндрический роликовый подшипник 40*90*23
Подшипник хорошее послепродажное обслуживание завод цилиндрический роликовый подшипник 40*90*23
Подшипник хорошее послепродажное обслуживание завод цилиндрический роликовый подшипник 40*90*23
Подшипник хорошее послепродажное обслуживание завод цилиндрический роликовый подшипник 40*90*23
Подшипник хорошее послепродажное обслуживание завод цилиндрический роликовый подшипник 40*90*23
Подшипник хорошее послепродажное обслуживание завод цилиндрический роликовый подшипник 40*90*23
Подшипник хорошее послепродажное обслуживание завод цилиндрический роликовый подшипник 40*90*23

Подшипник хорошее послепродажное обслуживание завод цилиндрический роликовый подшипник 40*90*23


Поделиться:


Цена:6,50 $ - 7,63 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 7.69 $* 7.29 $*
Aug-16-2025 7.49 $* 7.8 $*
Jul-16-2025 6.26 $* 6.73 $*
Jun-16-2025 7.47 $* 7.35 $*
May-16-2025 6.95 $* 6.46 $*
Apr-16-2025 7.63 $* 7.63 $*
Mar-16-2025 7.50 $* 7.2 $*
Feb-16-2025 7.68 $* 7.38 $*
Jan-16-2025 7.26 $* 7.6 $*

Характеристики



Product Description


about Cylindrical roller bearings

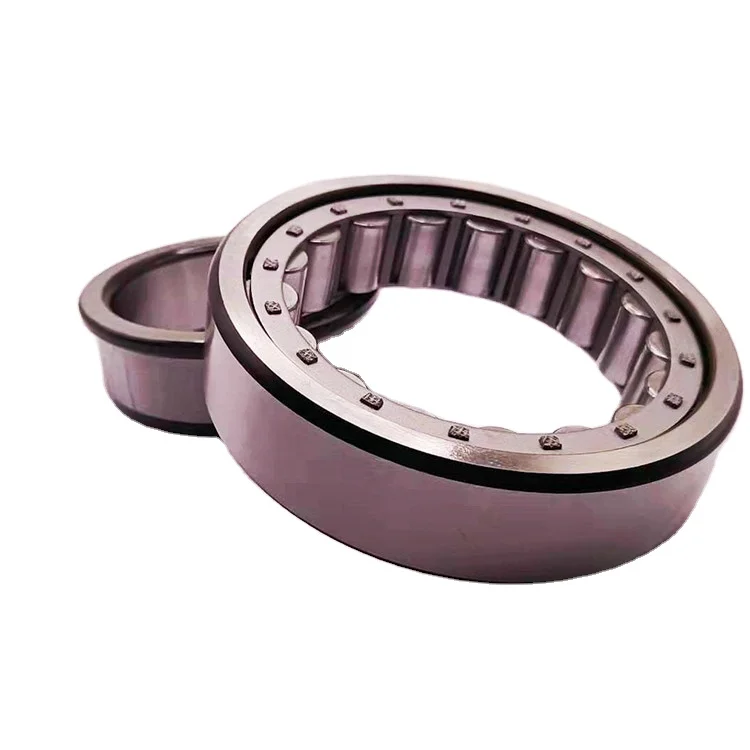

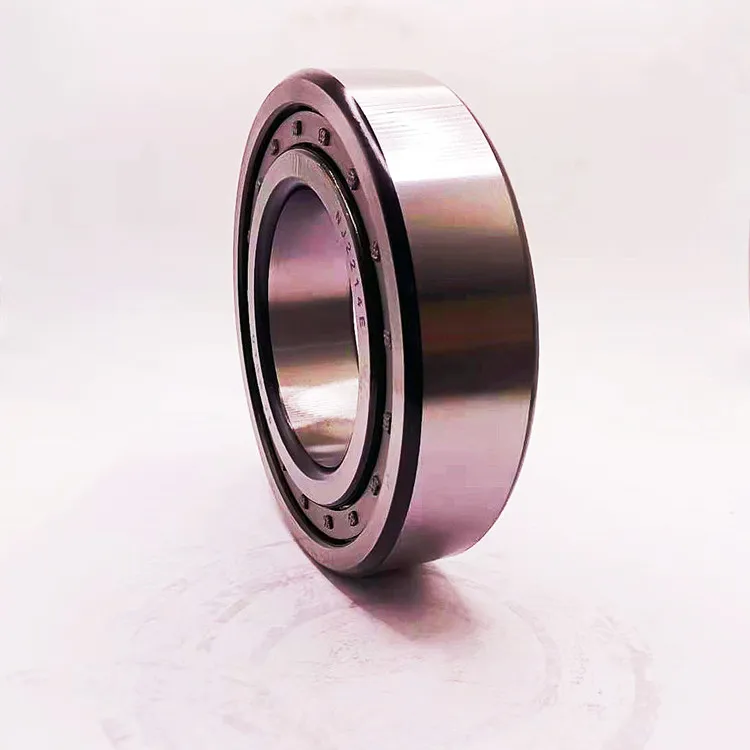

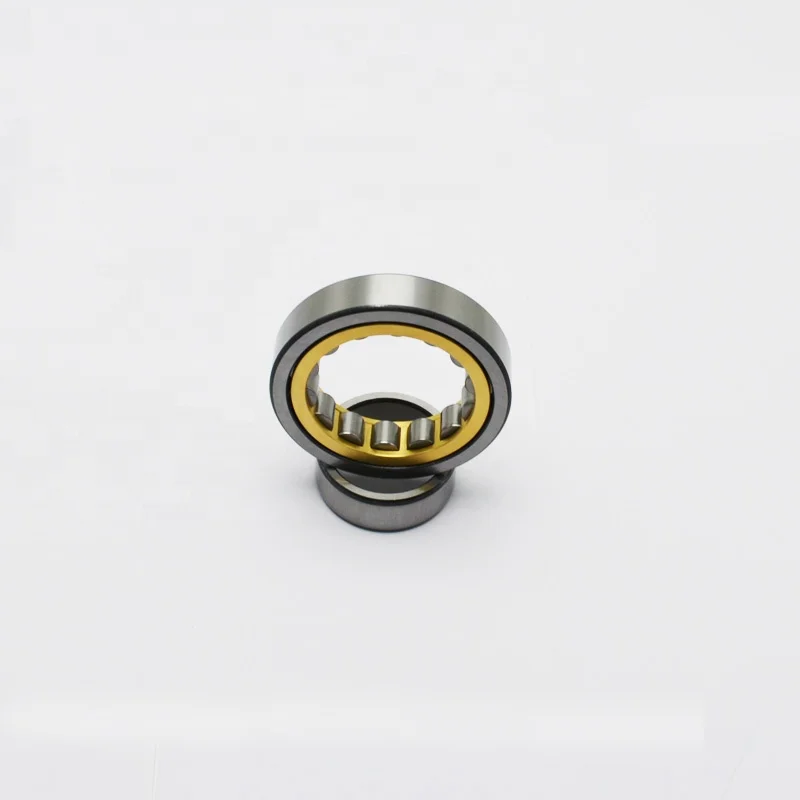

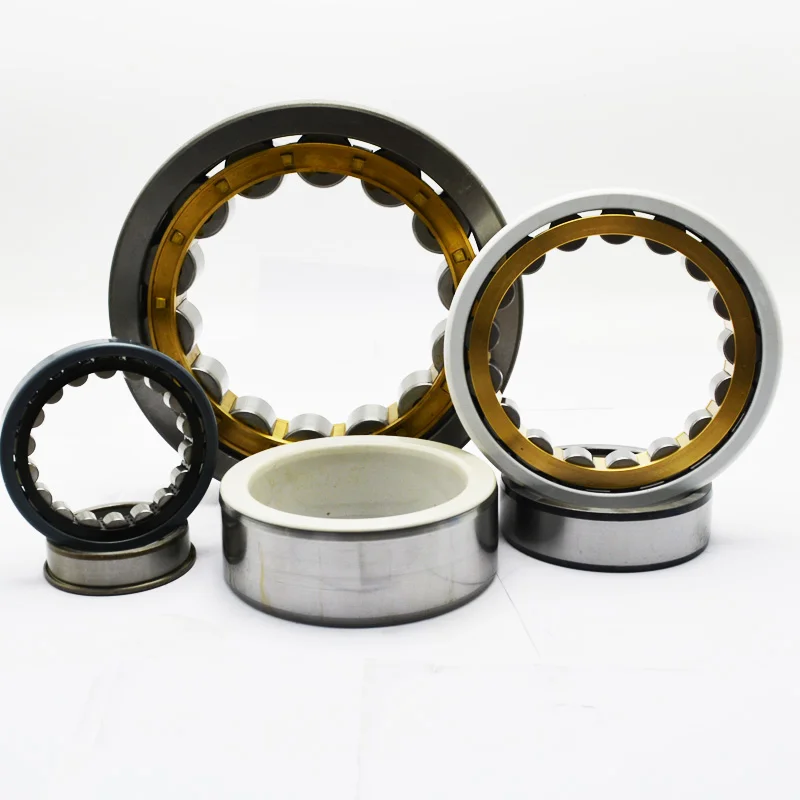

Cylindrical roller bearings are consists of outer ring, inner ring, rollers and cage. The ring has ribs on both sides. Normally the structure of bearing is that cage, rollers and one ring build up the assembly, and another ring is separable. In special cases, cylindrical roller bearings without retainers can be formed.
* Standards：GOST/ASTM/GB
* Inner diameter (ID)：20mm-1400mm
* Outer diameter (OD)：40mm-2000mm
* Weight：0.001kg-915kg
* Structures：outer ring, inner ring, rollers and cage.
* Applications：large and medium-sized motors, locomotive vehicle, machine tool spindles, internal combustion engines, generators, gas turbines, gearboxes, rolling mills, vibrating screens, and lifting and transportation machinery.


The clearance of SYL standard cylindrical roller bearings meets the requirements of GB/T4604 "radial clearance of rolling
bearings".


The tolerance of SYL standard cylindrical roller bearings meets the requirements of GB/T307.1 "Tolerance of rolling bearing
radial bearing" and other standards.


The dimensional tolerance grade of SYL cylindrical roller bearings is generally made according to P0 (normal grade) and clearance according to group 0 (basic group).


The outer dimensions of SYL cylindrical roller bearings conform to GB/T273.3 "Genera plan for the outer dimensions of rolling bearing radial bearing", GB/T283 "Dimensions of rolling bearing cylindrical roller bearings", GB/T285 "Dimensions of rolling bearing double row cylindrical roller bearings", JB/T5389.1 "Rolling bearing and four row cylindrical roller bearings for rolling mills" and other regulations.


Non-standard cylindrical roller bearing     customization
Non-standard cylindrical roller bearing customization is a main part of SYL categories. It can be customized according to the customer's working conditions or the place where the bearing works. Internally we can optimize and improve the design of the cylindrical roller bearing, which can improve the loading capacity and service life of bearing.


Our SYL enables non-standard cylindrical roller bearings to operate safely and smoothly with precision roller selection and bearing raceway production, to achieve optimum bearing performance.


Tips
Conversion table of bearing ball material
Bearing steel ball material comparison table


GB (China)
Gcr15
GCr15SiMn
ASTM/AISI (USA)
52100
*
ГОСТ(Russia)
ШX15
ШX15CГ
BS (UK)
534A99
*
JIS (Japan)
SUJ2
SUJ3
NF (France)
100C6
100CrMn6
VDEh (Germany)
100Cr6 (1.3505)
1.352
Grade of rollers
G1, G1A, G2, G2A, G3, G5


Standard of bearing precision level


Standard
Precision level
GOST
Class 0
Class 6
Class 5
Class 4
Class 2
ISO
P0
P6
P5
P4
P2


Our certificate






Specification


item
value
Type
Roller
Structure
cylindrical
Applicable Industries
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Retail, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company
Brand Name
SYL
Model Number
NF308M/12308H
Precision Rating
P0 P5 P4P6 P2
Number of Row
Single row
Place of Origin
China
Shandong
Size
40*90*23mm
Weight
0.726kg
Cage
Steel Cage.Brass Cage.Nylon Cage
Feature
high-precision Long Life
MOQ
10pcs
Sample
Avaible
Package
Original Packing OR OEM


Company Profile




Established in 2006,Shandong SYL bearing co., ltd is located in jinan western industrial area, jinan city, shandong province. Our company is an enterprise integrating R&D, production, sales and service. The company specializes in the production of industrial bearing, agriculture bearing, Automotive bearings, Petroleum Drilling Bearing and so on. We can provide hub units, wheel bearing and kits, tensioner pulley, clutch assembly bearing, gearbox bearing and other bearings for lada, Korean car, Japanese car, Germany car, American car and so on .








Sample Room




We are at the exhibition




Other models


NEW
OLD
SIZE mm(d*D*B)
RN207M
502207H
35*61.8*17
RNU207M
292207H
43.8*72*17
N208EM
2208H
40*80*18
NU208EM
32208H
40*80*18
NJ208EM
42208H
40*80*18
NF208EM
12208H
40*80*18
RN208M
502208H
40*70*18
RNU208M
292208H
50*80*18
N209EM
2209H
45*85*19
NU209EM
32209H
45*85*19
NU209EM-2RZ/Z1
45*85*19
NJ209EM
42209H
45*85*19
NF209EM
12209H
45*85*19
RN209M
502209H
45*75*19
RNU209M
292209H
55*85*19
N210EM
2210H
50*90*20
NU210EM
32210H
50*90*20
NJ210EM
42210H
50*90*20
NF210EM
12210H
50*90*20
N211EM
2211H
55*100*20
NU211EM
32211H
55*100*20
NU211EM/S0
32211HT
55*100*20
NJ211EM
42211H
55*100*20
NF211EM
12211H
55*100*20
N212EM
2212H
60*110*32
NU212EM
32212H
60*110*32
NJ212EM
42212H
60*110*32
NF212EM
12212H
60*110*32
N213EM
2213H
65*120*23
NU213EM
32213H
65*120*23
NJ213EM
42213H
65*120*23
NF213EM
12213H
65*120*23
N214EM
2214H
70*125*24
NU214EM
32214H
70*125*24
NJ214EM
42214H
70*125*24
NF214EM
12214H
70*125*24
N215EM
2215H
75*130*25
NU215EM
32215H
75*130*25
NJ215EM
42215H
75*130*25
NF215EM
12215H
75*130*25
N216EM
2216
80*140*​​26
NU216EM
32216
80*140*​​26
NJ216EM
42216
80*140*​​26
NF216EM
12216
80*140*​​26
N217EM
2217H
85*150*28
NU217EM
32217H
85*150*28
NJ217EM
42217H
85*150*28
NF217EM
12217H
85*150*28
N218EM
2218H
90*160*30
NU218EM
32218H
90*160*30
NJ218EM
42218H
90*160*30
NF218EM
12218H
90*160*30
N219EM
2219H
95*170*32
NU219EM
32219H
95*170*32
NJ219EM
42219H
95*170*32
NF219EM
12219H
95*170*32
N220EM
2220H
100*180*34
NU220EM
32220H
100*180*34
NJ220EM
42220H
100*180*34
NF220EM
12220H
100*180*34
N221EM
2221H
105*190*36
NU221EM
32221H
105*190*36
NJ221EM
42221H
105*190*36
NF221EM
12221H
105*190*36
N222EM
2222H
110*200*38
NU222EM
32222H
110*200*38
NJ222EM
42222H
110*200*38
NF222EM
12222H
110*200*38
N224EM
2224H
120*215*40
NU224EM
32224H
120*215*40
NJ224EM
42224H
120*215*40
NF224EM
12224H
120*215*40
N226E
2226E
130*230*40
NU226E
32226E
130*230*40
NU226E/C3Z
C3G32226E
130*230*40
NJ226E
42226E
130*230*40
NJ226EQ1/C3S0
3E42226EQT
130*230*40
纳米
226H
130*230*40
NU226M
32226H
130*230*40
NU226EQ1/S0
32226H
130*230*40
NU226EQ1/C3S0
3E32226EQT
130*230*40
NU226M/C3Z1
3G32226EQT
130*230*40
NJ226M
42226H
130*230*40
NJ226M/C3Z1
42226H
130*230*40
RNU226M
292226H
130*230*40
NUP226E
92226E
130*230*40
NUP226M
92226H
130*230*40
N228E
2228E
140*250*42
NU228E
32228
140*250*42
NU228EQ1/C3S0
3E32228EQT
140*250*42
NJ228E
42228E
140*250*42
N228QJ
2228Q
140*250*42
N228M
2228H
140*250*42
N228M/C3
140*250*42
N228M/Z1
140*250*42
NU228M
32228H
140*250*42
NJ228M
42228H
140*250*42
RNU228M
292228H
140*250*42
RN228M
502228H
140*250*42




FAQ


1. who are we?
We are based in Jinan, China, start from 2019,sell to Eastern Asia(30.00%),North America(20.00%),Eastern Europe(20.00%),Southeast Asia(10.00%),Mid East(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
bearings,Tools & Hardware,Car headlights,Brake pads,car engine

4. why should you buy from us not from other suppliers?
We are a factory with 20 years of experience in Production and R & D, providing customized, ODM , OEM services, and has the price advantage to ensure high-end product quality.

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Russian
