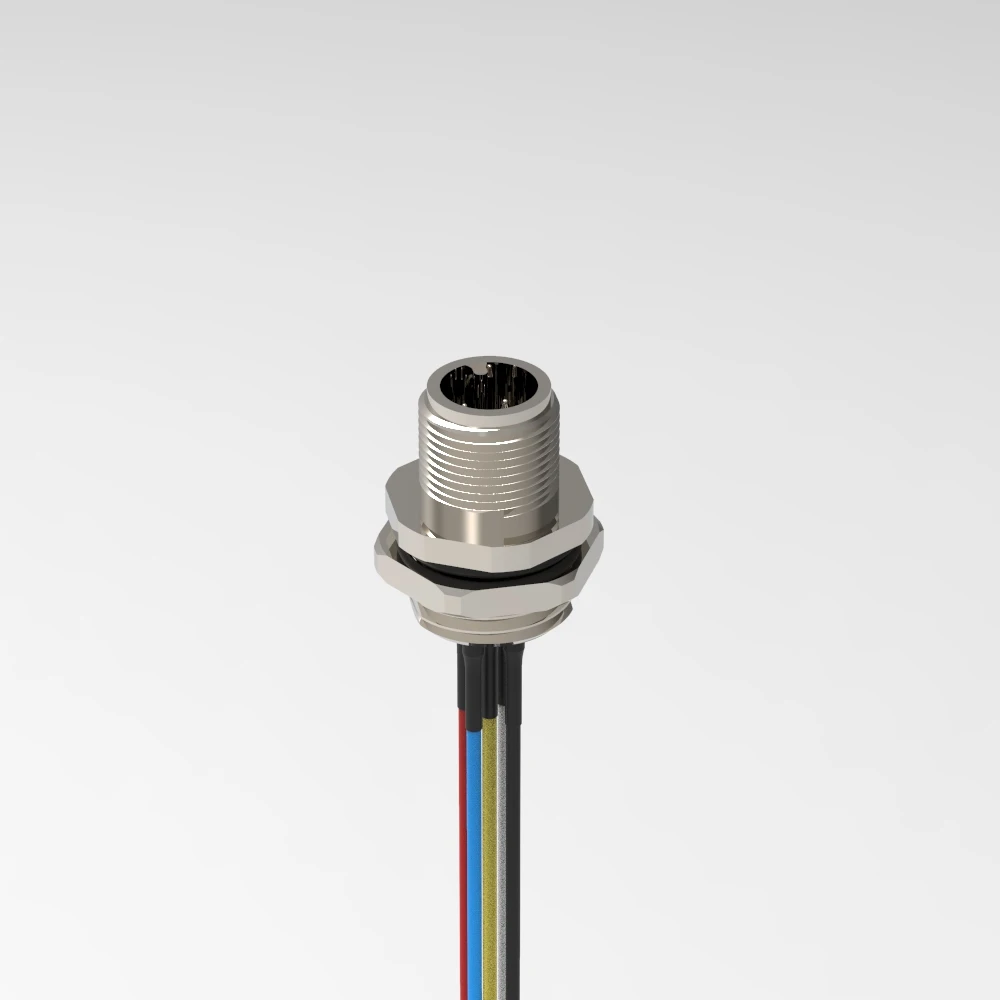

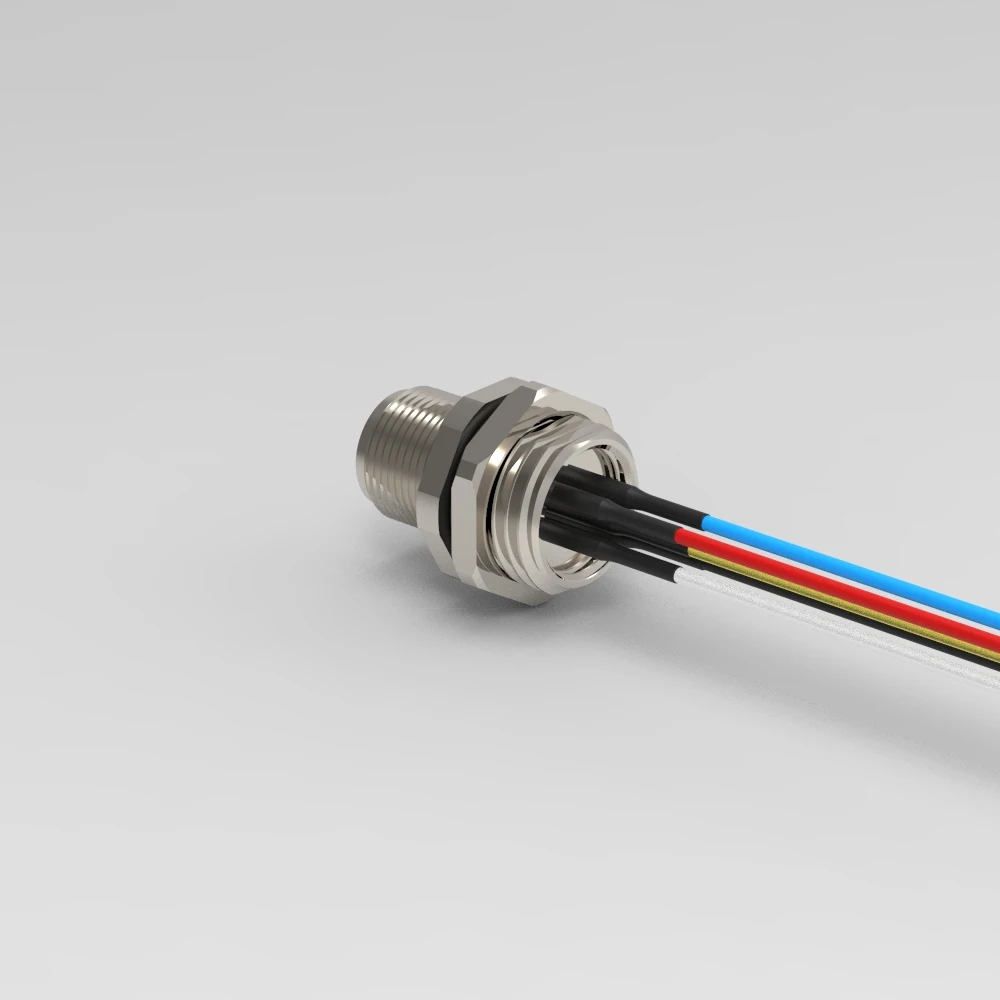

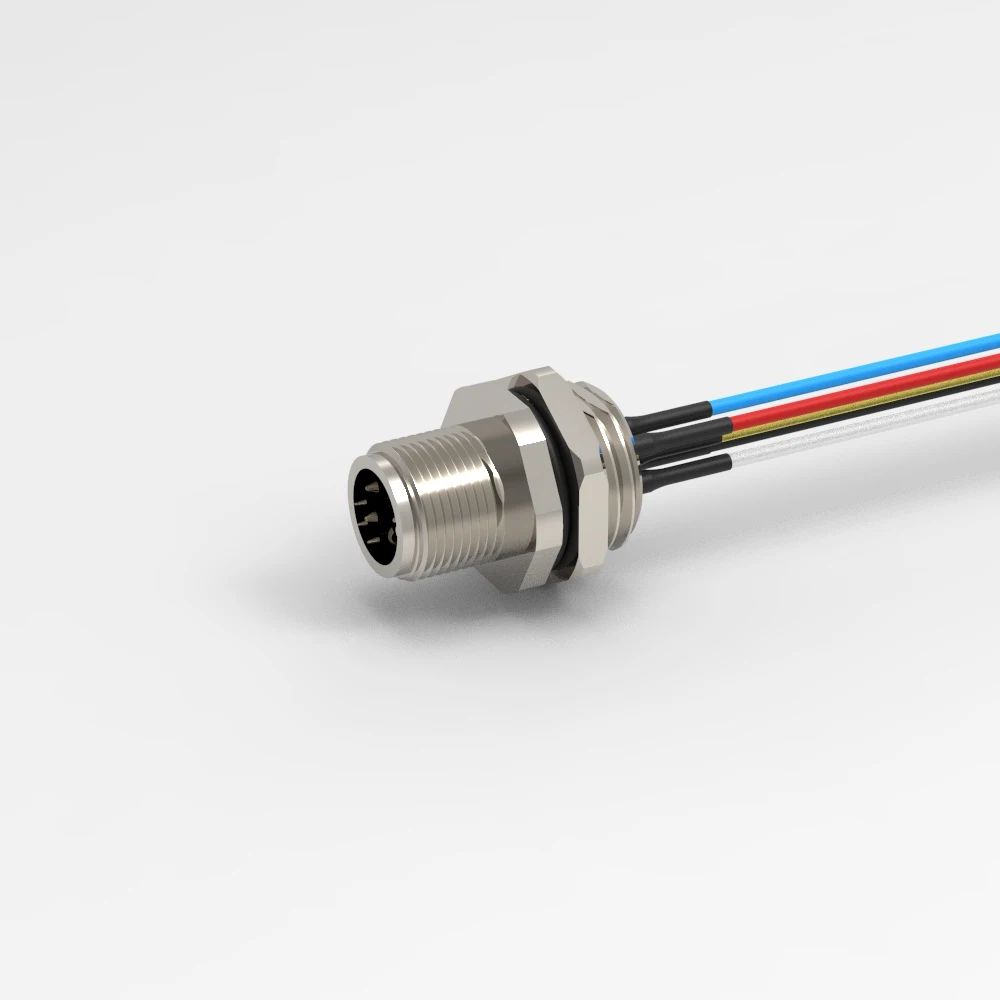

M12 5 pin-код мужской разъем m12
- Категория: Connectors & Terminals >>>
- Поставщик: Shenzhen,Aovlex-Link,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2.42 $* | 2.98 $* |
| Aug-18-2025 | 2.14 $* | 2.53 $* |
| Jul-18-2025 | 2.83 $* | 2.42 $* |
| Jun-18-2025 | 2.56 $* | 2.8 $* |
| May-18-2025 | 2.51 $* | 2.34 $* |
| Apr-18-2025 | 2.4 $* | 2.8 $* |
| Mar-18-2025 | 2.26 $* | 2.49 $* |
| Feb-18-2025 | 2.67 $* | 2.89 $* |
| Jan-18-2025 | 2.10 $* | 2.96 $* |
Характеристики
Product Description
| Product Name | M12 front panel mount Connector 5-Pin Female cable | ||
| Brand Name | aovlex-link | Model Number | L08ND110A0406 |
| Length | 0.5M | Application | sensor;actuator, encoder, Ethernet |
| Connector | M12 5Pin | Wire | AWG22#*4 / 0.34*4 |
| male | PVC/PU | ||
| Shielding: | braid | Color | Black |
| MOQ | 100 pcs | Customization | OEM/ODM |
| Packaging | Polybag | Weight | 256g~ |
| Certification | CE | Warranty | 1 year |
| Specification | 1) material: | ||
| Connector: M12 5Pin,male | |||
| Code: A | |||
| Contacts: Brass, Gold Plated | |||
| Housing: Nylon+GF | |||
| Wire: AWG22#*4 / 0.34*4 | |||
| Shield: Available | |||
| Jacket: PVC, black | |||
| OD:4.5mm; | |||
| Length: customized | |||
| 2) Electrical performance: | |||
| Rated current: 4A | |||
| Rated voltage: 30V | |||
| Insulation resistance: > 30.5 MΩ/km | |||
| Test voltage: 2000 V | |||
| maximum resistance: <57 Ω/km | |||
| 3) Environment temperature: | |||
| Ambient temperature for operation: -25...80 °C | |||
| 4) Waterproof Rating: IP65, IP67~68 | |||
| 5) Standards: IEC 61076-2-101 | |||
| IEC 61076-2-104 | |||
| 6) Certificate: CE | |||
