Huachen SG(B) 30kVA-2500kVA Non-encapsulated Dry-type transformer

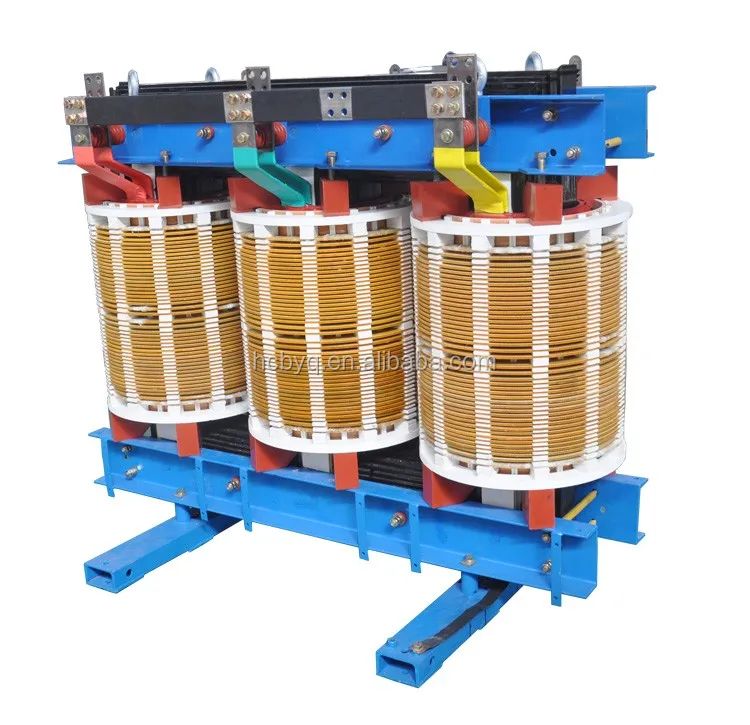

SG(B) Non-encapsulated Dry-type transformer

1. The well-designed coil structure and vacuum impregnation treatment process make the SG(B) transformer have no partial discharge, and during the whole life, there is no cracking phenomenon, and there is no imagination of the insulation level drop.

2. The high voltage adopts continuous winding, low voltage foil winding, the whole vacuum impregnation and curing treatment and adopts high-strength ceramic support, which has a good ability to withstand sudden short-circuit current.

3. Flame retardant, flame retardant, non-toxic, self-extinguishing, and fireproof.

4. Under the high-temperature open flame, the SG(B) transformer hardly produces any smoke.

5. The transformer is H-class (180℃) insulation.

6. The insulating layer is thin and uniform. Strong short-term overload capacity, no forced cooling, long-term overload of 120% and 140% overload for 3 hours. Since this insulating material is not aging and elastic, it can be fully loaded immediately at ±50°C.



SG(B) Non-encapsulated Dry-type transformer
Model	Load loss (W)	Voltage combination(kV)			Short circuit impedance(%)
		B(100℃)	F(120℃)	H(145℃)
SG(B)-315	880	3270	3470	3730	4
SG(B)-400	980	3750	3990	4280
SG(B)-500	1160	4590	4880	52301
SG(B)-630	1340	5530	5880	6290
SG(B)-630	1300	5610	5960	6400	6
SG(B)-800	1520	6550	6960	7460
SG(B)-1000	1770	7650	81301	8760
SG(B)-1250	2090	9100	9690	10300
SG(B)-1600	2450	11000	11700	12500
SG(B)-2000	3050	13600	14400	15500
SG(B)-2500	3600	16100	17100	18400
SG(B)-1600	2450	12200	12900	13900	8
SG(B)-2000	3050	15000	15900	17100
SG(B)-2500	3600	17700	18800	20200
