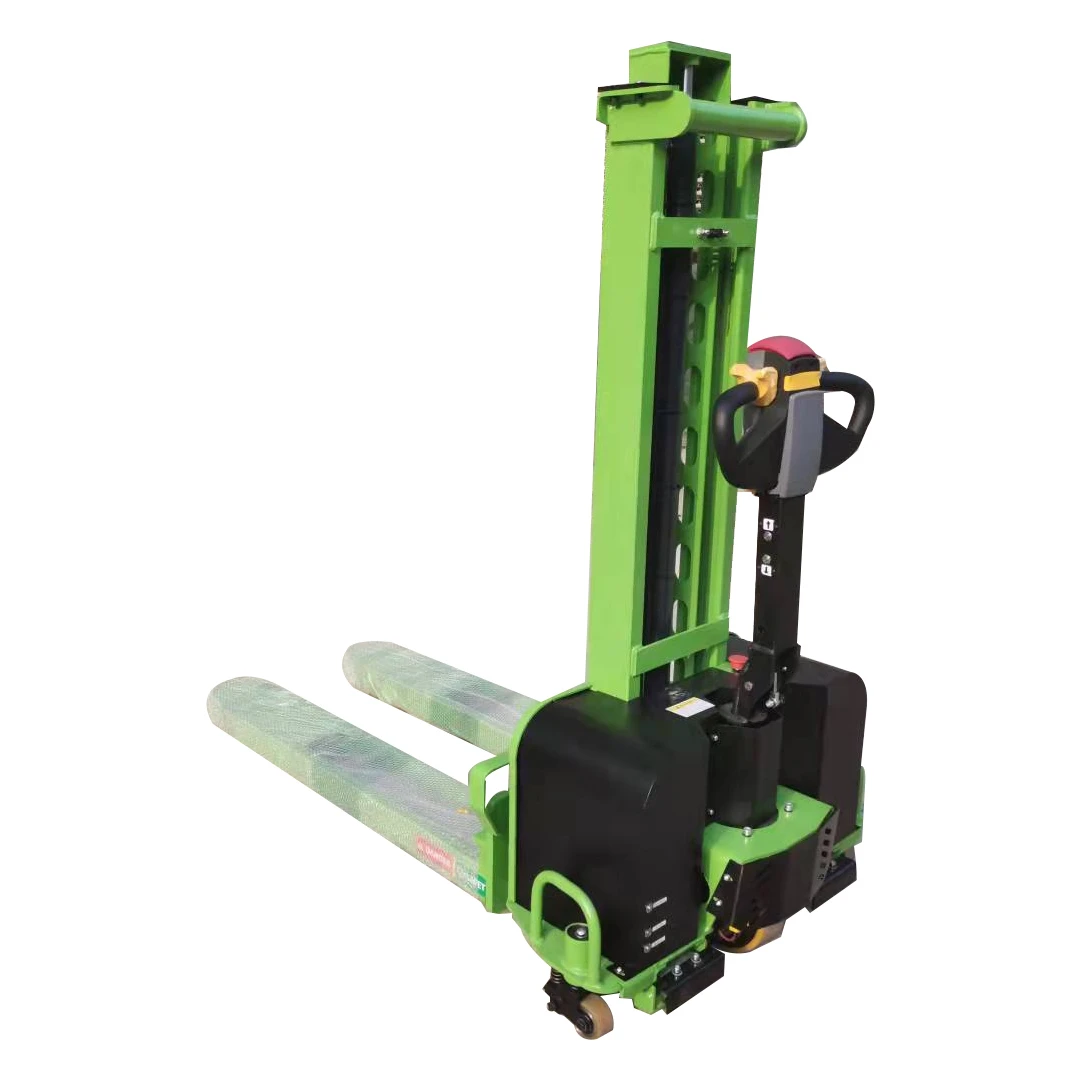

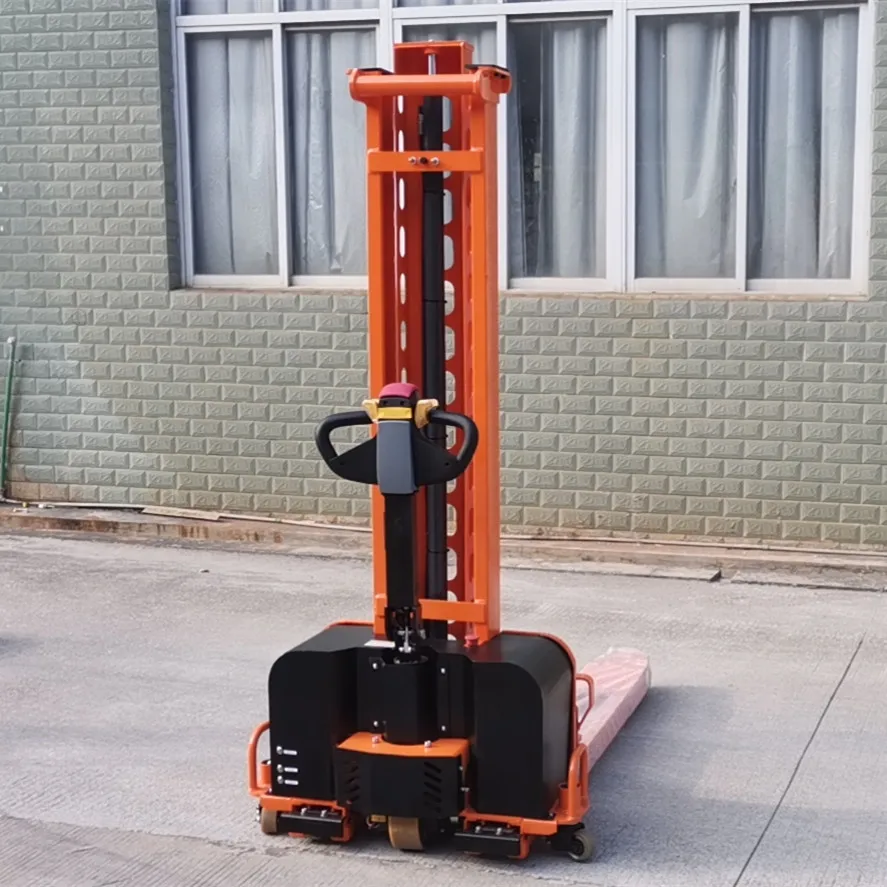

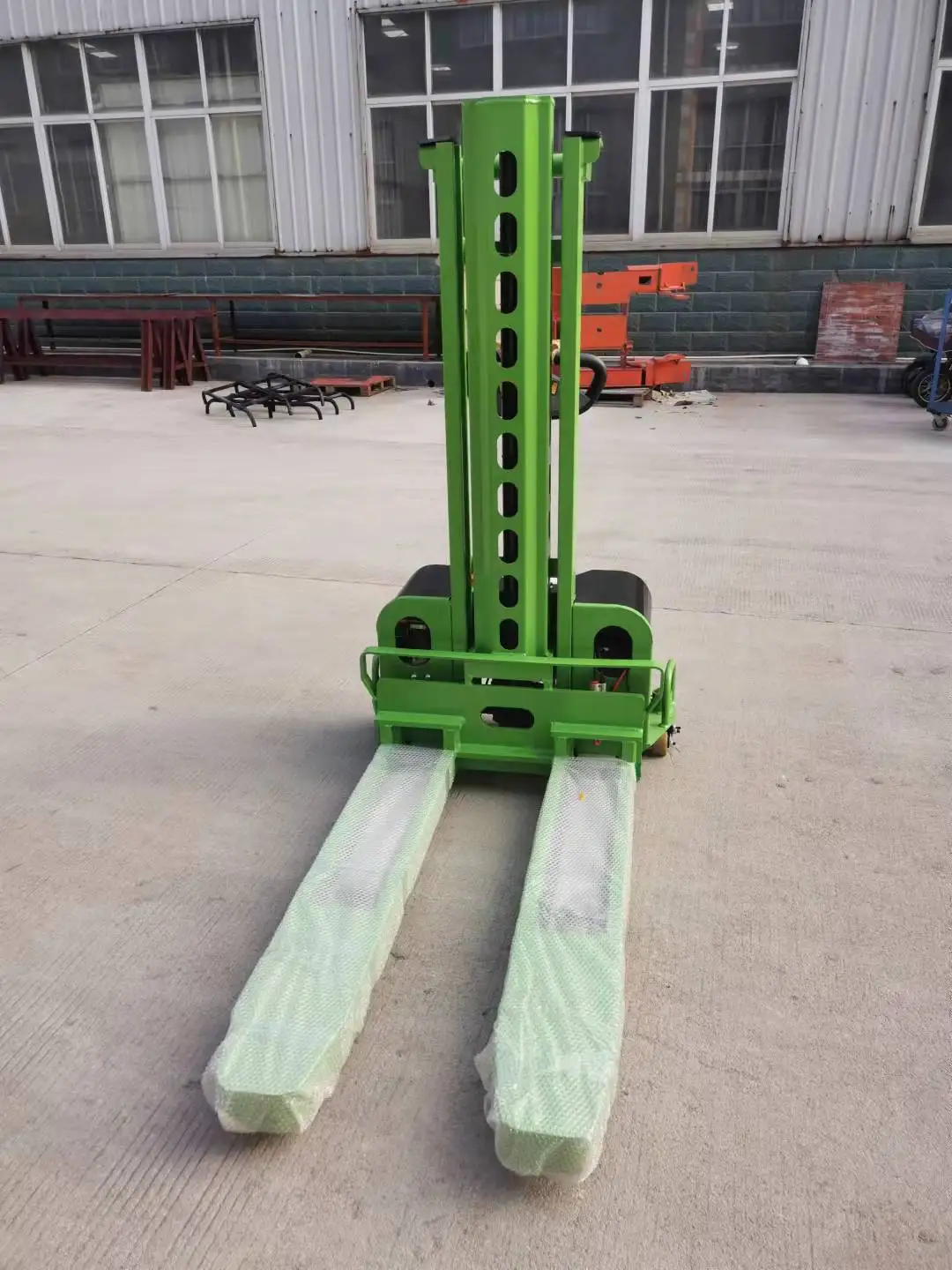

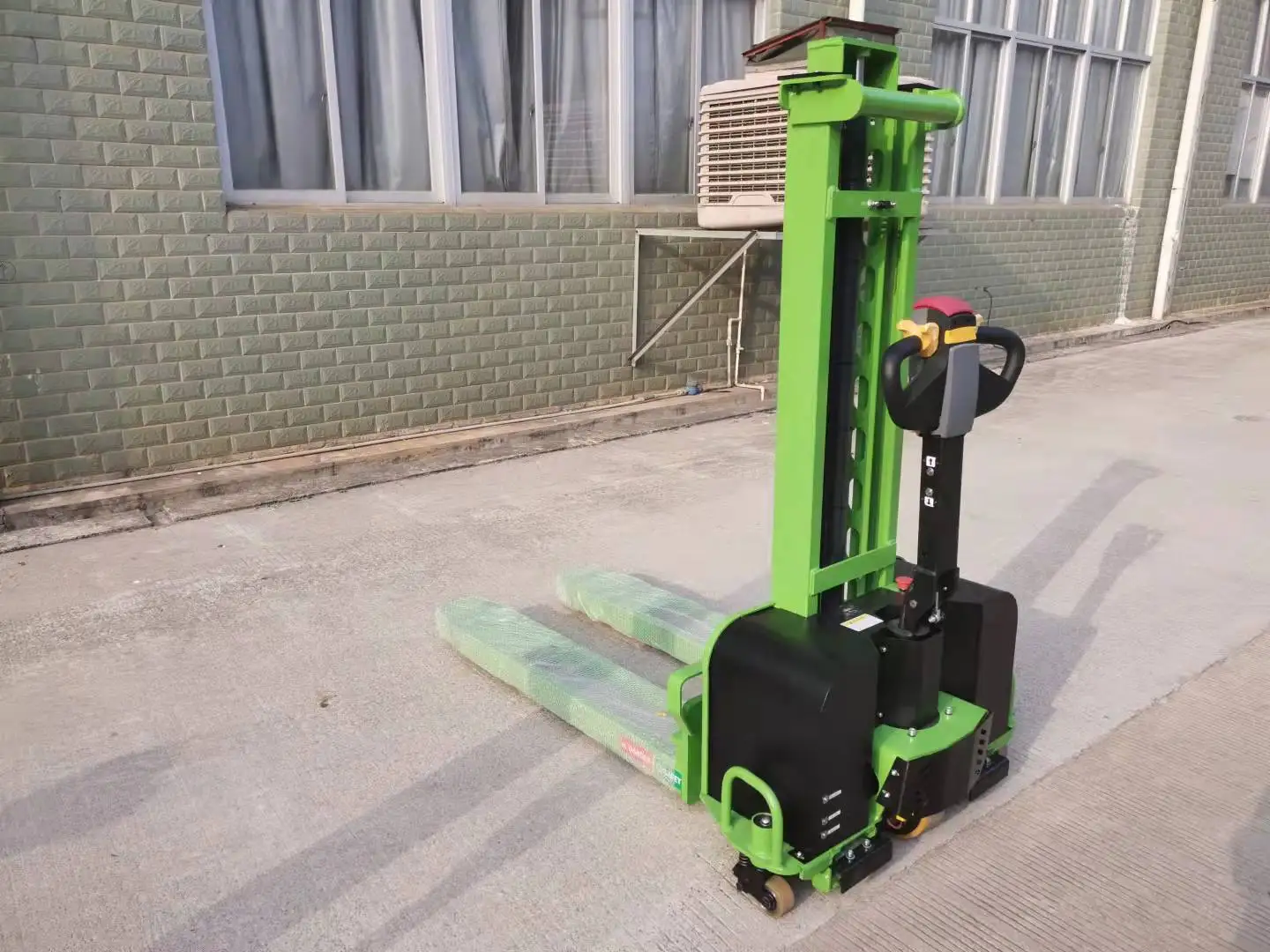

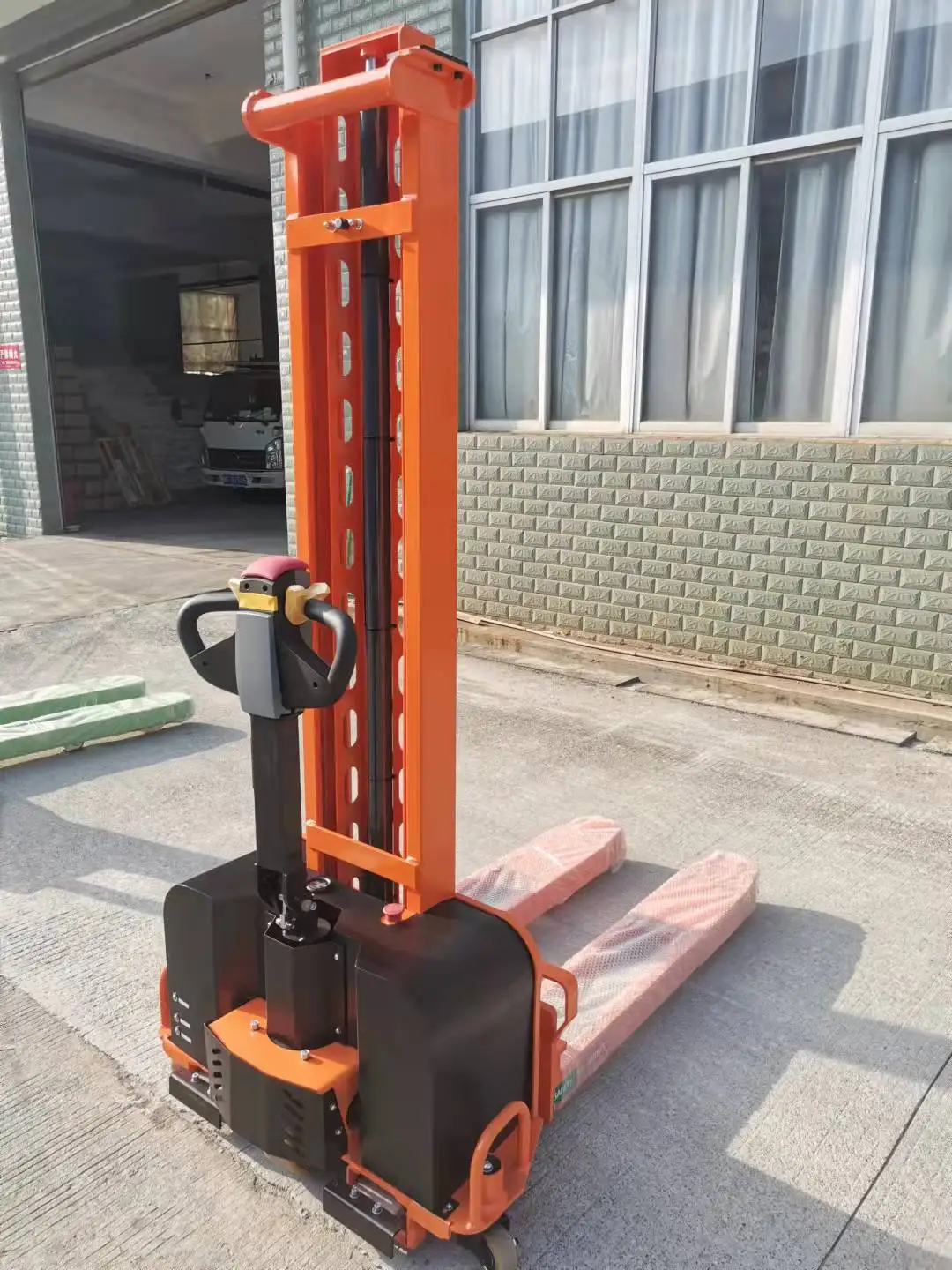

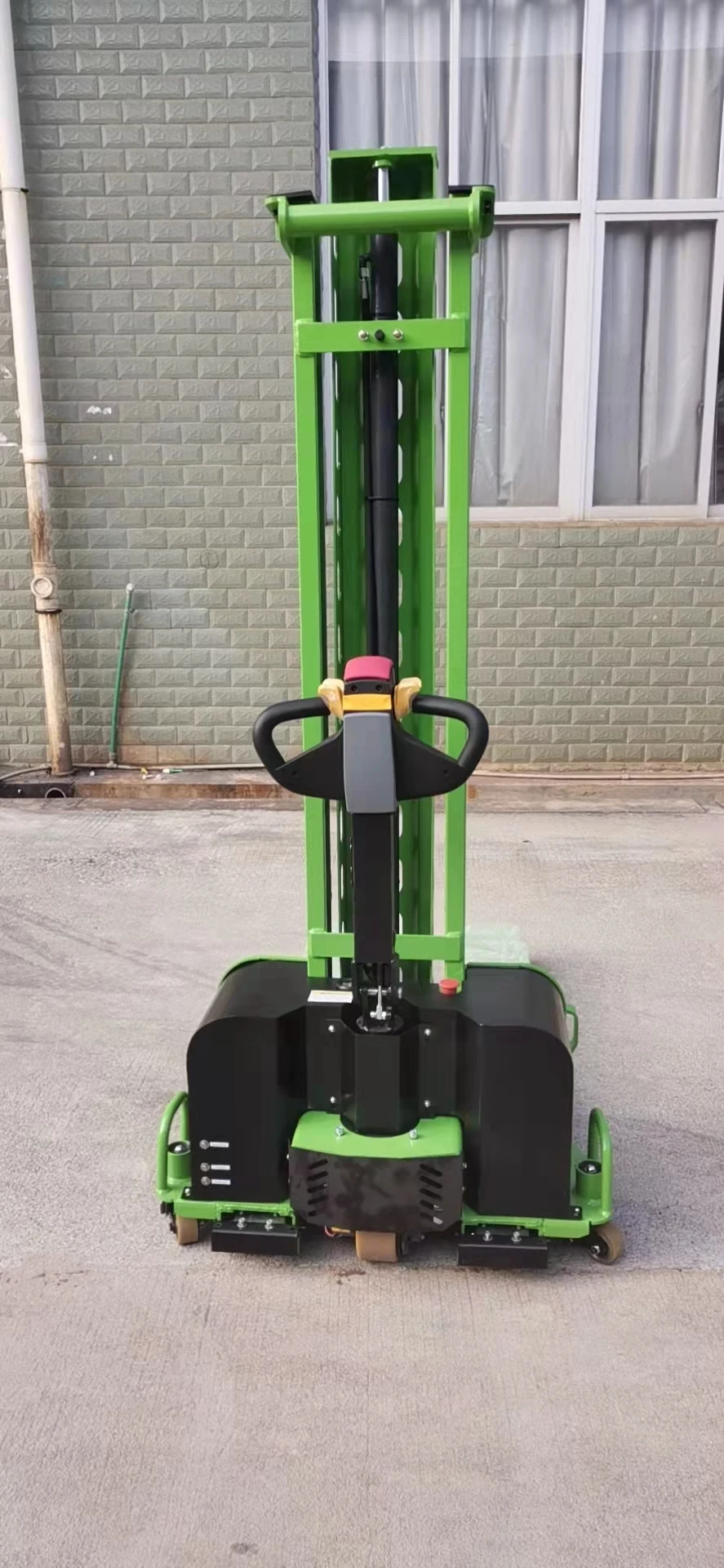

Weliftrich 0.5ton 0.7ton 1ton 500 кг 700 1000 полный электрический портативный само загружающийся Штабелер Электрический подъемный вилочный

Weliftrich 0.5ton 0.7ton 1ton 500 кг 700 1000 полный электрический портативный само загружающийся Штабелер Электрический подъемный вилочный

Цена:950,00 $ - 1 150,00 $*

Количество:

Full Electric Self loading stagker

Model		ZTS-07F
Model		ZTS-07F
Maximum load capacity	kg	700	700	700	700	700
with load center at	mm	400	400	400	400	400
Weight (with battery)	kg	432	436	444	452	460
Maximum lifting height	mm	800	900	1100	1300	1500
Lifting speed (without load)	mm/s	140	140	140	140	140
Lifting speed (with load)	mm/s	135	135	135	135	135
Lowered speed (without load)	mm/s	140	140	140	140	140
Lowered speed (with load)	mm/s	145	145	145	145	145
Overall length of frame	mm	1658	1658	1658	1658	1658
Overall width of frame	mm	900	900	900	900	900
Mast lowered height	mm	1158	1258	1458	1658	1858
Max height(mast lifted with backrest	mm	2375	2475	2675	2875	3075
Wheelbase	mm	985	985	985	985	985
Fork length	mm	1188	1188	1188	1188	1188
Fork outside width	mm	565/680	565/680	565/680	565/680	565/680
Fork inside width	mm	195/310	195/310	195/310	195/310	195/310
Fork thickness	mm	80	80	80	80	80
width of theoretical minimum aisle for right-angle stacking (1200x1000)	mm	1500	1500	1500	1500	1500
Min ground height	mm	20	20	20	20	20
Fork lowered height	mm	90	90	90	90	90
Minimum turning radius	mm	1300	1300	1300	1300	1300
Front wheel	mm	80*50	80*50	80*50	80*50	80*50
Type or driving motor	DC	DC	DC	DC	DC	DC
Rated output	KW	0.75	0.75	0.75	0.75	0.75
Lifting motor	DC	DC	DC	DC	DC	DC
Rated output	kw	0.8	0.8	0.8	0.8	0.8
Voltage	V	24	24	24	24	24
Capacity	AH	30	30	30	30	30
