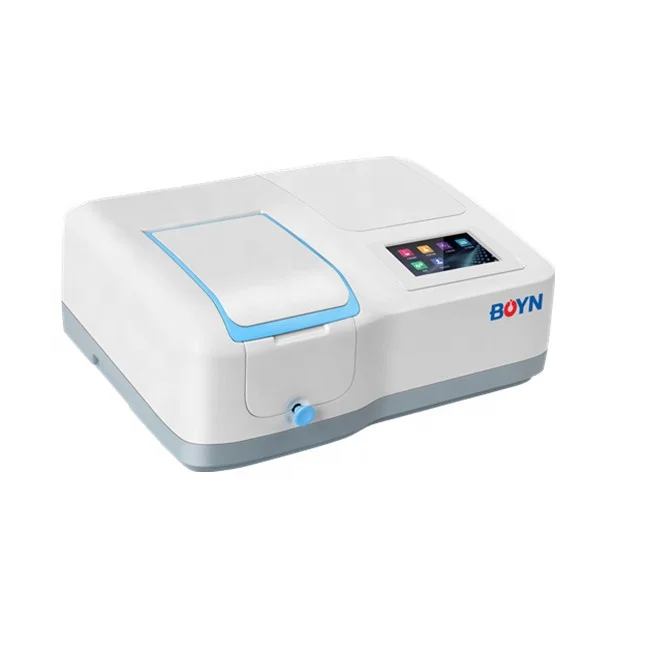

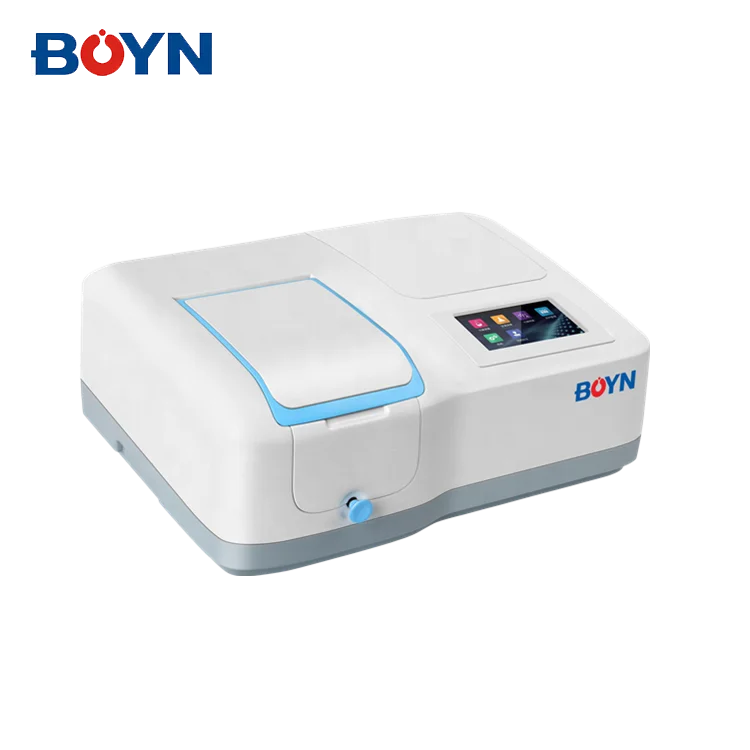

BNUV-S560 BNUV-S570 с переключением между дальним и УФ видимый
- Категория: Spectrometers >>>
- Поставщик: Hangzhou,Boyn,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 1200.77 $* | 1224.65 $* |
| Jul-15-2025 | 973.55 $* | 992.89 $* |
| Jun-15-2025 | 1181.65 $* | 1205.86 $* |
| May-15-2025 | 1172.58 $* | 1195.81 $* |
| Apr-15-2025 | 936.48 $* | 955.94 $* |
| Mar-15-2025 | 1153.76 $* | 1176.50 $* |
| Feb-15-2025 | 1143.5 $* | 1166.40 $* |
| Jan-15-2025 | 1134.89 $* | 1157.57 $* |
Характеристики
Product Description
Product features:
Photometric measurement: one key switch A/T/E
Quantitative measurement: establish standard curve
File management: data preservation, editable fifile name
Performance verifification: verififiable performance speci-
fifications
System application: Multilingual operating system
Dismountable lamp room cover, can change lamp easily
Data can be export from the U disk with .CSV and .TXT
format
Support general printer with A4 paper printing
The front baffle of the sample room can be dismantled
freely
Special leak hole in the sample room
Antirust treatment cell holder
Photometric measurement: one key switch A/T/E
Quantitative measurement: establish standard curve
File management: data preservation, editable fifile name
Performance verifification: verififiable performance speci-
fifications
System application: Multilingual operating system
Dismountable lamp room cover, can change lamp easily
Data can be export from the U disk with .CSV and .TXT
format
Support general printer with A4 paper printing
The front baffle of the sample room can be dismantled
freely
Special leak hole in the sample room
Antirust treatment cell holder
Product Paramenters
Model | BNUV-S560 | BNUV-S570 | |
Optical system | Single beam，1200 l/mm grating | ||
Wavelength range | 195~1050 nm | ||
Spectral bandwidth | 4 nm | 2 nm | |
Wavelength accuracy | ±0.8 nm | ||
Wavelength repeatability | ≤0.4 nm | ||
Wavelength resolution | 0.1 nm | ||
Wavelength gyration speed | 10000 nm/min | ||
Photometric range | -0.3~3 A，0~200 %T，0~9999.9 C | ||
Photometric accuracy | ±0.003A（0~0.5 A），±0.006 A（0.5~1 A）, ±0.5 %T（0~100 %T） | ||
Photometric repeatability | ±0.0015 A（0~0.5 A），±0.003 A（0.5~1 A）, ±0.2 %T（0~100 %T） | ||
Photometric Noise | ≤0.0005 A @ 0 A，500 nm，≤0.001 A @ 1 A，500 nm，≤0.002 A @ 2 A，500 nm | ||
Photometric Stability | ≤0.002A/hr (500nm, 2 hours after preheating) | ||
Stray light | ≤0.2 %T（360 nm） | ||
Function | Photometric, Quantitation, File management, system management, Performance vertification | ||
Light source | Tungsten lamp, Deuterium lamp | ||
Detector | Silicon photodiode | ||
Standard Sample holder | 10 mm 4-cell manual holder | ||
Display | 5 inch TFT color touch screen | ||
Storage | 236 KB (built-in), supports unlimited external expansion (USB memory) | ||
Interface | RS232 serial port × 1 (printer), USB-A × 1 (USB memory/USB printer), USB-B × 1 (computer) | ||
PC software | Optional | ||
Language | 6 Languages, Can Be Switched (English, German. French, Spanish, Portuguese. Simplified Chinese) | ||
Power supply | 100~240 V AC，50/60 Hz，75W | ||
Size | 456（W）×360（D）×185（H） mm | ||
Weight | 10.7 kg | ||
