Высокомощный мотор UHMWPE 12000 фунтов 4x4 внедорожник 12 В электрическая грузовая лебедка с дистанционным управлением 24 в автоматический вытяжной Электрический трос
- Категория: Lifting, Pulling & Positioning >>>
- Поставщик: Kunshan,Lipol,Textiles,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 227.87 $* | 232.52 $* |
| Jul-20-2025 | 184.76 $* | 188.58 $* |
| Jun-20-2025 | 224.61 $* | 228.34 $* |
| May-20-2025 | 222.18 $* | 226.76 $* |
| Apr-20-2025 | 177.31 $* | 181.94 $* |
| Mar-20-2025 | 218.52 $* | 222.18 $* |
| Feb-20-2025 | 217.42 $* | 221.19 $* |
| Jan-20-2025 | 215.11 $* | 219.14 $* |
Характеристики

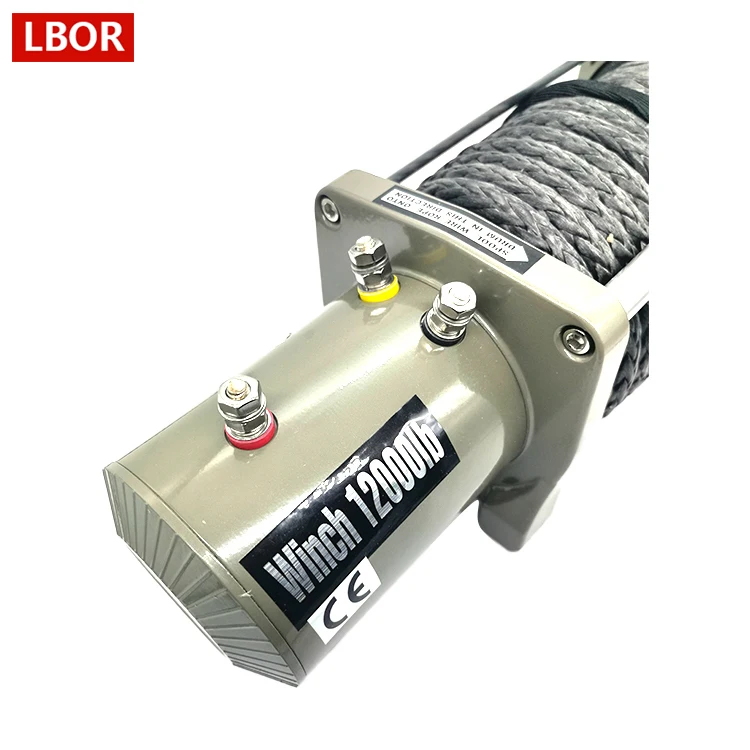

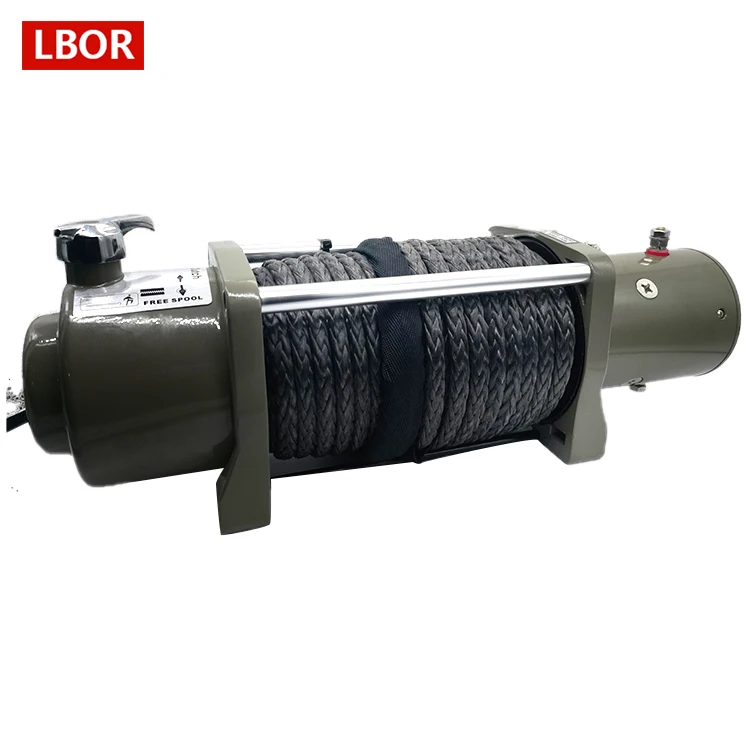

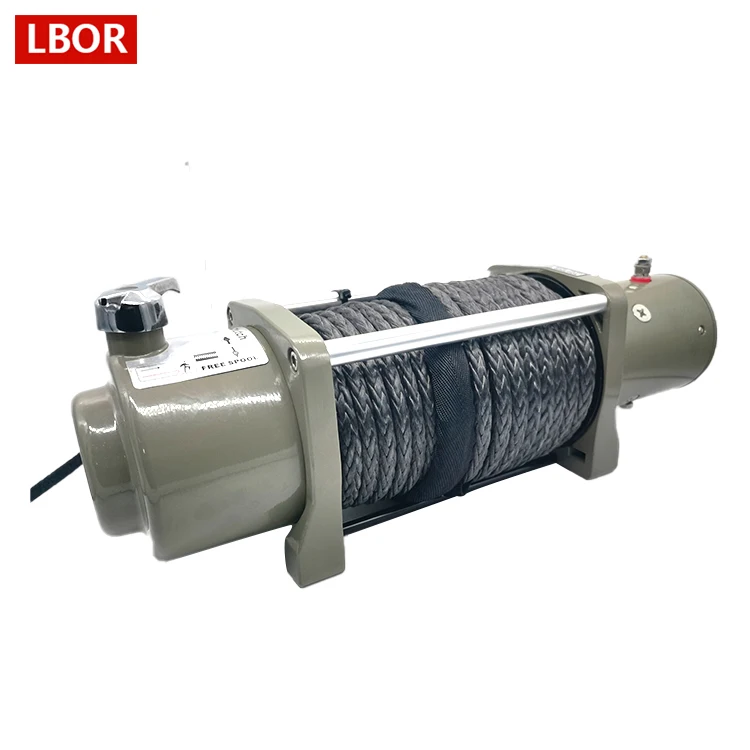

12000 lb 4x4 Off Road Electric Truck Winch
............................................................................................................................................................................................................
Products Mode:SC12000TW
Rated line pull:12000lb(5443kg) single line
Motor:4.8KW/6.6HP 12V, 5.0KW/6.65HP 24V,Series Wound
Control:Remote switch,12ft(3.7m) lead
Gear train:3 Stage Planetary
Gear reduction ratio:187.2:1
Clutch:Keyway Cam
Braking Action:Automatic In-The-Drum
Drum Dimensions:Φ2.6"x8.8"(Φ64mmx224mm)
Cable (Dia X L):Φ10mmx26m
Fairlead:Hawse Fairlead
Battery:Recommended:650CCA minimum for winching
Battery Leads:2 gauge,72"(1.83m)
Overall dimensions:21.1"×6.3”×7.2“（537x1160x183mm）
Mounting Bolt Pattern:254mmx114.3mm
Packing size:57X19x34.5cm 1PC/CTN
Weight:N.W/G.W:26kg/27.5kg
Rated line pull:12000lb(5443kg) single line
Motor:4.8KW/6.6HP 12V, 5.0KW/6.65HP 24V,Series Wound

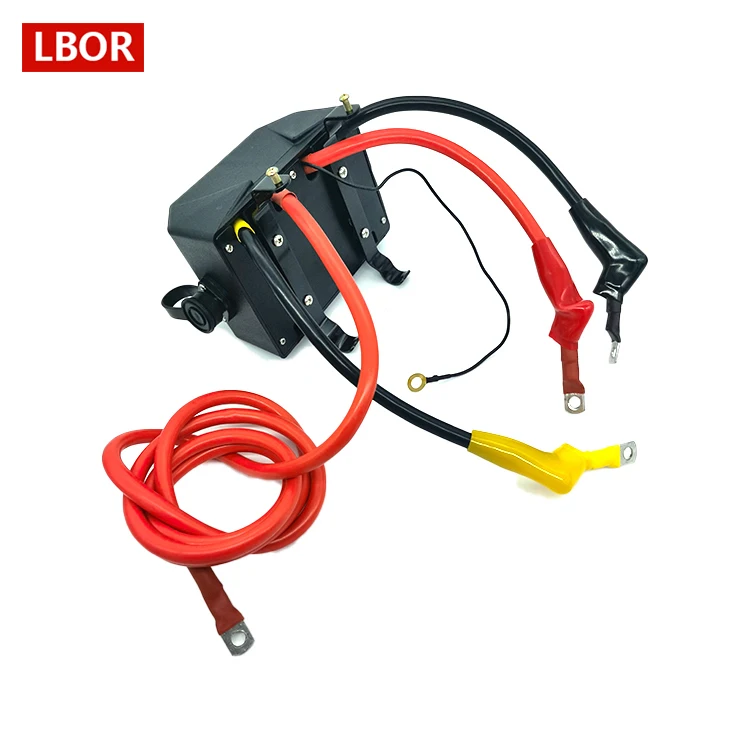

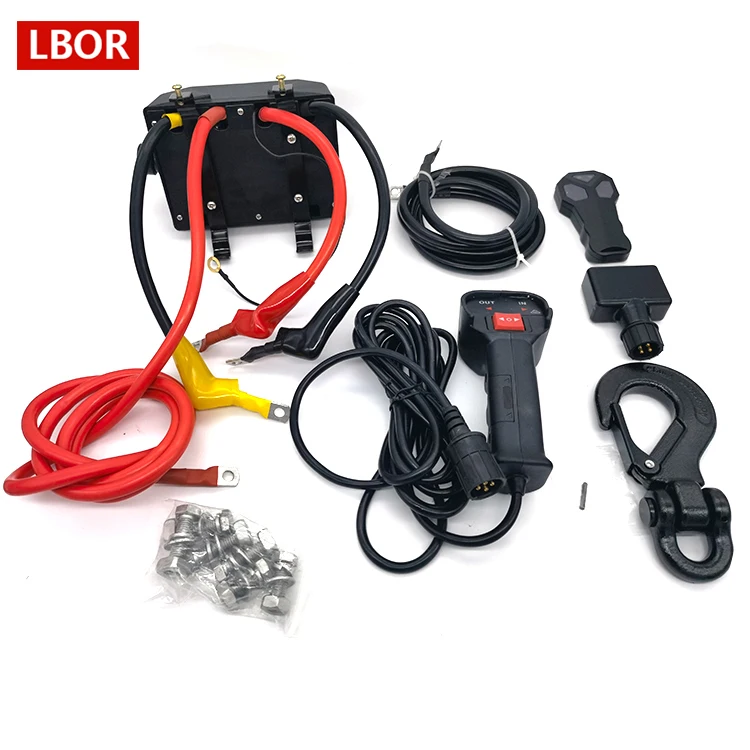

Control:Remote switch,12ft(3.7m) lead
Gear train:3 Stage Planetary
Gear reduction ratio:187.2:1
Clutch:Keyway Cam
Braking Action:Automatic In-The-Drum
Drum Dimensions:Φ2.6"x8.8"(Φ64mmx224mm)
Cable (Dia X L):Φ10mmx26m
Fairlead:Hawse Fairlead
Battery:Recommended:650CCA minimum for winching
Battery Leads:2 gauge,72"(1.83m)
Overall dimensions:21.1"×6.3”×7.2“（537x1160x183mm）
Mounting Bolt Pattern:254mmx114.3mm
Packing size:57X19x34.5cm 1PC/CTN
Weight:N.W/G.W:26kg/27.5kg
LINE SPEED AND AMP DRAW(FIRST LAYER) | ||||||||||||||
Line Pull | lb | 0 | 4000 | 6000 | 8000 | 10000 | 12000 | |||||||
kg | 0 | 1814 | 2721 | 3628 | 4536 | 5443 | ||||||||
Line Speed | ft/min | 33.3 | 16.8 | 12.8 | 10.1 | 8.8 | 7.6 | |||||||
m/min | 10.3 | 5.1 | 3.9 | 3.1 | 2.7 | 2.3 | ||||||||
Motor | Amps | 85 | 158 | 231 | 302 | 371 | 420 | |||||||
LINE PULL AND CABLE CAPACITY | ||||||||||||||
Layers of cable | 1 | 2 | 3 | 4 | ||||||||||
Rated line Pull per layer | lb | 12000 | 9210 | 8030 | 6894 | |||||||||
kg | 5443 | 4170 | 3640 | 3125 | ||||||||||
Cumulative Cable capacity | ft | 17 | 41 | 71 | 91.8 | |||||||||
m | 4.8 | 12 | 21 | 27.5 | ||||||||||
