Фабрика электромагнитных сточных вод жидкости расходомер
US $240.00-$320.00
Penpos YF-S201C G1/2 дюймов датчик расхода воды пищевой переключатель зал расходомер жидкости счетчик 1-30L/мин 5-15V
- Категория: >>>
- Поставщик: PENPOS,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2.45 $* | 2.46 $* |
| Aug-19-2025 | 2.16 $* | 2.71 $* |
| Jul-19-2025 | 2.96 $* | 2.51 $* |
| Jun-19-2025 | 2.44 $* | 2.69 $* |
| May-19-2025 | 2.59 $* | 2.74 $* |
| Apr-19-2025 | 2.18 $* | 2.19 $* |
| Mar-19-2025 | 2.36 $* | 2.32 $* |
| Feb-19-2025 | 2.33 $* | 2.89 $* |
| Jan-19-2025 | 2.9 $* | 2.43 $* |
Характеристики

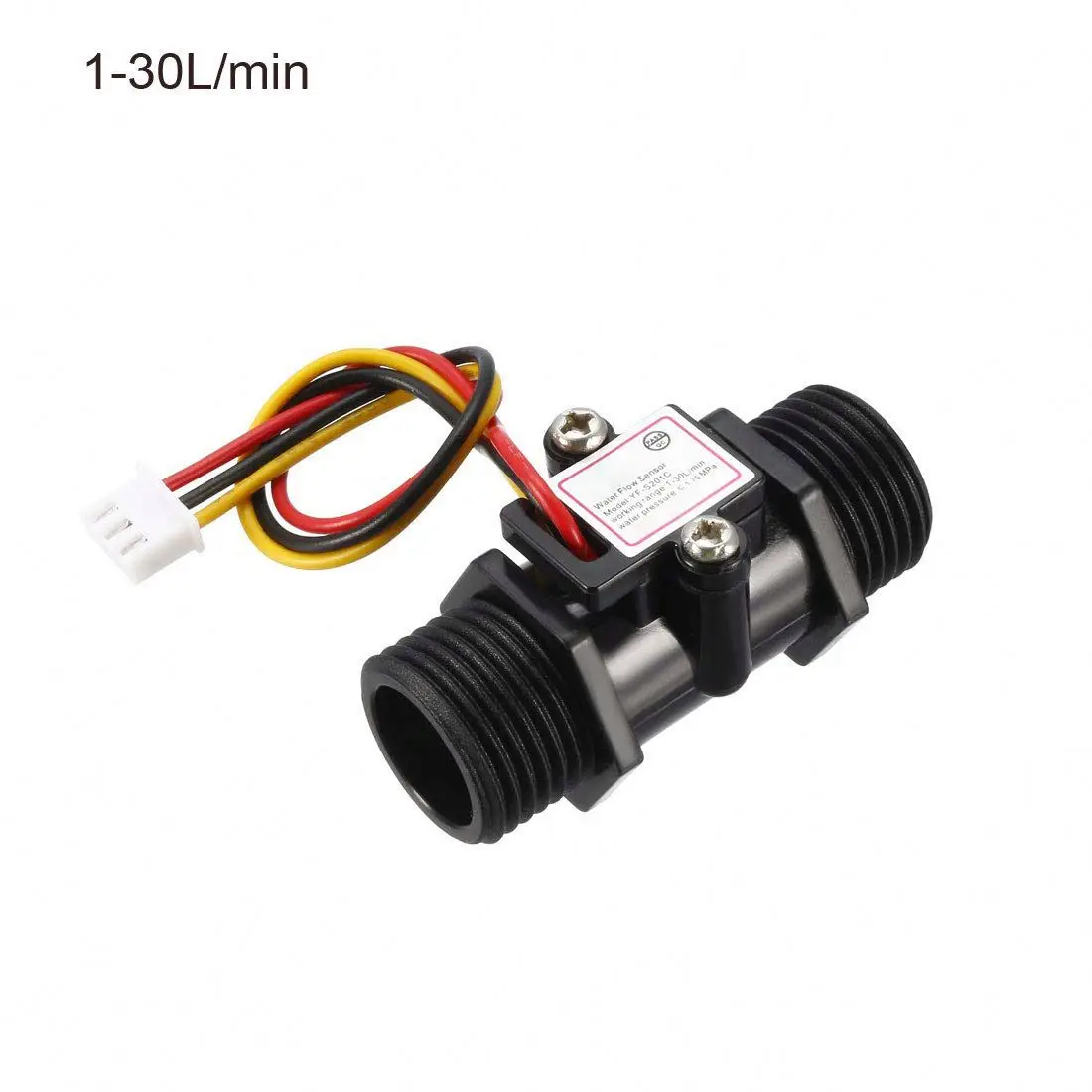

YF-S201C G1/2 Inch Water Flow Sensor Food-Grade Switch Hall Flowmeter Fluid Meter Counter 1-30L/min 5-15V Black
Descriptions:
1. The Water Flow Sensor is light, nimble outline, small size and easy to install. The bearings used in the rotating part.
2. There is an integrated magnetic hall sensor that outputs an electrical pulse with every revolution. The hall
sensor is sealed from the water pipe and allows the sensor to stay safe and dry.
3. Three wire connection: Red for positive, black for negative, yellow for pulse signal.
Specifications:
Product Name: Water Flow Sensor
Material: Plastic(Shell)
Size: 54mm x 27mm x 28mm / 2.13" x 1.06" x 1.1"(L*W*H)
Cable Length: 150mm / 5.91"
Liquid Temperature: Not More Than 60C
Rated Voltage: 5V
Max Current: 10mA( 5V)
Maximum water pressure: 1.75MPa
Flow range: 1-30L/min

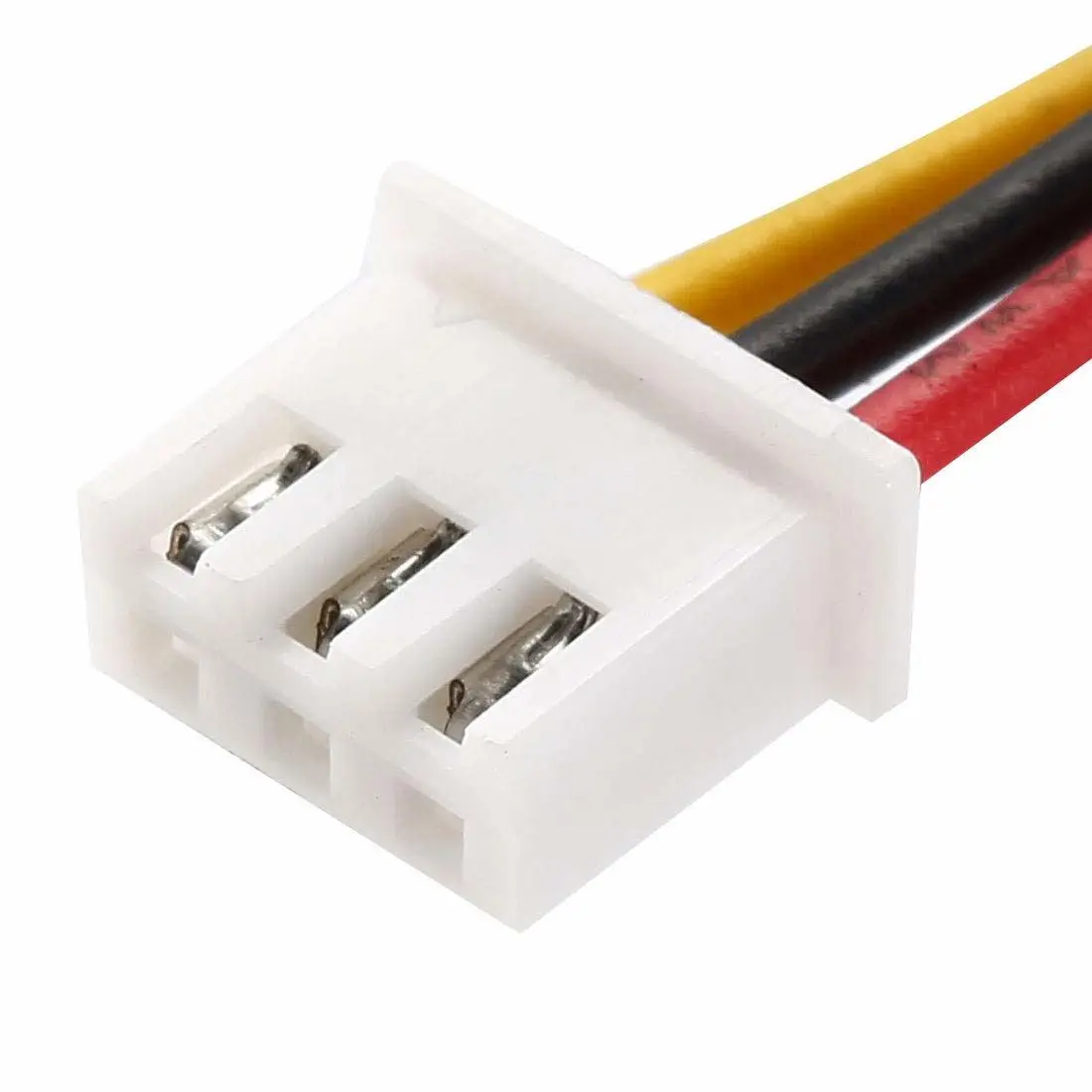

Connector: Male XH-3P

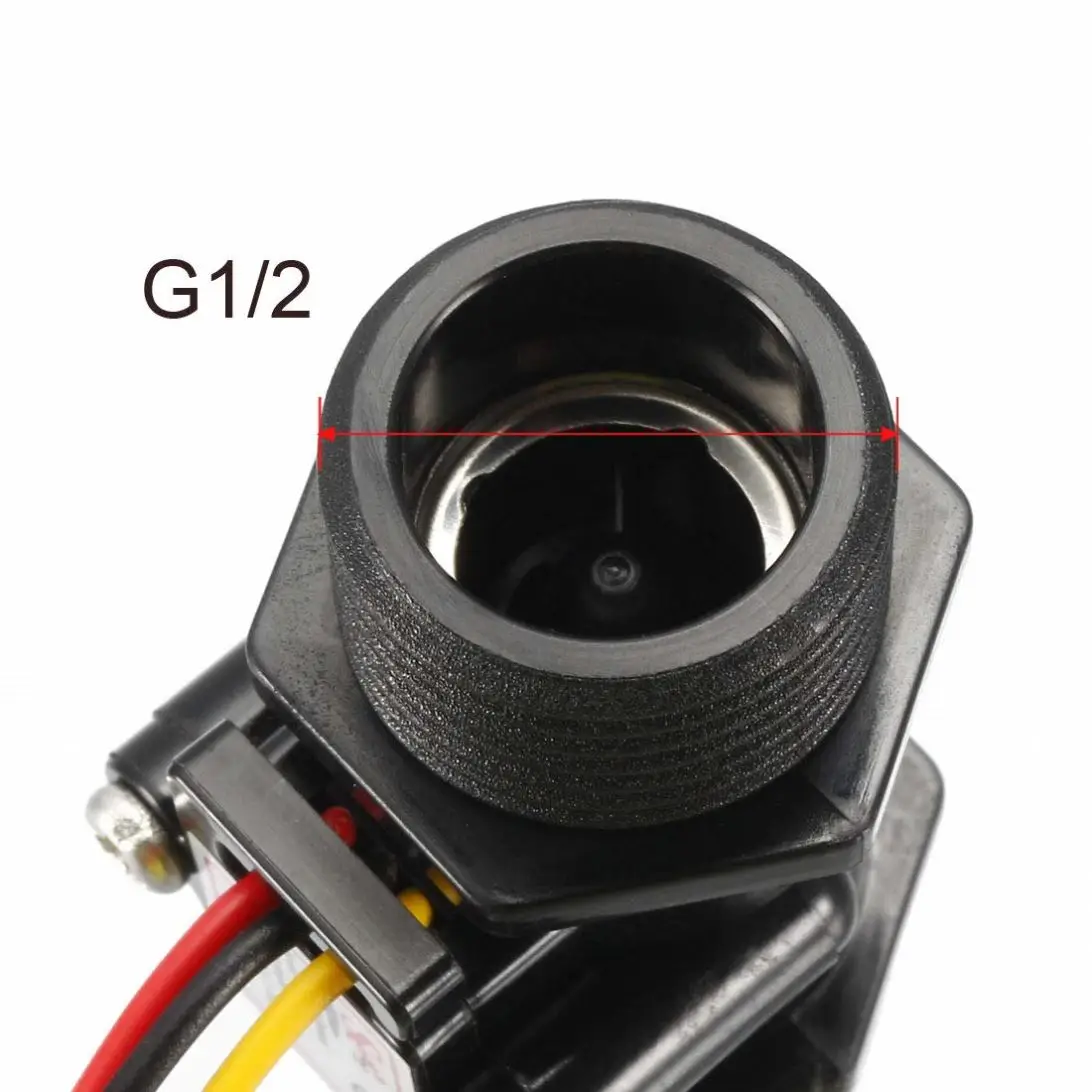

External Thread Diameter: G1/2
Ingress Protection Rating: IP65
Color: Black
Net Weight: 25g
Package Included:
1 x Water Flow Sensor
Note:

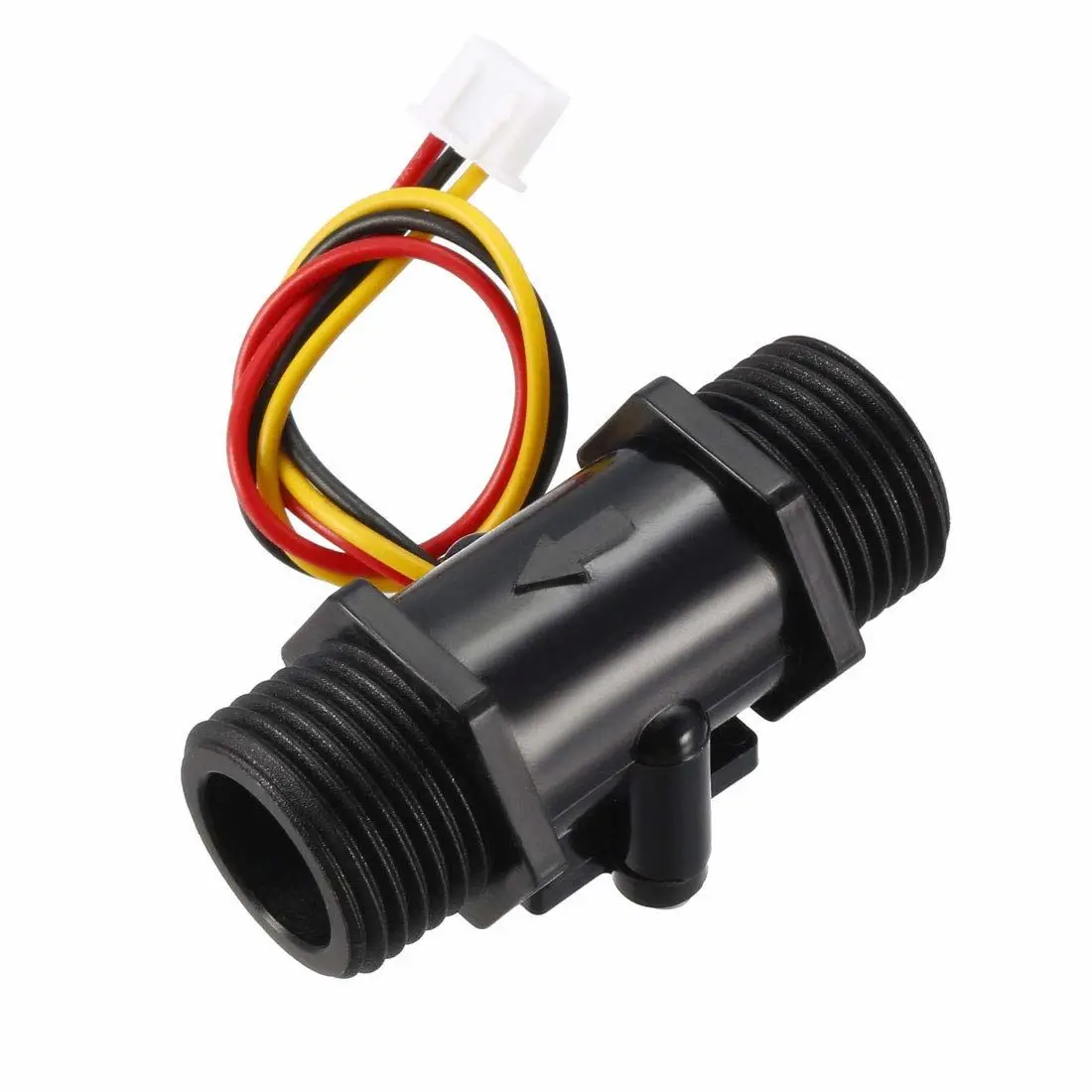

1. Installed in accordance with flow direction in the product, otherwise there is no signal output.
2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
Product Description
Product packaging
