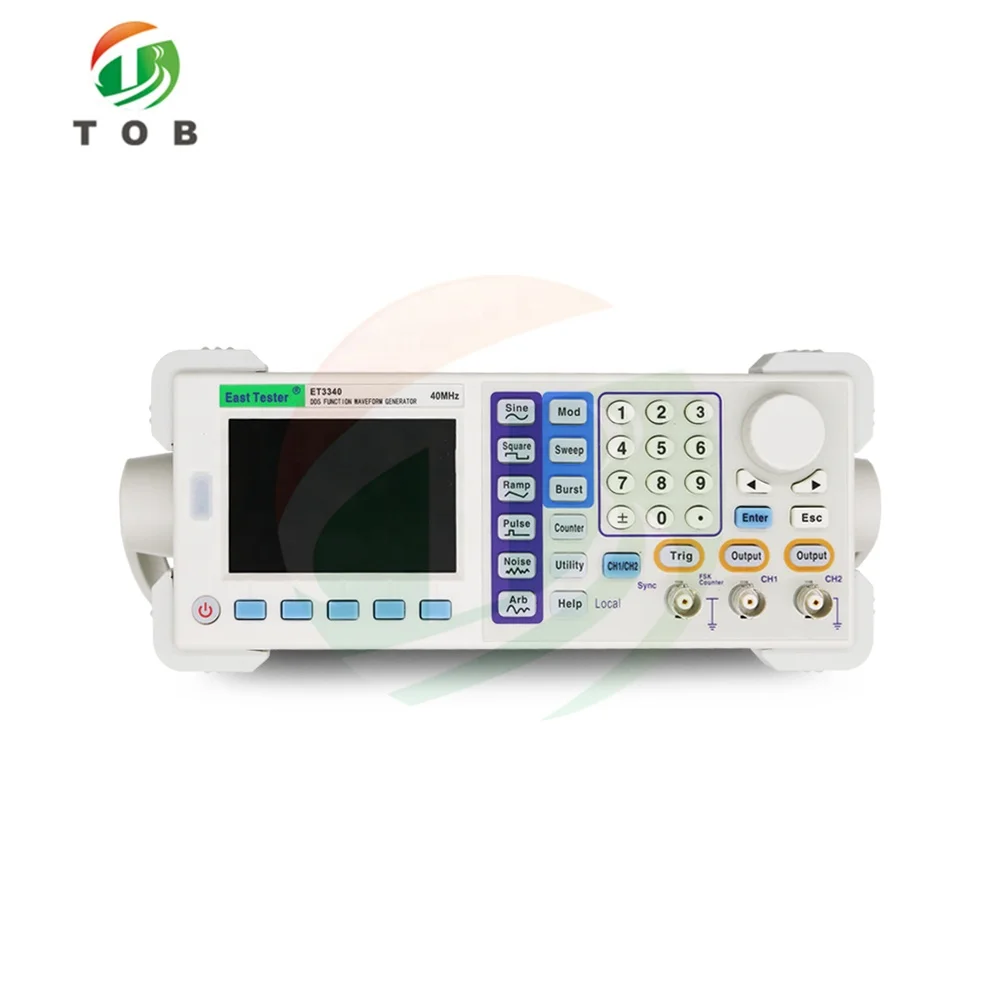

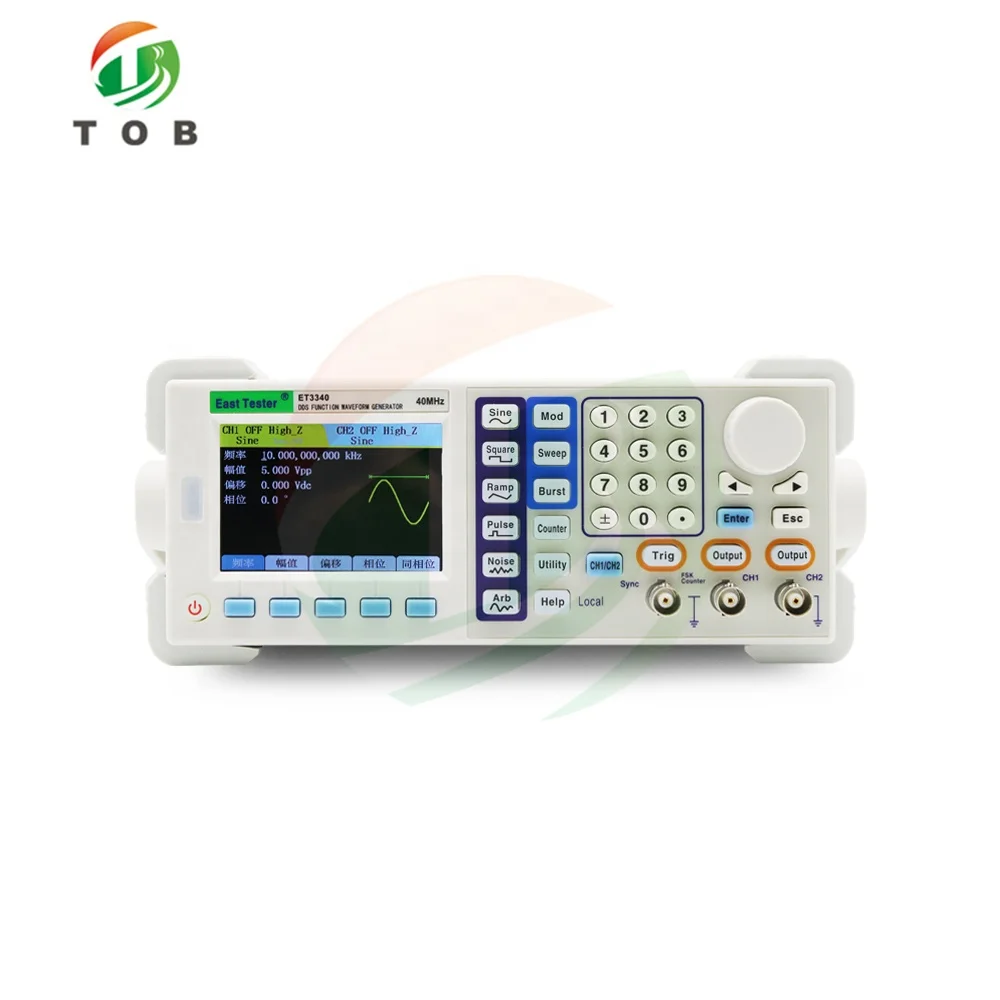

Dual Channel Digital Signal Function Generator  DDS Arbitrary Waveform Generator 60MHz

TOB-ET33 series two channel function arbitrary waveform generator is equipped with direct digital synthesis (DDS) technology which enables output signal to be stable and accurate.

Key Features:

• 3.5-inch 480×320TFT LCD with clear graphic interface


• Chinese / English menu available


• Press key for help and information


• File management supporting USB flash disk and local storage


• Two-channel output with the highest output frequency is ET3315 Model is 15MHz,ET3325 Model is 25MHz, ET3340 Model is 40MHz, ET3360 Model is 60MHz.


• Sampling rate: 200MSa/S, vertical resolution: 13 bit and storage depth: 8k


• 5 basic waveforms and 32 arbitrary waveforms in-built


• Pulse wave output set in edge time


• Internal/external AM, FM, PM, ASK, FSK and PSK modulation function


• Output of linear/logarithmic frequency sweep and burst waveform


• Frequency meter of high precision of 100MHz and 32-bit counter


• With RS232 interface, USB Device, USB Host interface supporting USB flash disk storage (USB Host Optional)


• Multi-functional arbitrary waveform editing software equipped

General Technical Specifications:

• Supply voltage:220V±10%,45~65Hz,Or  110V±10%,45~65Hz


• Power consumption:< 15W


• Types:3.5-inch TFT LCD screen,Resolution480×320,16M color


• Environment:Operation 10 ℃ ~ +40 ℃,Non-operation -10℃~+60℃


• Humidity range:Within the range of 0 ~ 40 ℃,≤90% relative humidity

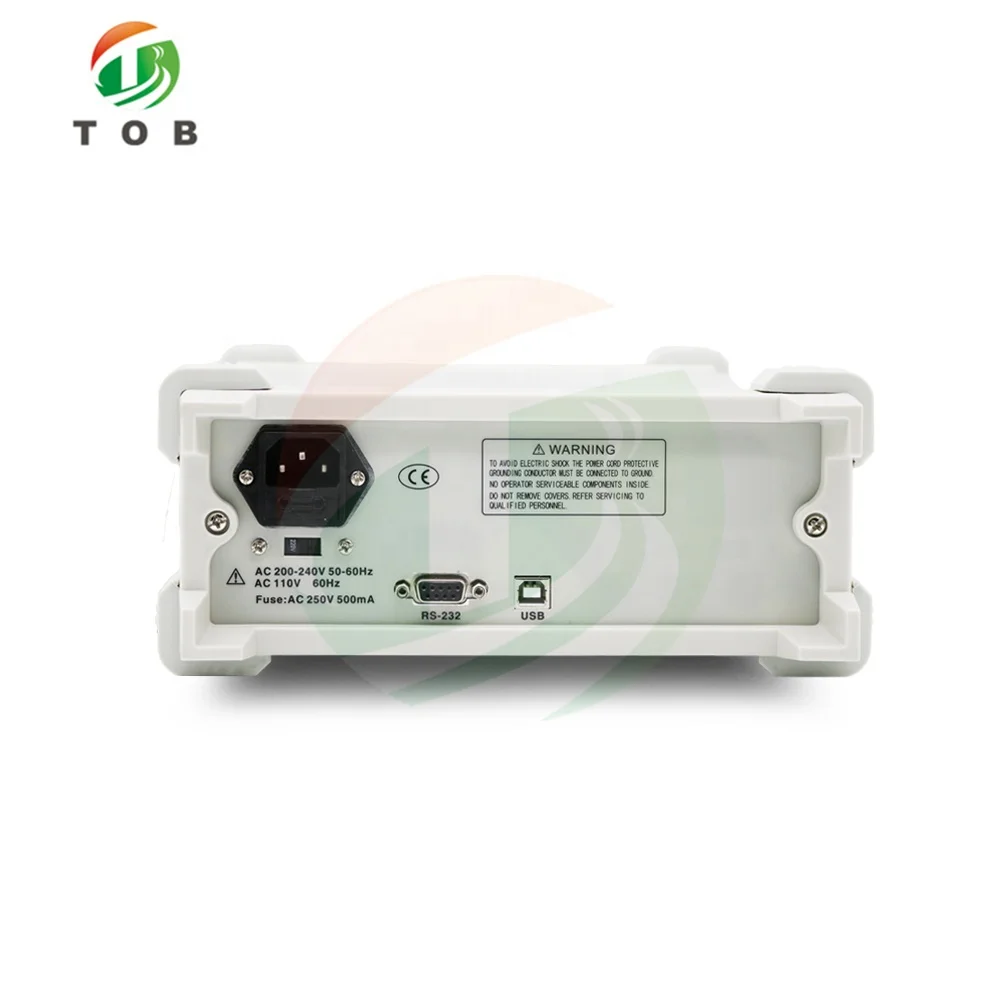

• Interface:RS232,USB Device;USB Host(optional)


• Display:3.5 inch TFT LCD screen, 480 x 320 resolution


• Size:265 * 105 * 305 mm (width x height x deep)


• Weight:2.6 kg
