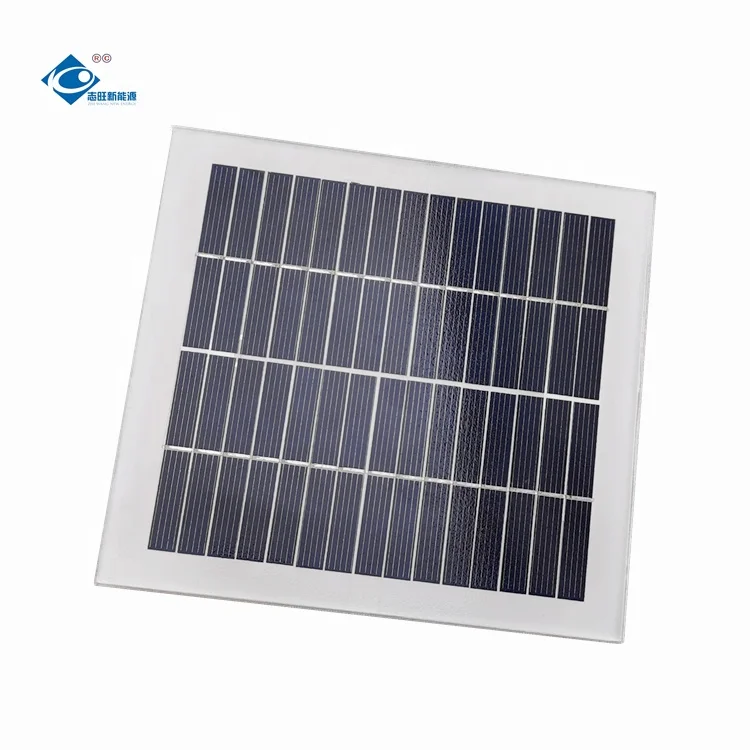

ZW-2W-15V Customized Mono Solar Panel 2W 15V New Style Portable Glass Laminated Solar Panelanel



Model:	ZW-2W-15V
Brand:	Zhiwang
Size:	140x135x17mm
Material:	Glass and plastic frame
Battery:	30
Peak power:	2W
Max voltage:	15V
Max current:	0.12A
Open voltage:	16.2V
Short current:	0.32A
Weight:	0.23KG
Keyword:	Glass Laminated Solar Panel
Front Glass:	3.2mm, High Transmission, Low iron, tempered Glass
Color:	Customize
Raw Material:	Glass and Plastic Frame Poly-crystalline or Mono-crystalline Silicon EVA-------excellent anti-aging EVA TPT-------TPT hot seal made of flame resistance
Operating Temperature(°C)	-40°C ~ + 85°C
Maximum System Voltage	30V(UL)/50V(IEC) DC
Maximum Rated Current Series	3A
Temperature Coefficients of Pmax	-0.435%
Temperature Coefficients of Voc	-0.35%
Temperature Coefficients of Isc	0.043%
Nominal Operating Cell Temperature	47+/-2°C
Current temperature coefficient	%/K	0.06+/-0.01
Voltage temperature coefficient	mV/K	-(78+/-10)
Power temperature coefficient	%/K	-(0.5+/-0.05)



The high efficiency solar PV module adopts the world’s highest efficiency cell with efficiency up to 23%, and efficiency of the module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the cell’s front side can absorb maximum sunlight, so that it can get the maximum power.



Features

1. High cell efficiency with quality silicon materials for long term output stability;

2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures;

3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance;

4. Both Poly-crystalline and Mono-crystalline;

5. Excellent performance in harsh weather;

6. Outstanding electrical performance under high temperature and low irradiance;

7. It's widely used for decorative lamps, electric toys, electronics, gifts and other industries;

8. The size and shape can be customized;

9. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photo-voltaic power plants and other fields.

10. Quality solar cells with high solar energy conversion up to 19.5%.



Quality Assurance Testing

Thermal cycling test

Thermal shock test

Thermal/Freezing and high humidity cycling test

Electrical isolation test

Hail impact test
