1000A 12V 18V 20V 24V 36V 48V 60V Гальваника
- Категория: >>>
- Поставщик: Shenzhen,Kairui,Energy,Saving,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1548.37 $* | 1579.76 $* |
| Jul-18-2025 | 1256.6 $* | 1281.24 $* |
| Jun-18-2025 | 1524.67 $* | 1554.4 $* |
| May-18-2025 | 1512.84 $* | 1542.27 $* |
| Apr-18-2025 | 1207.16 $* | 1231.39 $* |
| Mar-18-2025 | 1487.84 $* | 1517.43 $* |
| Feb-18-2025 | 1475.3 $* | 1505.63 $* |
| Jan-18-2025 | 1463.56 $* | 1492.27 $* |
Характеристики

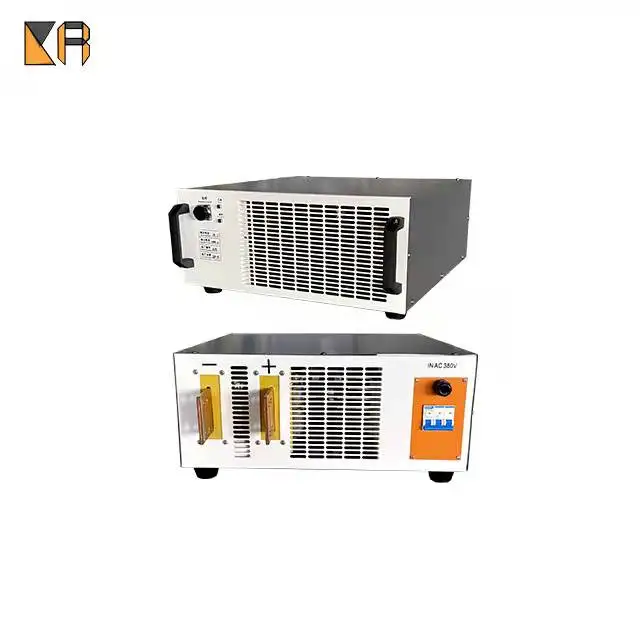

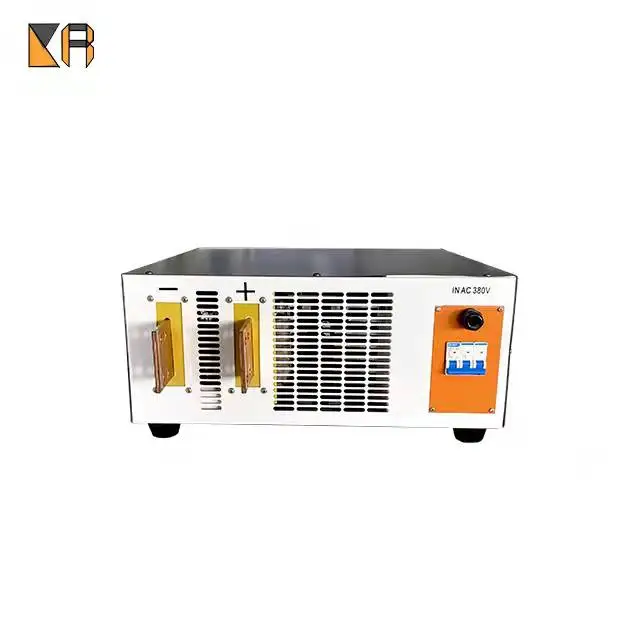

Product Description
Product characteristics:
product chatacteristic:
1. High stability: the system has fast strain rate, strong adaptability to the changes of power grid and load, and the output
accuracy is up to 1%.
accuracy is up to 1%.
2. Good technical effect: Using German patented technology, the current density is greatly increased, the plating speed is faster, the workpiece coating is denser, smoother, more wear-resistant, and metal materials and additives are saved.
3. Ultra-high power design: to ensure that customers in all environments can be fully loaded, continuous work.
4. High reliability: The use of high-quality imported devices, and international patented technology products, complete protection,
isolation and anti-corrosion measures are excellent.
isolation and anti-corrosion measures are excellent.
5.Maintenance is simple: The circuit adopts plug design of computer circuit,
which is intuitive and convenient to maintain. Ordinary electricians can complete maintenance and maintenance.
which is intuitive and convenient to maintain. Ordinary electricians can complete maintenance and maintenance.

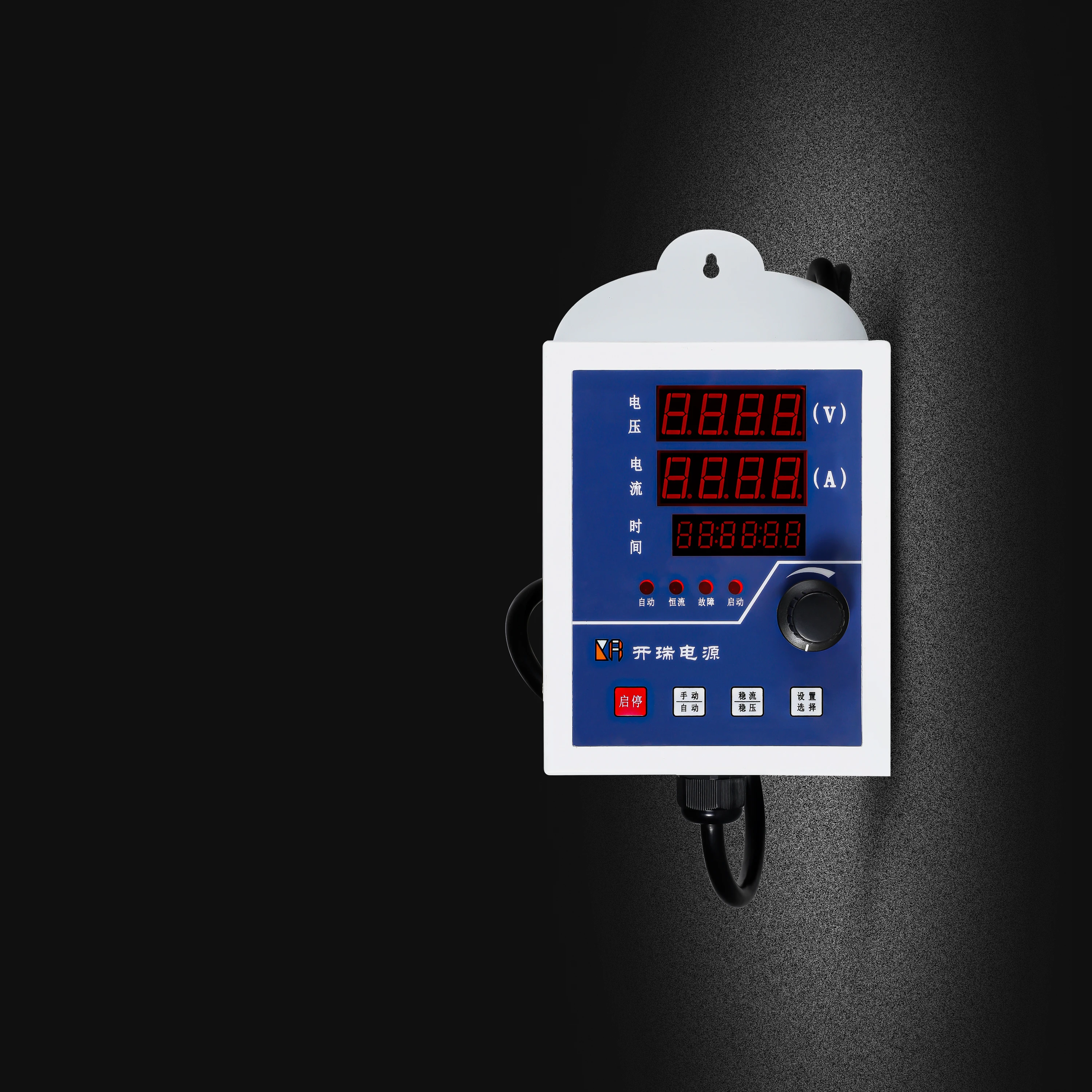

remote control box:
1.LED display provides more accurate and clearly visible readings for the voltage and current value, even in conditions of low voltage
2.Constant Voltage (C.V.) & Current (C.C.) Mode - Adjust the coarse and fine adjustment knobs to easily dial in the required voltage and current; When the load current reaches the current limit value, it will automatically switch to the constant current mode, you can easily see the amperage and voltage change as circuit components are switched in and out
3. Intelligently calculates output voltage and current into power and displays the value on its large screen.; decimal point automatic carry & LED 4 digits display of voltage function displays.current and power; The keyboard can be locked to prevent misoperation.
Specification
item | value |
Place of Origin | China |
Brand Name | KAIRUI |
Model Number | KR-HI-F-1000A24V |
Output Power | 24000W |
Input Voltage | 110V-480V |
Output Voltage | 24V |
Output Current | 1000A |
Product Name | Electroplating power supply |
Warranty | 1 Year |
Protection | OVP OCP OTP SCP |
Packing | wooden case |
Working Temp | -20 ~ +50 |
Weight | 55kg |
Efficiency | 95% |
Certification | CE ; ISO9001 |
MOQ | 1pcs |
Dimension | 830*610*450mm (L*W*H) |
Product Paramenters
1 | AC input voltage | Triple phase 380V, 50/60Hz |
2 | Output voltage | DC 0-24V adjustable（customized available） |
3 | Output current | DC 0-1000A adjustable(customized available) |
4 | AC input power | 26.4KW |
5 | DC output power | 24KW |
6 | Ripple coefficients of the whole machine | The ripple effect is less than 2% |
7 | Constant current, constant voltage conversion | Constant current accuracy 1% constant voltage accuracy 1%. |
8 | Protection function | undervoltage, overvoltage, overload, short circuit protection, thermal protection. |
9 | Power factor | The active power factor is positive and the whole range is 0.95. |
10 | Overload protection | 105~120% rated output current. |
11 | Short circuit protection | Circuit instantaneous short circuit natural protection. Automatic recovery when short circuit is eliminated. |
12 | Working frequency | 28KHz |
13 | Operating temperature range | -20℃~50℃ |
14 | Cooling mode | Air cooling or water cooling |
15 | Communication interface | RS485(optional) |
Product quality inspection and control
Magnetic core tester, which detects the stability and integrity of the core parts of the transformer performance, to ensure that every transformer manufactured is flawless and high-performance transformer
Main board electronic component test frame, which check whether the signal of power control board, communication board and other electronic components are normal
Rectifier bridge, IGBT, diode and other professional testing instruments
All power supplies of our company must be strictly subjected to 48-hour full power aging test after the production is completed to ensure that the product parameters and the performance of the vitality parts meet the expected results
Packing & Delivery
wooding case
Company Profile
Certifications
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory and we have professional team of workers , designers and inspectors
2.Q:How long is the warranty?
A:1year. Excluding the artificial damage.within the first year,if you need any spare parts for replacement,we can provide to you without paid.And we will offer lifelong technical support and service.Considering the expensive shipping cost for you,broken rectifier is no need to send back to China,just let us to know the problem through a video or a picture,then we will send the replacement to you immediately.
3.Q:Do you support the technical data?
A:Each machine we will support you all data sheet, after order will give operation manual
4. Q:What is your Minimum quantity ?
A: One unit of rectifier.
5.Q:How about your terms and payment?
A:Terms:FOB,CIF,CNF,others can be negotiated
Payment:T/T or L/C at sight,others can be negotiated
6. Q: How long to deliver the products?
A: The exact delivery date need to according to your style and quantity. Usually within 10 work days after receive the 100% payment.
If you choose the items which we have stock, we can deliver in 3 days.
7.Q:Does your rectifier machine support customization?
A:Let us know your requirement,any specification can be customized.
8. Q: What is your main products?
A: A: High frequency plating rectifier, electrolysis power supply,oxidation power supply,chrome-plated power supply,micro-arc oxidation power supply,synchronous rectifier power supply,electrophoresis power supply.
A: We are a factory and we have professional team of workers , designers and inspectors
2.Q:How long is the warranty?
A:1year. Excluding the artificial damage.within the first year,if you need any spare parts for replacement,we can provide to you without paid.And we will offer lifelong technical support and service.Considering the expensive shipping cost for you,broken rectifier is no need to send back to China,just let us to know the problem through a video or a picture,then we will send the replacement to you immediately.
3.Q:Do you support the technical data?
A:Each machine we will support you all data sheet, after order will give operation manual
4. Q:What is your Minimum quantity ?
A: One unit of rectifier.
5.Q:How about your terms and payment?
A:Terms:FOB,CIF,CNF,others can be negotiated
Payment:T/T or L/C at sight,others can be negotiated
6. Q: How long to deliver the products?
A: The exact delivery date need to according to your style and quantity. Usually within 10 work days after receive the 100% payment.
If you choose the items which we have stock, we can deliver in 3 days.
7.Q:Does your rectifier machine support customization?
A:Let us know your requirement,any specification can be customized.
8. Q: What is your main products?
A: A: High frequency plating rectifier, electrolysis power supply,oxidation power supply,chrome-plated power supply,micro-arc oxidation power supply,synchronous rectifier power supply,electrophoresis power supply.
