Раздвижная дверь двигатель dc1200kg Электрический мотор базовое крепление
- Категория: Door & Window Accessories >>>
- Поставщик: Zhangzhou,Orsenar,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.91 $* | 0.35 $* |
| Aug-16-2025 | 0.32 $* | 0.3 $* |
| Jul-16-2025 | 0.43 $* | 0.81 $* |
| Jun-16-2025 | 0.24 $* | 0.97 $* |
| May-16-2025 | 0.62 $* | 0.60 $* |
| Apr-16-2025 | 0.34 $* | 0.71 $* |
| Mar-16-2025 | 0.48 $* | 0.82 $* |
| Feb-16-2025 | 0.1 $* | 0.84 $* |
| Jan-16-2025 | 0.49 $* | 0.46 $* |
Характеристики
FEATURES AT A GLANCE

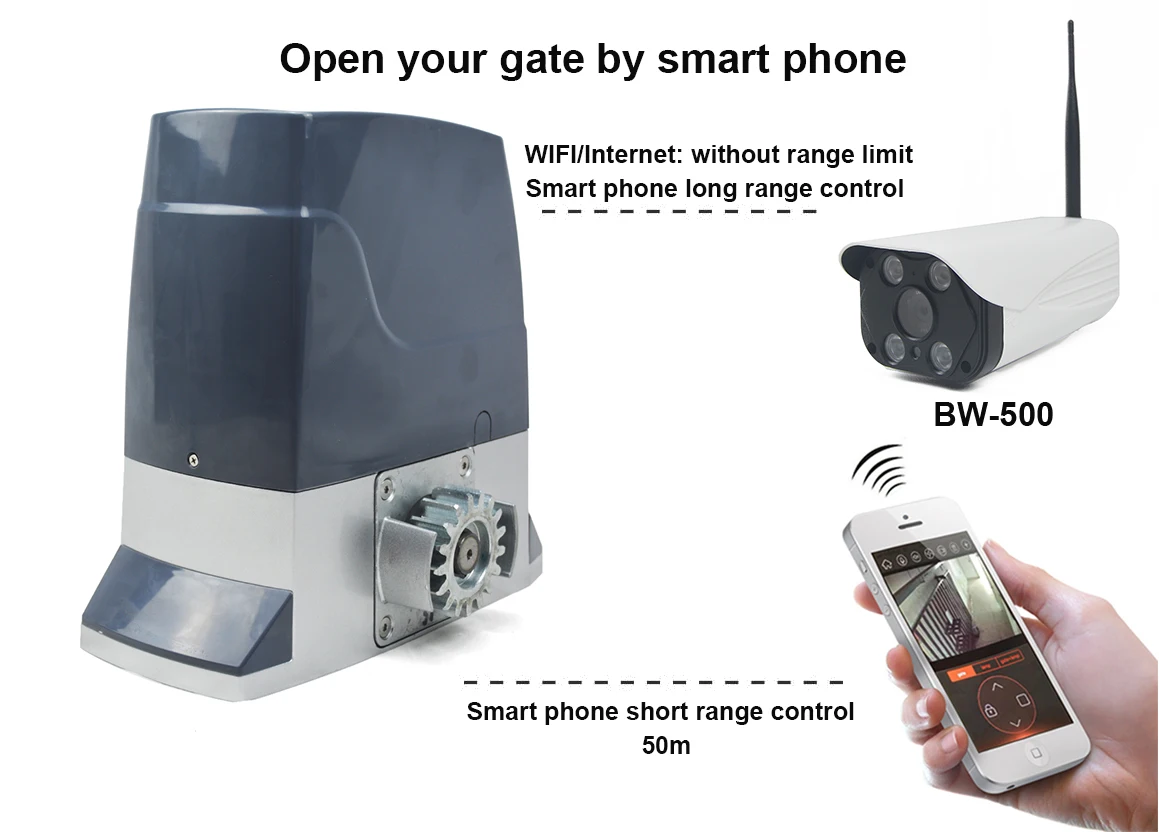

1. Smart phone control function
2. 24V battery inside the motor
3. Supports Solar panel (need to order seperately)
4. Soft start and soft stop
2. 24V battery inside the motor
3. Supports Solar panel (need to order seperately)
4. Soft start and soft stop
Bluetooth Chip
24V Battery inside the motor
Solar panel
PRODUCT SPECIFICATIONS
Model | BG1200 | BGH1200 | |
Rated Power | 180W | 250W | |
Power Supply | DC24V, 220V/110V, 50/60Hz | DC24V, 220V/110V, 50/60Hz | |
Max Gate Weight | 1200KG | ||
Limit Switch | Magnetic/Spring Limit Switch | ||
Motor Speed | 1500rpm | 2500rpm | |
Gate Speed | 12m/min | 18m/min | |
Noise | ≤50dB | ||
Temperature | -45°C~+65°C | ||
Features:
1. Anti-rush design. At the first operation after each power on, the motor runs in slow motion to the limit point throughout the process to avoid rushing out of the limit. When the door reaches the limit point, the motor can only be operated by pressing the button of the opposite direction to prevent the limit from being broken out. (Notice: It has the power off protection function when in place, and the motor only moves in the opposite direction when re-powered).
2. Master-slave mode available. Two motors with the same control board on each can work synchronously. In this mode, infrared, ground sense, automatic door close and other functions are synchronized. Attention：Infrared, ground sense must be connected to the master motor.
3. Motor runtime protection. To prevent the motor from running during the travel failure, the control board will automatically learn the motor running time without manual setting, and 10s will be added automatically as the time margin.
4. Auto-close function. Time can be set from 1s to 250s before the door closes automatically. The default value is 20s.
5. Soft start and slow stop. Slow stop speed can be adjusted.
6. Stop&rebound against resistance. Switchable between stop against resistance and rebound against resistance for the closing travel. Stop against resistance for the opening travel.
1. Anti-rush design. At the first operation after each power on, the motor runs in slow motion to the limit point throughout the process to avoid rushing out of the limit. When the door reaches the limit point, the motor can only be operated by pressing the button of the opposite direction to prevent the limit from being broken out. (Notice: It has the power off protection function when in place, and the motor only moves in the opposite direction when re-powered).
2. Master-slave mode available. Two motors with the same control board on each can work synchronously. In this mode, infrared, ground sense, automatic door close and other functions are synchronized. Attention：Infrared, ground sense must be connected to the master motor.
3. Motor runtime protection. To prevent the motor from running during the travel failure, the control board will automatically learn the motor running time without manual setting, and 10s will be added automatically as the time margin.
4. Auto-close function. Time can be set from 1s to 250s before the door closes automatically. The default value is 20s.
5. Soft start and slow stop. Slow stop speed can be adjusted.
6. Stop&rebound against resistance. Switchable between stop against resistance and rebound against resistance for the closing travel. Stop against resistance for the opening travel.

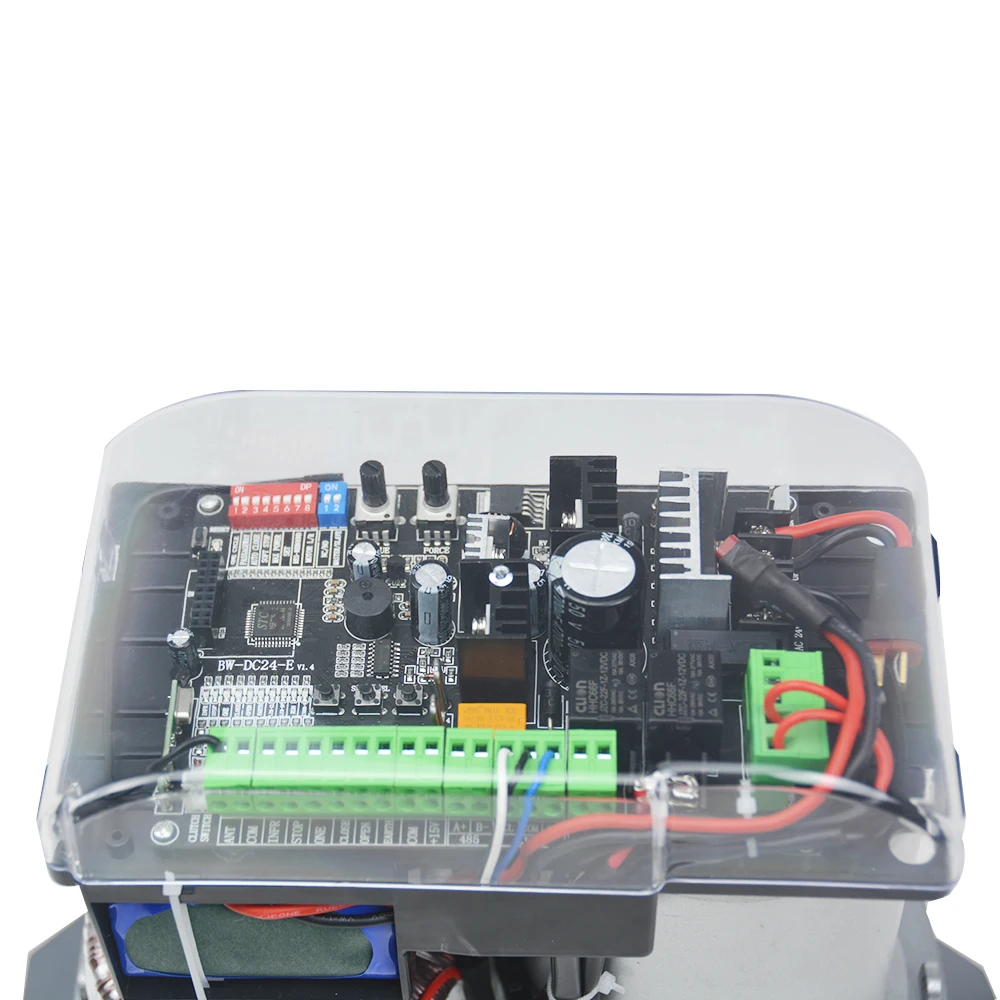

7. Onboard socket for Bluetooth module. A socket is integrated onboard for the insertion of Bluetooth module (module not included by default).
8. One button configuration for internet control. Can be directly paired with internet controllers through pressing one button onboard, no copy procedure is required.
8. One button configuration for internet control. Can be directly paired with internet controllers through pressing one button onboard, no copy procedure is required.
Optional Accessories
FAQ
1. What is minimum order quantity(MOQ)?
No MOQ, 1 sample is available.
2. What types of shipping method you have?
We can ship by ocean shipping for bulk order, UPS/TNT/DHL for sample order.
3. How many days it take if we place order?
1-2 days for sample order, 3-5 days for the order within 30 sets, 5-7 days for 100 sets.
4. What kind of certificates do you have?
We have CE certificate for motor, and MSDS for batteries.
No MOQ, 1 sample is available.
2. What types of shipping method you have?
We can ship by ocean shipping for bulk order, UPS/TNT/DHL for sample order.
3. How many days it take if we place order?
1-2 days for sample order, 3-5 days for the order within 30 sets, 5-7 days for 100 sets.
4. What kind of certificates do you have?
We have CE certificate for motor, and MSDS for batteries.
