Высококачественный сварочный аппарат DDM INTL 2022 DMSW -30-1Z/6 HAVC для воздуховодов
- Категория: Seam Welders >>>
- Поставщик: DDM,(Shanghai),Industrial,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 22372.6 $* | 23491.83 $* |
| Aug-18-2025 | 22184.17 $* | 23293.71 $* |
| Jul-18-2025 | 18612.14 $* | 19543.0 $* |
| Jun-18-2025 | 21808.35 $* | 22898.69 $* |
| May-18-2025 | 18988.31 $* | 19937.46 $* |
| Apr-18-2025 | 21432.90 $* | 22504.85 $* |
| Mar-18-2025 | 21244.84 $* | 22306.50 $* |
| Feb-18-2025 | 21056.60 $* | 22109.69 $* |
| Jan-18-2025 | 20868.59 $* | 21911.39 $* |
Характеристики
Product Overview
DDM INTL 2022 DMSW -30-1Z/6 HAVC Full Automatic Spot Welding Seam Welding with Long Arm
Machine Features
Stichwelder
This machine is a semi automatic stitchseam welding machine, designed for welding round duct / pipe / drums in large diameter range. Based on the seam welding machines,
this machine is a special one whose electrode arms are lengthened to weld HVAC pipes.
It is controlled by PLC and easy to operate.
1.Large diameter range: 100mm~1000mm length：50-1000mm
2.High production efficiency
3. Good welding quality because of adopting double-wire technology
4. Reasonable structure and simple maintenance: compact structure; welding electrodes and main driving mechanism are of simple assembly.
5. Fast change welding pipe diameter
6. PLC & inverter control the welding speed and stitch welding pitch
This machine is a semi automatic stitchseam welding machine, designed for welding round duct / pipe / drums in large diameter range. Based on the seam welding machines,
this machine is a special one whose electrode arms are lengthened to weld HVAC pipes.
It is controlled by PLC and easy to operate.
1.Large diameter range: 100mm~1000mm length：50-1000mm
2.High production efficiency
3. Good welding quality because of adopting double-wire technology
4. Reasonable structure and simple maintenance: compact structure; welding electrodes and main driving mechanism are of simple assembly.
5. Fast change welding pipe diameter
6. PLC & inverter control the welding speed and stitch welding pitch

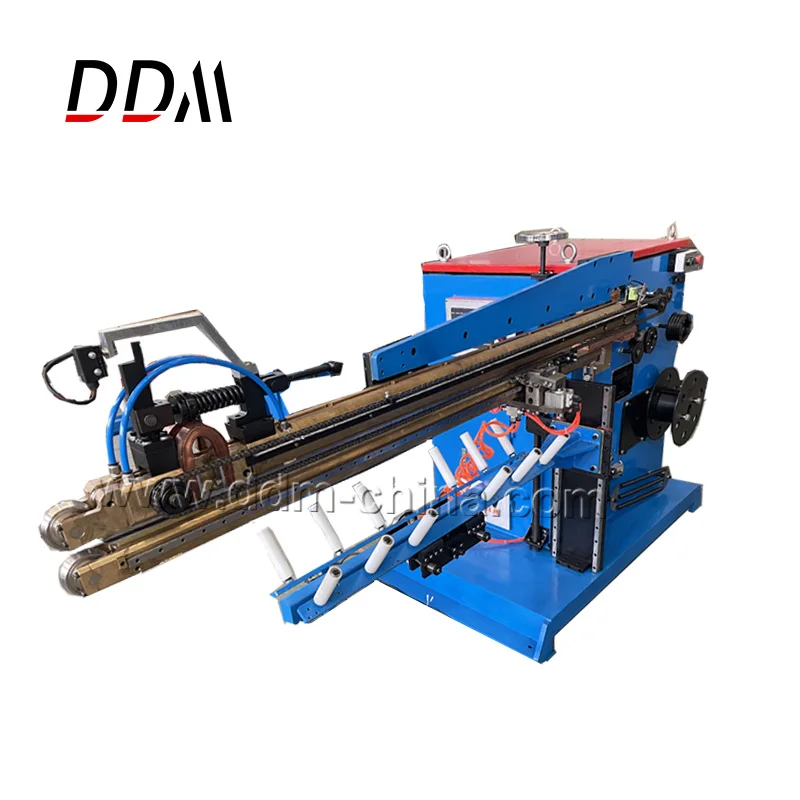

The Overlook for DDM -DMSW -30-1Z/6 stichwelder /spot welding /continuous welding machine

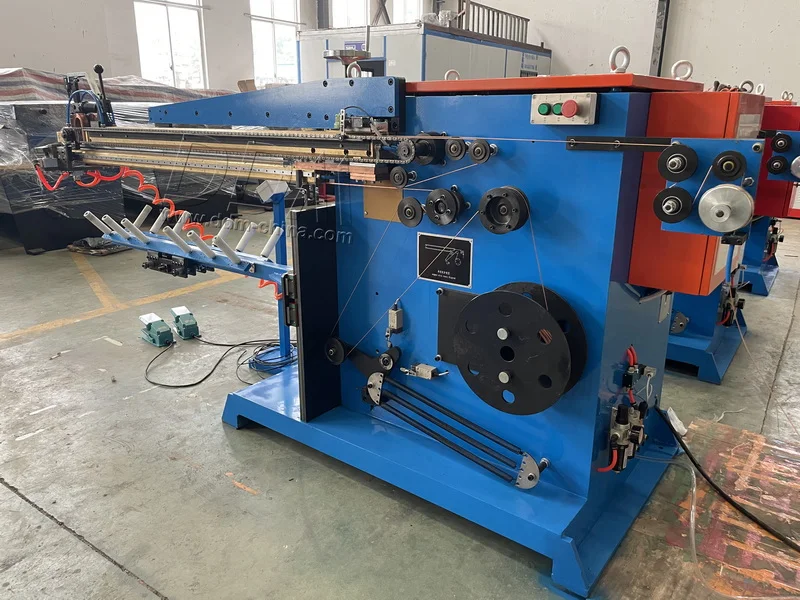

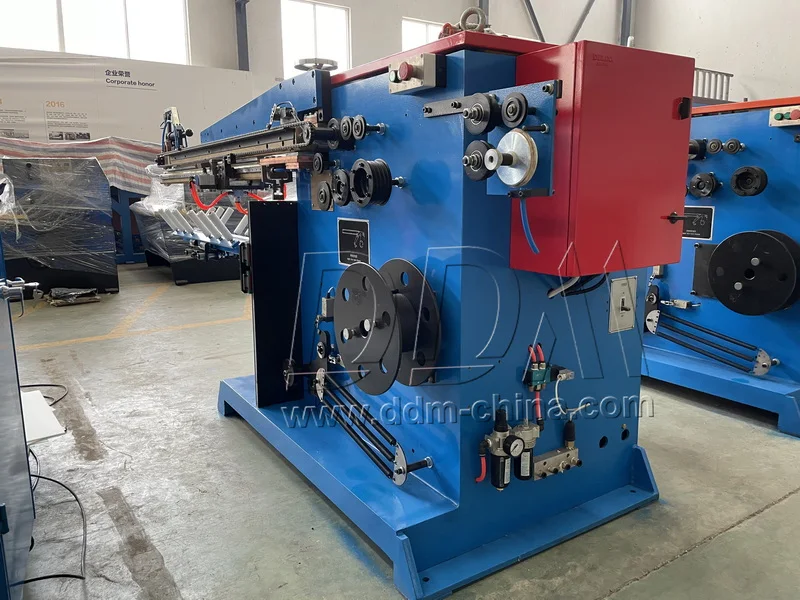

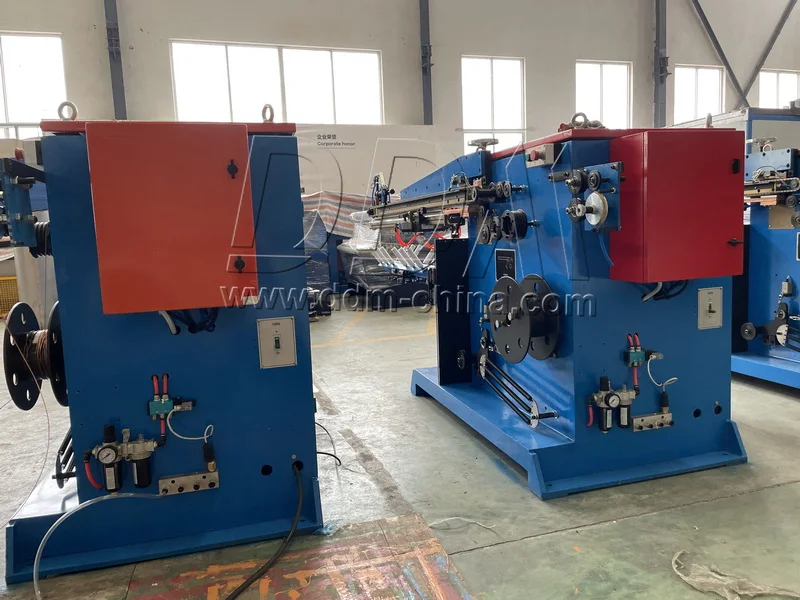

The elegant back and front view for our DDM- DMSW -30-1Z/6 stichwelder /spot welding /continuous welding machine

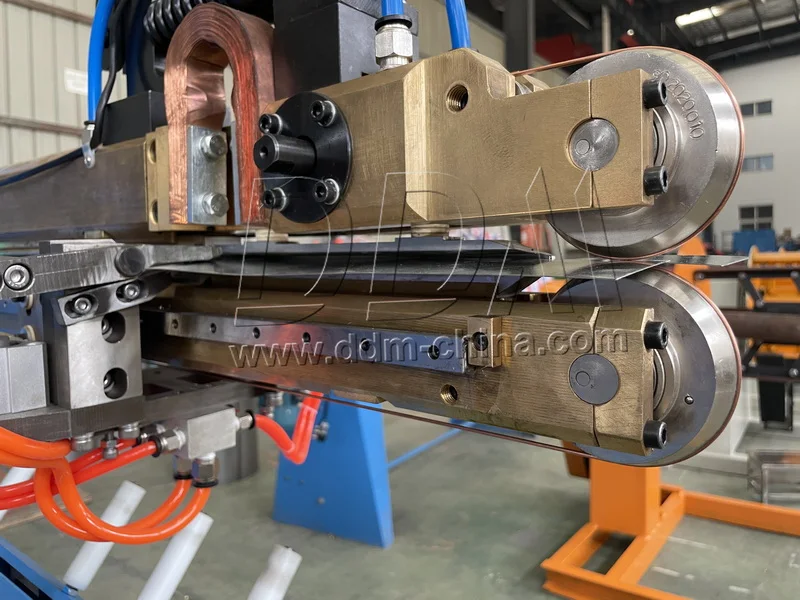

Machine side view for copper wire winding DMSW -30-1Z/6 stichwelder with High quality standard welding arm

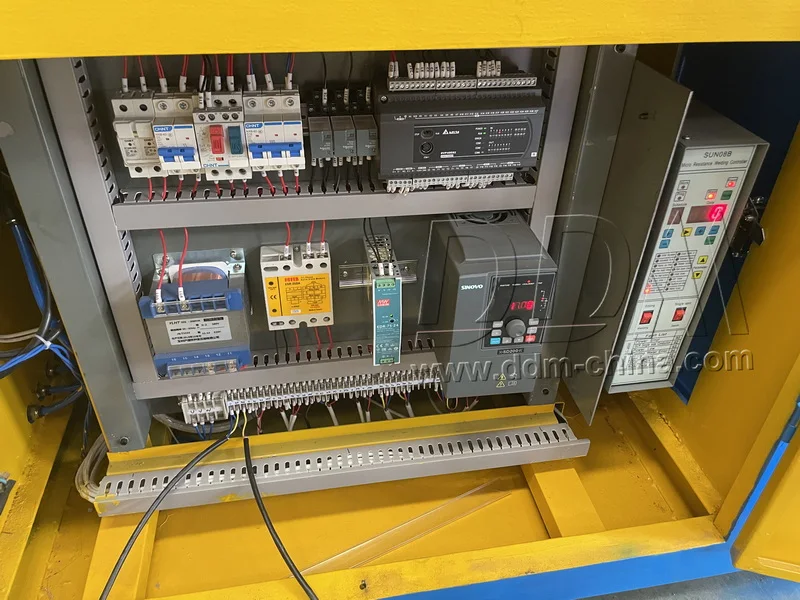

The high quality eletrical parts / welding controller/for our Stitch Welder Machine DMSW-30-1/1Z
DDM-Stichwelder with Export standardard package against the risk during the transportation
Machine Parameters
Technical Data | ||
Model | SW-30-1Z | |
thickness (mm) | 0.4-1.2mm | |
Range length | 50-1000mm | |
Overlap | 6mm | |
Speed | 2m/min | |
copper diameter | Φ2.0-2.2mm | |
Max Power | 40KW | |
Weight | 2500KG | |
Dimension (MM) | 2650X800X1000 | |
Packing & Delivery
Customer Photos
Company Profile
