Квм-удлинитель DVI usb по IP/TCP UTP/STP CAT5e/6 Rj45 LAN-сеть расширитель мыши и клавиатуры
- Категория: Other Consumer Electronics >>>
- Поставщик: Shenzhen,Shengtai,Tengan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 102.18 $* | 107.98 $* |
| Aug-16-2025 | 101.73 $* | 106.23 $* |
| Jul-16-2025 | 85.24 $* | 89.19 $* |
| Jun-16-2025 | 100.24 $* | 105.48 $* |
| May-16-2025 | 87.48 $* | 91.94 $* |
| Apr-16-2025 | 98.3 $* | 103.71 $* |
| Mar-16-2025 | 97.54 $* | 102.79 $* |
| Feb-16-2025 | 96.72 $* | 101.44 $* |
| Jan-16-2025 | 95.60 $* | 100.96 $* |
Характеристики
Product Description
DVI USB(KVM）Extender
HD video signal DVI and USB will use CAT5E, CAT6 UTP cable for high-definition video transmission, video resolution up to 1080P / 60HZ, transmission distance of 120 meters; through the local area
With a network switch or repeater, you will be able to expand the DVI signal without restrictions.Support 1 TX to multiple RX (theoretically up to 253). By plugging the transmitter (TX) into the network switch and using other Ethernet ports, you will be able to connect multiple receivers (RX) to multiple TVs, so now you have an extender that can also be used as a splitter! Widely used in homes and stores to showcase HDTV, HDTV, DVD and projector factories, information release, conference rooms, school and corporate training.
With a network switch or repeater, you will be able to expand the DVI signal without restrictions.Support 1 TX to multiple RX (theoretically up to 253). By plugging the transmitter (TX) into the network switch and using other Ethernet ports, you will be able to connect multiple receivers (RX) to multiple TVs, so now you have an extender that can also be used as a splitter! Widely used in homes and stores to showcase HDTV, HDTV, DVD and projector factories, information release, conference rooms, school and corporate training.
Feature:
1.Support resolution:
1.Support resolution:
480i @ 60Hz, 480p @ 60Hz,
576i @ 50Hz, 576p @ 50Hz,
720i @ 50 / 60Hz, 720p @ 50 / 60Hz,
1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
2. Use the UTP Cat5e6 to transmit DVI 1080P signals to 120 meters.
3. By adding an Ethernet switch, it can transmit longer than 120 meters over the LAN network.
4. Cat5e / 6/7 cable complies with IEEE-568B standard
5.USB interface only supports mouse and keyboard
Technical Parameters
video
Standard ----------- DVI
Resolution ------ 1920X1080P @ 60Hz
Connector----- DVI-I (Mother)
Audio
Interface---- 3.5mm stereo
USB(KVM)
Signal type----------KVM(USB) port
Interface\t:PC end, mouse and keyboard end.
Signal type:KVM signal (only mouse and keyboard are supported).
UTP
Interface----- RJ45 / IEEE-568B
Transmission distance -------- CAT5e/6 120 meters
Other
Power-----Power Adapter: DC 12V / 1A
Power consumption ------ 3W
576i @ 50Hz, 576p @ 50Hz,
720i @ 50 / 60Hz, 720p @ 50 / 60Hz,
1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz
2. Use the UTP Cat5e6 to transmit DVI 1080P signals to 120 meters.
3. By adding an Ethernet switch, it can transmit longer than 120 meters over the LAN network.
4. Cat5e / 6/7 cable complies with IEEE-568B standard
5.USB interface only supports mouse and keyboard
Technical Parameters
video
Standard ----------- DVI
Resolution ------ 1920X1080P @ 60Hz
Connector----- DVI-I (Mother)
Audio
Interface---- 3.5mm stereo
USB(KVM)
Signal type----------KVM(USB) port
Interface\t:PC end, mouse and keyboard end.
Signal type:KVM signal (only mouse and keyboard are supported).
UTP
Interface----- RJ45 / IEEE-568B
Transmission distance -------- CAT5e/6 120 meters
Other
Power-----Power Adapter: DC 12V / 1A
Power consumption ------ 3W
Details Images
Title goes here.
VGA USB (sqm) over cat5 120 meters, cat6e 150 meters
Support mouse keyboard and wireless mouse keyboard
Title goes here.
USB port only supports mouse and keyboard
Title goes here.
Interface----- RJ45 / IEEE-568B
Packing & Delivery

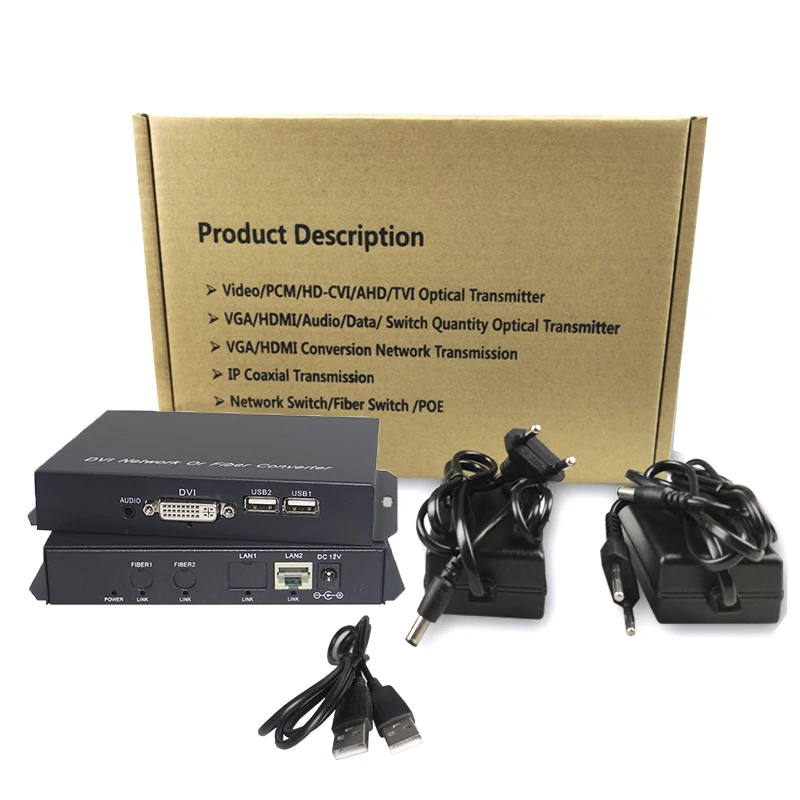

Packing list
DVI TX ------------------------------------1 PCS
DVI TX ------------------------------------1 PCS
DVI RX ------------------------------------1 PCS
USB cable (male tomale)----------------1PCS
Power Adapter----------------------------2 PCS
User manual-------------------------------1 PCS
Company Profile
Shenzhen Sthanco Technology Co., Ltd. is a high-tech company engaged in electronic security and optical communication industry,integrating R&D, production and sales. We specialize in producing HDMI/VGA/DVI extenders, HD / 3G-SDI / HDMI / VGA / DVI fiber converters, HD-CVI / TVI / AHD video converters, FXS / FXO telephone voice fiber converters, audio RCA broadcast fiber converters and RS485 / 422 / 232 serial fiber converters. All of these products are widely used in banking, electricity, transportation, coalmines, schools, border defense, shopping malls and communities.
Exhibition
Intersec Dubai 2020
CPSE Shenzhen 2019
Secutech Vietnam 2019
CPSE Shenzhen 2017
FAQ
1. What is the transmission distance of the DVI USB (KVM) Extender?
When transmitting through CAT5 CAT5e line, the transmission distance is 120 meters;
When transmitting via CAT6e line, the transmission distance is 150 meters.
2. What resolution does it support?
480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720i @ 50 / 60Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz.
3.Can the USB interface be connected to a U disk?
No, it can only connect to the mouse and keyboard.
When transmitting through CAT5 CAT5e line, the transmission distance is 120 meters;
When transmitting via CAT6e line, the transmission distance is 150 meters.
2. What resolution does it support?
480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720i @ 50 / 60Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz.
3.Can the USB interface be connected to a U disk?
No, it can only connect to the mouse and keyboard.
