Performance Parameters

3.1 Features Glance

Ø PCI 3.X approved product;

Ø Standard RS-232,USB interface;

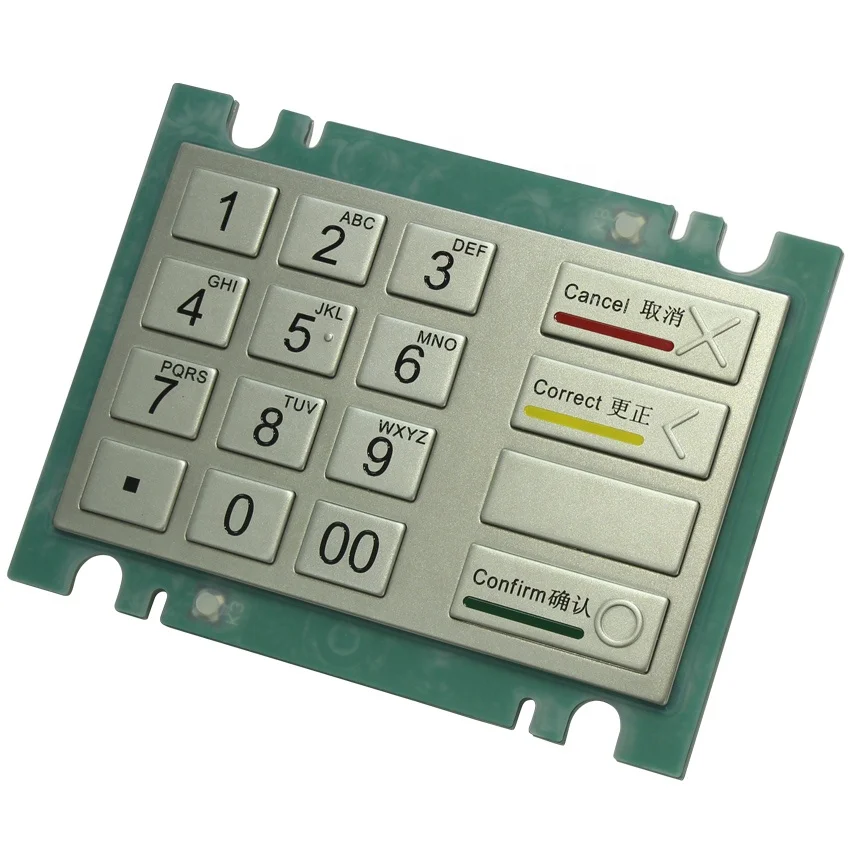

Ø Euro-American Style, punched stainless steel EPP.

Ø The key uses precise casting technology and unique inlay technology, which guarantee the perfect tactile.

Ø Professional performance of water proof, dust proof, vandalism resistance, anti-drill, anti reveal, anti replacement etc.

Ø The key, program and any sensitive self-destroy mechanism against illegal dismantle.

Ø Support DES/TripleDES algorithm,support EPP suit software;

Ø Support RSA algorithm (max 4 0 9 6 b i t)

Ø Fast computing speed, the computing time is less tan 2s for 1024bits with 3DES algorithm.;

Ø Support multi level key system, max 688 levels.

3.2 Mechanical performance

Ø Front panel and key:high qualified stainless steel

Ø Key lifespan: more than 2 million operations

Ø Key pressure:2~3N

Ø Key stroke:0.45mm

Ø Key legends:laser etching and strong painting.

Ø Actuation force:50g

Ø Input details:10 digits keys,6 function keys

Ø extendable:2 pcs of 1*4 functional keypad

Ø data protection:data will be kept for more than 5 years against power-off.

Ø Panel dimension:160mm*102mm see drawing for details

Ø Net weight:0.9kg

3.3 Electronic performance

Ø Interface:Standard USB2.0interface (USB 1.1 is compatible)

RS232 interface,baud rate:9600,8 data bit, 1 stop bit and no          check parity

Ø Voltage:    5.0V±10%

Ø consumption:    ≤0.5W(dynamic),≤0.2W(static)

Ø reliability:MTBF>20000H
  MTTR<30min

3.4 Applying area

Ø Cash-ref terminals:such as ATM,ADM,CDM,CRS etc

Ø Self-service terminals: such as E-bank terminal, ticket vendors, vendor, auto gas dispenser, etc.

Ø Unattendable Payment Terminals

3.5 Environmental Requirement

Working temperature:-25℃~65℃

Storage temperature:-40℃~85℃

Relative humidity:30~90%RH

Air pressure :50~100Kpa

Protect level:IP65 (static)/IP54(dynamic)

3.6 Algorithm standard

DES,3DES:ANSI X3.92,ANSI X9.52

PIN operation:ANSI X9.8(ISO9564.0,ISO9564.1,ISO9564.3),IBM3624

MAC operation:ANSI X9.9,ANSI X9.19

Security standard:ISO13491

Encrypting and decrypting speed:<0.1S(8 bits DES)

4,device testing

Please test and debug the device by program of “XZ_F30_API_TEST.exe”

5,device installation

5.1 cautions

1, before installation, it is highly suggested to test the device by testing software provided by manufacturer to confirm the device is in workable status.

2, before installation, please be sure to shut down the computer or terminal

3,before installation, please kindly check the interface or port, this EPP provides three interface: RJ45, USB and DB9, please kindly notice that only one kind of interface is workable for one time. Please take the annex B for reference.

  Incorrect interface or port configuration will destroy the device, so please confirm the interface and configure it correctly.

4,without written permission, please don’t dismantle this device, or the firmware will lost and the device will be not workable.
