Буровое долото с высоким давлением воздуха 5 дюймов 6 8 10

Буровое долото с высоким давлением воздуха 5 дюймов 6 8 10

Категория: Mining Machine Parts >>>
Поставщик: Zhengzhou,Suiry,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.72 $*	0.52 $*
Aug-20-2025	0.65 $*	0.74 $*
Jul-20-2025	0.23 $*	0.11 $*
Jun-20-2025	0.51 $*	0.86 $*
May-20-2025	0.0 $*	0.34 $*
Apr-20-2025	0.58 $*	0.75 $*
Mar-20-2025	0.55 $*	0.49 $*
Feb-20-2025	0.32 $*	0.11 $*
Jan-20-2025	0.31 $*	0.7 $*

Характеристики

Products Description

Main Features For High Air Pressure hammer 5inch 6inch 8inch 10inch 12inch dth drilling bit for drill rig use:

1) DTH hammers series we supply
A) High pressure series
B) Medium pressure series
C) Low pressure series
D) High efficiency high pressure series
E) Reverse circulation series
2)Outside diameters: 61.2~275mm
3)Drilling diameter: 68~508mm

Type	Model	Lenght (mm)	Weight (kg)	External Dia. (mm)	Hole Range (mm)
3.5inch	DHD3.5	930	25	Φ82	Φ90-110
4inch	DHD340	1030	39	Φ99	Φ110-135
		SD4	1084	40.5		Φ99
		QL4	1097	41		Φ99
		Mission40	1005	40		Φ99
5inch	DHD350	1214	76.5	Φ125	Φ135-155
		SD5	1175	72.5		Φ125
		QL5	1147	73		Φ125
		Mission50	1110	68.5		Φ125
6inch	DHD360	1248	100	Φ142	Φ155-190
		SD6	1261	100		Φ142
		QL6	1212	95		Φ146
		Mission60	1161	90		Φ146
8inch	D85	1492	188	Φ180	Φ195-254
		SD8	1463	192		Φ180
		QL8	1465	182		Φ180
		Mission80	1338	176		Φ180
10inch	SD10	1502	290	Φ226	Φ254-311
10inch		NUMA100	1510	288	Φ254-311	Φ226
12inch	DHD1120	All can be customized according to requests.
						Numa120
						Numa125

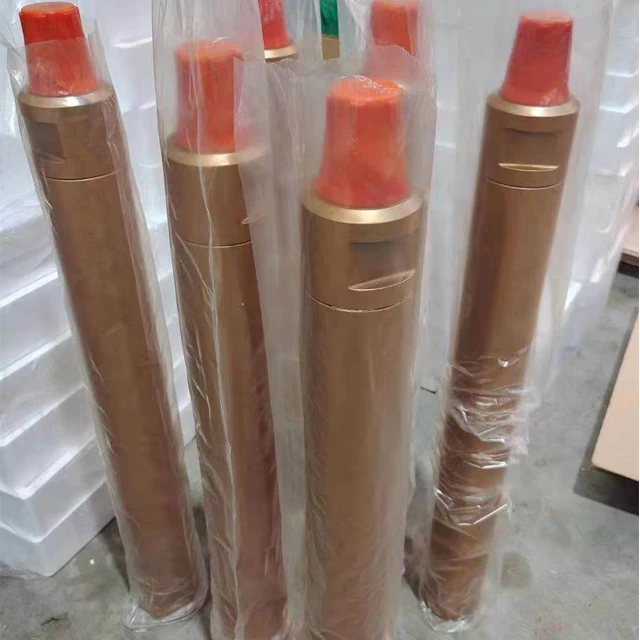

Product packaging

Company Profile

Our Company Information

Zhengzhou Suiry Machinery Co., Ltd is a manufacturer specialized in the research, development and production of DTH drilling rig, Water well drilling rig, DTH hammer, DTH bits, Drilling Pipe and all accessories about above products, good quality products has exported to Russia, Spain, Canada, Chile, Peru, Uruguay, Mexico, Maldives, Zimbabwe, South Africa, Indonesia, Philippines, etc more than 20 countries and regions. Welcome to contact us and getting more details.

If you are in need of water well drill rig, screw air compressor and drilling tools, pls do feel free to contact us, hope we have a chance to cooperate.

Recommend Products

SR180 Water Well Drilling Rig

Drilling Hole Diameter: 140-254mm

Drilling Depth:180m

Diesel Engine: Yuchai, 60kw

Swing Torque: 3200-4600N.m

Weight:5.2T

Dimension: 4000*1630*2250mm

SRX200 Water Well Drilling Rig

Drilling Hole Diameter: 140-254mm

Drilling Depth:200m
Diesel Engine: Quanchai, 65kw
Swing Torque: 3400-4700N.m
Weight:5T
Dimension: 3950*1750*2250mm

SR260 Water Well Drilling Rig

Drilling Hole Diameter: 140-305mm

Drilling Depth:260m
Diesel Engine: Xichai, 70kw
Swing Torque: 4000-5300N.m
Weight:6.5T
Dimension: 4000*1850*2300mm

SR300 Water Well Drilling Rig

Drilling Hole Diameter: 140-325mm

Drilling Depth:300m
Diesel Engine: Yuchai, 85kw
Swing Torque: 5700-7500N.m
Weight:7.2T
Dimension: 4100*2000*2500mm

SR350 Water Well Drilling Rig

Drilling Hole Diameter: 140-325mm

Drilling Depth:350m
Diesel Engine: Yuchai, 92kw
Swing Torque: 6200-8500N.m
Weight:8.6T
Dimension: 6000*2000*2550mm

SR500 Water Well Drilling Rig

Drilling Hole Diameter: 140-350mm

Drilling Depth:500m
Diesel Engine: Yuchai, 118kw
Swing Torque: 7500-10000N.m
Weight:11.5T
Dimension: 6200*2200*2650mm

S60 Stationary Screw Air Compressor

Working Pressure: 18bar

Air Delivery Capacity: 18m³/min

Weight: 3000kg

Diemension: 3200*1670*2000mm

S85D Screw Air Compressor

Working Pressure: 22bar

Air Delivery Capacity: 24m3/min
Weight: 3560kg
Diemension: 3560*1830*2050mm

BW250 Mud Pump

Flow: 250L/min

Working Pressure: 2.5MPa

Weight: 650kg

Dimension: 1560*995*650mm

DTH Hammer

Size: 4-12inch

Hole Range: 136-450mm

Working Pressure: 1.5-3.5MPa

DTH Drill Bit

Size: 4-12inchHole

Range: 136-450mm
Working Pressure: 1.5-3.5MPa

Drill Rod

Diameter: 76mm, 89mm

Length: 1.5m, 2m, 3m

FAQ

Q1: Are you a manufacturer?

A: Yes, we are a professional DTH drill rig and blasting hole drill rig manufacturer.

Q2: What does your company produce?

A: The main products of our company include blasting drilling rig,water well drilling rig, all kinds of air compressors and drilling tools (such as hammer, drill bit, drill pipe, mud pump, etc.)

Q3: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.

Q4: What methods of payment do you accept?

A: We accept T/T, L/C.

Q5: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price.

Q6: How to get a detailed quotation?

A: Please confirm water well borehole diameter and depth, with screw air compressor or mud pump, we will recommend most suitable model drill rig according to your need and prepare detailed quotation ASAP.

If you need more details, welcome to send inquiry or contact us directly, hope we have a good chance to cooperate in your project.
