Product Description

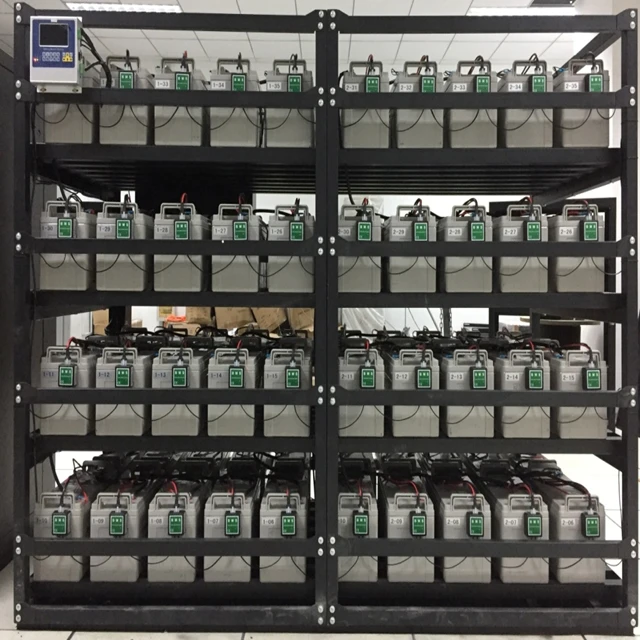

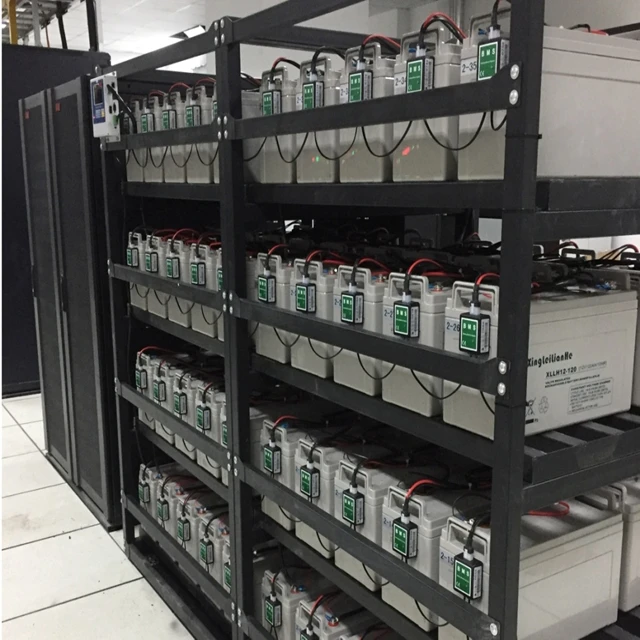

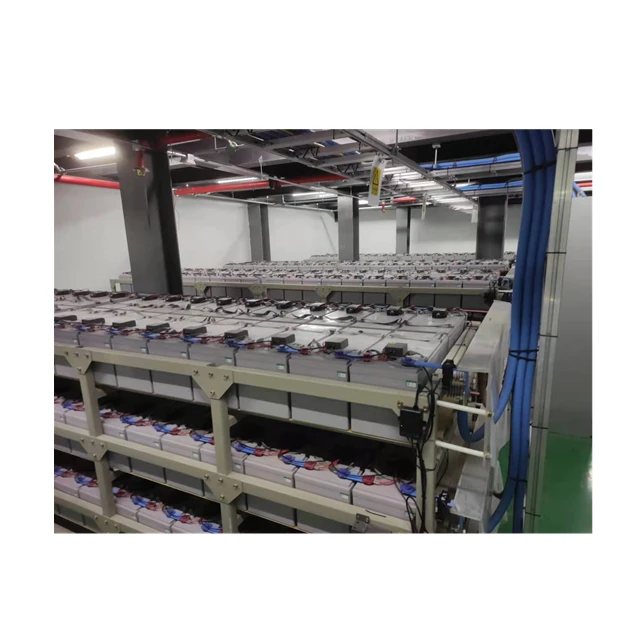

H3G-TA Battery Monitoring System
The H3G-TA Battery Monitoring System is designed specifically for single battery monitoring. TA module advanced patented technology provides the most comprehensive stationary battery health analysis in the industry
•Continuous 24/7 online monitoring

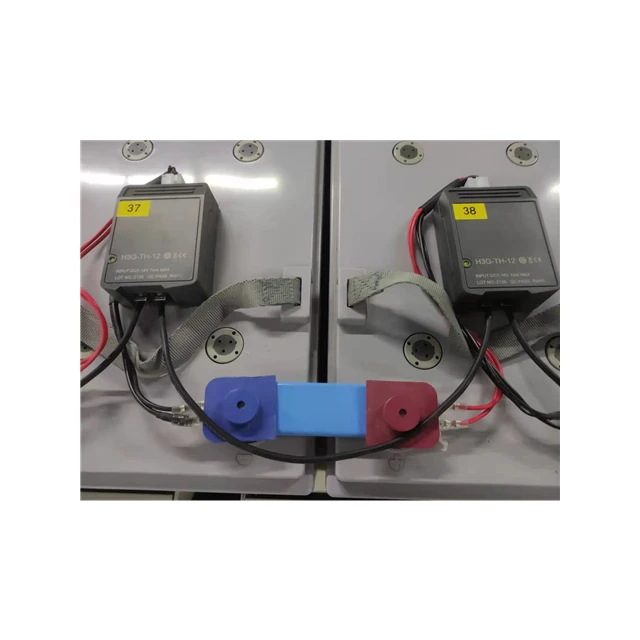

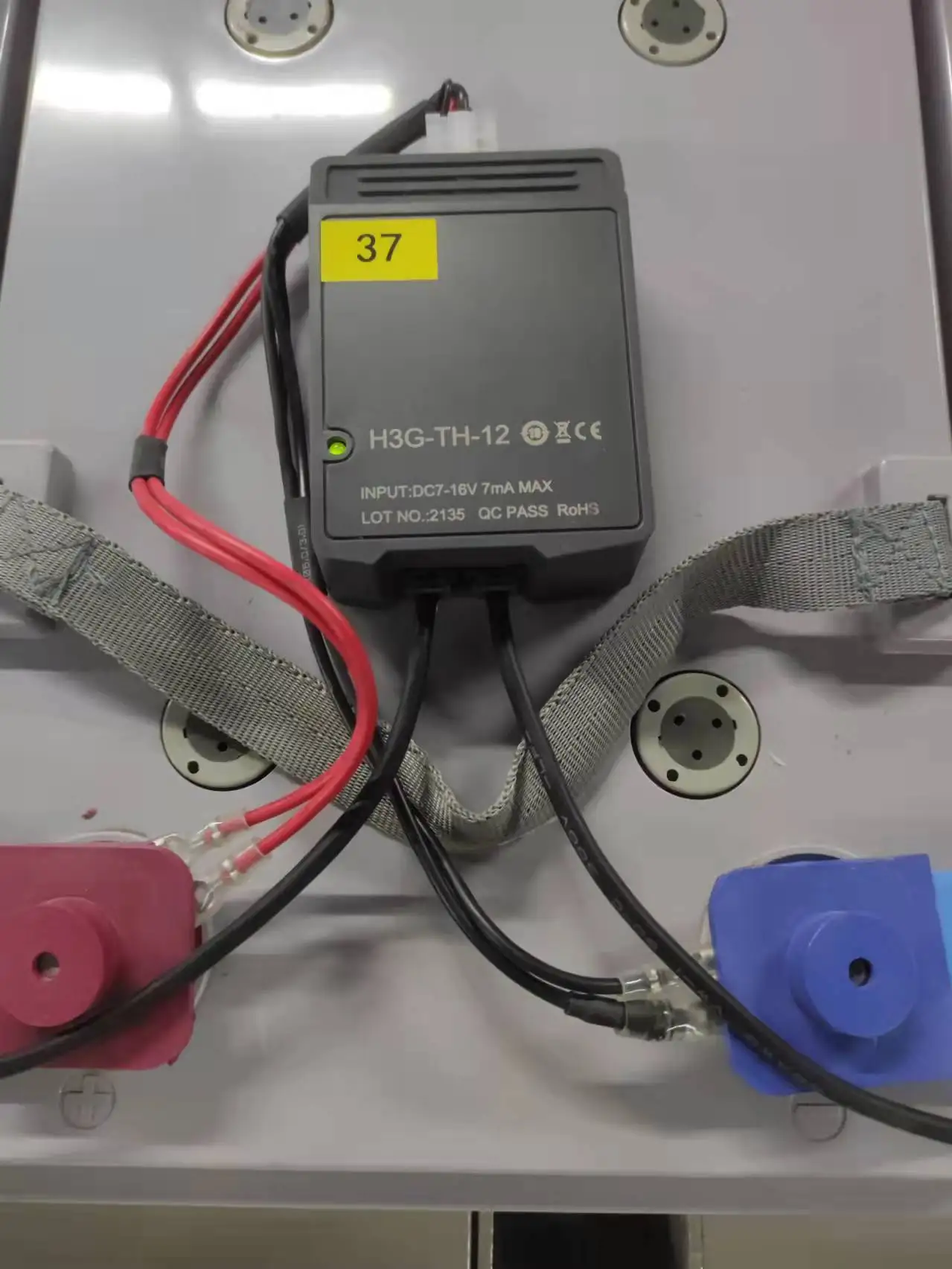

•One TA module device per battery to monitor internal resistance, voltage and temperature
•Software is available to retrieve data from TA module
•Serial port with optical isolation, meets Modbus specification
•Interfaces with most UPS controllers
•Continuous 24/7 online monitoring
•One TA module device per battery to monitor internal resistance, voltage and temperature
•Software is available to retrieve data from TA module
•Serial port with optical isolation, meets Modbus specification
•Interfaces with most UPS controllers
Specification
Environmental | Operating temperature | -10℃~50℃ | |
Relative humidity | 5％～95％ | ||
Relative humidity | 80～110kPa | ||
Usage | 1.2V, 2V, 6V or 12V batteries, capacity less than 3000AH | ||
Power Requirements | TA module | battery-powered, less than 13mA (1.2V,2V) or 7mA(6V&12V) quiescent | |
TC module | 8~13VDC, 2W | ||
CM module | 100~240VAC, 110V~370VDC (standard), DC48V(36-72VDC), 15W | ||
Communications Interfaces | TA/TC module | UART port, support Modbus protocol | |
CM module | RS485, 10/100M LAN port, meets Modbus/ RTU, Modbus/TCP and SNMP protocols (Max. support 6 strings or 960 cells) | ||
Insulation | 2000VAC | ||
Weight | TA module | 80g | |
TC module | 75g | ||
CM module | 1.8Kg | ||

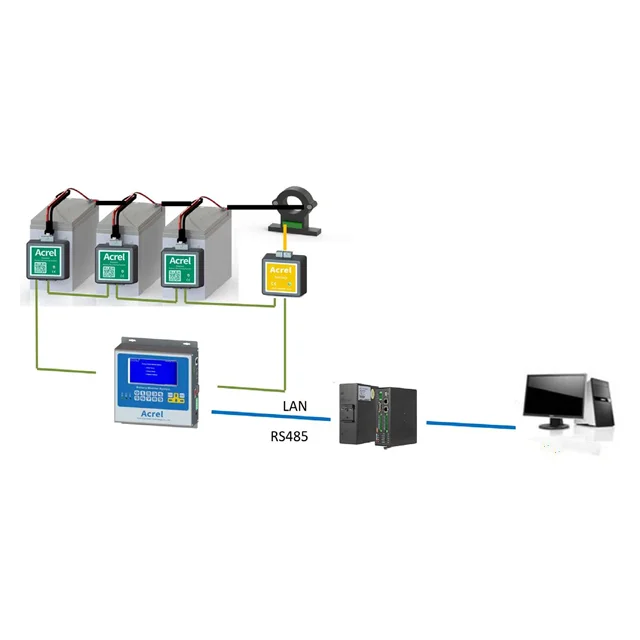

Network
Features
•Full resistance, battery temperature and voltage monitoring for comprehensive battery state of health analysis
•String current and ambient temperature monitoring (requires TC module)
•Automatic analysis of battery monitoring data to, identify the batteries that need replacement or maintenance
(requires CM module)
•All operating parameters can be set via the serial bus
•Panel lights indicate when alarm is raised, which can also be read via the serial bus
•Store historical data, including up to 24 battery voltage readings; 720 string voltage readings; 12 internal resistance readings; 15 temperature readings; 100 alarms and 50 events
•PC software is available for management of multiple strings, real-time querying and historical data
•String current and ambient temperature monitoring (requires TC module)
•Automatic analysis of battery monitoring data to, identify the batteries that need replacement or maintenance
(requires CM module)
•All operating parameters can be set via the serial bus
•Panel lights indicate when alarm is raised, which can also be read via the serial bus
•Store historical data, including up to 24 battery voltage readings; 720 string voltage readings; 12 internal resistance readings; 15 temperature readings; 100 alarms and 50 events
•PC software is available for management of multiple strings, real-time querying and historical data
