Вилочный подъемник CHANGLIN CPCD30 гидравлический ручной штабелер поддонов 3t дизельный вилочный
- Категория: Forklifts >>>
- Поставщик: Sinomach-Hi,International,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.60 $* | 0.23 $* |
| Aug-16-2025 | 0.22 $* | 0.30 $* |
| Jul-16-2025 | 0.45 $* | 0.65 $* |
| Jun-16-2025 | 0.81 $* | 0.41 $* |
| May-16-2025 | 0.27 $* | 0.76 $* |
| Apr-16-2025 | 0.52 $* | 0.78 $* |
| Mar-16-2025 | 0.53 $* | 0.48 $* |
| Feb-16-2025 | 0.71 $* | 0.68 $* |
| Jan-16-2025 | 0.21 $* | 0.37 $* |
Характеристики
Product Description
Main Features:

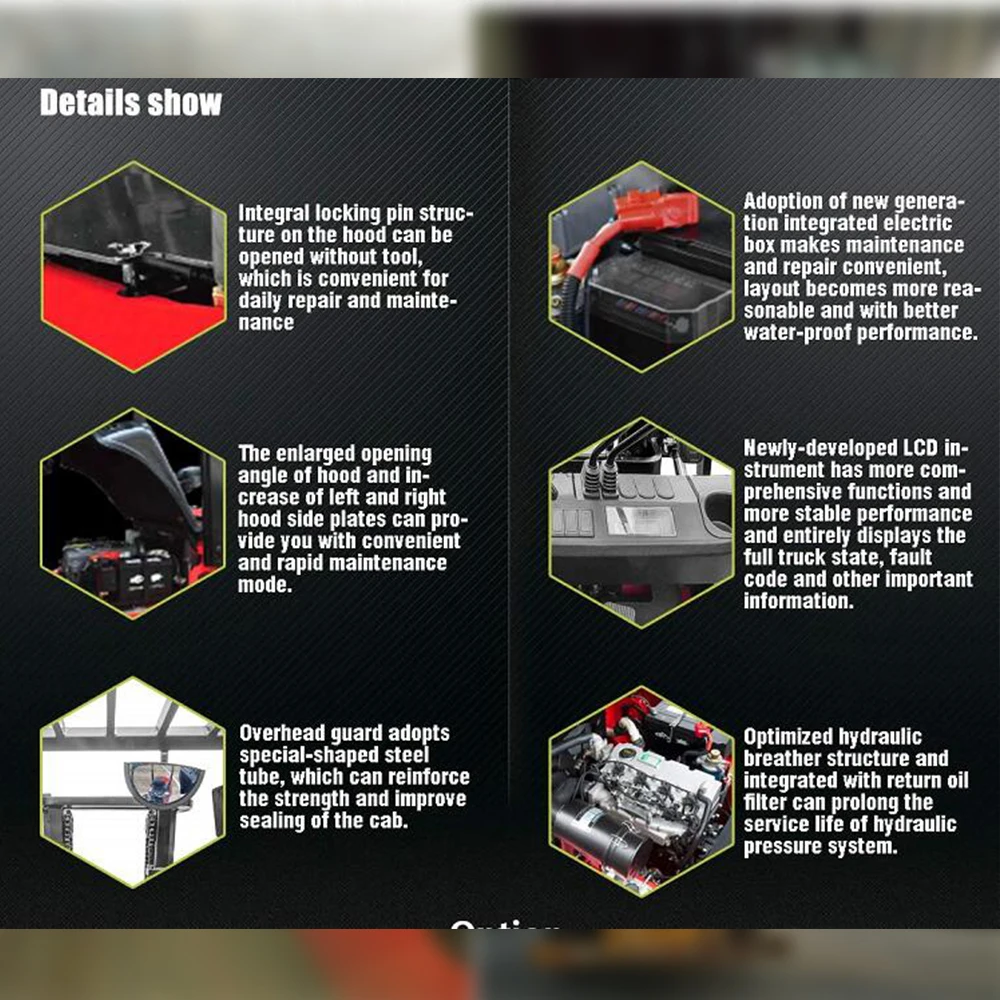

•Adopt the new-type of box iron. Increase the inside width of inner mast and the spacing between lifting cylinders. The lowering of instruments in the cabin will greatly increase the forward visibility; The rear visibility will also be greatly improved through the optimization design of counterweight.
•The enlarged opening angle of hood and increase of left and right hood side plates can provide you with convenient and rapid maintenance mode.
· Roller bearing on the steering axle king pin adopts large size tapered roller bearing (TRB), larger steering cylinder and bumper block assemblies on the top, which can prolong the service life of bearing and highly improve the reliability of steering axle.
·The engine ensure the strong power take-off, lower emission and better cold starting performance; saving the 10% of energy consumption.
· overhear guard adopts special-shaped steel tube, which can reinforce the strength and improve sealing of the cab.
·Adoption of new generation integrated electric box makes maintenance and repair convenient, layout becomes more reasonable and with better water-proof performance
Model | CPCD25 | CPCD30 | CPCD35 | CPCD50 |
Power Type | Diesel | Diesel | Diesel | Diesel |
Rated Load Capacity (kg) | 2500 | 3000 | 3500 | 5000 |
Load Centre (mm) | 500 | 500 | 500 | 500 |
Rated Lift Height (mm) | 3000 | 3000 | 3000 | 3000 |
Free Lift Height (mm) | 160 | 165 | 165 | 160 |
Fork Size (L×W×T)(mm) | 1070*122*40 | 1070*122*45 | 1070*122*50 | 1070*150*50 |
Mast Tilt Angle (F/R, α°/β°) | 6°/12° | 6°/12° | 6°/12° | 6°/12° |
Fork Overhang (Wheel Center to Fork Face)(mm) | 460 | 475 | 480 | 555 |
Ground Clearance (Bottom of Mast)(mm) | 105 | 130 | 130 | 150 |
Length to Face of Fork (Without Fork)(mm) | 2610 | 2700 | 2780 | 3175 |
Overall Width (Wheel)(mm) | 1155 | 1225 | 1225 | 1490 |
Overhead Guard Height(mm) | 2120 | 2150 | 2150 | 2310 |
Wheel base (mm) | 1650 | 1700 | 1700 | 2000 |
Turning Radius (Outside)(mm) | 2330 | 2400 | 2440 | 2780 |
Travel Speed (loaden/unloaden) (km/h) | 20/21 | 18/19 | 18/19 | 23.5/25 |
Lifting Speed (loaden/unloaden) (mm/s) | 550/600 | 460/500 | 380/450 | 400/440 |
Lowering Speed (loaden/unloaden)(mm/s) | 500/450 | 500/450 | 400/350 | 460/440 |
Max.Gradeability (loaden/unloaden) % | 25/25 | 25/25 | 20/20 | 20/23 |
Tyre (Front ) | 7.00-12-12PR | 28×9-15-14PR | 28×9-15-14PR | 300-15-18PR |
Tyre (Rear ) | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | 7.00-12-12PR |
Total Weight(kg) | 3850 | 4380 | 4750 | 6750 |
Engine Model | C490BPG | C490BPG | C490BPG | LR4B3 |
Rated power | 40kw@2650rpm | 40kw@2650rpm | 40kw@2650rpm | 57kw@2200rpm |
Rated torque | 160N.m @1800-2000rpm | 160N.m @1800-2000rpm | 160N.m @1800-2000rpm | 285N.m@1400rpm |
Related Products
About Us
International Cooperation
Overseas Service
Exhibition
Case
Packing & Shipping
Certifications
FAQ
After sales warranty services provided:
- A Worldwide network of agents and subsidiaries are able to serve you on site.
- Remote real-time guidance for troubleshooting via 24-hour video link
- 24-hour troubleshooting response through telephone, whats app, Facebook, YouTube, WeChat, etc,
- 48-hour warranty parts ready for delivery free of charge through DHL, TNT
- By shooting video, guide the troubleshooting clearly and efficiently
After warranty service:
- Remote real-time guidance for troubleshooting via 24-hour video link
- 24-hour troubleshooting response through telephone, whats app, Facebook, YouTube, WeChat, etc,
- By shooting video, guide the troubleshooting clearly and efficiently
Q1.are you original manufacturer?
A:Yes, we Changlin are an official leading manufacturer in construction machinery, We set up joint ventures with Komatsu & Hyundai in 1990s.
Q2: what kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
Q3. Which incoterms 2021 can we work?
A: FOB, CFR, CIF are the usual trade terms
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link,
