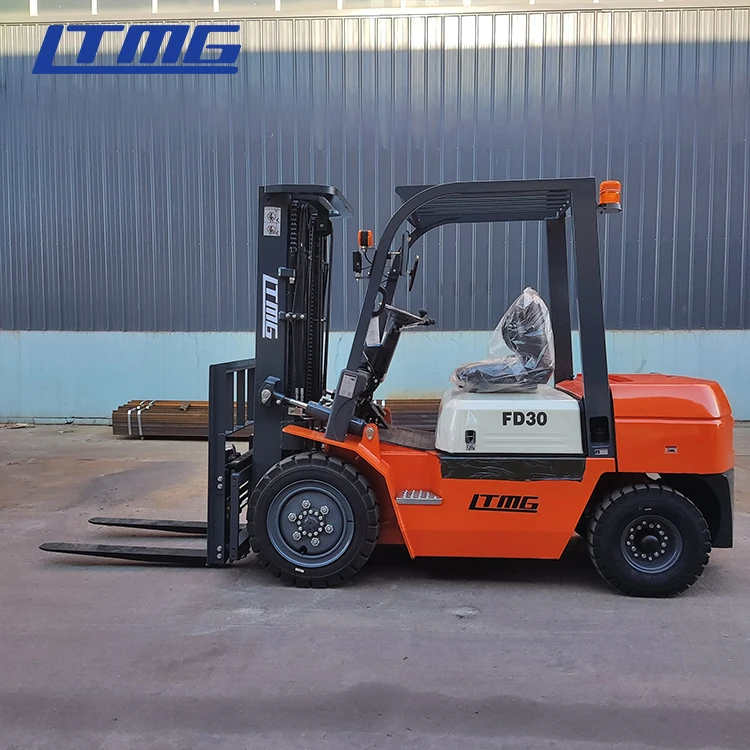

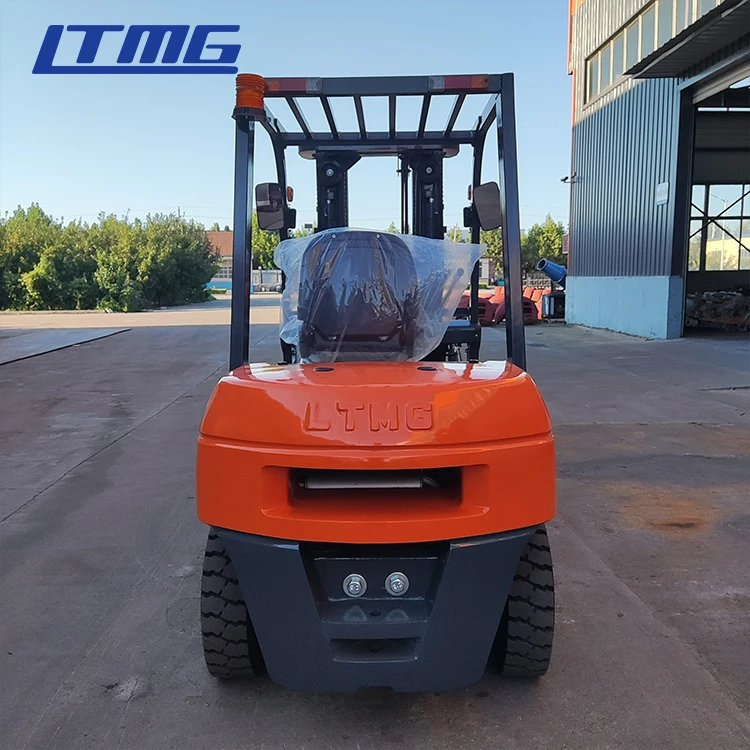

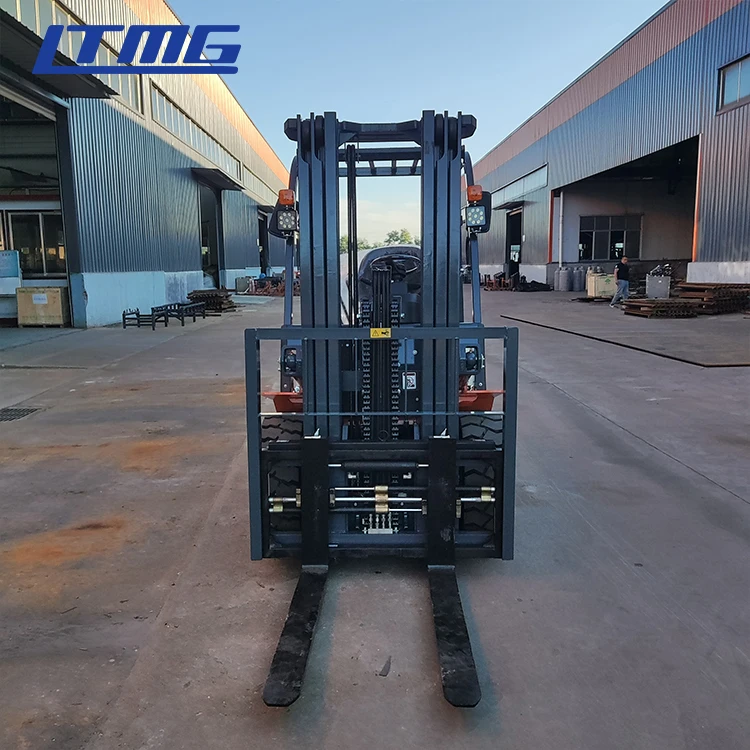

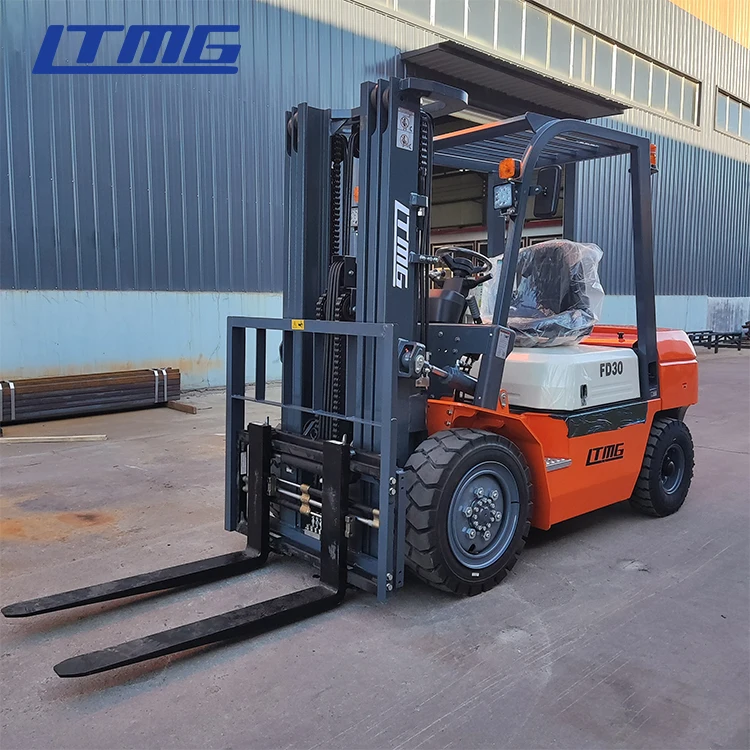

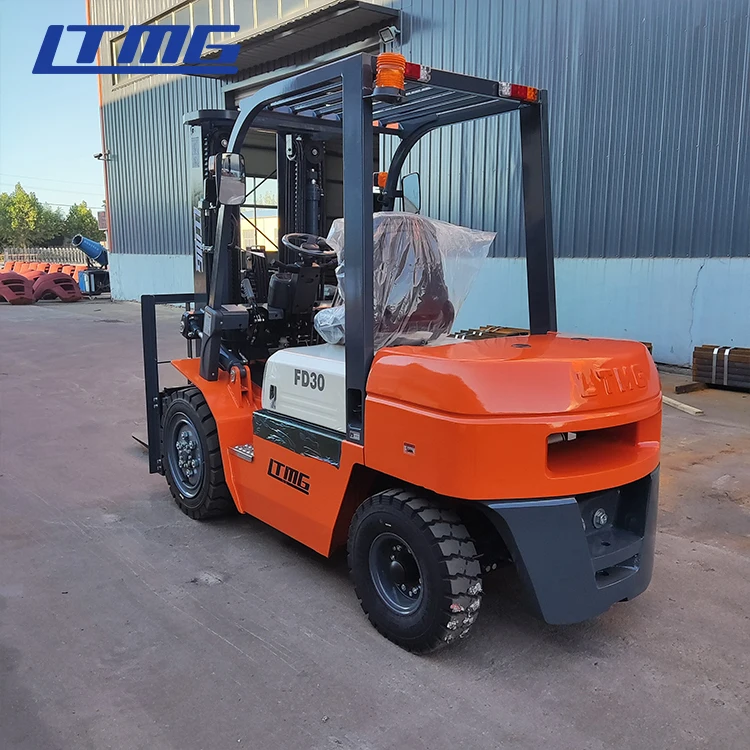

LTMG высококачественные портативные вилочные погрузчики 3 тонны 5 4 дизельный погрузчик с дополнительными
- Категория: Transporting >>>
- Поставщик: Xiamen,LTMG,co.,ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 9506.61 $* | 9981.49 $* |
| Aug-17-2025 | 9426.63 $* | 9897.44 $* |
| Jul-17-2025 | 7908.40 $* | 8303.92 $* |
| Jun-17-2025 | 9266.17 $* | 9729.31 $* |
| May-17-2025 | 8068.85 $* | 8471.5 $* |
| Apr-17-2025 | 9106.0 $* | 9561.39 $* |
| Mar-17-2025 | 9026.48 $* | 9477.53 $* |
| Feb-17-2025 | 8947.43 $* | 9394.27 $* |
| Jan-17-2025 | 8867.95 $* | 9310.10 $* |
Характеристики
Standard Configuration:
》Hydraulic Automatic Transmission.
》Shimadzu Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.
》Electric-hydraulic Directional Control Valve.
》The Casting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.
》The Maintenance Free Radiators adopt Germany Technology.
》Adopt Priority Steering System, which improve the work efficiency.
》Original Toyota Comfortable Seat with Armrest and Safe-belt, LED Light ect.
》Thicker reinforcing overhead guard protective device, ensure the safety.
》Middle muffler, more environmental.
》Hydraulic Automatic Transmission.
》Shimadzu Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.
》Electric-hydraulic Directional Control Valve.
》The Casting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.
》The Maintenance Free Radiators adopt Germany Technology.
》Adopt Priority Steering System, which improve the work efficiency.
》Original Toyota Comfortable Seat with Armrest and Safe-belt, LED Light ect.
》Thicker reinforcing overhead guard protective device, ensure the safety.
》Middle muffler, more environmental.
LTMG always treat after-sale service as important as sale.
.All the product of LTMG supplied with one year or 2000 working hours (which occurs
first) period quality warranty.Detail clauses and policies please check our website and product certificate.
first) period quality warranty.Detail clauses and policies please check our website and product certificate.
General | 1 | Model | FD30 | |||||
2 | Power Type | Diesel | ||||||
3 | Rated Capacity | kg | 3000 | |||||
4 | Load Centre | mm | 500 | |||||
Characteristic&Dimension | 5 | Lift Height | mm | 3000 | ||||
6 | Fork Size | L×W×T | mm | 1070×125×45 | ||||
7 | Mast Tilt Angle | F/R | Deg | 6°/12° | ||||
8 | Front Overhang (Wheel center to fork face) | mm | 480 | |||||
9 | Ground Clearance（Bottom of mast） | mm | 140 | |||||
10 | Overall Dimension | Length to face of fork(Without fork) | mm | 2730 | ||||
11 | Overall Width | mm | 1225 | |||||
12 | Mast Lowered Height | mm | 2115 | |||||
13 | Mast Extended Height(With backrest) | mm | 4150 | |||||
14 | Overhead Guard Height | mm | 2090 | |||||
15 | Turning Radius (outside) | mm | 2440 | |||||
Performance | 16 | Speed | Travel (Empty load) | km/h | 20 | |||
17 | Lifting (Full load) | mm/s | 510 | |||||
18 | Max.Gradeability (No load/Full load) | % | 20 | |||||
Chassis | 19 | Tire | Front | mm | 28×9-15-12PR | |||
20 | Rear | mm | 6.50-10-10PR | |||||
21 | Wheelbase | mm | 1700 | |||||
22 | Service weight | kg | 4300 | |||||
Power&Transmission | 23 | Battery | Voltage/Capacity | V/Ah | 12/80 | |||
24 | Engine | Model | C240 | |||||
25 | Manufacture | ISUZU | ||||||
26 | Rated output/r.p.m. | kw | 35.4/2500 | |||||
27 | Rated torque/r.p.m. | N·m | 137.7/1800 | |||||
28 | No.of Cylinder | 4 | ||||||
29 | Bore×Stroke | mm | 86×102 | |||||
30 | Displacement | cc | 2369 | |||||
31 | Fuel Tank Capacity | L | 60 | |||||
32 | Transmission | Type | Hydraulic | |||||
33 | Stage | FWD/RVS | 1/1 | |||||
