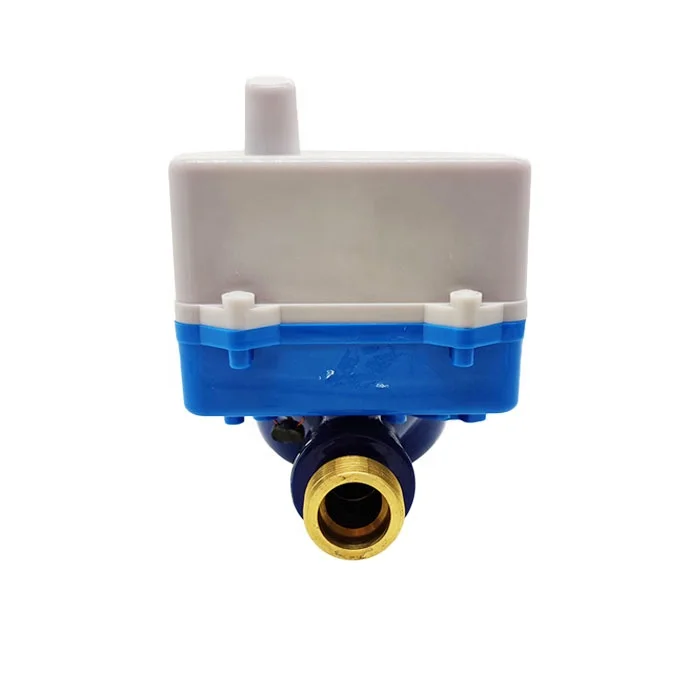

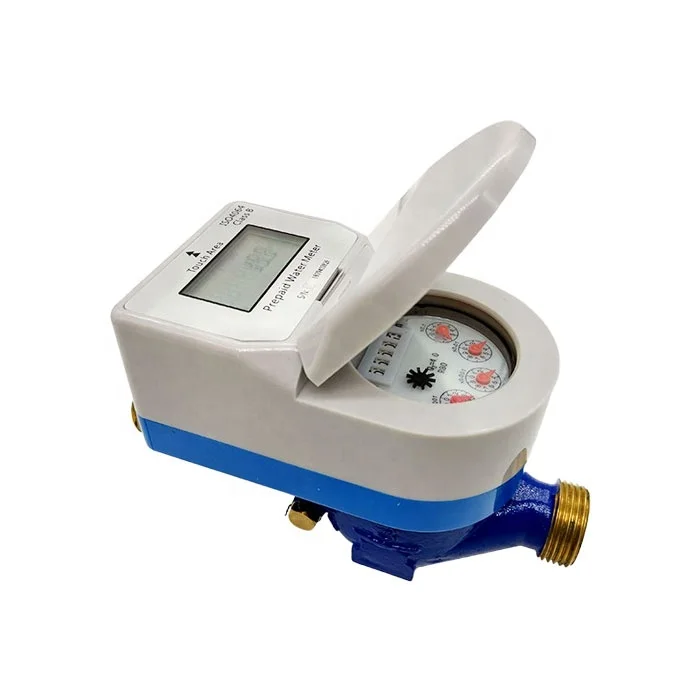

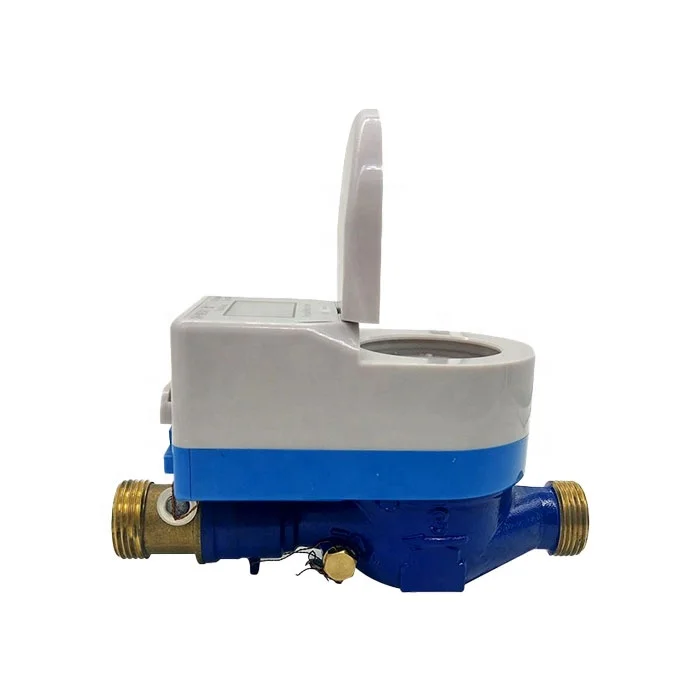

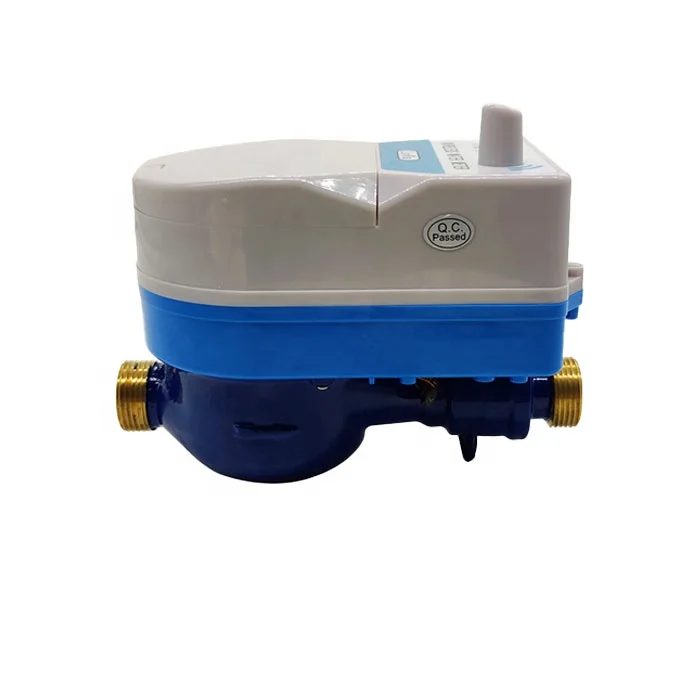

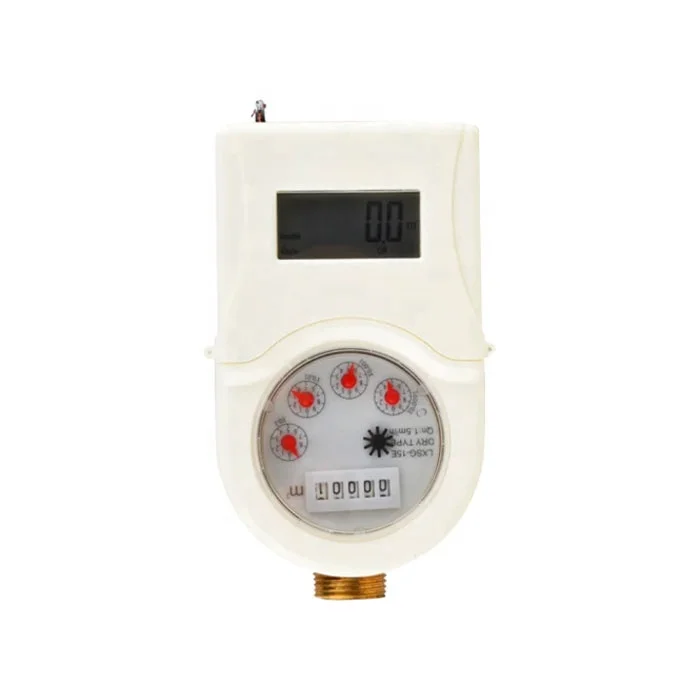

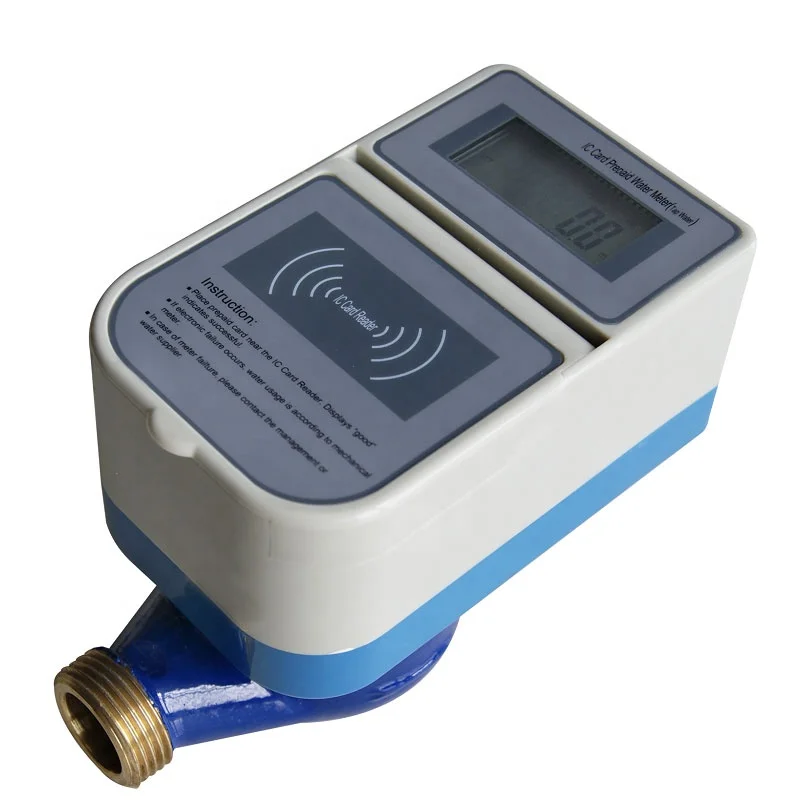

WESDOM 50 мм Измеритель для чтения воды измеритель
- Категория: >>>
- Поставщик: Henan,Weisidun,Import,And,Export,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 32.17 $* | 33.53 $* |
| Jul-15-2025 | 26.60 $* | 27.67 $* |
| Jun-15-2025 | 31.83 $* | 32.44 $* |
| May-15-2025 | 31.87 $* | 32.81 $* |
| Apr-15-2025 | 25.64 $* | 26.47 $* |
| Mar-15-2025 | 31.39 $* | 32.4 $* |
| Feb-15-2025 | 30.89 $* | 31.77 $* |
| Jan-15-2025 | 30.78 $* | 31.54 $* |
Характеристики
1. Using non-contact IC card technology, wireless data transmission is used to solve the problems of waterproof, moisture-proof
and anti-attack.
2, micro-power technology: Usually power consumption is less than 0.5μA, so that the battery life greatly increased, to ensure the
use of more than 6 years.
3, electric suspension ball valve technology: anti-locking, non-fouling characteristics, can achieve low pressure loss, wear,power
consumption, anti-rust, anti-blocking effect.
4, full seal design: all lines are all sealed with epoxy resin, good sealing.
and anti-attack.
2, micro-power technology: Usually power consumption is less than 0.5μA, so that the battery life greatly increased, to ensure the
use of more than 6 years.
3, electric suspension ball valve technology: anti-locking, non-fouling characteristics, can achieve low pressure loss, wear,power
consumption, anti-rust, anti-blocking effect.
4, full seal design: all lines are all sealed with epoxy resin, good sealing.
Standards Compliance
--Technical data conform to international standard ISO 4064.
Working conditions:
Flow range: Q1~Q3 (Q4 short time work not change error)
Ambient temperature: 5℃~55℃ Ambient moisture: (0~93)%RH Water temperature:
cold water meter 1℃~40℃, hot watr meter 0.1℃~90℃ Water
pressure: 0.03MPa~1MPa (short time work 1.6MPa not leak, no damage)
Pressure loss: ≤0.063MPa
Ambient temperature: 5℃~55℃ Ambient moisture: (0~93)%RH Water temperature:
cold water meter 1℃~40℃, hot watr meter 0.1℃~90℃ Water
pressure: 0.03MPa~1MPa (short time work 1.6MPa not leak, no damage)
Pressure loss: ≤0.063MPa
Work power supply
The operating voltage of alternating current or direct current shall be in the range of -15% to 10% of the standard voltage and
the frequency of AC frequency should be ± 2% of the standard frequency.
Card water meter should add following below requirements:
work pressure: 3.0V~3.6V
Static operating current: ≤5μA
LCD display range: 00000.0~99999.9
Climate and mechanical environment grade B
Electromagnetic environment class E1 level
the frequency of AC frequency should be ± 2% of the standard frequency.
Card water meter should add following below requirements:
work pressure: 3.0V~3.6V
Static operating current: ≤5μA
LCD display range: 00000.0~99999.9
Climate and mechanical environment grade B
Electromagnetic environment class E1 level
Application
Measuring the volume of cold potable water passing throughthe pipeline.
What can you buy from us? | ||||||||
Electromagnetic Flowmeter,Vortex Flow meter,turbine flow meter,Coriolis mass flowmeter,Radar level meter，Threaded water meter，Flange water meter | ||||||||
How long does my order take to be delivered? | ||||||||
It usually takes 5 to 30 days,which generally depends on the quantity of your order and our storage. | ||||||||
What services can we provide? | ||||||||
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian | ||||||||
What if I find a problem with the product? | ||||||||
If there is quality problem, WESDOM will reponsible for repair and replace. | ||||||||
How to get free samples? | ||||||||
Send your address,your telephone number,post code,and express account number to our mail box,and told us which samples you need and samples specification. | ||||||||
Do you have engineers in your company? | ||||||||
Yes, we have engineers in each of our factories, and also there are 5 engineers in our office, so we not only could supply professional solutions to you, also we could supply installation guidance and excellent after-service. | ||||||||
