Считыватель магнитных карт MSR MSR014 MSRV014 с головкой 0


Поделиться:


Цена:225,00 $ - 235,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-17-2025 286.43 $* 292.47 $*
Jul-17-2025 232.36 $* 237.57 $*
Jun-17-2025 281.81 $* 287.57 $*
May-17-2025 279.36 $* 285.49 $*
Apr-17-2025 223.69 $* 227.66 $*
Mar-17-2025 275.71 $* 281.17 $*
Feb-17-2025 272.67 $* 277.2 $*
Jan-17-2025 270.37 $* 275.6 $*

Характеристики


 Hi dear, we are the factory of many kind of the card reader, if you need any more detail, please help contact us below.


PS# Sales


(whatsapp: +86 15013918037 )

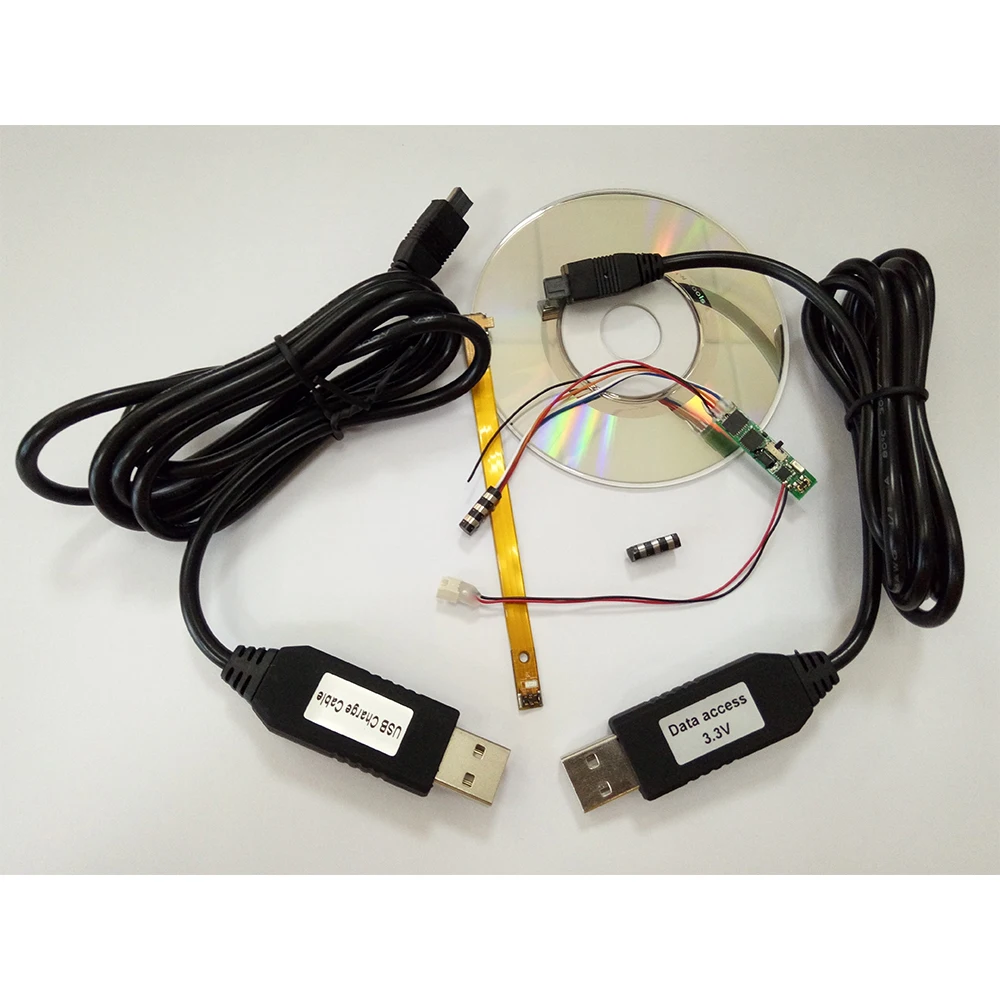

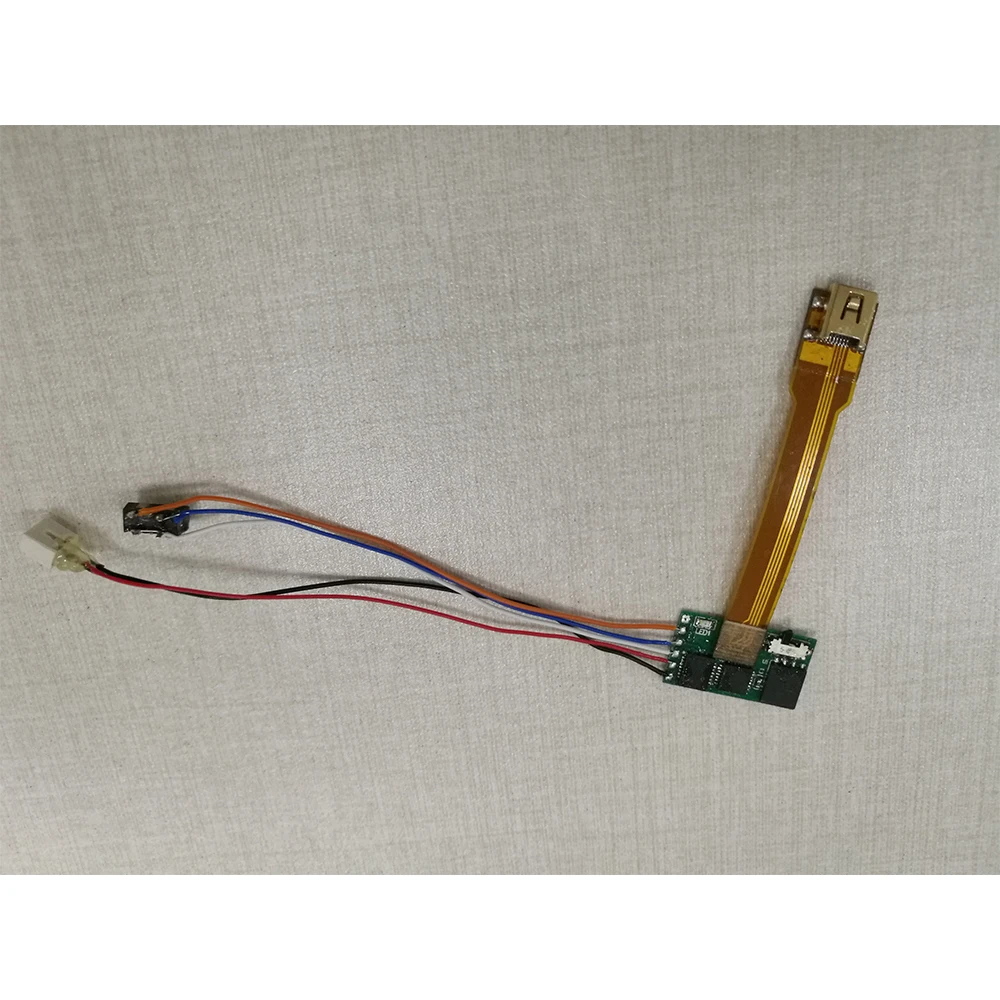

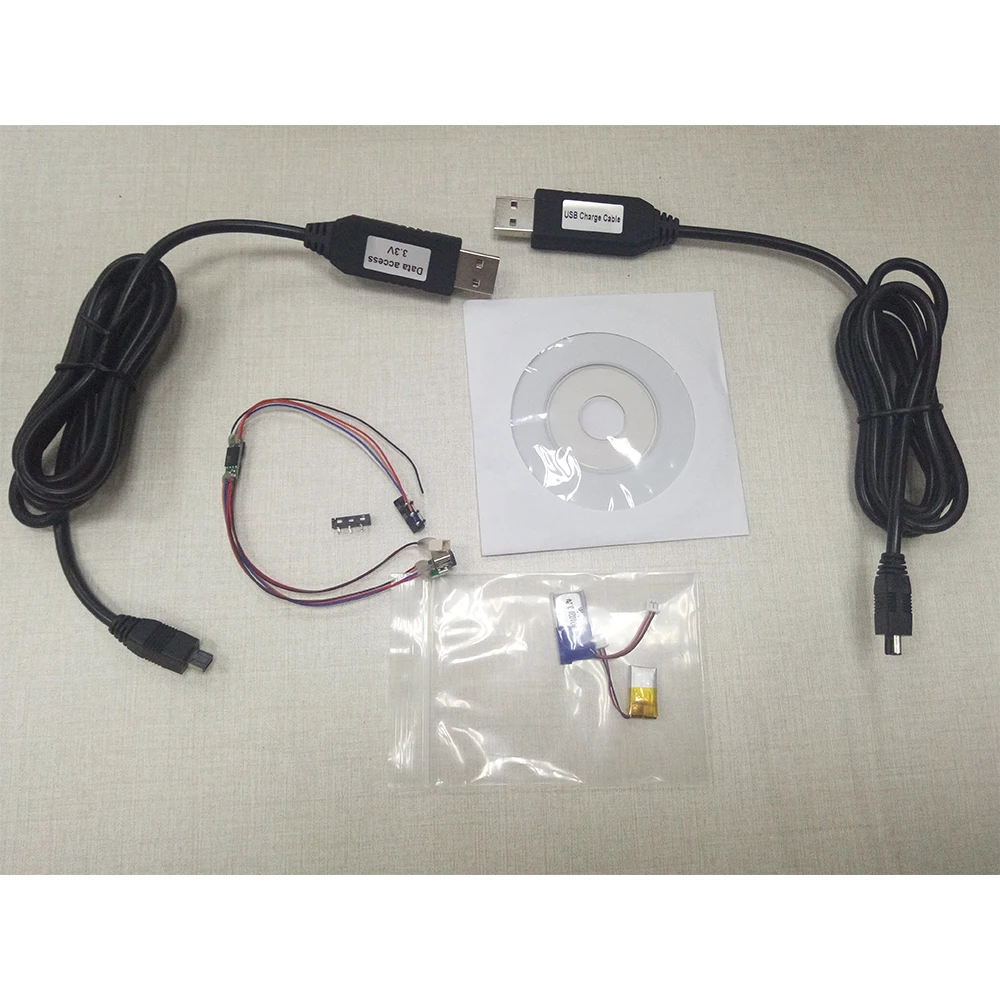

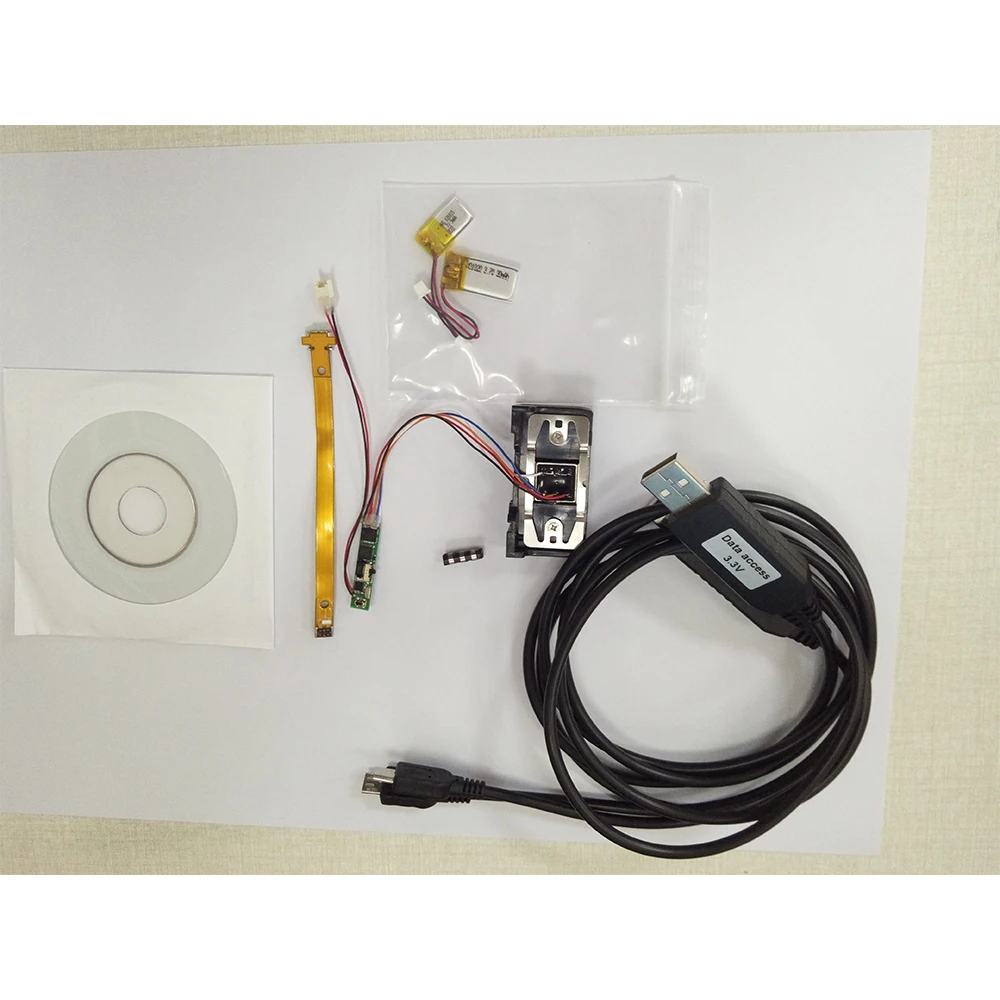

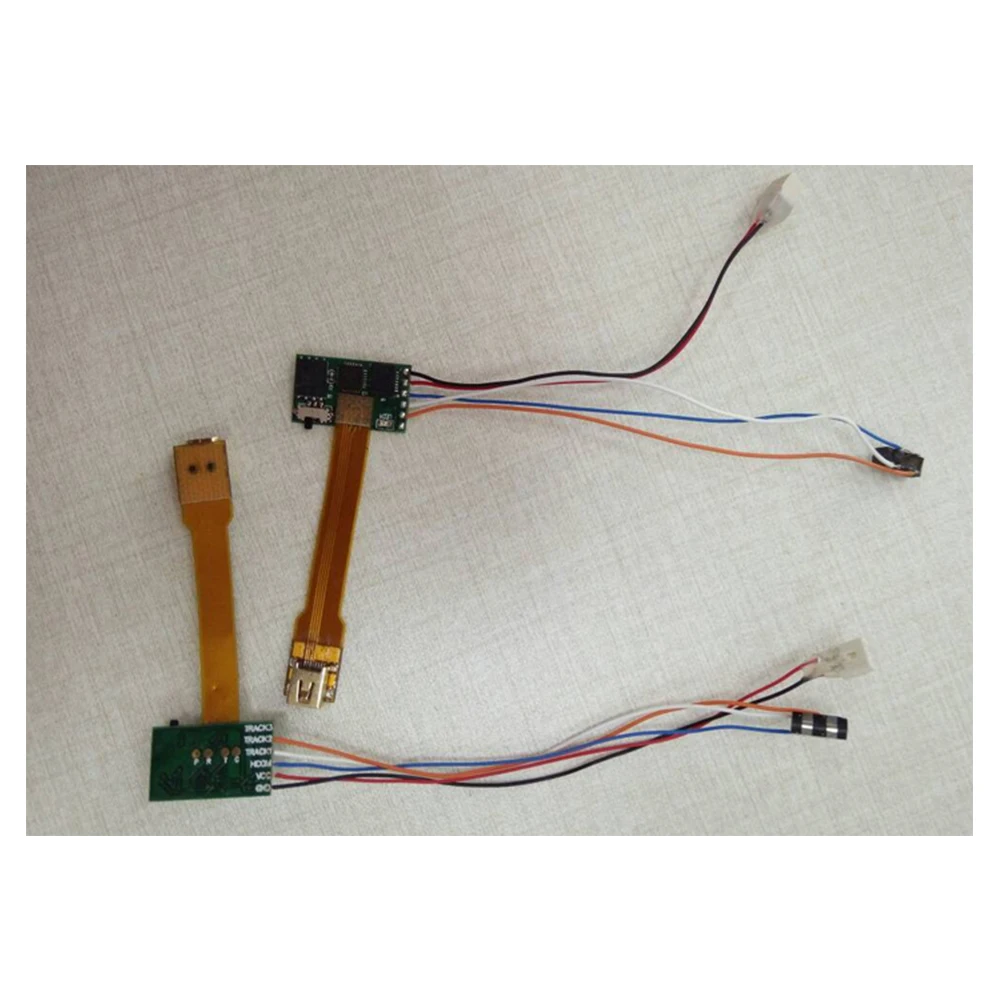

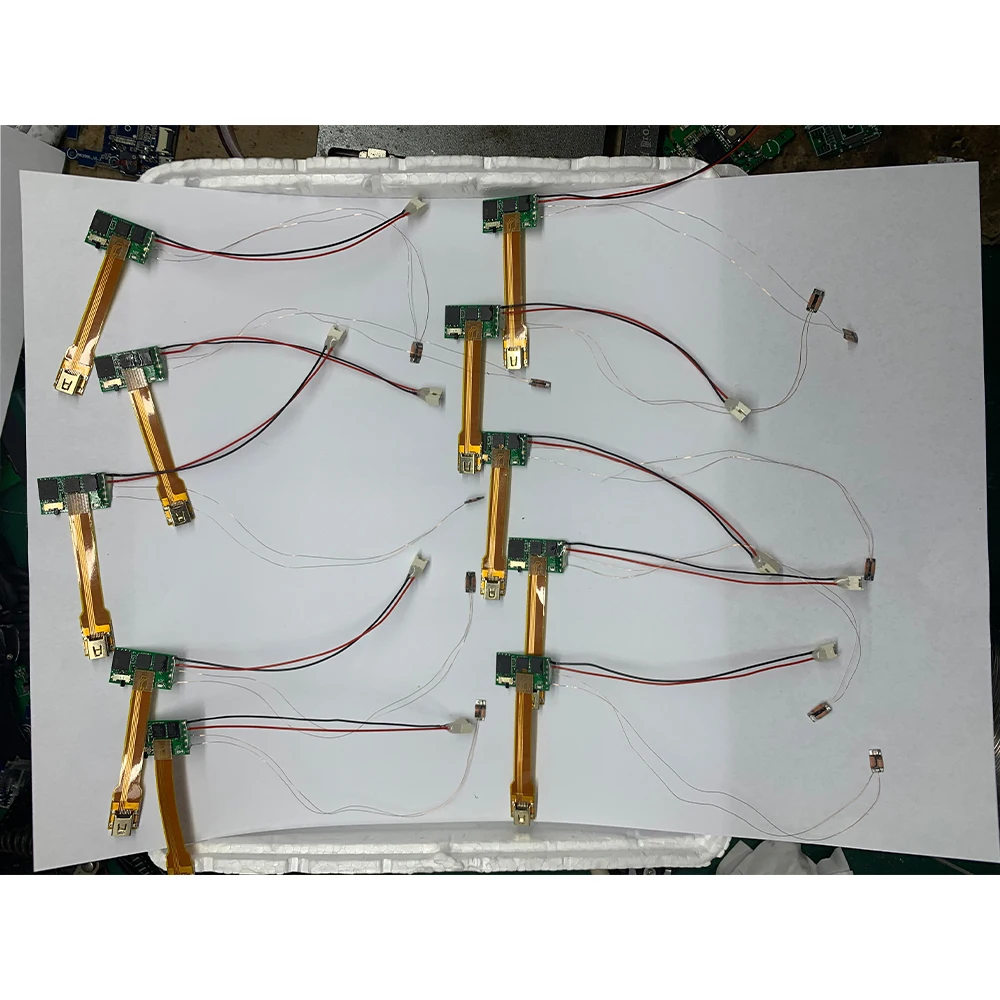

MSR MSR014 MSRV014 magnetic card reader with 0.5mm head

Product Description
The MSR015 is a portable data collector. The portable magnetic swipe reader, which is specially designed for magnetic stripe data
collection anytime and anywhere without computer. Large memory can collect 32000 data. Built-in Time clock indicates every
transaction date and time. Data is read from the card and kept into the memory then downloaded to the computer.
Features:

1.Ultra low power consumption -Less than 10uA when idle and less than 80uA when a.card is being swiped
2. Reads interrupted swipes in both directions
3. Reads all magnetic cards
4. Low voltage operation
5. Swipe Direction - bidirectional
6. Data downloadable to the computer via USB cable
7. Time stamp shows date and time with every transaction
8. Hardware imbedded password protection
9. 3-track version can collect all three tracks data
10. Fully encrypted
11. Stores 32000 card scans
12. All swipes are time stamped
13. Data retained even if power is removed
14. No programming required, easy to use as 1- 2 -3
15. Intermittent Data Collection
16. Interrupted function
17. Battery rechargeable
18. Mini size: 19.05 x10.92 x 1.02 mm





















































PCB size



Length:19.05mm, Width: 10.92mm, Height:1.02mm



Weight



10.4g



Electrical



Standby current : 75uA Work; current: 3.34-3.50mA; Work voltage: 3-3.7V; Charge voltage: 4.2V



CPU



8bit MCU



Data storage



2MB, 16000 records for Permanently remain.



Working mode



Offline and USB mode



Product description



Small, battery rechargeable, download data via USB cable



ISO Standard



Track1 210bpi, 79 Alphanumeric Characters
Track2 75bpi, 40 Numeric characters
Track3 210bpi, 107 Numeric characters



Cards Standard



ANSI, ISO, ABA



OS



Wind ows XP, Wind ows 7 / 8 / 10






MSR card reader-2.jpg
