Вакуумный импульсный пылесос с двойным винтовым Экструдером автоматическое очищающее
- Категория: Plastic & Rubber Machinery Parts >>>
- Поставщик: Hangzhou,Wedy,Machinery,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.45 $* | 0.84 $* |
| Aug-15-2025 | 0.66 $* | 0.13 $* |
| Jul-15-2025 | 0.13 $* | 0.2 $* |
| Jun-15-2025 | 0.42 $* | 0.43 $* |
| May-15-2025 | 0.75 $* | 0.11 $* |
| Apr-15-2025 | 0.75 $* | 0.62 $* |
| Mar-15-2025 | 0.49 $* | 0.90 $* |
| Feb-15-2025 | 0.2 $* | 0.49 $* |
| Jan-15-2025 | 0.54 $* | 0.5 $* |
Характеристики
Main technical parameters
Material | PVC |
Condition | New |
Current situation of PVC products extrusion industry,in normal production process of the twin screw extruder, the raw materials often emerge or backlog at the barrel vacuum suction port, and the raw materials accumulate here for a long time, it will make the raw materials coke, affect the normal work of the extruder, and cause the scrapping of the produced products.In severe times the extruder must stop working to be resolved.
At present, the solution is to manually clean up the raw materials, and times of cleaning is more frequent, but also need workers often go to check, once been accumulated, must be cleaned up in time, so as not to affect the normal work of the extruder.
In the production, this situation appears resulting in waste of personnel, production cost increase, machines work is unstable, waste products, resulting in economic losses.
But now we developed the automatic material clearing device,which used to preventing raw material blockage.can be uesd in SJZS51/105 extruder,SJZS65/132 extruder,SJZS80/165 extruder,SJZS92/180 extruder,
Characteristics:
1.High efficiency
2.Labor saving
3.Low cost
4.Simple structure
5.Regular automatic work
6.High degree of automation,
7.Reduce extruder failure rate

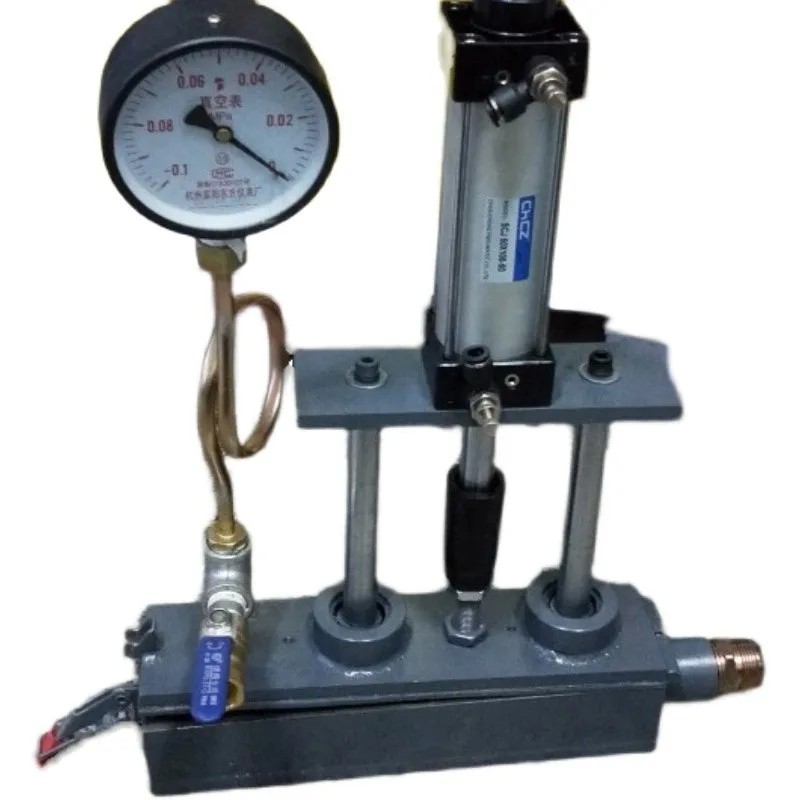

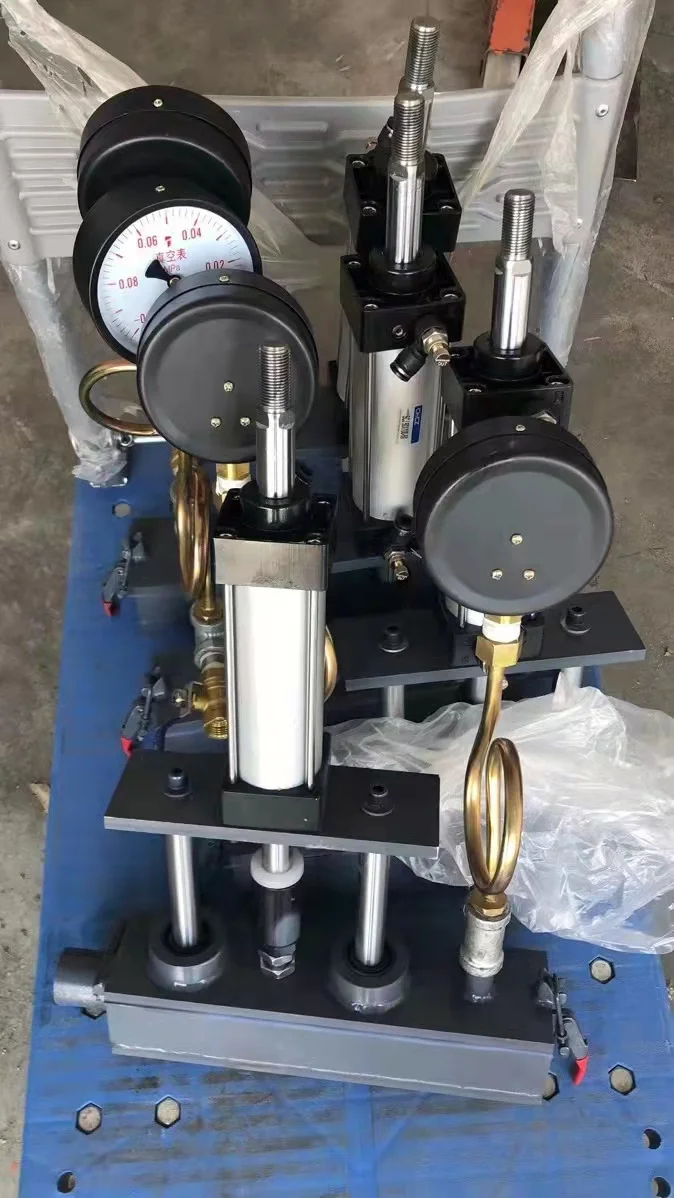

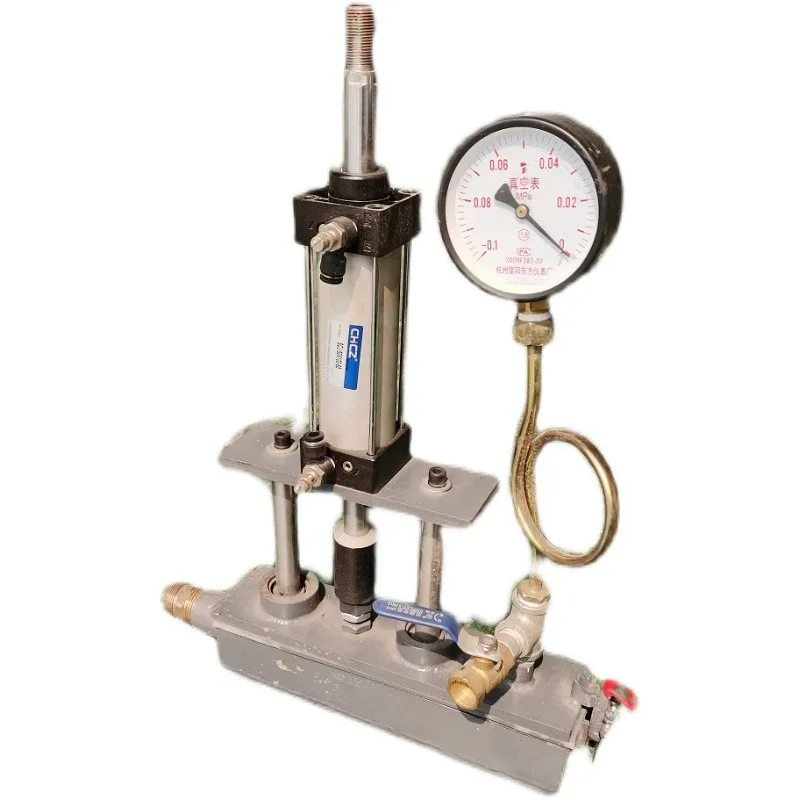

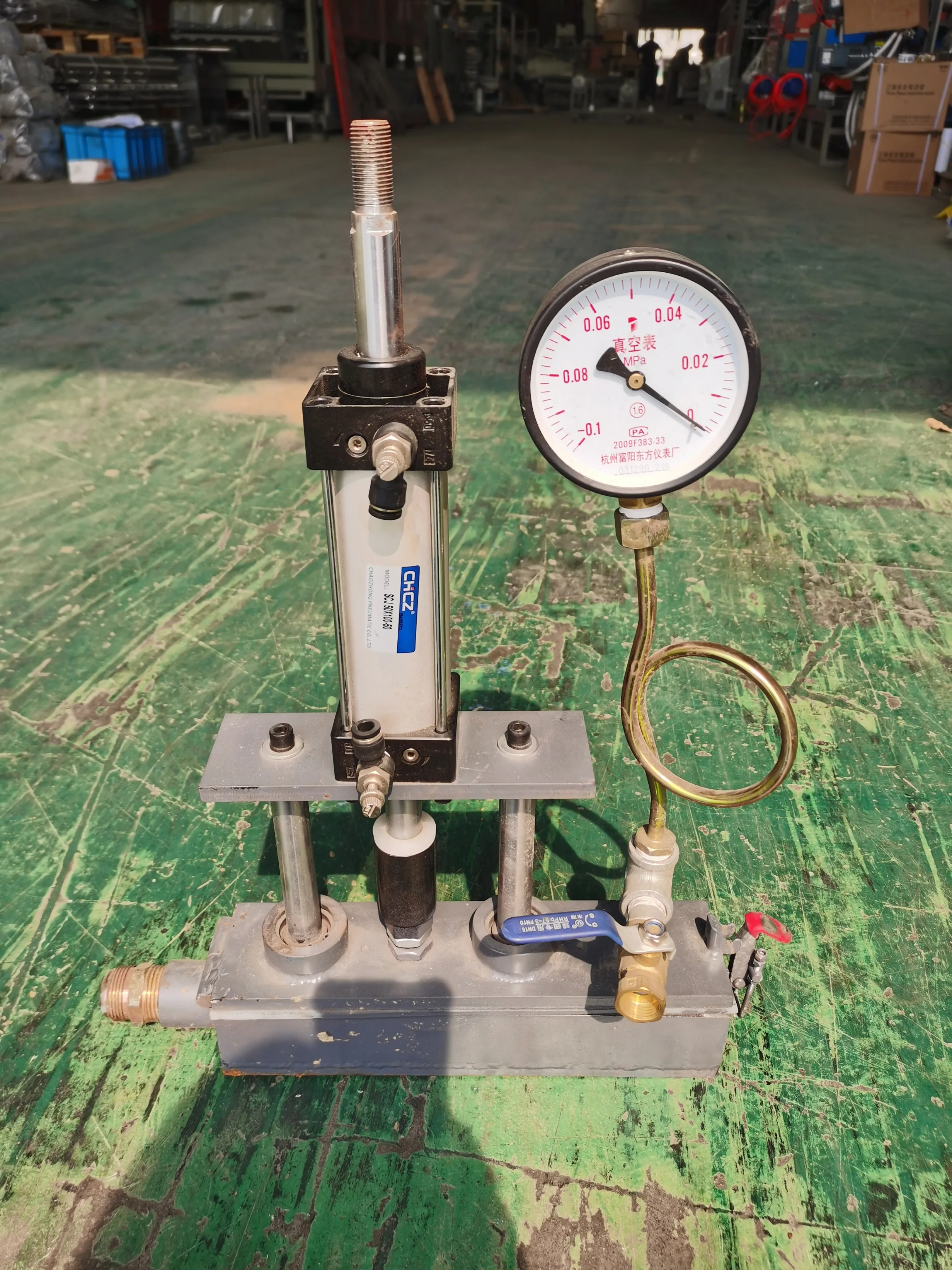

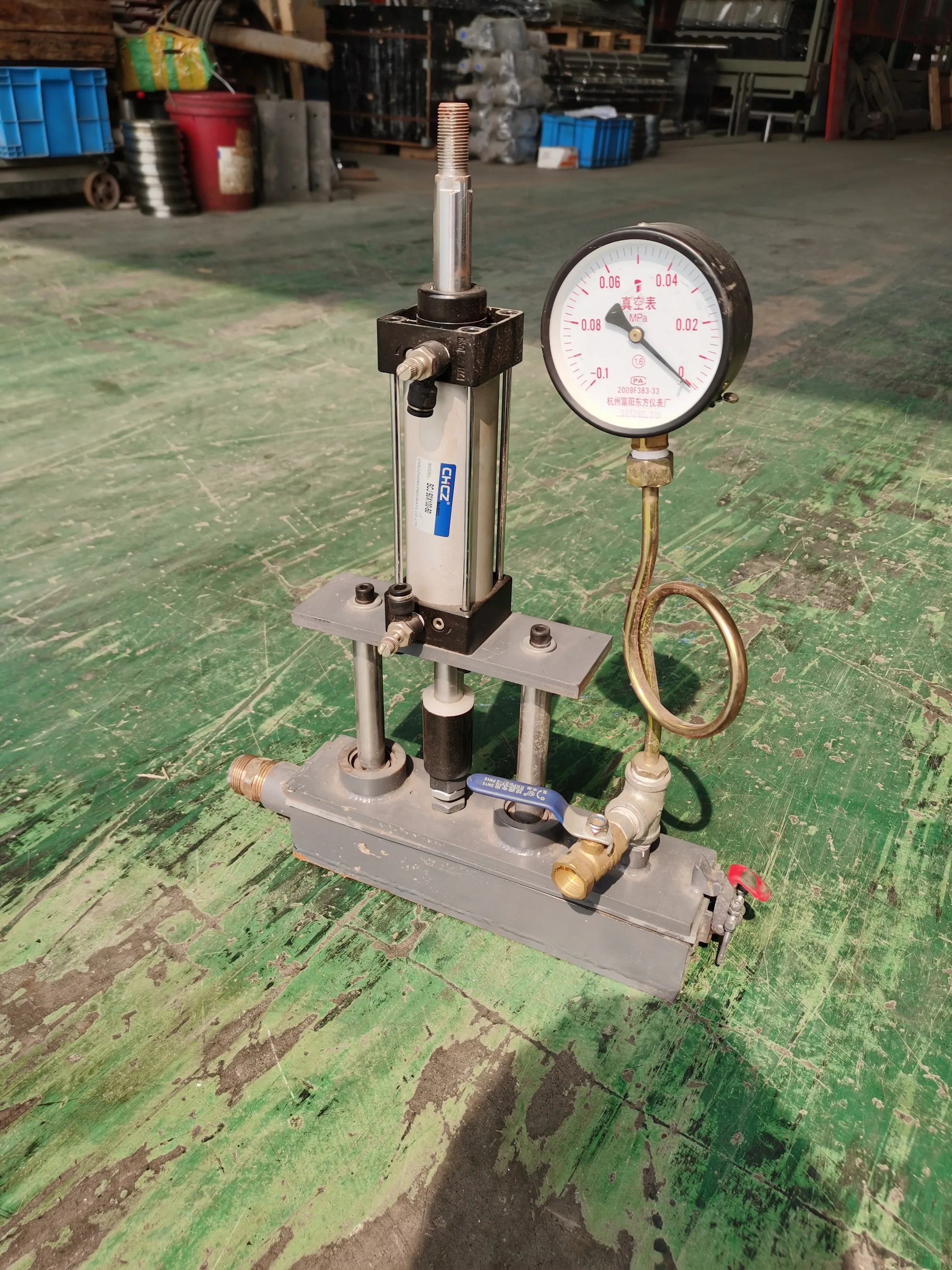

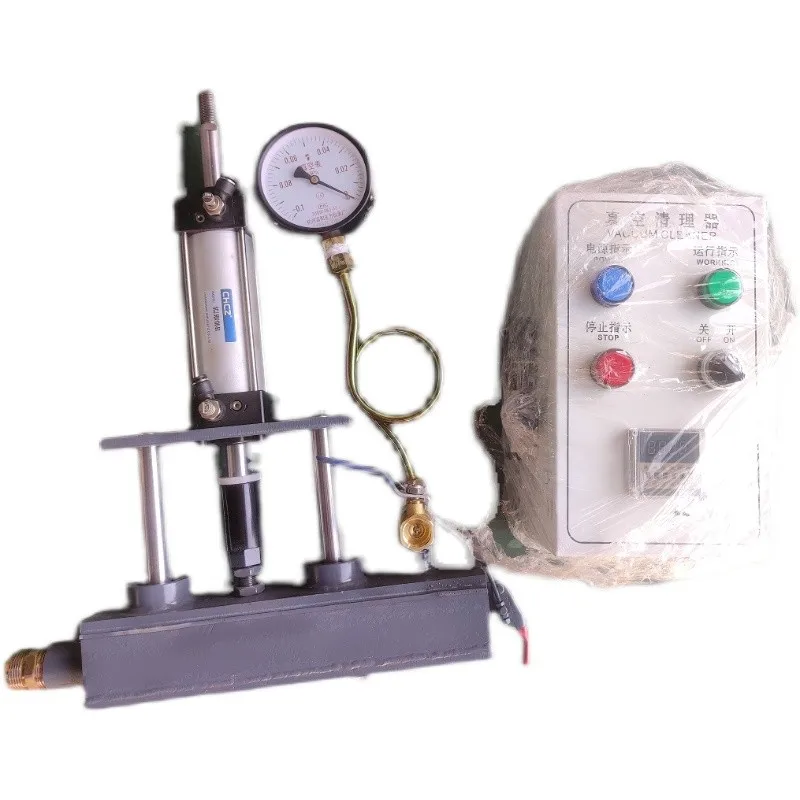

The device is composed of cylinder, guide rod, guide plate, cleaning seat, cleaning room, cleaning block, sealing pad, control system, etc.One end of the cylinder fixed plate, the other end is connected to the guide plate,The guide rod is fixed to the cylinder fixing plate, the lower end of the guide rod is equipped with clearing blocks,guide plate and material cleaning room fixed installation.Middle part is complete with a gasket,the vacuum chamber is equipped with a vacuum suction port,equipped with vacuum gauge,The vacuum chamber is fixed to the clearance seat,clearance seat is fixed to the vacuum suction port of twins screw extruder (on working parts), equipped with gasket.
The device sets the working interval time through the control system,when the time arrives, it starts working.
At present, the solution is to manually clean up the raw materials, and times of cleaning is more frequent, but also need workers often go to check, once been accumulated, must be cleaned up in time, so as not to affect the normal work of the extruder.
In the production, this situation appears resulting in waste of personnel, production cost increase, machines work is unstable, waste products, resulting in economic losses.
But now we developed the automatic material clearing device,which used to preventing raw material blockage.can be uesd in SJZS51/105 extruder,SJZS65/132 extruder,SJZS80/165 extruder,SJZS92/180 extruder,
Characteristics:
1.High efficiency
2.Labor saving
3.Low cost
4.Simple structure
5.Regular automatic work
6.High degree of automation,
7.Reduce extruder failure rate
The device is composed of cylinder, guide rod, guide plate, cleaning seat, cleaning room, cleaning block, sealing pad, control system, etc.One end of the cylinder fixed plate, the other end is connected to the guide plate,The guide rod is fixed to the cylinder fixing plate, the lower end of the guide rod is equipped with clearing blocks,guide plate and material cleaning room fixed installation.Middle part is complete with a gasket,the vacuum chamber is equipped with a vacuum suction port,equipped with vacuum gauge,The vacuum chamber is fixed to the clearance seat,clearance seat is fixed to the vacuum suction port of twins screw extruder (on working parts), equipped with gasket.
The device sets the working interval time through the control system,when the time arrives, it starts working.
FAQ
Q1.Are you a factory or a trading company?
A1: Yes, we are manufacturing factory, we are experienced and professional manufacturer of plastic extruder and extrusion lines for more than 10 year.We can guarantee the quality of products and good after-sales service.Welcome to consult.
Q2. Do you provide samples? Is it free or need extra fees ?
A2: Yes, we could offer free samples for the items in stock,just need to pay shipping cost.
Q3: What's the MOQ for your product?
A3: The minimum order quantity depends on your requirements.For conventional products, we can produce small MOQ, maybe 1 set, please feel free to contact us.
Q4: Do you support online order or your products?
A4: Yes,we are support online order, you are easy to set a purchase by each product page, before order, please kindly let us know the item specification and details.Then we will quickly offer base on that and modify the price online.After check the update price,you can pay deposit.
Q5: How long is your delivery time of parts products,such as vacuum pulse cleaner of extruder,confluence core,feeder of extruder,ridge tile accessories mould etc.?
A5: We have large stock, 3 days for stock items,7-15 days for production.
Q6. Can we just buy one machine for example shaping machine or cutter, not the whole production line from your side?
A6:Yes,You can rest assured to buy any single machine, because these are very mature machines, it will certainly cooperate very well with your existing production line.
Q7.What about the installation and commissioning test service of the whole production line?
A7:We will send 2 of experienced technicians for installation and commissioning the machines.The duration of the stay of the engineers will be determined by working condition.And they will also assume the responsibility of training your operators, to teach them about machines operation and daily maintenance, and also the handling of common failures.
Q8.How long is your products warranty?
A8:We shall warranted all of our products within 12 months after you received them.
Q9.If the machine any part is broken some day,how can we get help from you?
A9.If the machine part is broken during warranty we will sending spare parts to you without any charge and help you make it change to new by phone or wechat or video.If there’s any equipment damage caused by the your wrong operating, and we will supply equipment by preferential price.
Q10. Can you provide the factory information which buy and use your machines for us visit and reference?
A10:Yes,we can show you our customers’ information for your reference.We always keep very good relationship with our customer factory, and if you want to know more about our machines and services, and even about product cost and quality control, our customers will share with you without reservation under our referral.
A1: Yes, we are manufacturing factory, we are experienced and professional manufacturer of plastic extruder and extrusion lines for more than 10 year.We can guarantee the quality of products and good after-sales service.Welcome to consult.
Q2. Do you provide samples? Is it free or need extra fees ?
A2: Yes, we could offer free samples for the items in stock,just need to pay shipping cost.
Q3: What's the MOQ for your product?
A3: The minimum order quantity depends on your requirements.For conventional products, we can produce small MOQ, maybe 1 set, please feel free to contact us.
Q4: Do you support online order or your products?
A4: Yes,we are support online order, you are easy to set a purchase by each product page, before order, please kindly let us know the item specification and details.Then we will quickly offer base on that and modify the price online.After check the update price,you can pay deposit.
Q5: How long is your delivery time of parts products,such as vacuum pulse cleaner of extruder,confluence core,feeder of extruder,ridge tile accessories mould etc.?
A5: We have large stock, 3 days for stock items,7-15 days for production.
Q6. Can we just buy one machine for example shaping machine or cutter, not the whole production line from your side?
A6:Yes,You can rest assured to buy any single machine, because these are very mature machines, it will certainly cooperate very well with your existing production line.
Q7.What about the installation and commissioning test service of the whole production line?
A7:We will send 2 of experienced technicians for installation and commissioning the machines.The duration of the stay of the engineers will be determined by working condition.And they will also assume the responsibility of training your operators, to teach them about machines operation and daily maintenance, and also the handling of common failures.
Q8.How long is your products warranty?
A8:We shall warranted all of our products within 12 months after you received them.
Q9.If the machine any part is broken some day,how can we get help from you?
A9.If the machine part is broken during warranty we will sending spare parts to you without any charge and help you make it change to new by phone or wechat or video.If there’s any equipment damage caused by the your wrong operating, and we will supply equipment by preferential price.
Q10. Can you provide the factory information which buy and use your machines for us visit and reference?
A10:Yes,we can show you our customers’ information for your reference.We always keep very good relationship with our customer factory, and if you want to know more about our machines and services, and even about product cost and quality control, our customers will share with you without reservation under our referral.
