Промышленные планетарные редукторы механический редуктор для
- Категория: Speed Reducers >>>
- Поставщик: Henan,Lunyee,Industrial,Automation,Equipment,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.60 $* | 0.97 $* |
| Aug-18-2025 | 0.3 $* | 0.85 $* |
| Jul-18-2025 | 0.96 $* | 0.50 $* |
| Jun-18-2025 | 0.89 $* | 0.21 $* |
| May-18-2025 | 0.34 $* | 0.91 $* |
| Apr-18-2025 | 0.56 $* | 0.62 $* |
| Mar-18-2025 | 0.20 $* | 0.27 $* |
| Feb-18-2025 | 0.93 $* | 0.47 $* |
| Jan-18-2025 | 0.9 $* | 0.53 $* |
Характеристики
Product Features

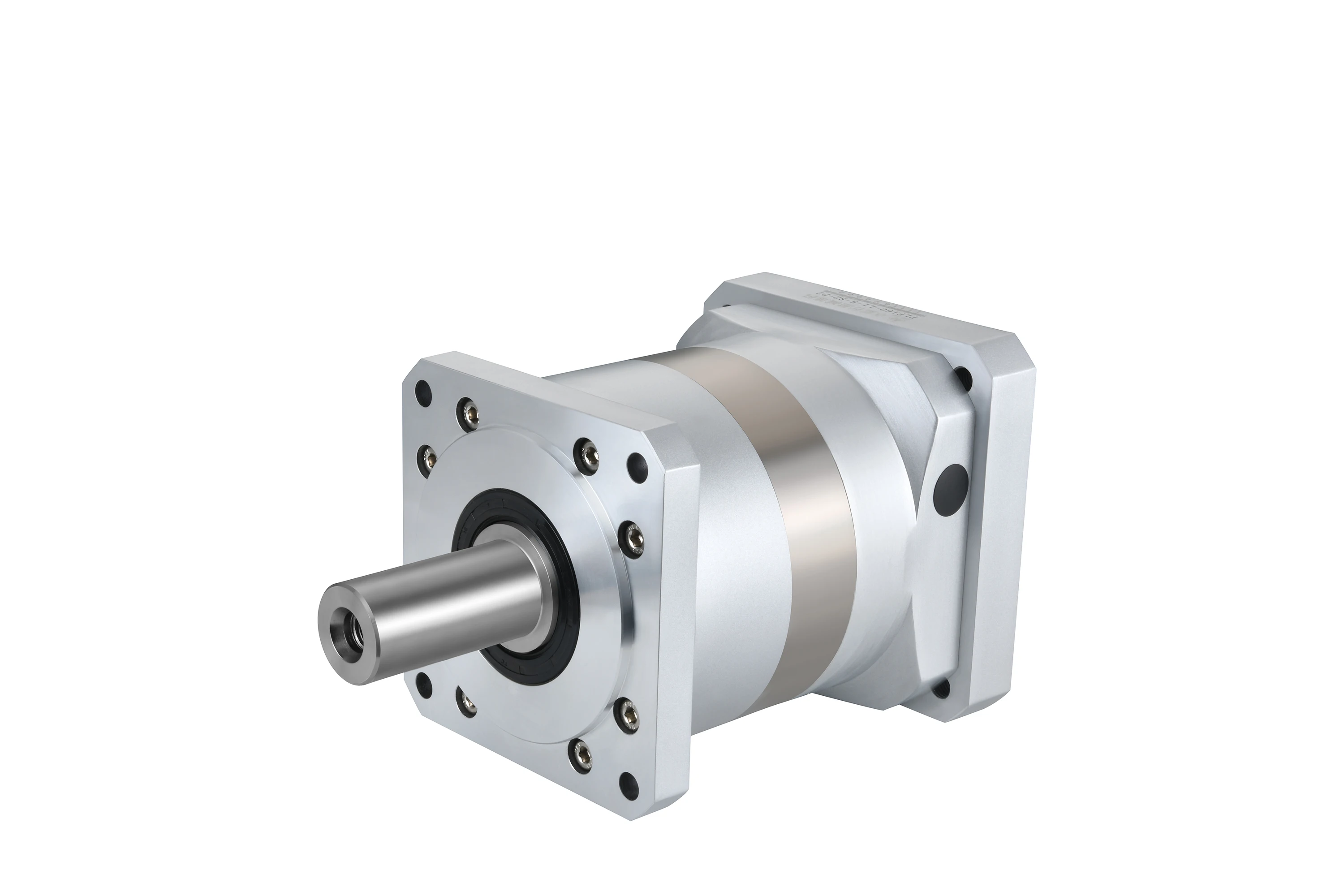

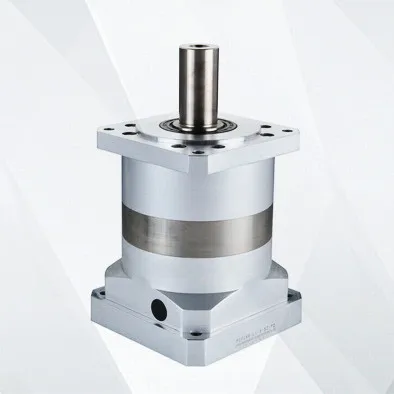

High Precision Planetary Gear Reducer Kit
PLF Series High Precision Planetary Gear Box
4 optional sizes | 60mm, 90mm, 120mm, 160mm |
Rated Torque | 8.5N.m-900N.m |
Gear Ratio One-stage | 3, 4, 5, 7, 10 |
Two-stage | 12, 16, 20, 25, 28, 35, 40, 50, 70 |
Three-stage | 80, 100, 125, 140, 175, 200, 250, 280, 350, 512 |
Specification
Performance Information:
Model | Unit | PLE060 | PLE080 | PLEO90 | PLE120 | PLE160 | Ratio | Stage | |||||
Rated output torque | N·m | 16.5 | 60 | 60 | 148 | 310 | 3 | 1 | |||||
27 | 86 | 86 | 222 | 605 | 4 | ||||||||
27 | 94.5 | 94.5 | 235 | 420 | 5 | ||||||||
19.5 | 64 | 64 | 158 | 270 | 7(8) | ||||||||
8.5 | 39.5 | 39.5 | 93 | - | 10 | ||||||||
96 | 96 | 250 | 680 | 12 | 2 | ||||||||
96 | 96 | 250 | - | 15 | |||||||||
30 | 96 | 96 | 250 | 680 | 16 | ||||||||
30 | 96 | 96 | 250 | 680 | 20 | ||||||||
33 | 105.5 | 105.5 | 264 | 460 | 25 | ||||||||
30 | 96 | 96 | 250 | 680 | 28(32) | ||||||||
33 | 105.5 | 105.5 | 264 | - | 35 | ||||||||
30 | 96 | 96 | 250 | 460 | 40 | ||||||||
33 | 105.5 | 105.5 | 254 | 310 | 50(64) | ||||||||
21.5 | 71.5 | 71.5 | 177 | - | 70 | ||||||||
37.5 | 120 | 120 | 310 | 900 | 64 | 3 | |||||||
37.5 | 120 | 120 | 310 | 900 | 80 | ||||||||
37.5 | 120 | 120 | 310 | 900 | 100 | ||||||||
41.0 | 132.5 | 132.5 | 329 | 580 | 125 | ||||||||
37.5 | 120 | 120 | 310 | 580 | 140(160) | ||||||||
41.0 | 132.5 | 132.5 | 329 | - | 175 | ||||||||
37.5 | 120 | 120 | 310 | 580 | 200 | ||||||||
41.0 | 132.5 | 132.5 | 329 | 900 | 250(256) | ||||||||
37.5 | 120 | 120 | 310 | 580 | 280(320) | ||||||||
41.0 | 132.5 | 132.5 | 329 | 400 | 350(512) | ||||||||
Emergency stop torque | N·m | 2 times Rated output torque | |||||||||||
Norminal input speed | rmp | 3000 | 3000 | 3000 | 2000 | 2000 | |||||||
Maximum input speed | rmp | 6000 | 6000 | 6000 | 3500 | 3500 | |||||||
Maximum radial force | N | 170 | 1020 | 1020 | 2230 | 3200 | |||||||
Maximum axial force | N | 120 | 850 | 850 | 1550 | 3000 | |||||||
Efficiency | % | Single [97%] | Double [95%] | ||||||||||
Average lifetime | h | 20000 | |||||||||||
Product Details

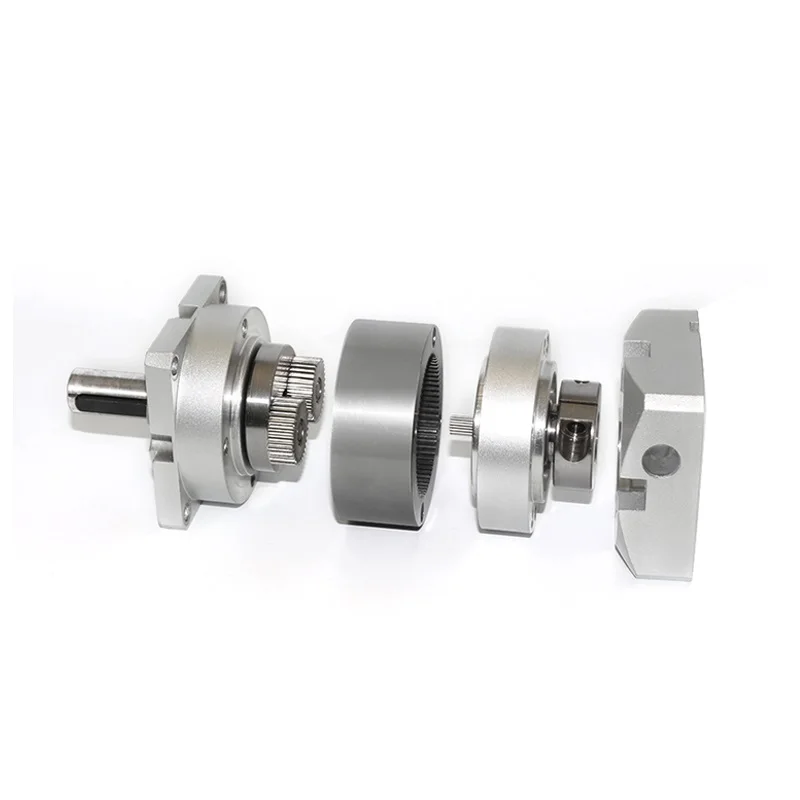

High stability Structure
Using high-strength steel alloy materal. Not just hardening on gear surface,but hardening entire gear to insure the gear life time and maintain high accuracy.
Dust-proof design
For Rear transition flange screw hole,use rubber plug dust-proof design,effectively prevent dust, foreign body drop on the gearbox.

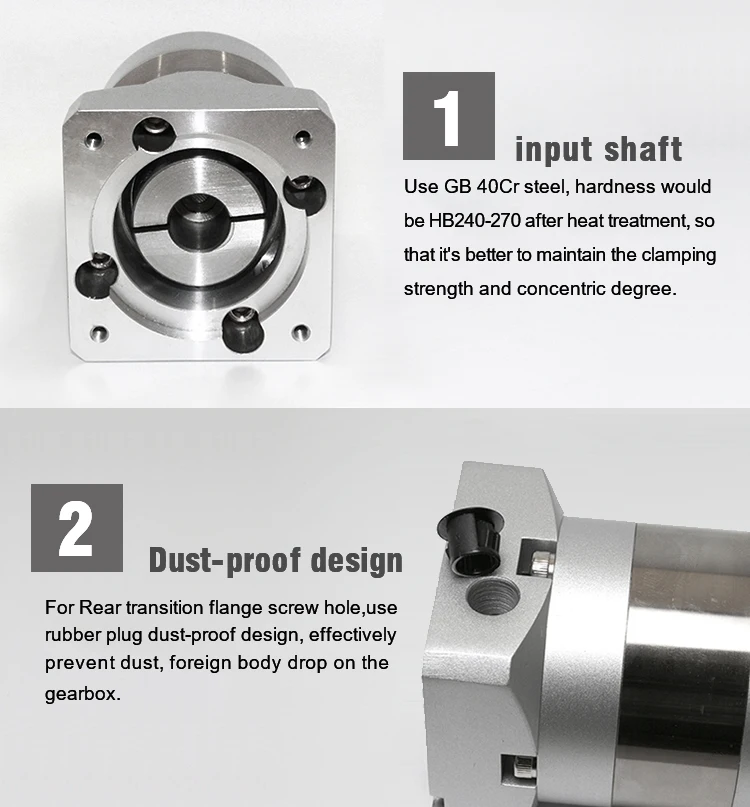

Input Shaft
Use GB40Cr steel, hardness would beHB240-270after heat treatment. So that it's better to maintain the clamping strength and concentric degree.
High Torque,High efficiency
Higher than conventional planetary gearbox;One stage is exceed 97%,Two stage is exceed 95%.
Dimensions
About other detail dimension, welcome to contact us freely!
Application area
Precision planetary gear reducer is widely used in the following fields:
Aerospace,military industries；
Medical heaith care, electronic information technology industry；
Industrial robot, production automation, CNC machine tool manufacturing industry；
Motor, textile, printing, food, metallurgical, environmental protection engineering warehouse and logistics industry.
Why Choose Us:.
Packing
Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded；
Shipment: TNT, DHL, UPS, FedEx, By Sea are available. The other shipping ways are also available. Strict product packaging ensures that the motors is not damaged during transportation.
Company Profile
FAQ
Q: Are you trading company or manufacturer?
A: We are the manufacturer for 15 years in China.
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production→cargo ready → balance/delivery → further cooperation
Q: Which shipping way is available?
A: DHL, FedEx, By Sea are available. The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
If you have another question, pls feel free to contact us.
