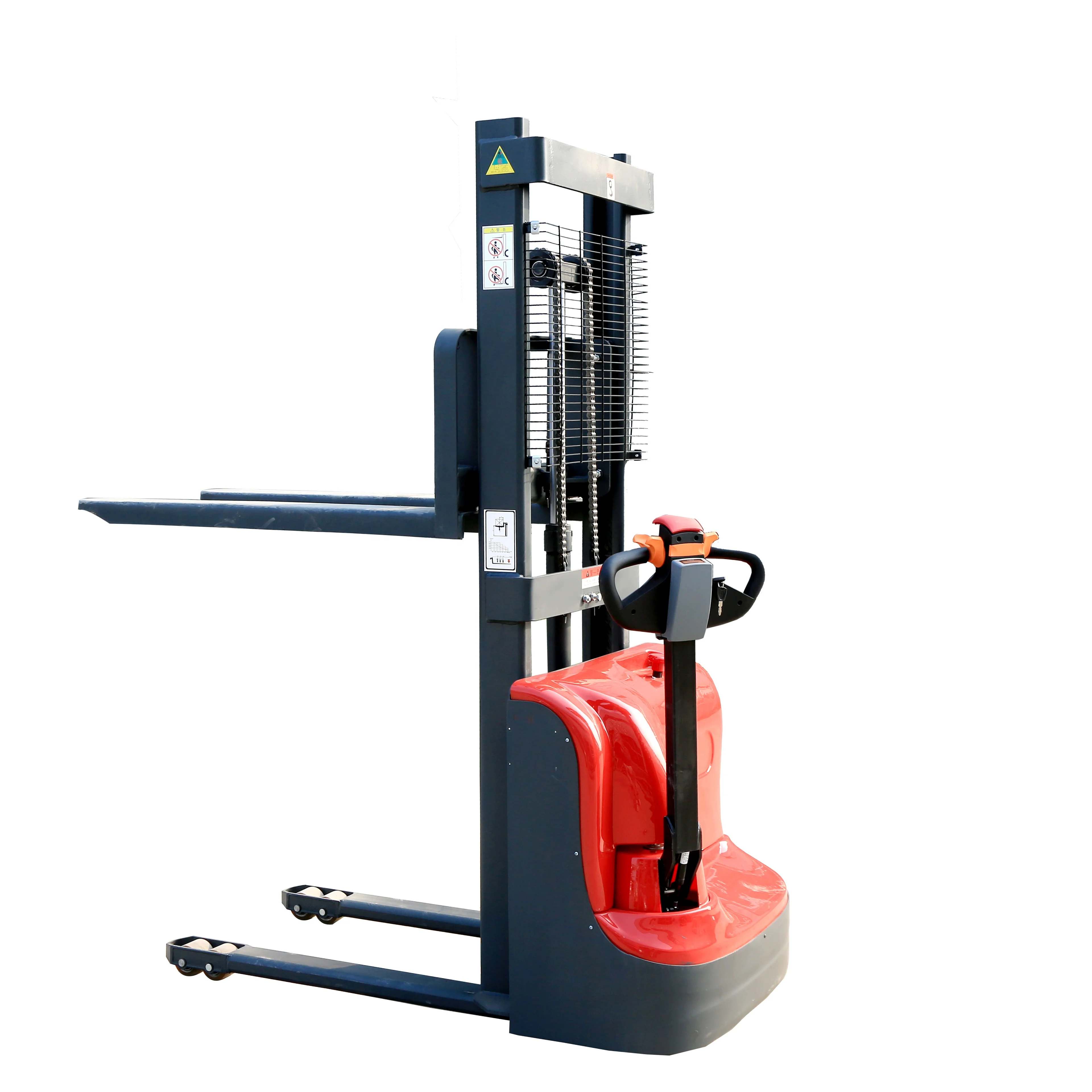

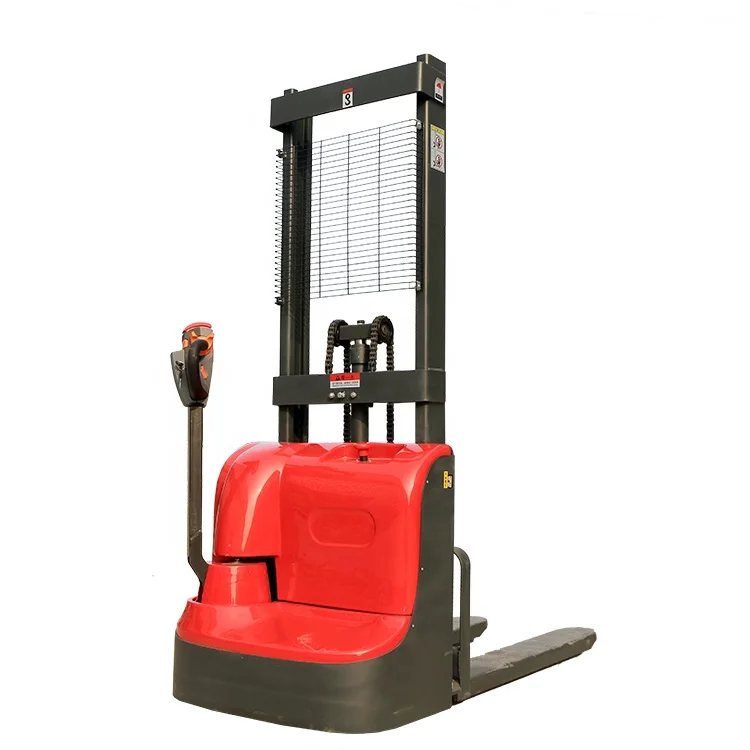

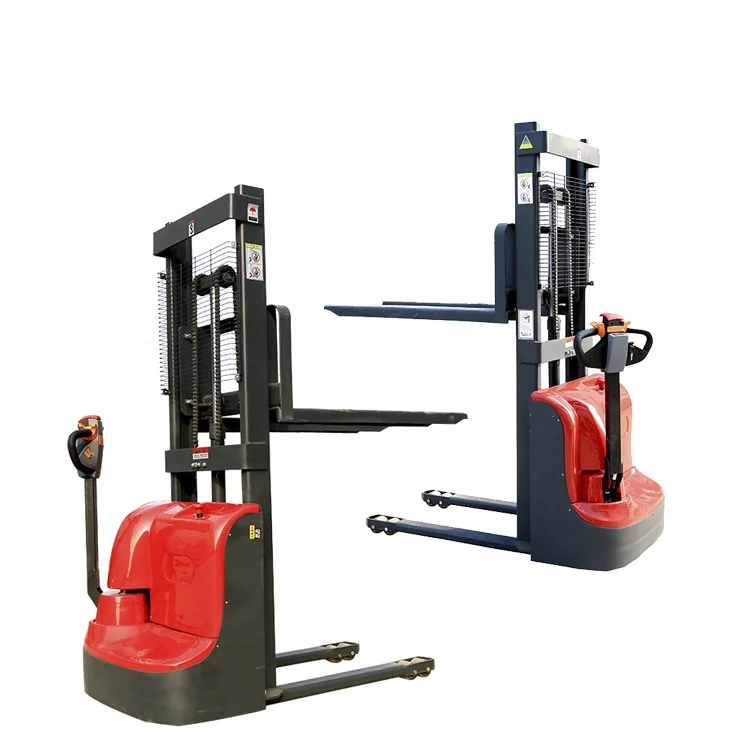

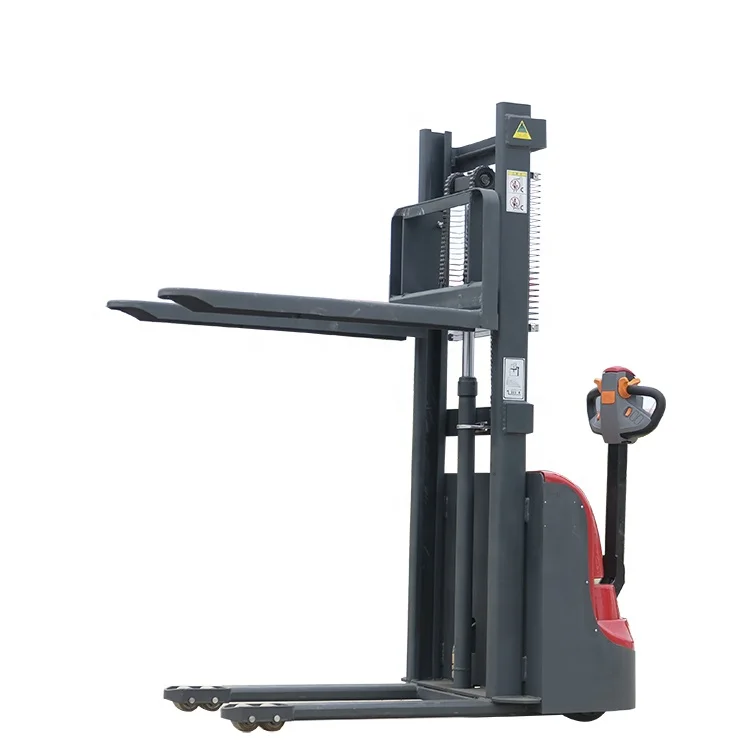

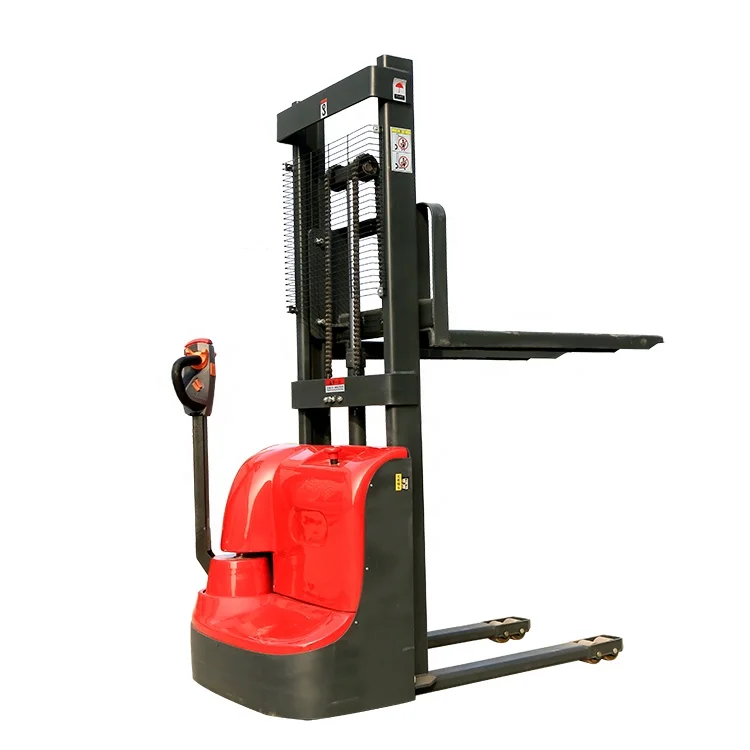

                                      walking fork truck price small electric forklift pallet stacker



CDD15
Basic parameters		Performance
Product number	CDD15	Driving speed laden/unladen	4/5Km/h
Drive form	electric	Maximum lifting speed without load	100mm/s
Driving style	Walking	Maximum lifting speed with full load	50mm/s
Rated load	1500KG	Maximum gradeability full load/unloaded	3/5%
Wheelbase	1241mm	Braking method	Electromagnetic brake
Weight (including battery)	545KG	Electric machine
Basic size		Drive motor power	0.75Kw
Total height (when the fork is lowest)	2080/1580/1830/2080/2330mm	Increase motor power	2.2Kw
Total height (when the fork is highest)	2080/2560/3060/3560/4060mm	Battery voltage/capacity	2*12V/80Ah
Lifting height	1600/2000/2500/3000/3500mm	wheel
Height of forks from the ground (at the lowest time)	85mm	Tires	Polyurethane wheel
The height of the operating handle from the ground	1230/750mm	Drive wheel size	210*70
Vehicle length	1791mm	Front wheel size	80*70
Vehicle width	822mm	Balance wheel size	125*50
Fork size	60/160/1100	Number of wheels	1x+1/4
Outer width of fork	680mm	Front track	520mm
Minimum ground clearance	30mm	Rear track	513mm
Right-angle stacking channel width, pallet 1000*1200	2305mm
Turning radius	1431mm
