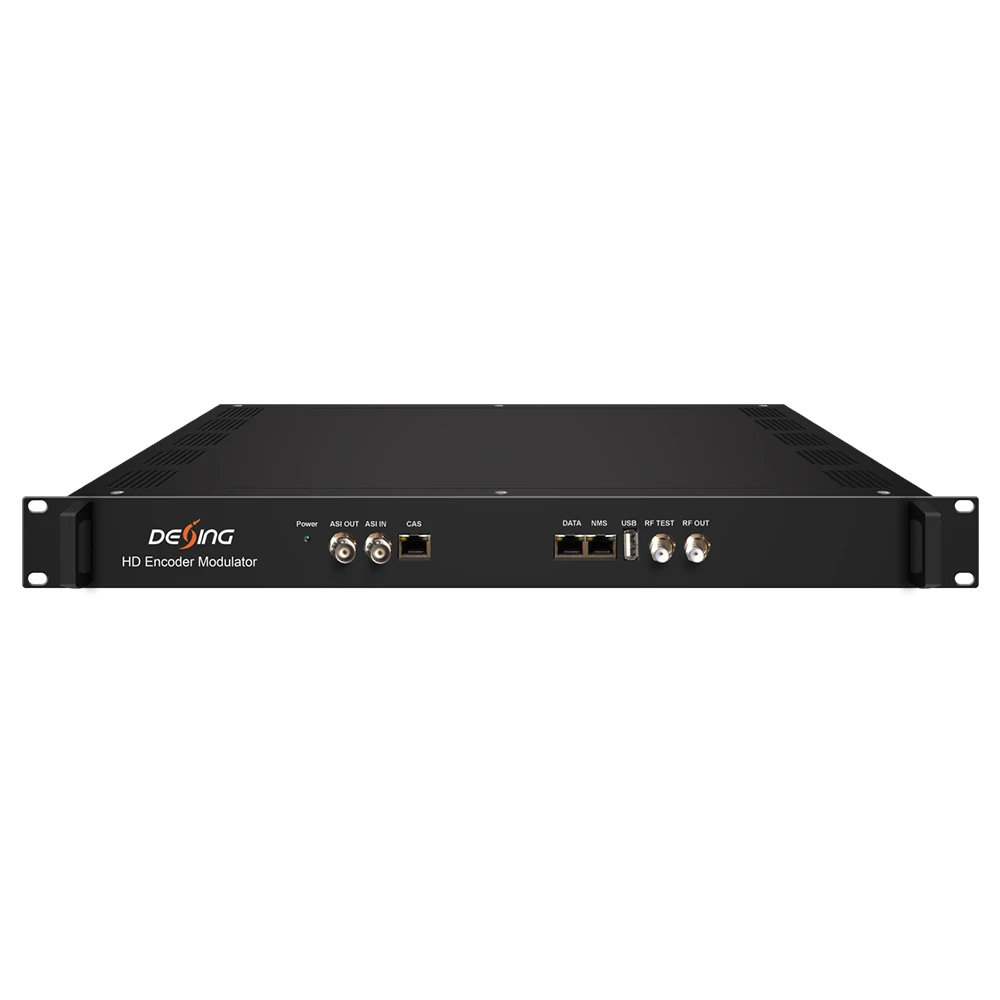

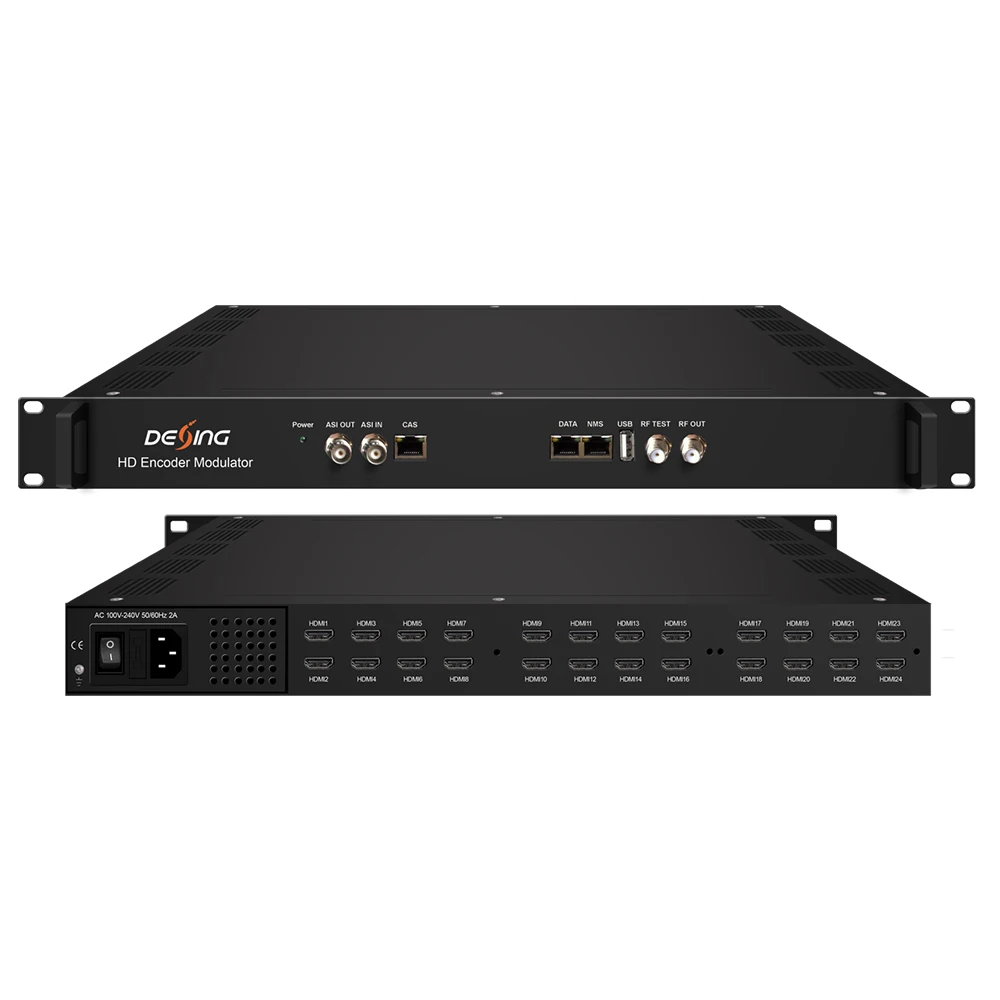

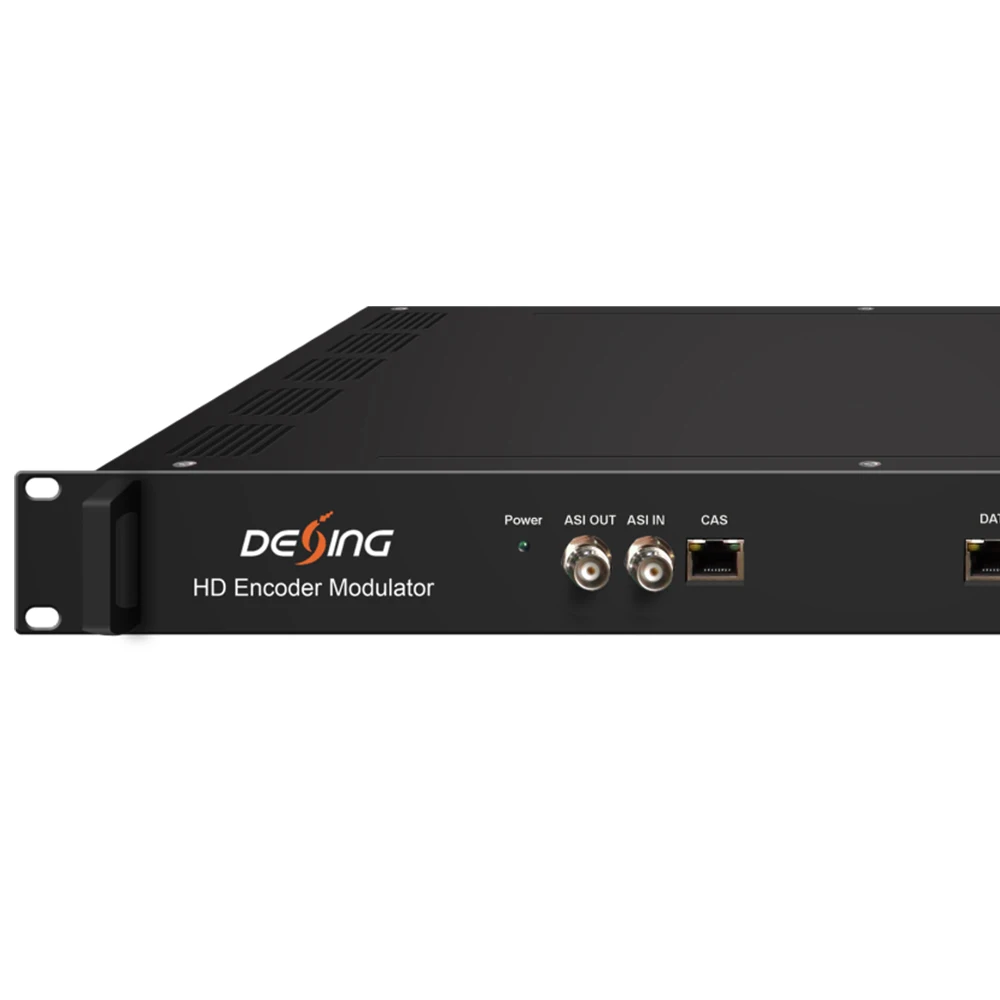

Дексин NDS3536S кодировщик модулятор с 24 HD DVB-C DVB-T ISDBT ATSC RF выход для rf кодер-модулятор домашнего
- Категория: Radio & TV Broadcasting Equipment >>>
- Поставщик: Guangzhou,Xunlian,Electronic,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.19 $* | 0.98 $* |
| Aug-17-2025 | 0.26 $* | 0.73 $* |
| Jul-17-2025 | 0.69 $* | 0.55 $* |
| Jun-17-2025 | 0.19 $* | 0.71 $* |
| May-17-2025 | 0.13 $* | 0.6 $* |
| Apr-17-2025 | 0.14 $* | 0.78 $* |
| Mar-17-2025 | 0.6 $* | 0.43 $* |
| Feb-17-2025 | 0.67 $* | 0.61 $* |
| Jan-17-2025 | 0.47 $* | 0.19 $* |
Характеристики

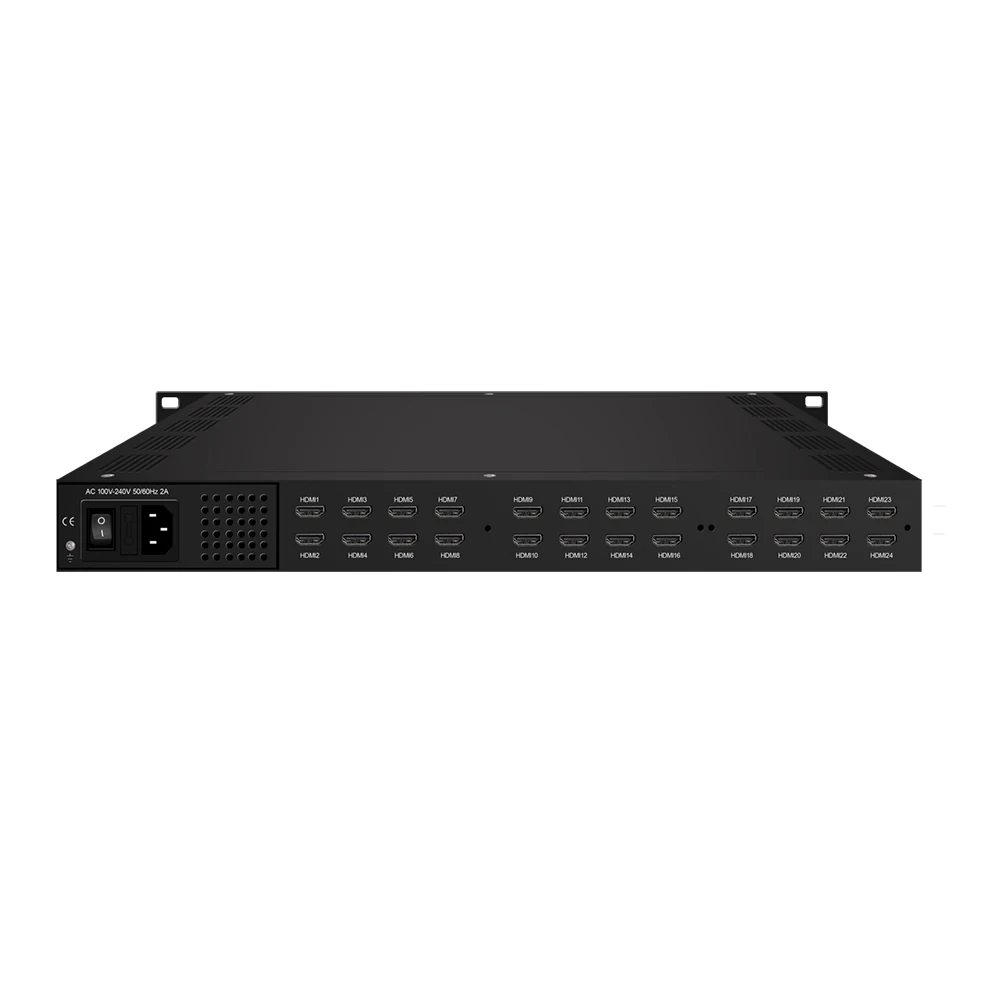

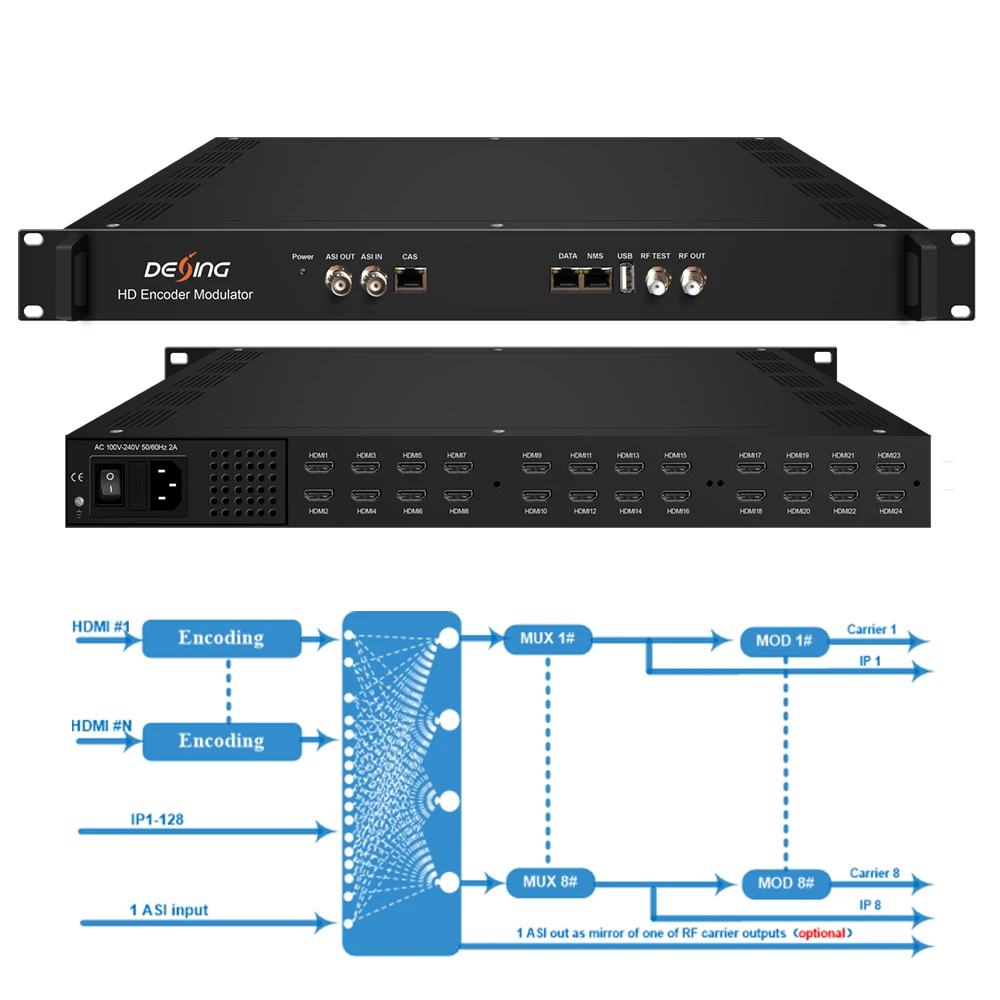

Input | 8/16/24 HDMI inputs for option 1 ASI in for re-mux 1 USB Player input for re-mux 128 IP input over UDP and RTP, GE port, RJ45 | ||||||
Video | Resolution | Input | 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, | ||||
Output | 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, | ||||||
Encoding | MPEG-4 AVC/H.264 | ||||||
Bit-rate | 1Mbps~13Mbps each channel | ||||||
Rate Control | CBR/VBR | ||||||
GOP Structure | IP…P (P Frame adjustment, without B Frame ) | ||||||
Audio | Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through | |||||
Sampling rate | 48KHz | ||||||
Resolution | 24-bit | ||||||
Audio Gain | 0-255 Adjustable | ||||||
MPEG-1 Layer 2 Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | ||||||
LC-AAC Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | ||||||
HE-AAC Bit-rate | 48/56/64/80/96/112/128 kbps | ||||||
Multiplexing | Maximum PID Remapping | 255 input per channel | |||||
Function | PID remapping ( automatically or manually) | ||||||
Accurate PCR adjusting | |||||||
Generate PSI/ SI table automatically | |||||||
Modulation | DVB-T | Standard | EN300744 | ||||
FFT mode | 2K,4K, 8K | ||||||
Bandwidth | 6M, 7M, 8M | ||||||
Constellation | QPSK, 16QAM, 64QAM | ||||||
Guard Interval | 1/4, 1/8, 1/16, 1/32 | ||||||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||||||
MER | ≥42 dB | ||||||
RF frequency | 50~960MHz, 1KHz step | ||||||
RF out | 8 non-adjacent carriers output (maximum bandwidth 192MHz) | ||||||
RF output level | -20~ +3dBm, 0.1db step | ||||||
Stream output | 1 ASI output as mirror of one of RF output carriers(Optional) 8 MPTS output over UDP and RTP/RTSP as mirror of 8 DVB-T carriers 1*1000M Base-T Ethernet interface, GE port | ||||||
System function | Network management (WEB) | ||||||
Chinese and English language | |||||||
Ethernet software upgrade | |||||||
Miscellaneous | Dimension (W×L×H) | 482mm×328mm×44mm | |||||
Environment | 0~45℃(work)；-20~80℃（Storage） | ||||||

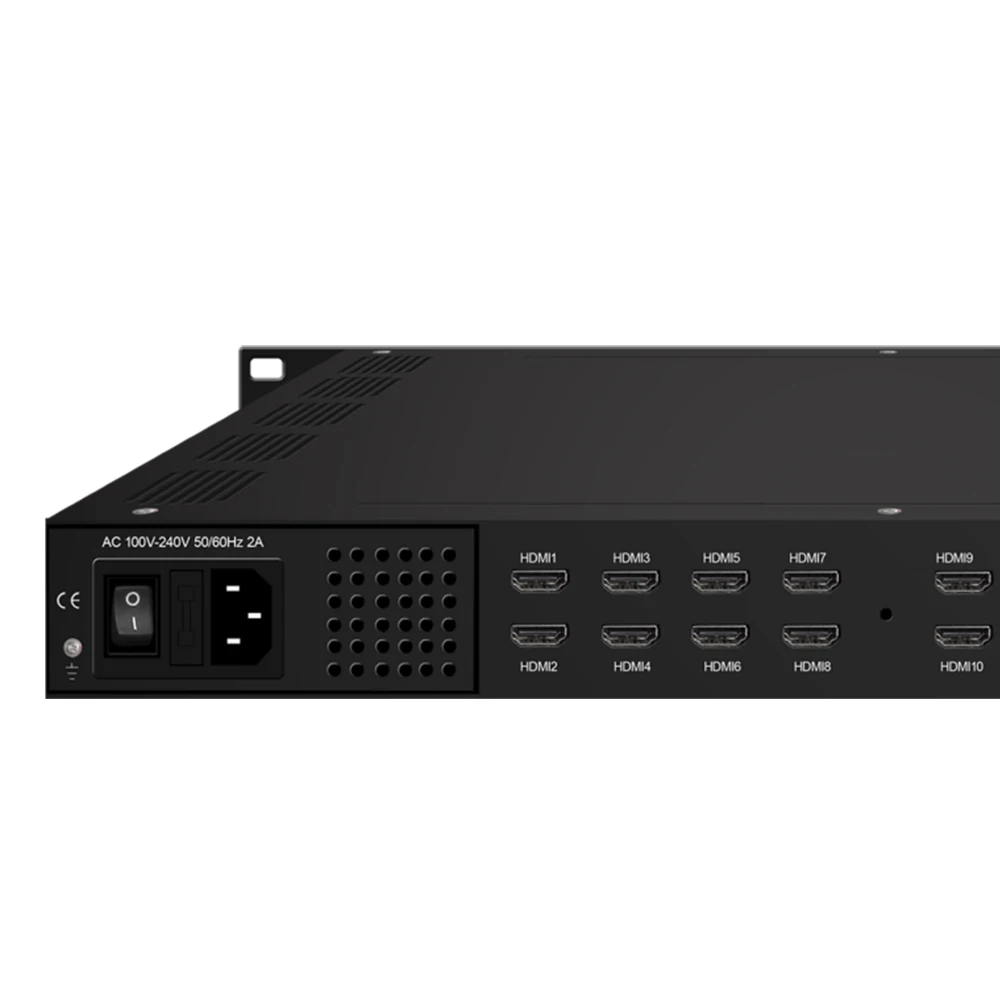

Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | ||||||
Products Description
Why choose us
1.Strict control of product quality.You can save a lot of troubles in after-sales processing.
2.One-stop product service. In addition to our own production, we also have many high-quality factories that have been cooperating
for many years.
3.Professional team.Including quality inspection, technology, procurement, sales, after-sales,can help you solve various problems
2.One-stop product service. In addition to our own production, we also have many high-quality factories that have been cooperating
for many years.
3.Professional team.Including quality inspection, technology, procurement, sales, after-sales,can help you solve various problems
*Suggest you can contact us to know more*
