100 кг 200 300 400 вертикальная биомасса древесные гранулы угольный перегреваемый парогенератор для пивной
- Категория: >>>
- Поставщик: Xinxiang,Xinda,Boiler,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3570.50 $* | 3749.66 $* |
| Aug-15-2025 | 3540.61 $* | 3717.3 $* |
| Jul-15-2025 | 2970.11 $* | 3119.71 $* |
| Jun-15-2025 | 3480.21 $* | 3654.47 $* |
| May-15-2025 | 3030.68 $* | 3182.31 $* |
| Apr-15-2025 | 3420.43 $* | 3591.50 $* |
| Mar-15-2025 | 3390.40 $* | 3560.24 $* |
| Feb-15-2025 | 3360.51 $* | 3528.11 $* |
| Jan-15-2025 | 3330.26 $* | 3497.85 $* |
Характеристики
Product Description

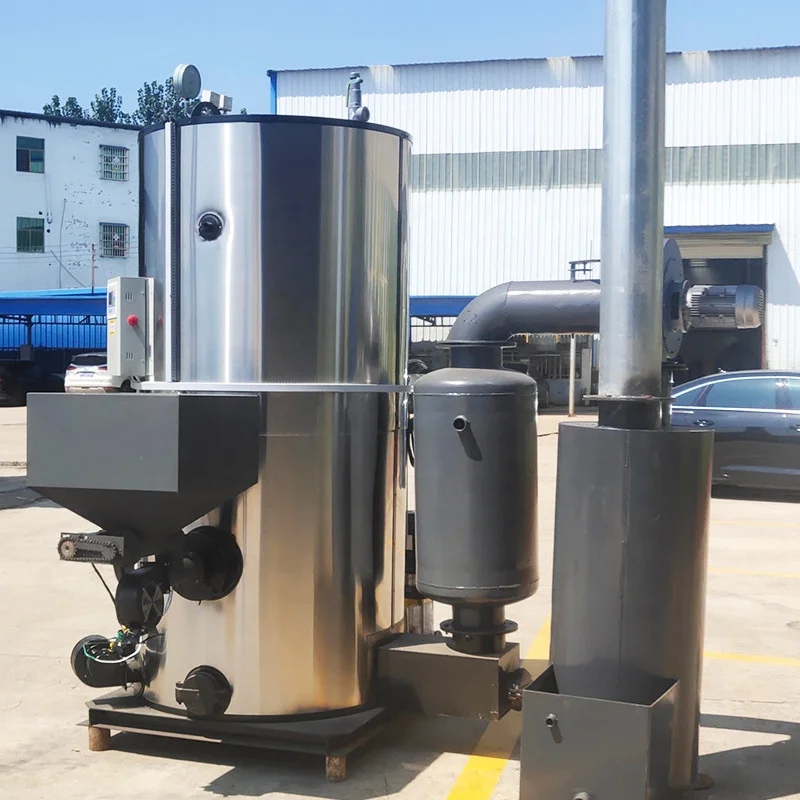

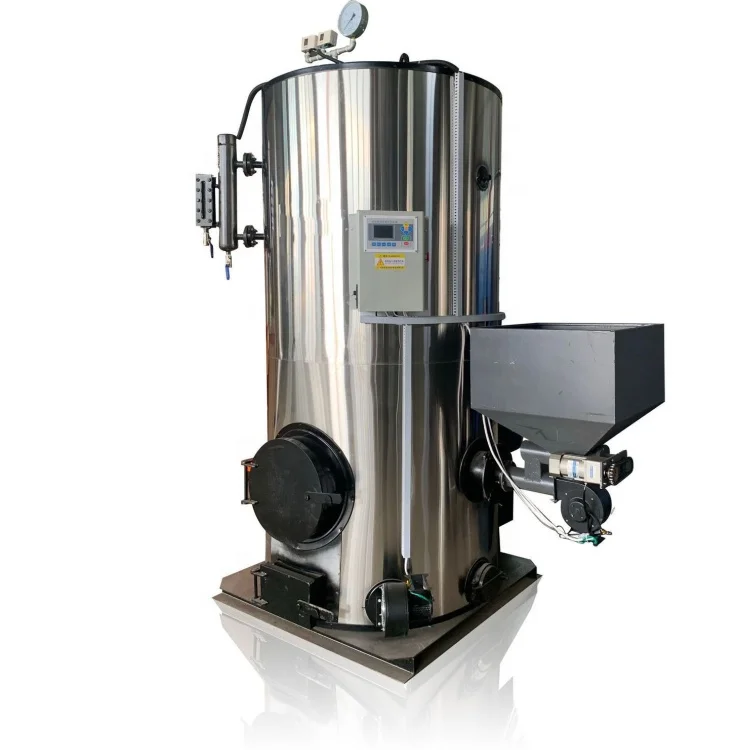

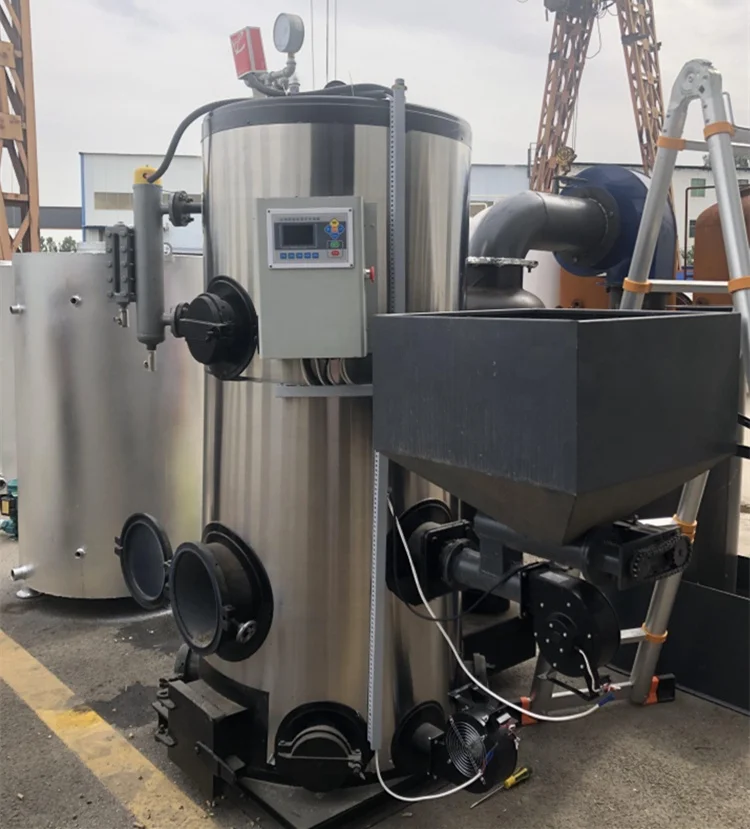

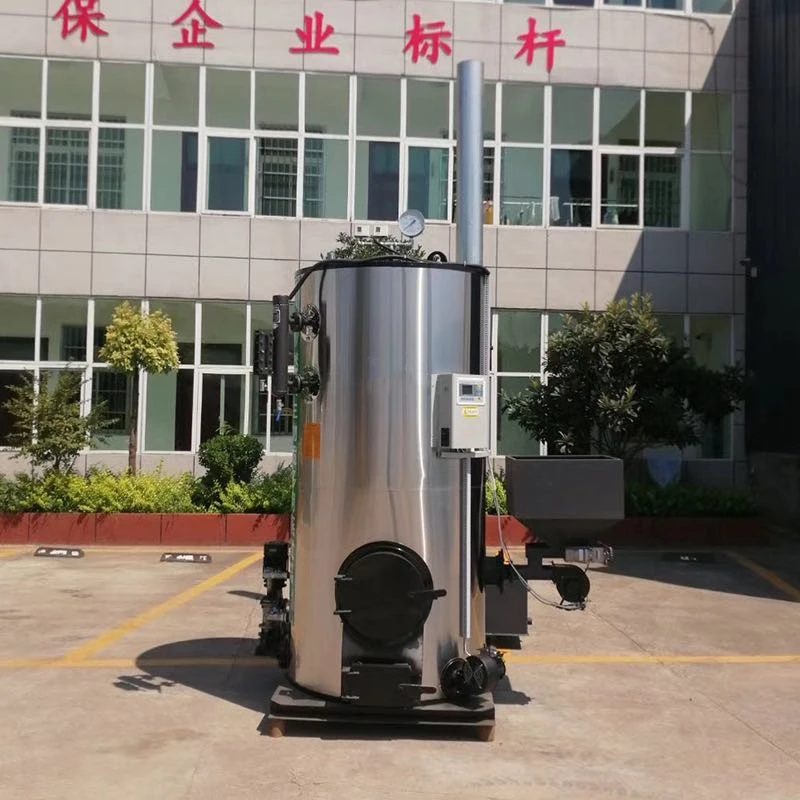

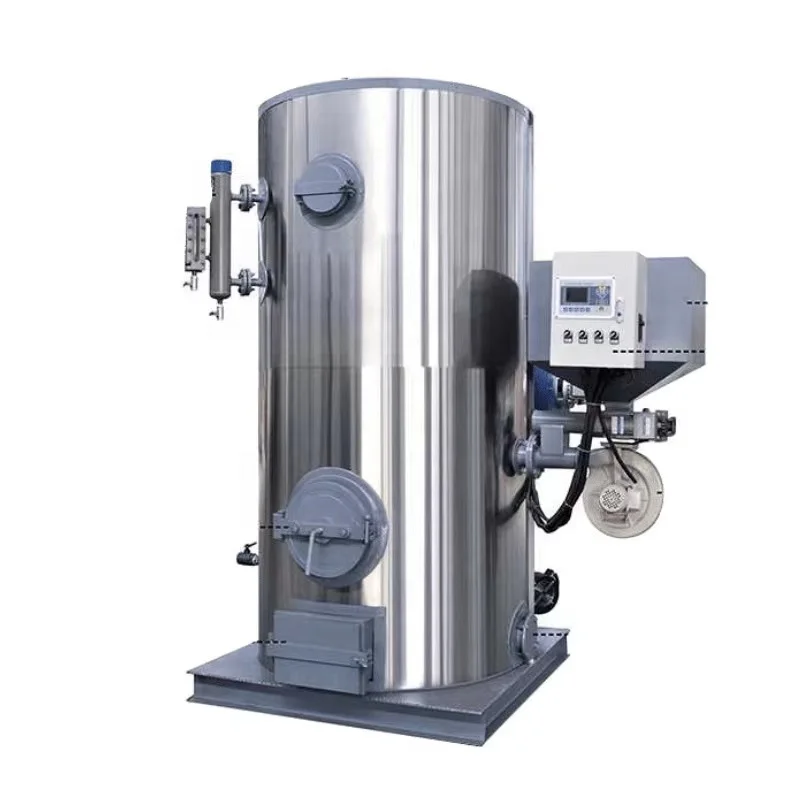

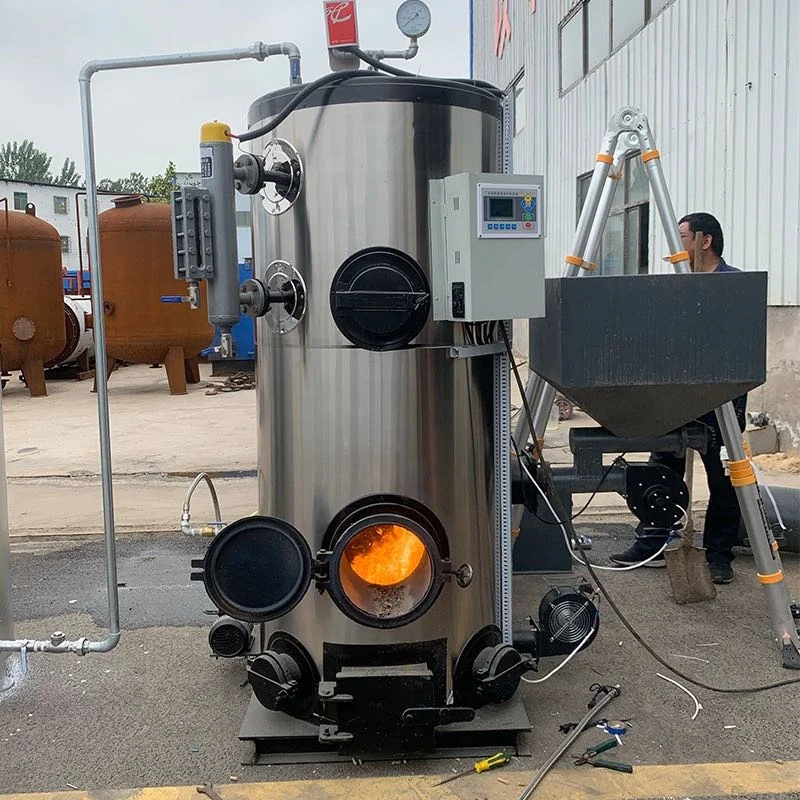

100kg 200kg 300kg 400kg Vertical Biomass Wood Pellet Chip Coal Fired Superheated Steam Generator For Beer Industry
Product description:
The steam generator burning biomass pellet fuel is a new type of heating equipment. Using biomass pellets as fuel and clean water as the working medium, it absorbs heat through the phase change of the liquid and transports the heat to the heating equipment because it works in a liquid phase and is reliable.
Biomass pellet fuel is a major scientific research achievement in fuel applications. It uses all waste crops such as straw, rice stalks, fuelwood, wood chips, peanut hulls, melon seed hulls, sugar beet scum, bark, etc., which are crushed-mixed- Extrusion-drying and other processes can be used to make granular fuel. Its raw materials are widely distributed, the processing technology is advanced, and the biomass energy pellets are known for its green coal, which is a kind of clean energy. As the fuel for atmospheric hot water boilers, it has a long burning time, high temperature in the intensified combustion furnace, and is economical. At the same time, it does not pollute the environment. It can replace firewood, coal, and natural gas. It is an energy-saving product. Biomass has a high volatile content, which is easier to burn and has a violent reaction. It is suitable for burning in a lower temperature range. The fuel has a low calorific value and is affected by ash wrapping and difficult air penetration. It has a high degree of unburned, high moisture, low density, and dust.
Product details
Model | LSG |
Structure | Fire and water tube |
Steam Capacity | 100kg-600kg/hour |
Voltage | 220/380v |
Steam Temperature | 151/171/181c |
Steam pressure | 0.4/0.7/1.0mpa |
Application | Textile mill, food, beer and brewery factory,chemical industry, garment factory, printing mill,milk pasteurization, pharmaceutical industry etc. |
Product features:
1. Reasonable structure, advanced technology, less floor space, small volume, beautiful appearance, high thermal efficiency, significant energy-saving effect and economic benefit. Compared with similar foreign products, the structure has some advantages.
2. Reasonable layout of heating surface and long service life.
3. Due to the design layout, the flue gas stays in the furnace for a long time, and the air distribution is reasonable, so that the carbon particles are fully burned and the nitrogen oxide emissions are reduced.
4. Due to the special structural arrangement, the main body of this horizontal biomass pellet fuel steam generator runs in the whole steam process, and the working medium is all steam-water mixture, so the steam production is fast and the steam pressure is high. The steam pressure is below 0.4MPa, there is no danger in the operation process, and it is completely reliable.
5. The design of combustion chamber and secondary air. The furnace adopts an energy-saving furnace arch that is integrally poured with heat-resistant concrete, which improves the fuel ignition conditions. It adopts an independent air chamber and rationally distributes the air, so that a combustion-friendly furnace is formed in the furnace. The aerodynamic field strengthens the combustion, resulting in high combustion temperature and high combustion efficiency (95%).
Design Parameters
Type | LSG0.05 | LSG0.1 | LSG0.2 | LSG0.3 | LSG0.5 | ||||
Rated Evaporation(kg) | 50 | 100 | 200 | 300 | 500 | ||||
Rated Steam Pressure(MPa) | 0.4 | 0.4 | 0.4 | 0.7 | 0.7 | ||||
Power Supply | 220v/50hz | ||||||||
Steam temp | 150℃ | 150℃ | 150℃ | 170℃ | 170℃ | ||||
Main Body Dimension(mm) | 1500*800*1600 | 1500*900*1800 | 1600*1000*2000 | 1800*1300*2000 | 2200*1500*2200 | ||||
Weigh(kg) | 670 | 900 | 1200 | 1460 | 2600 | ||||
Application
Packing&Shipping
Transportation to describe(biomass pellet heating steam generator):
2.The smaller auxiliary equipment is packed in high-strength wooden or plywood boxes.
3. Products can be transported by ship or train, customers can specify the port.
4. When necessary, small auxiliary aircraft can be transported by air.
Company Profile
Xinda Boiler, located in Zhonglian Road, Xinxiang City, Henan Province, is a new star in the manufacturing base of industrial boilers and pressure vessels in northern Henan Province.
It is a comprehensive boiler and pressure vessel production enterprise integrating design, manufacture, installation, renovation and maintenance.
The company has gathered a large number of professional and technical personnel and management personnel engaged in boiler and pressure vessel design and manufacture.And with the domestic certification universities and authoritative research institutions to maintain a solid technical cooperation and information exchange.
It is a comprehensive boiler and pressure vessel production enterprise integrating design, manufacture, installation, renovation and maintenance.
The company has gathered a large number of professional and technical personnel and management personnel engaged in boiler and pressure vessel design and manufacture.And with the domestic certification universities and authoritative research institutions to maintain a solid technical cooperation and information exchange.
The company is based on integrity, excellence, safety and reliability, energy saving and environmental protection, building brand for the purpose.The company hopes friends from all walks of life sincere cooperation, hand in hand to create a better tomorrow.
Our Customers
Our Services
Pre-sale services
Act as a good advisor and assistant of clients; enable them to get rich and competitive from the returns of their investment.
1) Select suitable equipment model.
2) Design and manufacture products according to clients' special requirements.
3) Train technical personnel for clients.
4) Professional suggestion for customer.
After-sale services
Provide considerate services to minimize clients' worries.
1) Provide civil engineering drawings of the equipment.
2) Free training(including installation,maintenace) to every customer.
3) Install and debug the equipment, ensure the dryer running smoothly.
