Высокоточный Измеритель дождя из АБС-пластика с выходом RS485 0
- Категория: Testing Instrument & Equipment >>>
- Поставщик: Honde,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.1 $* | 0.85 $* |
| Aug-16-2025 | 0.63 $* | 0.27 $* |
| Jul-16-2025 | 0.63 $* | 0.10 $* |
| Jun-16-2025 | 0.83 $* | 0.6 $* |
| May-16-2025 | 0.35 $* | 0.4 $* |
| Apr-16-2025 | 0.86 $* | 0.8 $* |
| Mar-16-2025 | 0.64 $* | 0.32 $* |
| Feb-16-2025 | 0.41 $* | 0.0 $* |
| Jan-16-2025 | 0.92 $* | 0.47 $* |
Характеристики
Product Description

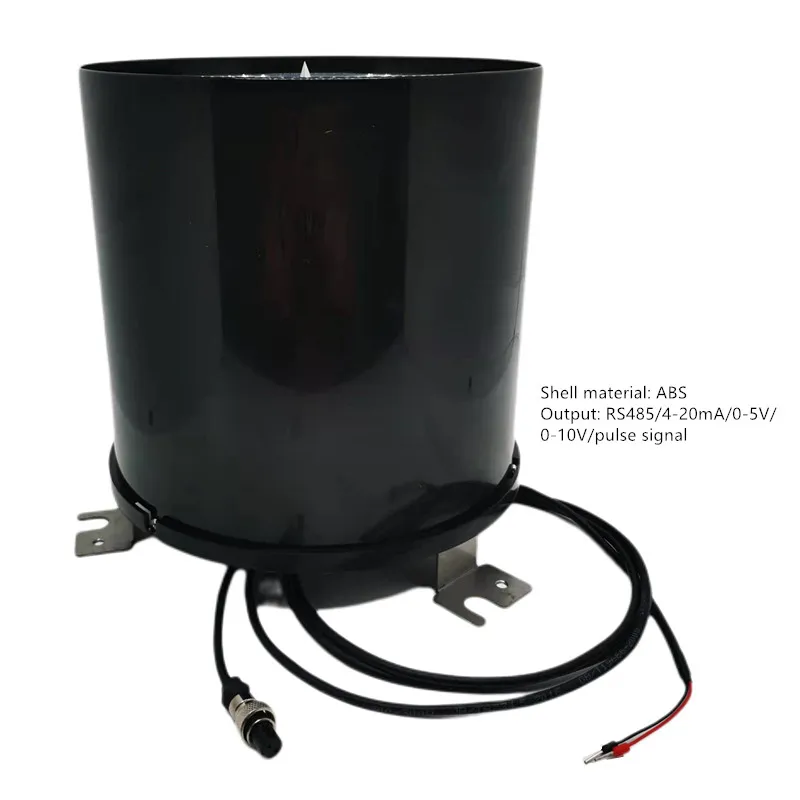

Product Name | 0.2mm Pulse/RS485 output ABS tipping bucket rain gauge |
Material | ABS |
Resolution | 0.2mm |
Rain inlet size | φ200mm |
Sharp edge | 40～45 degree |
Rain intensity range | 0 mm~4mm/min; Maximum rain intensity allowed 8mm/min. |
Measurement accuracy | ≤±3% |
Output | A: RS485 (standard Modbus-RTU protocol, device default address: 01) |
B: Pulse output | |
C:RS485/4-20mA/0-5V/0-10V | |
Power supply | 4.5~30V DC (when the output signal is RS485) |
Power consumption | 0.24 W |
Way of sending | Two-way reed switch on and off signal output |
Working environment | Ambient temperature: 0 ° C ~ 70 ° C |
Relative humidity | ＜100% |

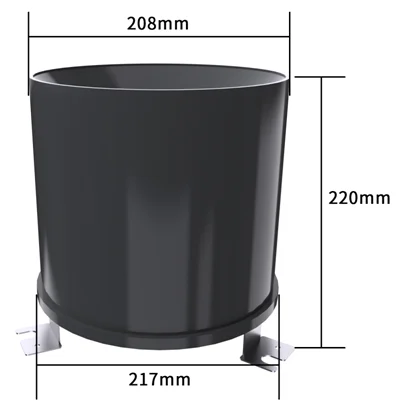

Size | φ220mm×217mm |
Product Applications
Manufacturing Technique
The rainwater collected by the water-receiving port passes through the upper tube (funnel) and is injected into the metering tipping bucket-the tipping bucket is injection molded of engineering plastics and divided into two half-cone chambers of equal volume with a middle partition. It is a mechanical bistable structure. When one chamber receives water, the other chamber is in a waiting state. When the volume of the received rainwater reaches a predetermined value of 0.5mm, it will overturn due to gravity and be in a waiting state, and the other chamber is in a water receiving state.
is installed on the side wall of the tipping bucket, which scans from the side of the dry reed tube when the tipping bucket is
turned over to make the dry reed tube switch on and off. That is, every time the tipping bucket is overturned, the dry reed pipe
is switched on and sends out a pulse signal.
Products Description
2. No rust
3. Built-in filter circuit
2. High precision and good stability
2. Water and oil proof
3. Strong anti-interference ability
engineering ABS plastic, with high
smoothness and small errors caused
by stagnant water and stainless steel
base design.

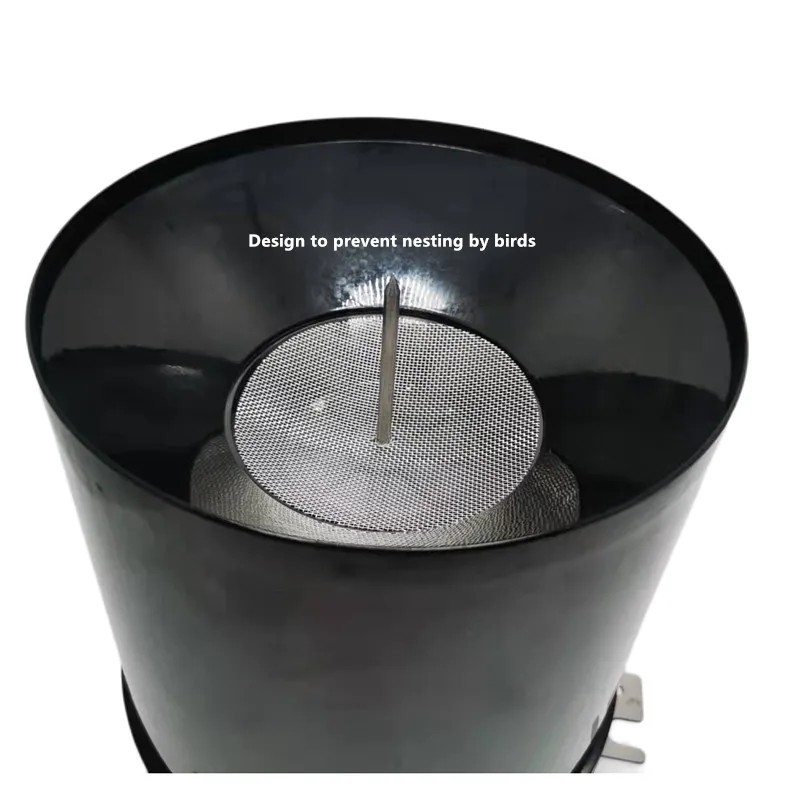

Built-in stainless steel filter can
filter debris. At the same time,
steel needles are installed in the
middle to prevent birds from
nesting.
inside the base to assist in adjusting
the rain gauge to the suitable level.
Related Products
Packing&Shipping
Company Introduction
Honde Technology CO.,LTD founded in the year of 2011, adheres to the business philosophy of technology making our
life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart
agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well
in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise.
We are looking forward to working with you to make our life better due to the blessing of science and technology.
life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart
agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well
in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise.
We are looking forward to working with you to make our life better due to the blessing of science and technology.
FAQ
Q: How can I get the quotation?
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of this rain gauge sensor?
A: It is ABS tipping bucket Rain Gauge with the measure resolution with 0.2mm / 0.5mm and with very cheap price. Built-in stainless steel filter can filter debris. At the same time, steel needles are installed in the middle to prevent birds from nesting.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What's the output type of this rain gauge?
A: It including the pulse output , the RS485 output,4-20mA/0-5V/0-10V output.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What's the delivery time?
A: Usually, the goods will be delivery in 1-3 working days after receiving your payment. But it depends on your quantity.
Just click the below picture to send us inquiry, to know more, or get the latest catalog and competitive quotation.
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of this rain gauge sensor?
A: It is ABS tipping bucket Rain Gauge with the measure resolution with 0.2mm / 0.5mm and with very cheap price. Built-in stainless steel filter can filter debris. At the same time, steel needles are installed in the middle to prevent birds from nesting.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What's the output type of this rain gauge?
A: It including the pulse output , the RS485 output,4-20mA/0-5V/0-10V output.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What's the delivery time?
A: Usually, the goods will be delivery in 1-3 working days after receiving your payment. But it depends on your quantity.
Just click the below picture to send us inquiry, to know more, or get the latest catalog and competitive quotation.
