Неуправляемый промышленный Ethernet коммутатор с 8 портами 10/100/1000 м PoE DIN-рейка IP40 для наружного видеонаблюдения светодиодный
- Категория: Network Switches >>>
- Поставщик: Shenzhen,I-Hirsmann,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 93.36 $* | 95.91 $* |
| Jul-16-2025 | 75.35 $* | 77.67 $* |
| Jun-16-2025 | 91.28 $* | 93.52 $* |
| May-16-2025 | 91.39 $* | 93.32 $* |
| Apr-16-2025 | 72.82 $* | 73.53 $* |
| Mar-16-2025 | 89.28 $* | 91.80 $* |
| Feb-16-2025 | 88.0 $* | 90.38 $* |
| Jan-16-2025 | 88.93 $* | 90.98 $* |
Характеристики
Product Description

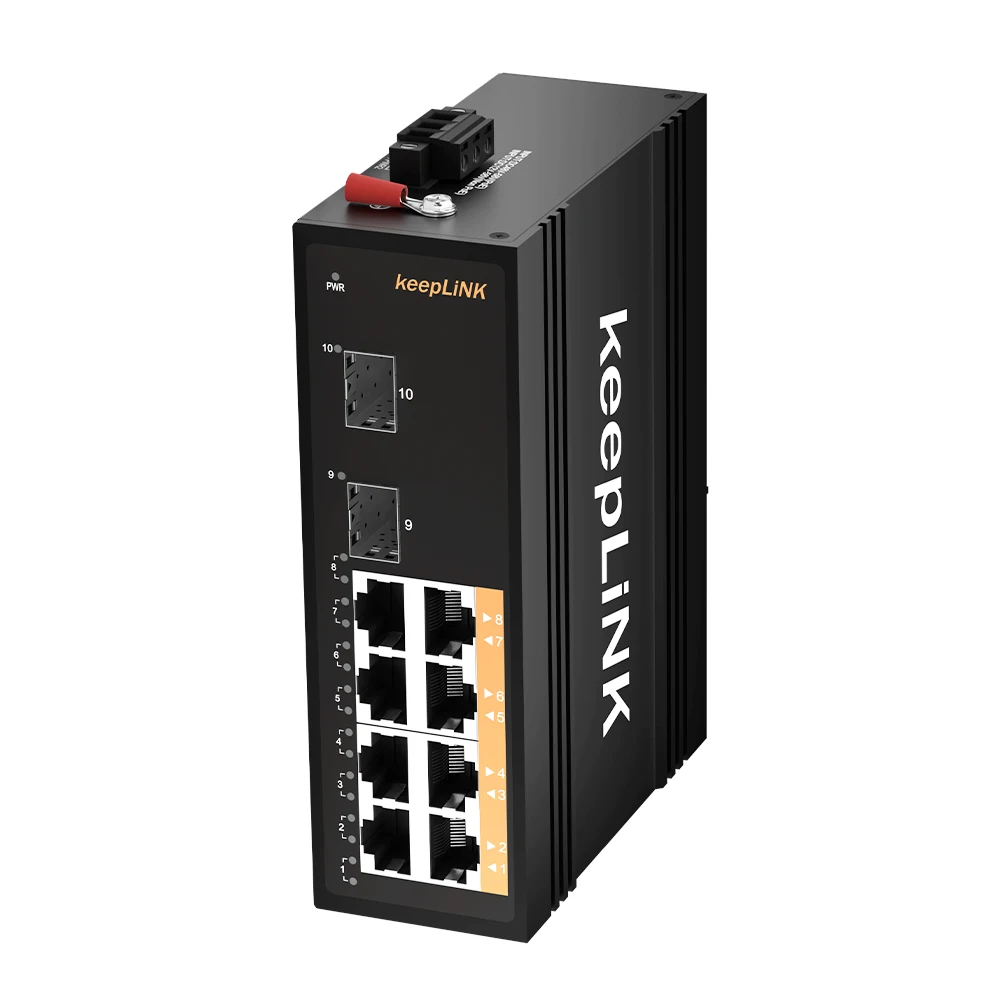

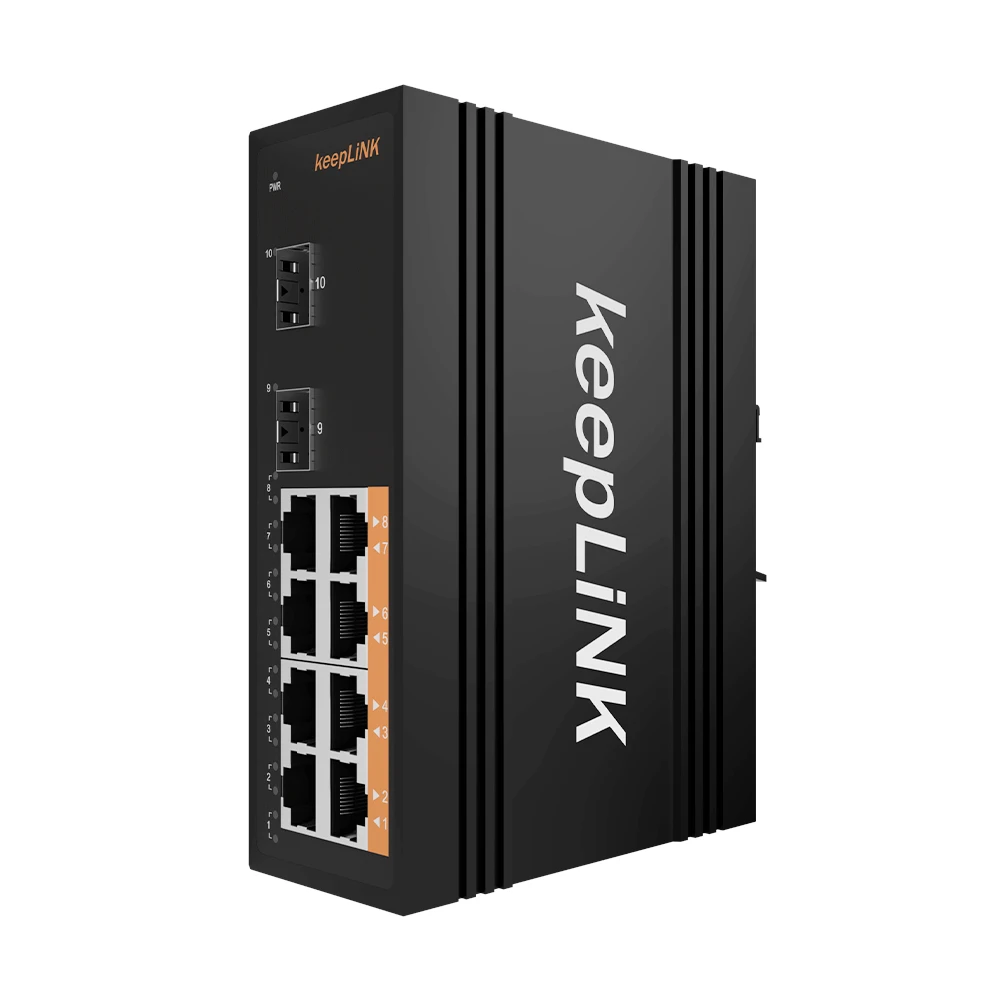

Unmanaged 10/100/1000M 8 Ports Industrial PoE Ethernet Switch DIN rail IP40 for Outdoor CCTV LED Screen
* Overview
Series 4 are industrial grade unmanaged switches, with IP40 aluminum case design, stable working performance under the temperature range -30 to 75 degrees C, 8-15KV anti-static and 4KV surge protection, rugged DIN-rail installation. 2/4/5/6/8/10 ports optional,a variety of specifications meet the requirements of the scheme, and the industrial design ensures the stable operation of the product in a harsh environment.
* Product Highlights
 |
|  |  | |
Hard Aluminum Case
| IP40 Protection | -30 to 75degree C Working Temp | 8-15KV Anti-static Protection | |
 |  |  |  | |
| 4KV Surge Protection |
Dual DC Power Supply
| PoE/PoE+ | 10K Jumbo Frame |

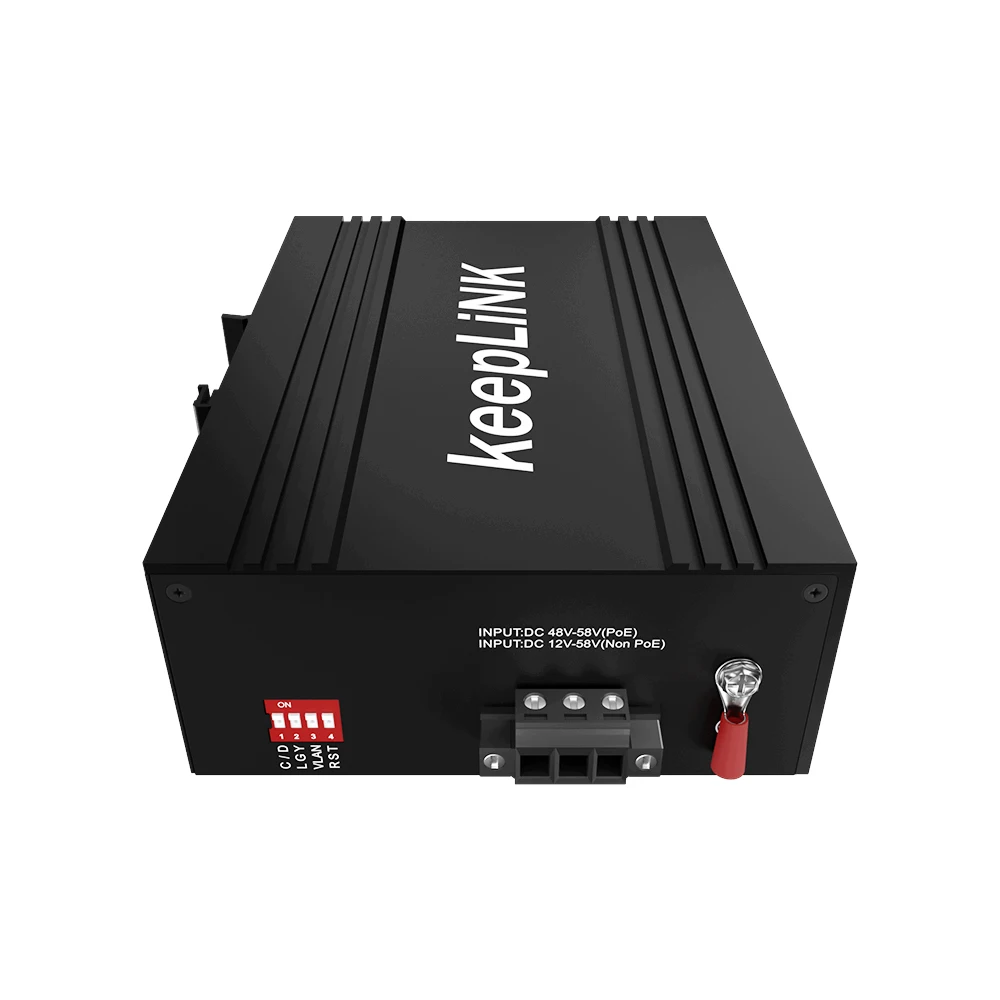

| DIP SWITCH | |
| 1 LFP | Remote PD Reset |
| 2 LGY | Stand/Non-standard POE mode |
| 3 VLAN | Port Isolation |
| 4 RST | Reset |
| L2 SWITCHING | |
| Switching capacity | 20Gbps |
| Packet forwarding rate | 14.88Mpps |
| Mac address table | 16K |
| Forwarding delay | <5us |
| Buffer | 1M |
| MDX/MIDX | Support |
| Jumbo Frame | Support 10Kbytes |
| Port Islation | Support |
| POE/POE+ | |
| PoE port | 1-8 |
| PoE protocol | IEEE802.3af & IEEE802.3at |
| Pin assignment | 1, 2, 3, 6 |
| PoE mode | Support standard/Non-standard PoE |
| Remote PD reset | Support |
| ELECTRICAL SPECIFICATIONS | |
| Inout voltage | DC48-58V(POE), DC12-58V(Non-POE) |
| Power consumption | Without PoE<5W,with PoE<245W |
| MECHANICAL STRUCTURE | |
| Weight | 0.55KG |
| Mounting | DIN-rail |
| Size | 143*104*46 (H*D*W) |
| EMC & INGRESS PROTECTION | |
| IP level | IP40 |
| Surge protection of power | IEC 61000-4-5 Level X (4KV/2KV) (8/20us) |
| Surge protection of Ethernet port | IEC 61000-4-5 Level 4 (4KV/2KV) (10/700us) |
| ESD | IEC 61000-4-2 Level 4(8K/15K) |
| ENVIRONMENT | |
| Operate temperature | -30 to 75 degree C |
| Storage temperature | -30 to 75 degree C |
| Relative humidity | 5%~95% (Non-condensing) |
| Accessories | Ternimal, Intruction, Certificate, Power adapter (Optional) |
Company Information
Our Services
Packaging & Shipping

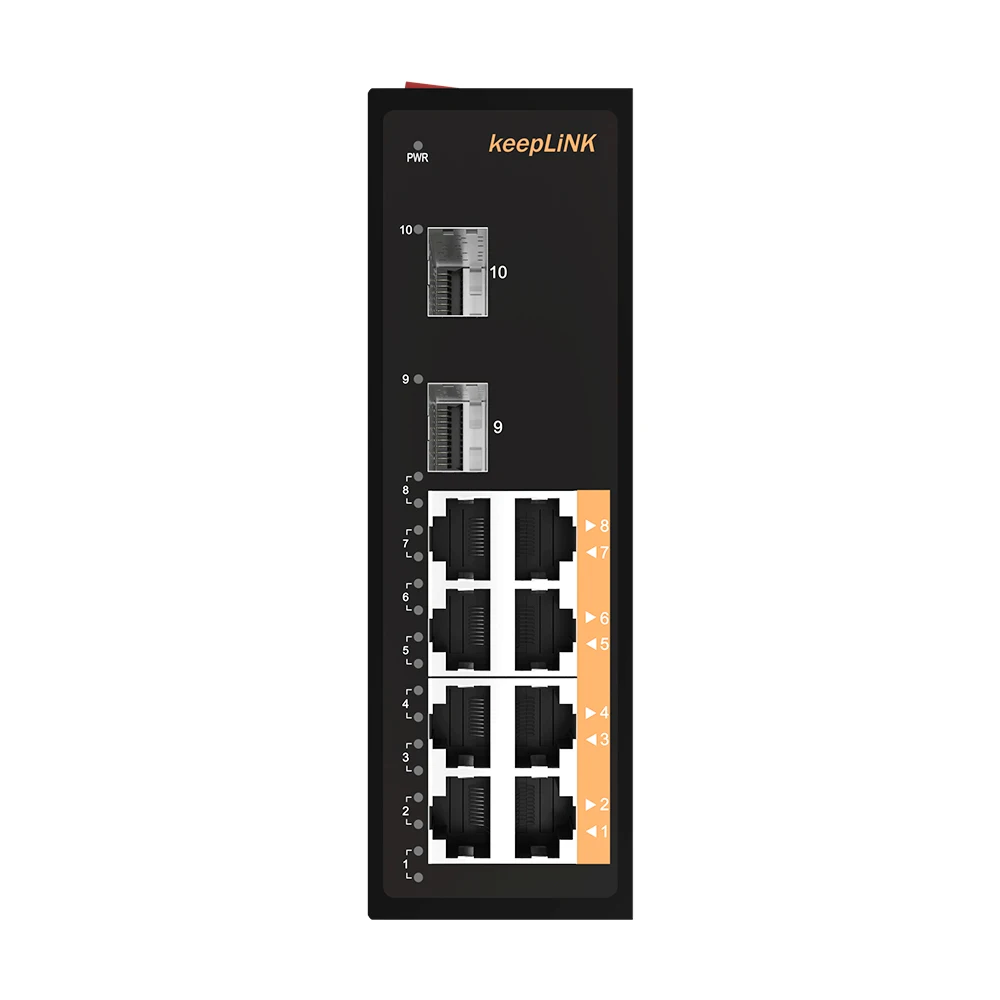

| Product Information | Fixed port | 2*1000Base-X, 8*10/100/1000M PoE/PoE+ |
| Packing | Net weight | 0.55KG/pcs |
| Gross weight | 0.8KG/pcs | |
| Packing list | Switch x1; Phoenix terminal x1; Certificate of inspection x1; Instructions&Warranty card x1 | |
| Shipping | Sample order is within 1~3 days, other quantity need to be negotiated | |
| Note: Power adapter and SFP transceivers are not included by default when place an order, please order separately | ||
| Optional models | KP-9000-65-2GX8GT (2*1000Base-X, 8*10/100/10000M Ethernet ) | |
FAQ
FAQ
Q: Are you manufacturer or trading company?
A: Manufacturer, and industry network total solution provider.
Q: Do you accept ODM or OEM?
A: Yes.
Q: What is your minimum order quantity?
A: 1 PCS.
Q: What’s the payment method?
A: T/T, L/C, Western Union, Money Cram, Credit Card, Alipay, Cash.
Q: What’s the accepted delivery terms ?
A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, Express Delivery.
Q: How about shipping time?
A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the shipping time depends on the specific specifications of the product.
Q: How about after-sales service?
A: We are 7*24 hours online and respond to user's field device problems in time.
Q: How about the warranty
5 years.
