FX AUDIO BT5.0 усилитель мощности HIFI NE5532 аудио цифровое декодирование стерео трубка Предварительный наушники amp по
- Категория: Other Audio & Video Accessories >>>
- Поставщик: Shenzhen,Summer,Sound,Electroacoustic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 39.25 $* | 40.52 $* |
| Jul-17-2025 | 32.44 $* | 33.21 $* |
| Jun-17-2025 | 39.81 $* | 40.65 $* |
| May-17-2025 | 38.13 $* | 39.7 $* |
| Apr-17-2025 | 31.58 $* | 32.41 $* |
| Mar-17-2025 | 38.51 $* | 39.66 $* |
| Feb-17-2025 | 38.26 $* | 39.62 $* |
| Jan-17-2025 | 37.8 $* | 38.27 $* |
Характеристики
Product Description
Specification
Color | Black/Silver |
Unit size | 98mm(L)*148mm(Width)*33mm(High) |
Unit Weight | 0.4kg |
Package Weiht | 0.695kg |
Chipset | QCC3008+ESS9023+6K4+NE5532+JRC4556 |
Frequency Response | (±3dB)20Hz-22KHz |
Accessories | 1. 1 x TUBE-03MKII 2. 1x 12V 1A power supply 3. 1x RCA cable 4. BT antenna |
SNR | 100dB |
THD | 0.001% |
Color | Black/Silver |
Headphone output impedance | 16-150R |
Line input impedance | 600R-20K |
Headphone Power output | 30mW@16R，50mW@32R，70mW@68R，70mW@150R |
Sensitivity | 0.775Vrms |
RCA RMS Level | 2Vrms |
Bass/Treble gain | ±8dB |
Main feature:
1. Using Qualcomm QCC3008 BT to receive audio signal I2S output + ESS9023 decoding, which can greatly improve the BT audio effect, with high signal-to-noise ratio and low distortion
2. Bile + BUF buffered amp line, equivalent to a bile amp
3. Adjust the treble and bass
4. MCU intelligent control, soft switch machine, switch input channel, the effect is better than the automatic switch machine
Features of the second level:

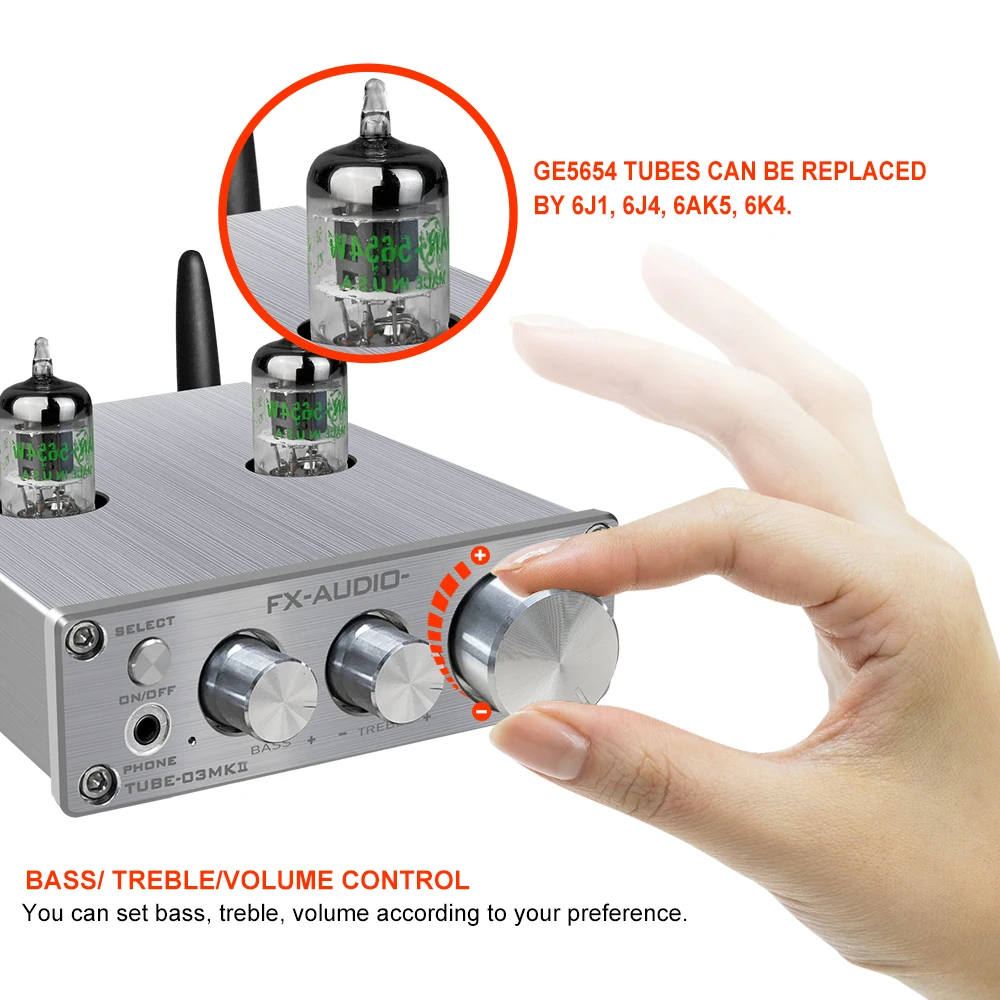

1. The bile duct can be replaced with a replaceable design, and it can be upgraded by itself with a better tube, such as GE5654
2. The amp op amp can be replaced with a replaceable design, you can upgrade other op amps to improve the effect of the amp, if MUSE02
3. Independent power supply design with shielding to reduce interference
4. The signal switch adopts relay switch, which is better than common analog switch

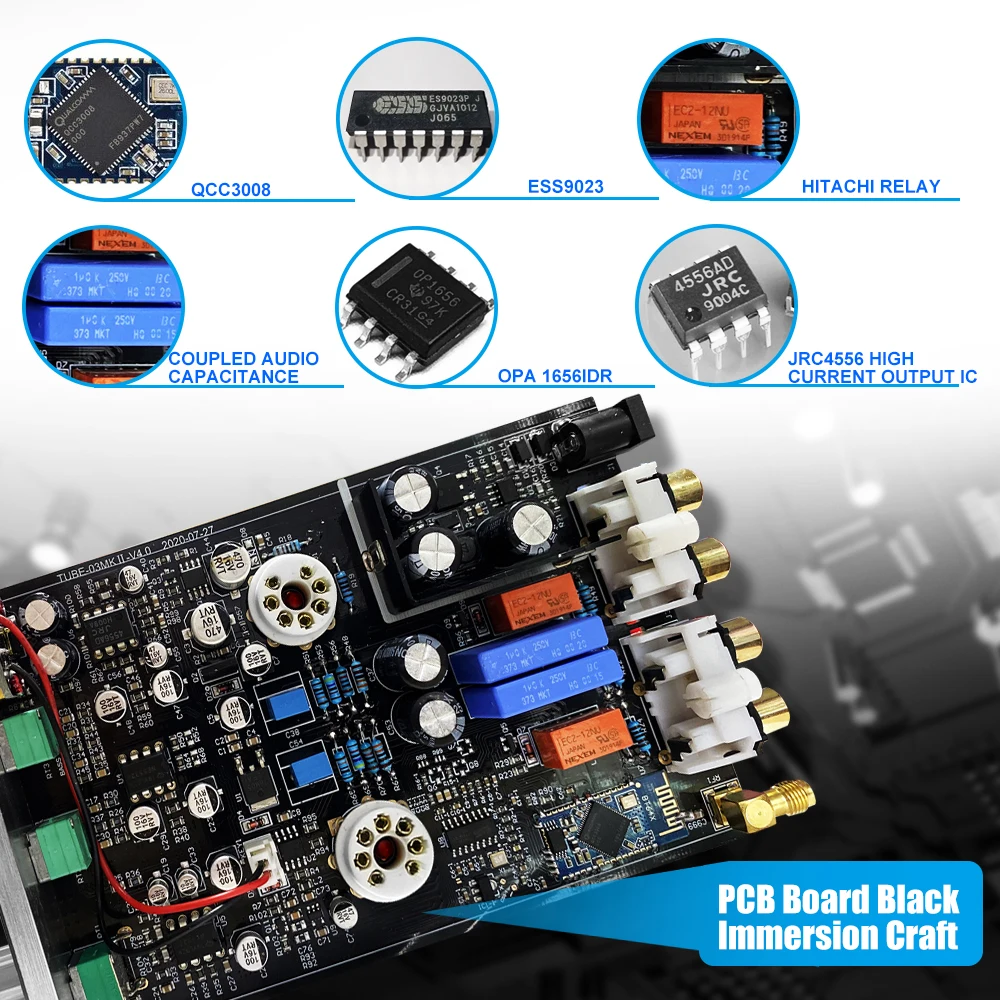

5. Immersion gold PCB board + enthusiast components + BC coupling capacitor
Features of the third level, cost-effective display:
1. This machine is equal to a bile amp = conventional bile preamp + amp
2. A bile HIFI5.0 BT audio receiver = high-fidelity BT receiver + bile output
3. A multi-function preamp = HIFI BT receiver + independent DAC + headphone amplifier + high and low tone + bile buffer
1. Using Qualcomm QCC3008 BT to receive audio signal I2S output + ESS9023 decoding, which can greatly improve the BT audio effect, with high signal-to-noise ratio and low distortion
2. Bile + BUF buffered amp line, equivalent to a bile amp
3. Adjust the treble and bass
4. MCU intelligent control, soft switch machine, switch input channel, the effect is better than the automatic switch machine
Features of the second level:
1. The bile duct can be replaced with a replaceable design, and it can be upgraded by itself with a better tube, such as GE5654
2. The amp op amp can be replaced with a replaceable design, you can upgrade other op amps to improve the effect of the amp, if MUSE02
3. Independent power supply design with shielding to reduce interference
4. The signal switch adopts relay switch, which is better than common analog switch
5. Immersion gold PCB board + enthusiast components + BC coupling capacitor
Features of the third level, cost-effective display:
1. This machine is equal to a bile amp = conventional bile preamp + amp
2. A bile HIFI5.0 BT audio receiver = high-fidelity BT receiver + bile output
3. A multi-function preamp = HIFI BT receiver + independent DAC + headphone amplifier + high and low tone + bile buffer
