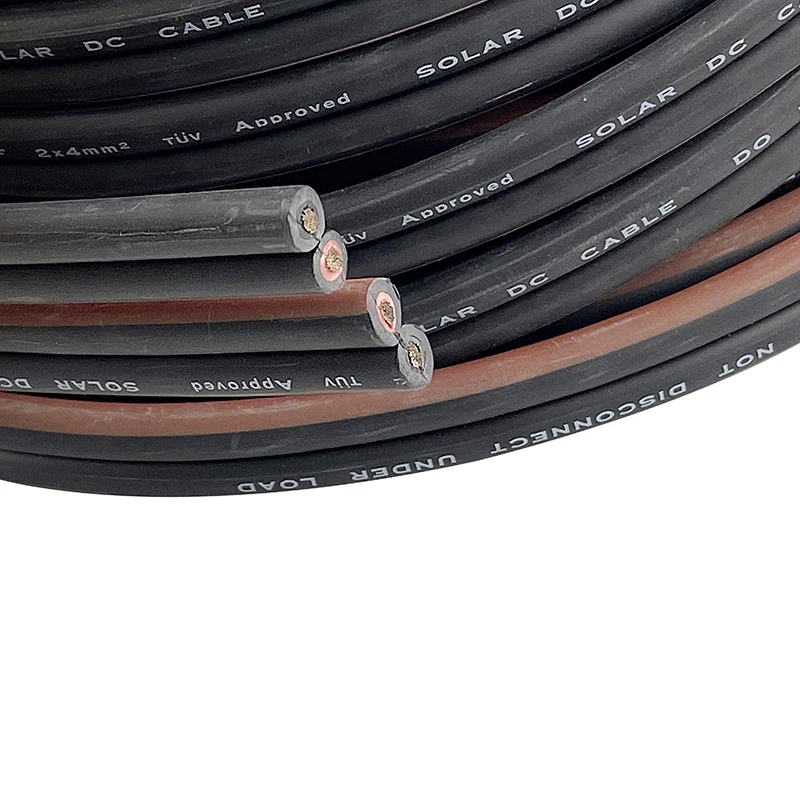

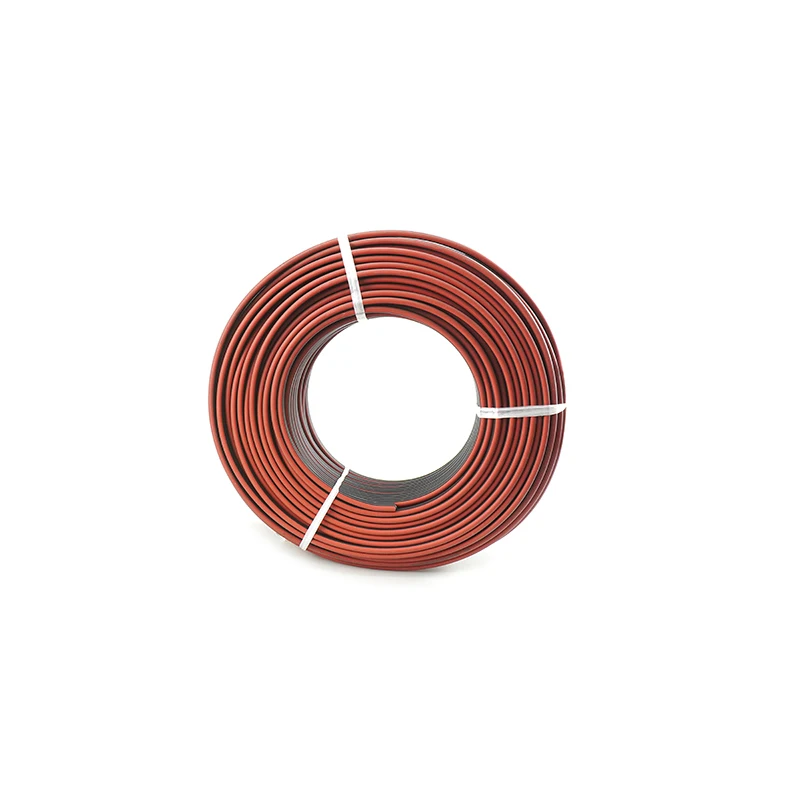

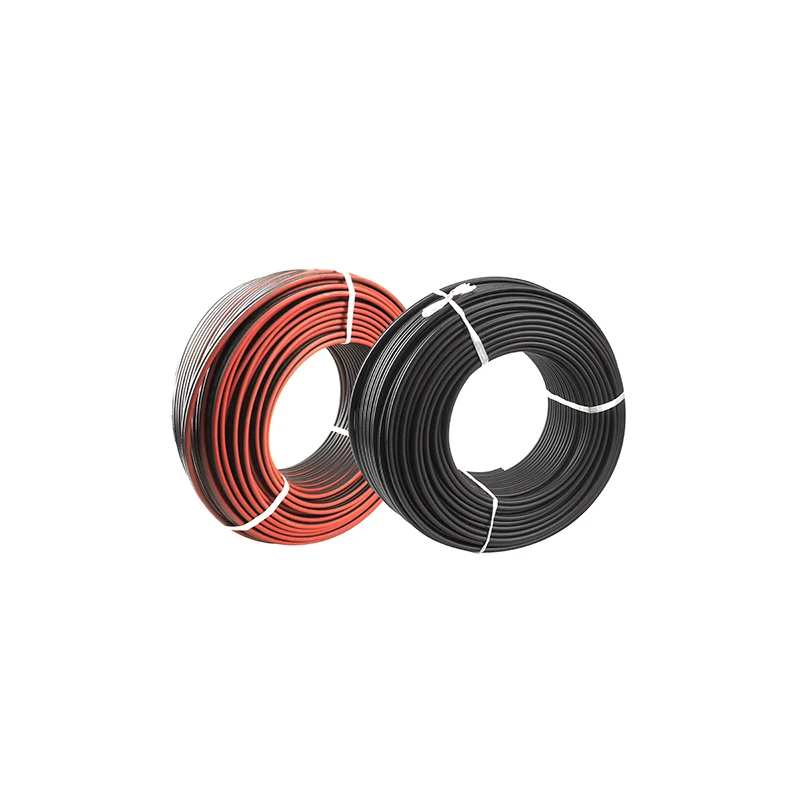

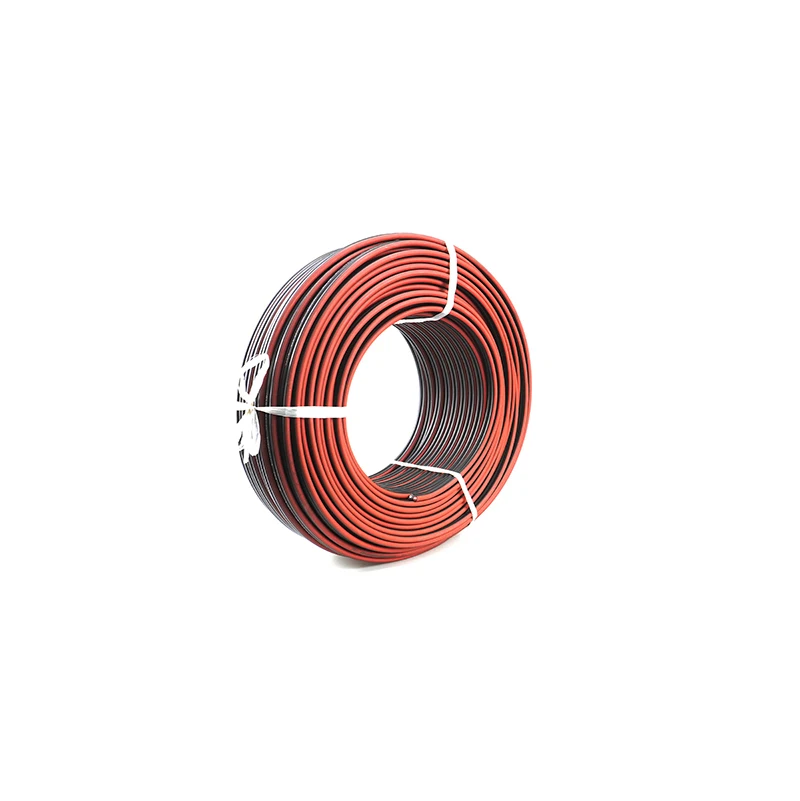

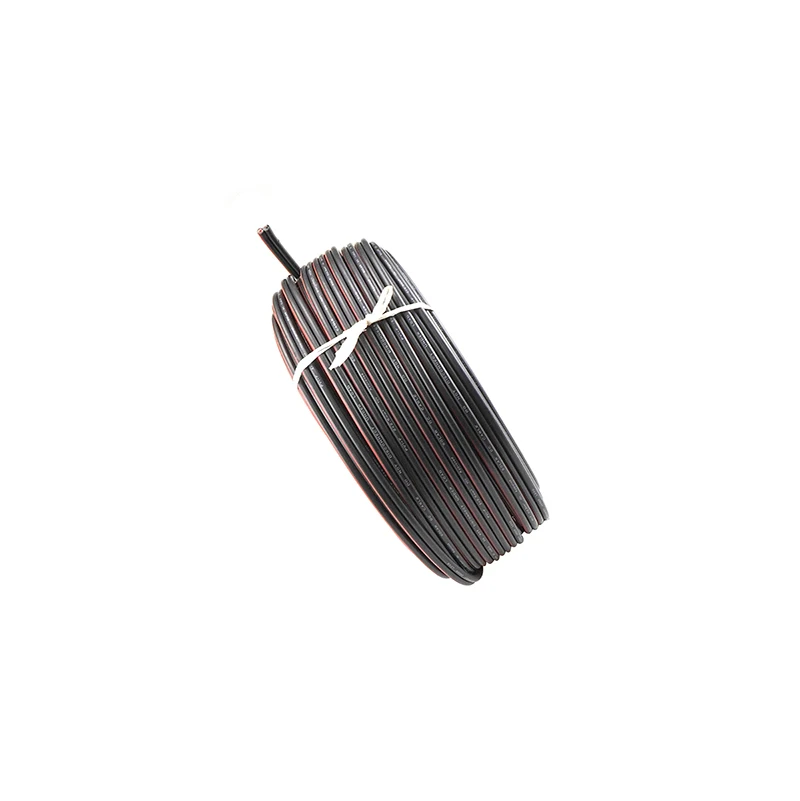

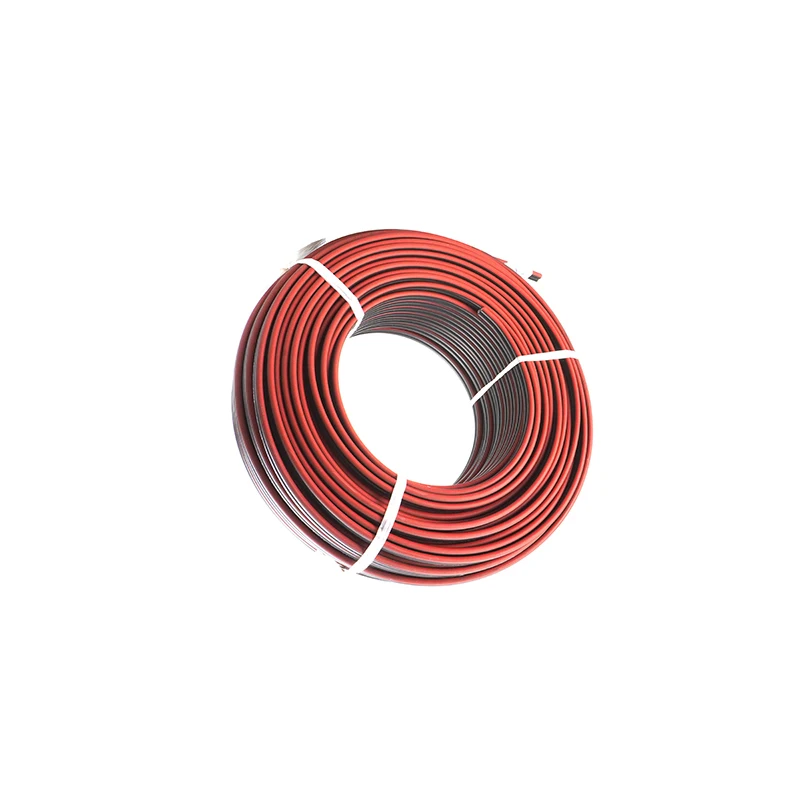

Самый популярный солнечный 6 кв мм кабель PV1-F 2x6mm2 Электрический медный солнечной энергии XLPO оптовая продажа для панели солнечных
- Категория: Power Cables >>>
- Поставщик: Zhejiang,Pntech,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1.56 $* | 1.67 $* |
| Jul-16-2025 | 1.55 $* | 1.94 $* |
| Jun-16-2025 | 1.94 $* | 1.26 $* |
| May-16-2025 | 1.81 $* | 1.85 $* |
| Apr-16-2025 | 1.8 $* | 1.52 $* |
| Mar-16-2025 | 1.33 $* | 1.74 $* |
| Feb-16-2025 | 1.2 $* | 1.36 $* |
| Jan-16-2025 | 1.89 $* | 1.60 $* |
Характеристики
Why Choose Us
Product Details
Product Description
Product Name | DC Solar PV Cable |
Origin | China |
Color | Black and Red or Customized |
Specification | 2.5mm2, 4.0mm2, 6.0mm2, 10.0mm2 |
Number of Cores | Twins Core |
Transport Package | Drum or Roll |
Conductor | Oxygen-free Tinned Copper Wire |
Insulating Layer | 125℃XLPO |
Sheath Layer | 125℃ XLPO |
Special Process | lirradiated Cross-linked |
Rated Voltage | AC:Uo/U=1.0/1.0KV DC:1.8KV |
Ambient Temperature | -40℃~+90℃ |
Max Conductor Temperature | +120℃ |
Service Life | Expected Service Life Is 25 Years |
Bending Radius | ≥4×φ (D<8mm),≥6×φ (D<8mm) |
Cold bending test | EN60811-1-4 |
Damp Heat Test | EN60068-2-78 |
Sunlight resistance | HD605/A1 |
O-zone resistance at complete cable | EN50396 |
Flame test | EN60332-1-2 |
Smoke density | IEC61034,EN50268-2 |
Content of halogen acid gas | IEC670754-1 EN50267-2-1 |
Certificate | TUV Rheinland |
Specification
Cross Section | Conductor Size | Conductor Stranded OD | Cable OD | DC Resistance | Carrying Capacity | Picking |
mm² | number/mm±0.015 | mm±0.01 | mm±0.01 | Ω/km,20ºC | ≤60ºC | mater/roll |
2x2.5 | 36/0.29 | 1.98 | 5.2x10.8 | 8.21 | 36 | 100/100 |
2x4.0 | 56/0.29 | 2.35 | 5.6x11.5 | 5.09 | 44 | 100/100 |
2x6.0 | 84/0.29 | 3.06 | 6.6x13.5 | 3.39 | 60 | 100/100 |
2x10 | 80/0.4 | 4.60 | 7.8x15.5 | 1.95 | 82 | 100/100 |
Other Products
Company Profile
Factory
Laboratory
Exhibition
Certificates
FAQ
Q1：Where are the photovoltaic cables used ?
A1：Photovoltaic cables are used to connect solar cell modules and inverters.
A1：Photovoltaic cables are used to connect solar cell modules and inverters.
Q2：How to choose the type and specification of photovoltaic cable ?
A2：Select UL4730 standard PV WIRE for the UL standard area; Select PV CABLE(or TUV 2 PfG 1169) from standard EN50618 for the EN standard area, The product models are PV Wire **AWG/h1z2z1-k**mm2（orpv1-f）.
Q3：What is the difference between h1z2z2-k and pv1-f ?
A3：H1z2z2-k rated voltage is higher than pv1-f, the former is 1500V, the latter is 1000V.
Q4：Which size of cables should I choose ?
A4：4mm2(12AWG) can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A.After the convergence of several branches of the main output, depending on the situation, can consult us.
Q5：How long is the service life of photovoltaic cable ?
A5：Without additional protection, it can be used for more than 20 years in outdoor ventilation and dry conditions.
Q6：What other features do photovoltaic cables have ?
A6：Conditions of use -40°C~+90°C, low smoke,halogen free,flame retardant,anti ultraviolet radiation.
