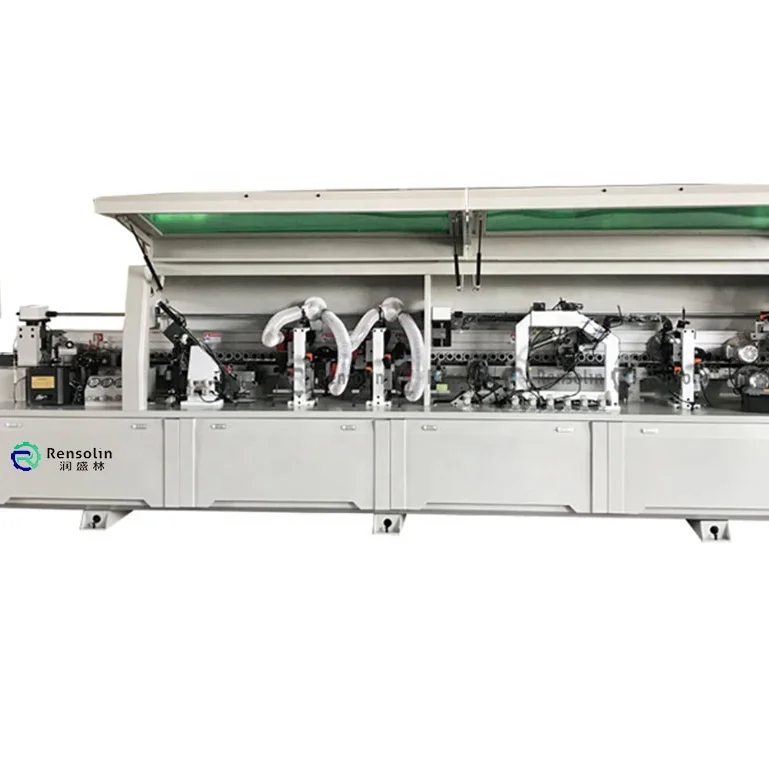

Низкая цена ПВХ kdt панели предварительно фрезерный двойной триммер угловые круглые деревообрабатывающие автоматические
- Категория: Wood Based Panels Machinery >>>
- Поставщик: Qingdao,Runshenglin,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 5206.50 $* | 5310.13 $* |
| Jul-16-2025 | 4222.24 $* | 4306.56 $* |
| Jun-16-2025 | 5124.74 $* | 5226.55 $* |
| May-16-2025 | 5083.65 $* | 5185.41 $* |
| Apr-16-2025 | 4058.31 $* | 4139.85 $* |
| Mar-16-2025 | 5001.55 $* | 5101.59 $* |
| Feb-16-2025 | 4960.88 $* | 5059.26 $* |
| Jan-16-2025 | 4919.97 $* | 5017.3 $* |
Характеристики
Products Description
Main Functions
Step1: Glue and Pressing
Using the spiral structure of glue feeding , through the processing center of the one-time forming of the glue pot heating sol,so that the plate uniformly coated with glue and the adhesive force is more firm.
Step2: End Cutting
High matching German technology are adopted, through precise direct selling guide rail movement, adopt automatic tracking by mold and high frequency high click quick cutting structure, ensure smooth cutting surface, quick and light cutting drive.

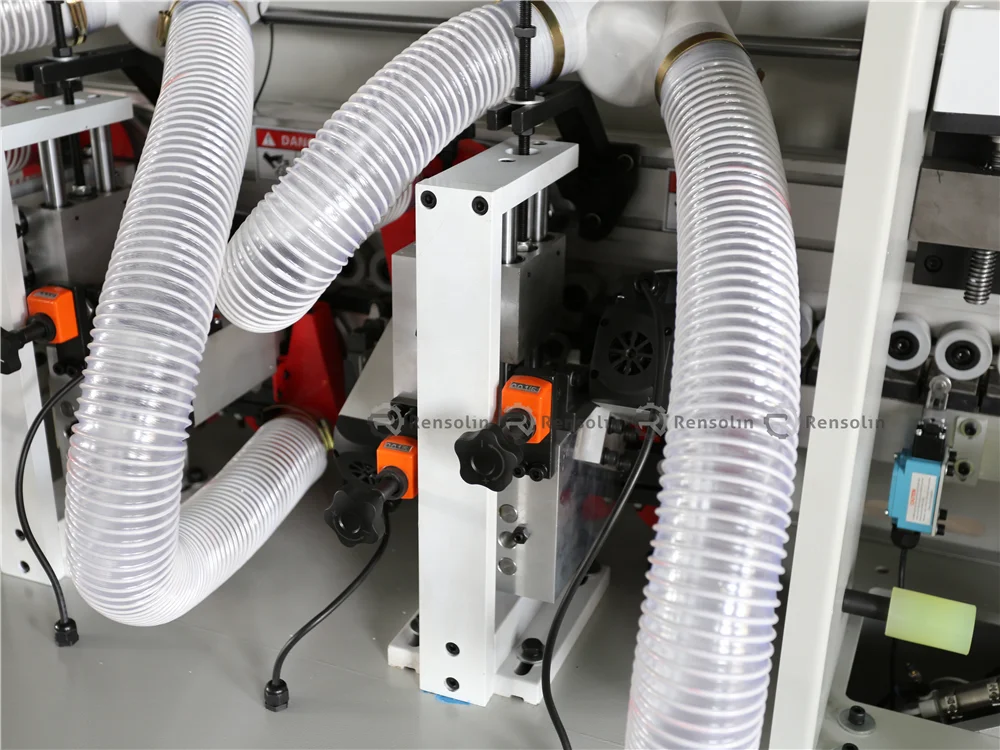

Step3:Rough Trimming
It is recommended to use the rough repair function when sealing the edge belt with a thickness of more than 1.5mm.

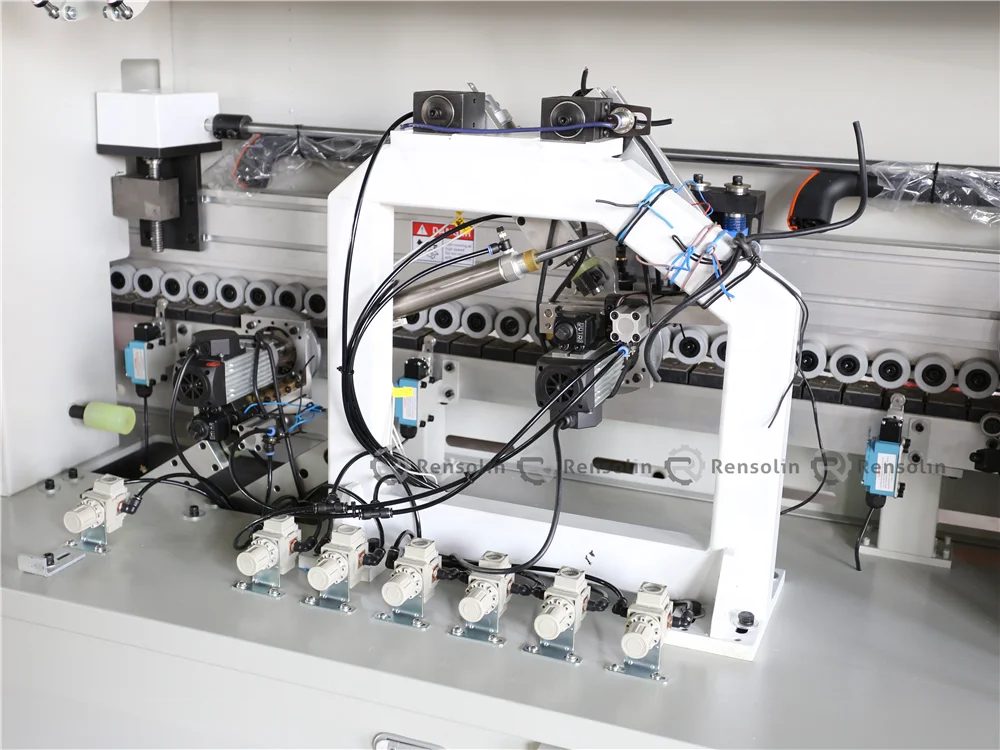

Step4: Fine Trimming
Fine repair is divided into two kinds of flat repair and oblique repair, oblique repair in the sealing surface of high brightness edge strip ,will not seal edge strip surface dark mark.

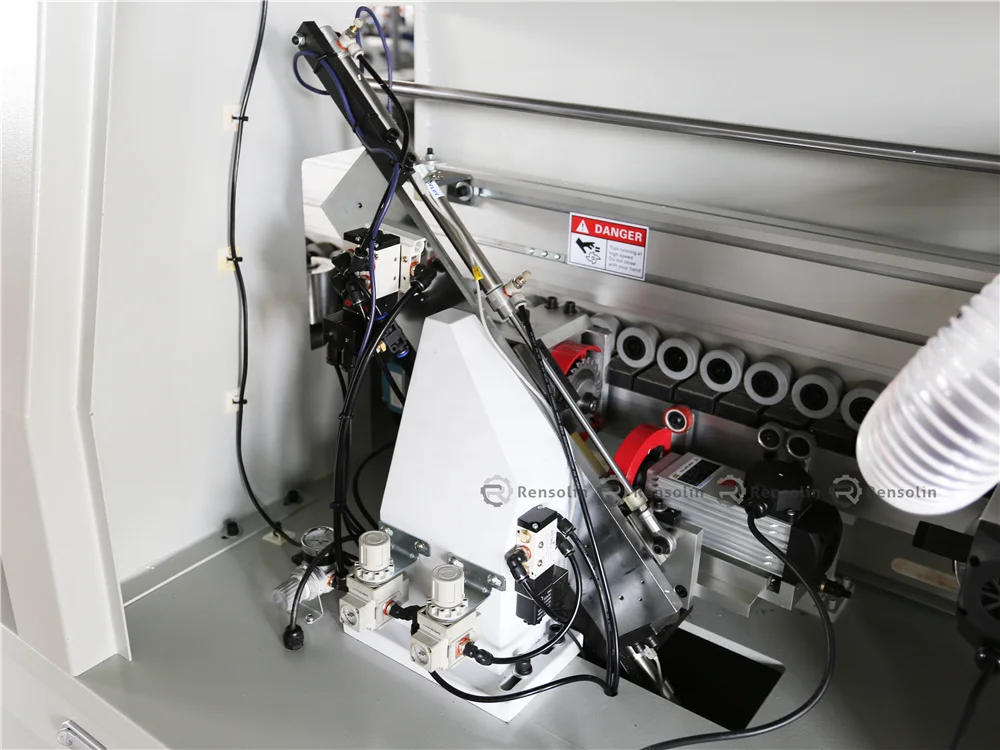

Step5: Corner rounding
Adopt high speed motor, can make the end face of plate more smooth
Step6: Scraping
It is used to eliminate the ripple marks caused by the cutting process of non-linear motion of trimming, make the plate more smooth and neat, and adjust the size of arc Angle at the same time, make the sealing effect more delicate.
Step7:Buffing
Adopt the board processed by two cotton polishing wheel, by end-polishing to make the edge side even more smoother surface.
Product Paramenters

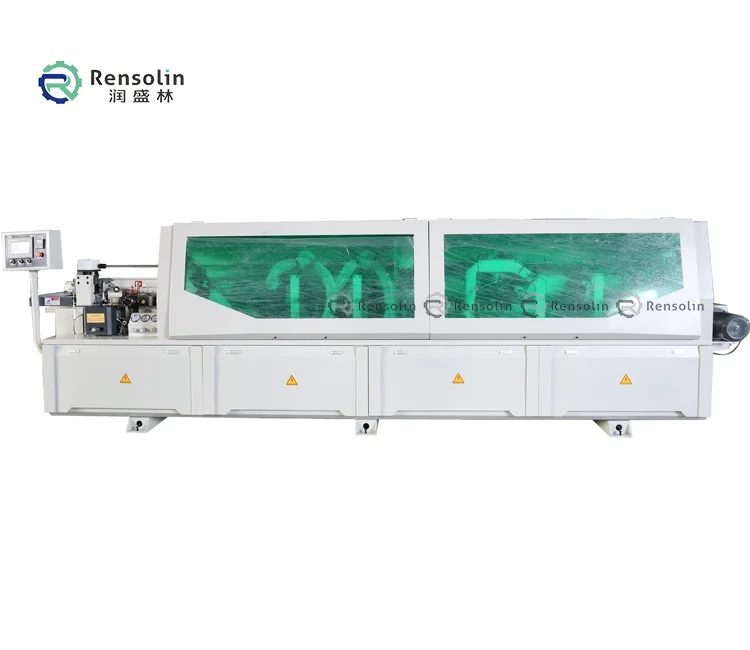

Edge Banding Machine | RSL 450ADF |
Motor Power | 7.8KW |
Overall size | 5600*850*1680mm |
Feed speed | 12-20m/min |
Panel thickness | 10-60mm |
Belt thickness | 0.4-3mm |
Min. length of panel | ≥100mm |
Min. width of panel | ≥50mm |
Working air pressure | 0.6-0.8 Mpa |
Weight | 1850KG |
product advantages
Display Screen
The electronic screen displays the temperature control meter, and the numbers are displayed more clearly. There are three button below, namely the power switch, the lighting switch, and the auxiliary switch. The right side is equipped with an emergency stop
to protect personal safety and stop machine operations in time.
to protect personal safety and stop machine operations in time.
Laser cut body
Laser cutting steel plate base Laser cutting steel plate base, making the welded body strong and not deformed, increasing the stability of the machine.
Imported motor, multi- choices
Use imported motor and high quality electronic parts.Product seriation, multi-choice for customers.
Related product
Products Effect Display
Service
PRE-SALE SERVICES:
1. Introduce and Provide detailed consultation of the machine.
2. Strict quality control system, warrantyperiod: 2 years.
3. Provide custom- -made service, offering good suggest and design idea to customer.
4. Welcome to visit our factory.
SERVICES DURING SALES:
1. Fast delivery and 100% QC Inspection before shipment.
2. Install and debug the machine well in our factory.
3. Provide safety package and shipping to clients.
AFTER-SALE SERVICES:
1. Carefully train frst-line operators' operation knowledge.
2. Engineers available to service machinery overseas timely.
3. Our sales team and senior engineer are ready for service for you in every 7x24h.
FAQ
Q1: How to install?
A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.
For sliding table saw you just need install sliding table on machine body by 4 bolts.
Q2: How to ensure the safety?
A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?
Q3: How long the table saw machine can be used?
A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?
Q4: What is the Delivery time?
A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?
Q5: Where is your company located?
A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north ofChina.
Q6: Are there any requirements for the dealer?
Q6: Are there any requirements for the dealer?
A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
