OEM Заводские Ксеноновые лампы для светофора сигнальная лампа Гуандун прозрачная импульсная взлетно-посадочная

OEM Заводские Ксеноновые лампы для светофора сигнальная лампа Гуандун прозрачная импульсная взлетно-посадочная

Категория: Xenon Lamps >>>
Поставщик: Shenzhen,Hongtai,Auspicious,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.86 $*	0.90 $*
Aug-19-2025	0.58 $*	0.59 $*
Jul-19-2025	0.95 $*	0.7 $*
Jun-19-2025	0.54 $*	0.56 $*
May-19-2025	0.82 $*	0.52 $*
Apr-19-2025	0.89 $*	0.56 $*
Mar-19-2025	0.68 $*	0.15 $*
Feb-19-2025	0.78 $*	0.31 $*
Jan-19-2025	0.27 $*	0.95 $*

Характеристики

Product Description

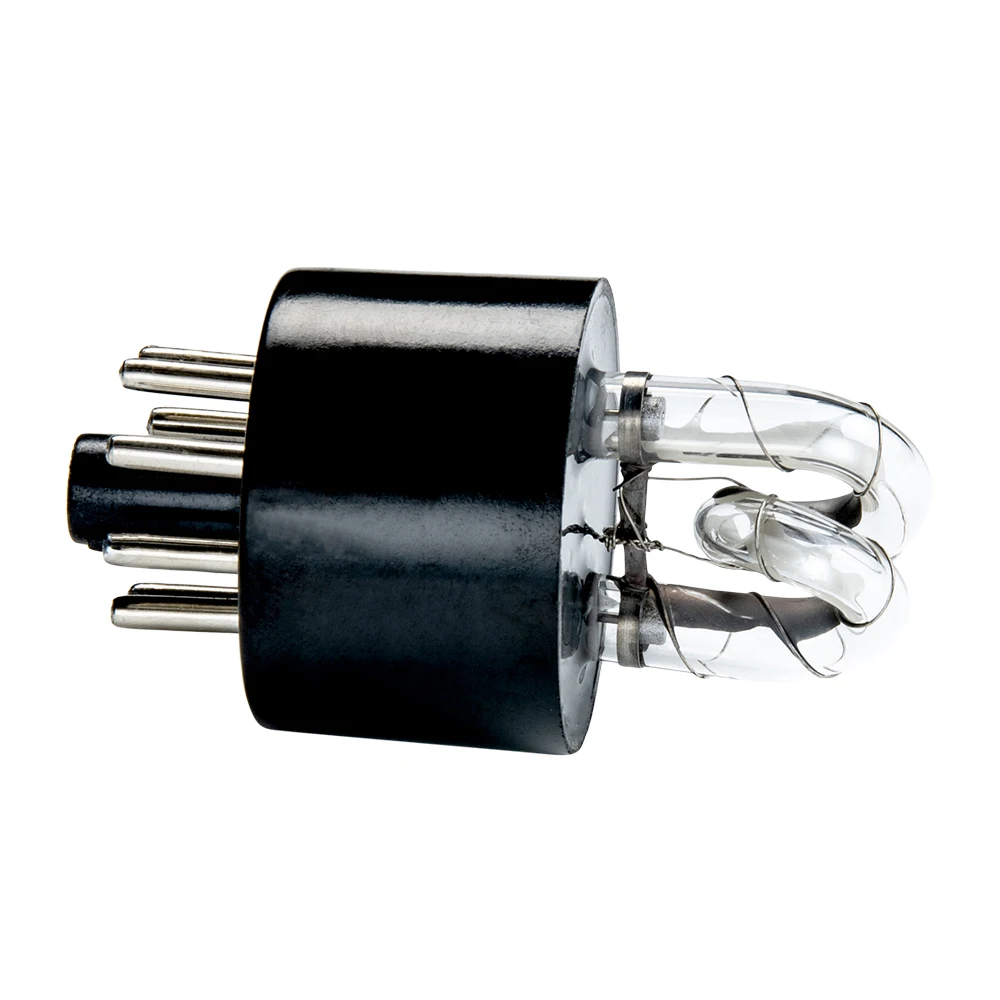

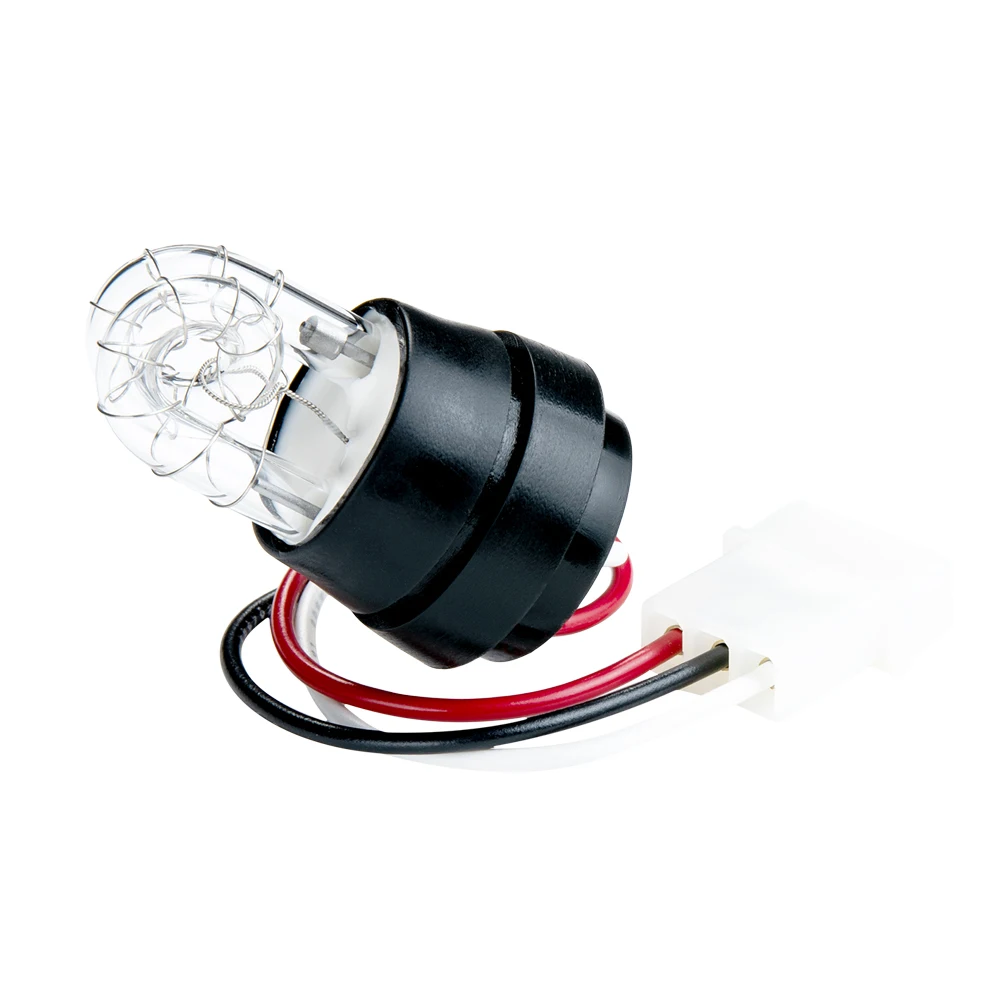

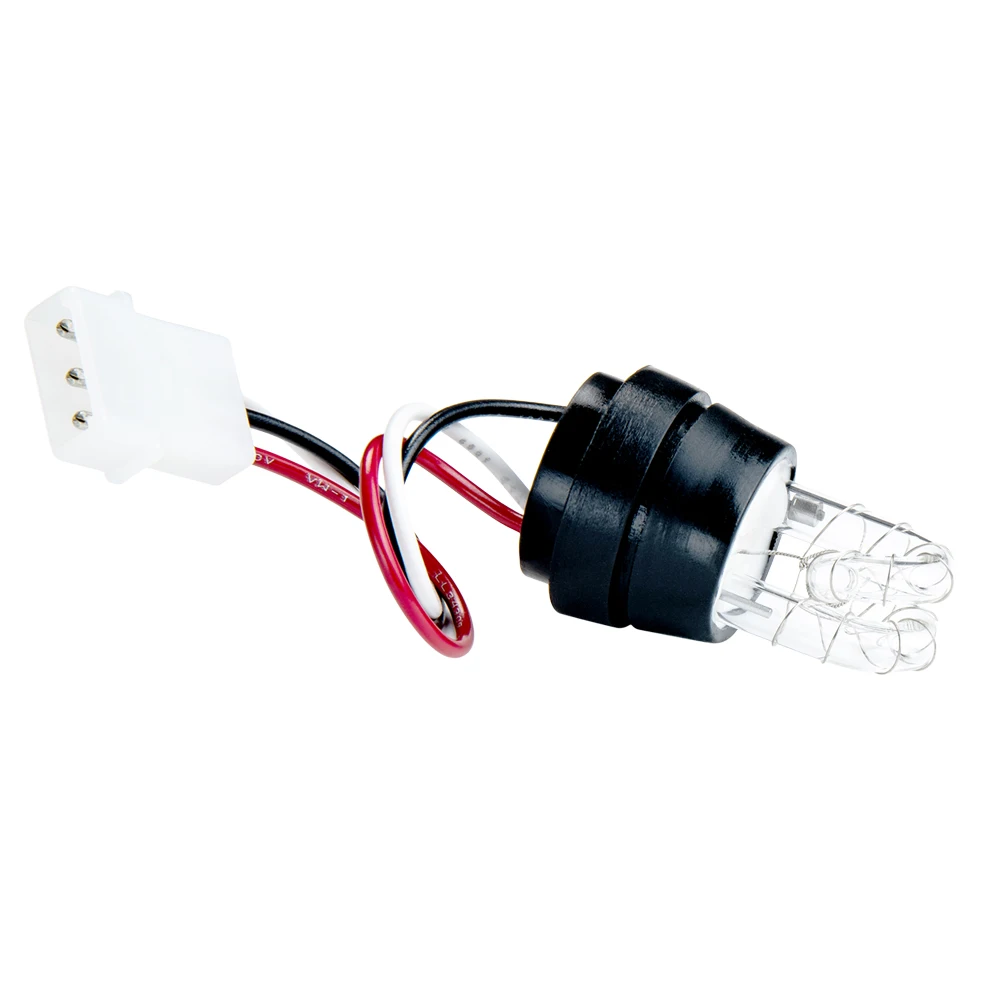

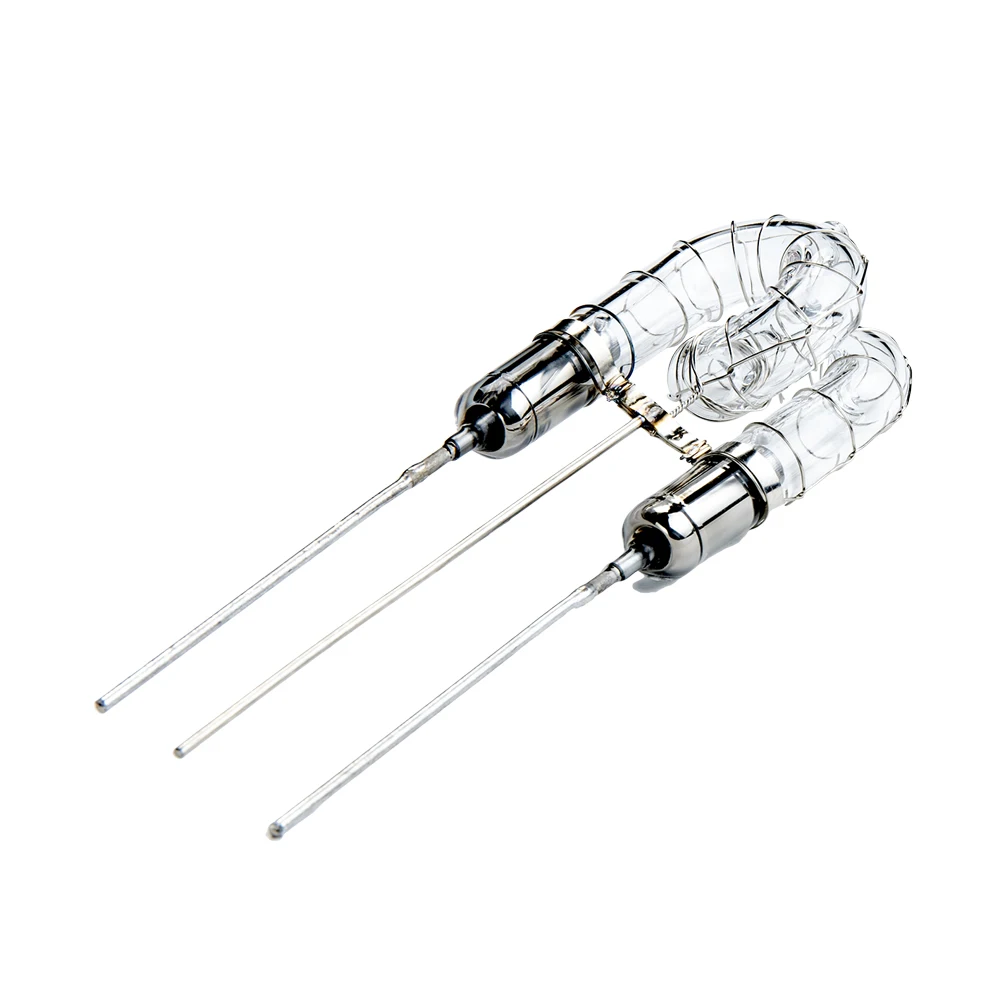

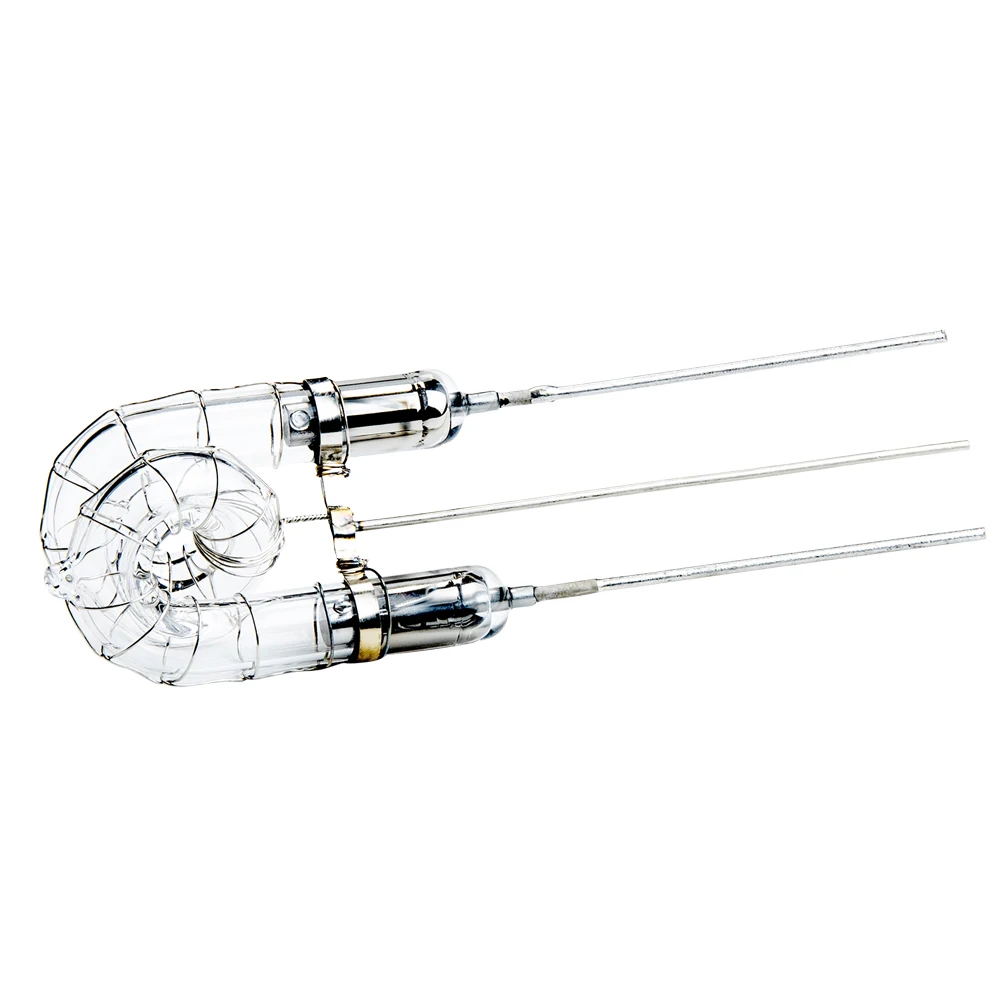

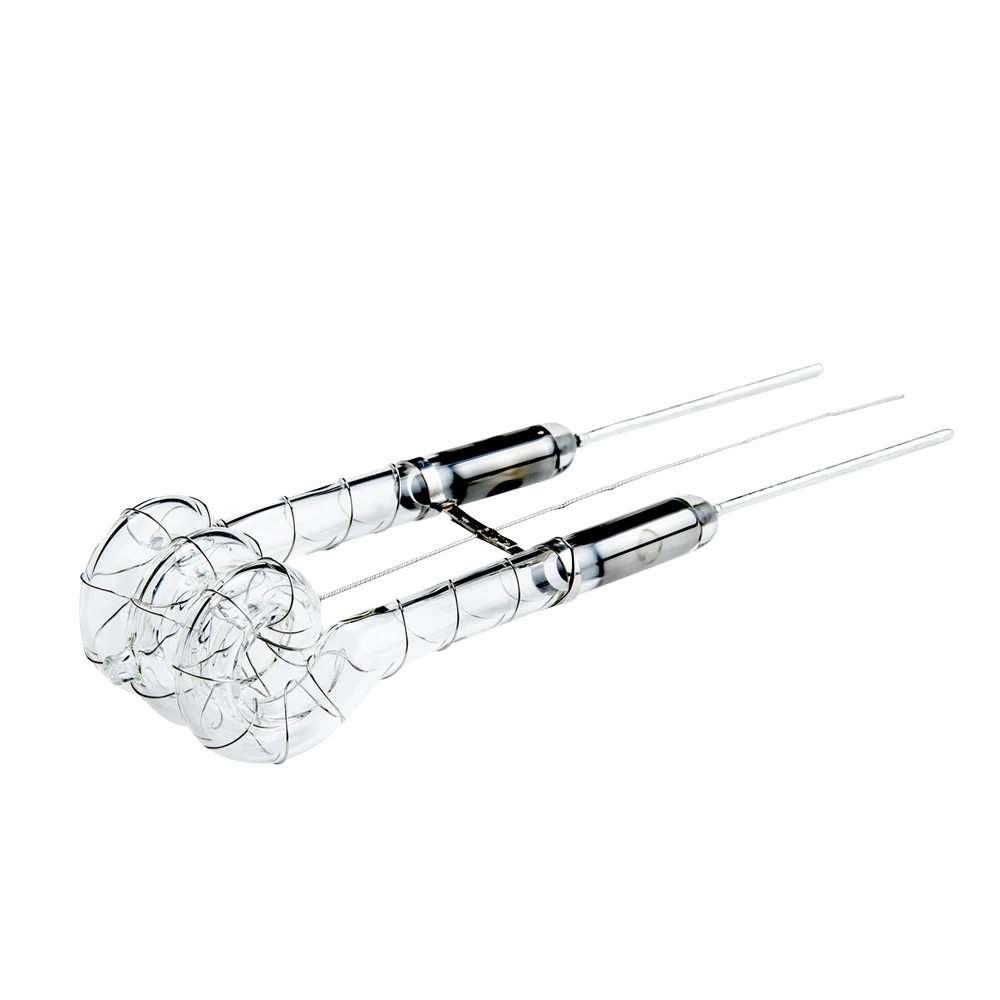

OEM Factory Xenon Flash Tubes For Traffic Warning Light With Lead Free Solder

Xenon Flash Tube is serving hundreds of customers around the world, including: Manufacturers and factories, Research institutes, Universities, development centers, Retailers and more. We offer a large variety of Xenon Flash tubes, in many shapes and forms, for various applications including ：*photography,

*Laser pumping

*signal and timing

*warning beacons

* Hair removal etc,

*As well as complementary components such as *Trigger Coils,*inverter transformers, capacitors and general components.

Product Characteristics

The flash design form is made of hard glass and quartz glass forms, for different shapes and sizes
The high stable light output
The high efficiency
The fluorescent coating
The custom with the trigger electrode, end caps, glass cap, flexible or rigid wire flash.

Function

Operating Data Of Xenon Flash Tubes for Traffic Strobe Light

Type of Circuit: External

Power Circuit

Item	Specification
Max flash energy,Emax (Ws)	150
Nom flash energy,Enom (Ws)	75
Max anode voltage,Ua max (V)	500
Nom anode voltage,Ua nom (V)	580
Min anode voltage,Ua min (V)	400
Nom falsh capacitor,CB (Uf)	800/1200
Internal impedance, Ri (Ω）	0.8-1.0
Repetition rate/Frequency (Sec)	0.5-2HZ
Life/Number of flashes/N	>4000000

Remarks:

1.Lead free solder; red dot at anode; without colour corrective coating.

2.our products using lead-free soldering at two leads (RoHS compliance). Please operate the solder iron at 300-450°C, Do not apply soldering iron for more than 10 seconds.

3. Flash tube should operate at nominal anode voltage as specified, Please avoid to operate at minimum anode voltage or maximum anode voltage constantly.

4. Operating environment temperature requirements:-40°C---85°C.

5. Operating humidity requirement: 0%---95%

Company Introduction

HongTai flash tube has high energy standards and high repetition frequency. We offer a wide range of standard and customized flash designs, including straight, ring, screw, U and hetero.

We provide High performance solutions for our customers from research ,design, devolopment to production. We work closely with our customers in the research and development as well as continuous innovation of xenon flash lamps and related parts, which enables us to build a solid strategic partnership.

Advantages of Our Factory

* A plant area of 2,000 ㎡
* Factory Certificates: CE,SGS,IS09001and 45001,
*Over 10 years strong R&D TEAM and supply chain management

* Automated production line
* Stable Quality and Stable delivery

Hongtai Industrial Limited. is considered a reliable partner for two reasons:

1.Our products can meet the highest standards for quality and environmental protection : flash tubes, trigger coils, reflectors, various lamp holder accessories, lamp control design solutions, power supplies, etc.2.Our products are widely accepted by countries like: Germany, Italy, Japan, Korea , Mexico, Peru, Russia, Swiss, UK, U.S.A, Vietnam etc.

FAQ

Dear Customers:

Thanks for your visiting our xenon flash tube. We are one of the leading Xenon Flash tube manufacturers in China since 1999 in this industrial. We made OEM order for worldwide partners and satisfied them during past decades. Actually we custom manufacture flash tube according to customer's mechanical and electrical parameters. We can manufacture linear ,U-bend, circular, spiral and special shapes flash tube for your machine applications. In order to give you a high-efficiency services, pls. kindly tell me your request details including mechanical and electrical characteristics as the following diagrams.If you have any other questions, pls. contact with me. I will answer you within 12 hours.
