Заводская поставка гибкая бумага графитовый лист фольга проводящий гибкий для мобильного
- Категория: Graphite Sheets >>>
- Поставщик: Guangdong,Dongsen,Zhichuang,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.62 $* | 0.15 $* |
| Aug-15-2025 | 0.72 $* | 0.26 $* |
| Jul-15-2025 | 0.65 $* | 0.76 $* |
| Jun-15-2025 | 0.69 $* | 0.75 $* |
| May-15-2025 | 0.75 $* | 0.79 $* |
| Apr-15-2025 | 0.98 $* | 0.10 $* |
| Mar-15-2025 | 0.27 $* | 0.50 $* |
| Feb-15-2025 | 0.77 $* | 0.62 $* |
| Jan-15-2025 | 0.98 $* | 0.80 $* |
Характеристики
Product Description
High thermal natural graphite sheet is new thermal conductive material, with heat conduction along two directions, shield heat and components while improving consumer electronic products performance.
Usage

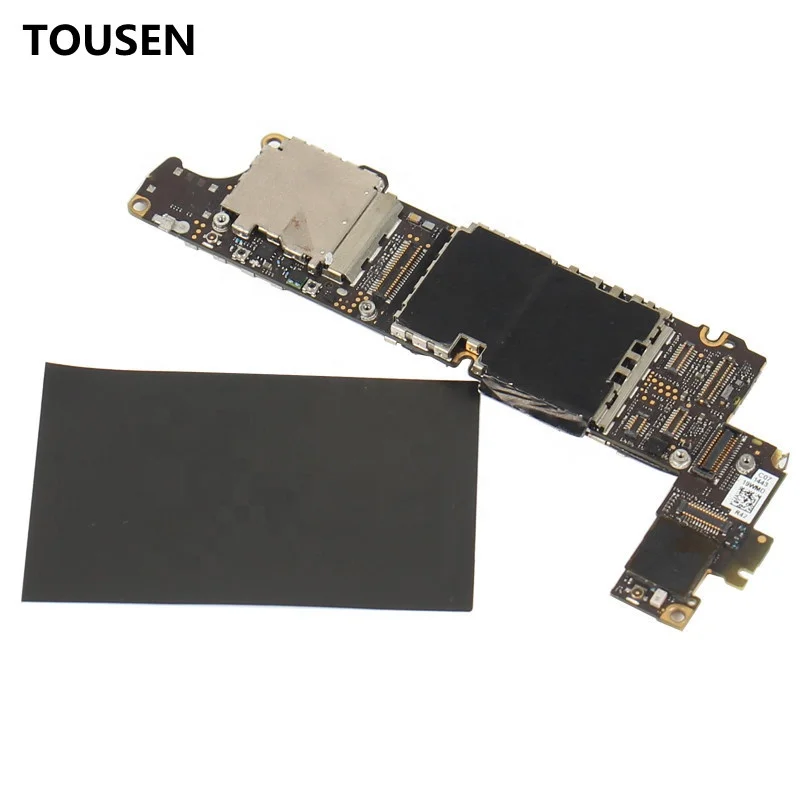

Thermal graphite sheet can be applied on Smartphone
Graphite Sheet can deliver the heat, which is generated by the CPU/Flash chip on Cell Phones’ mainboard PCB, evenly to the
Cellddle metal steel bracket and framework. Meanwhile the heat from the high heat-making CPU chip can be spread throughout the
plane of graphite sheet rapidly. The part hot spots are elicellnated and the chip can be kept in appropriate temperature range to
get the high performance.
Cellddle metal steel bracket and framework. Meanwhile the heat from the high heat-making CPU chip can be spread throughout the
plane of graphite sheet rapidly. The part hot spots are elicellnated and the chip can be kept in appropriate temperature range to
get the high performance.
Thermal graphite sheet can be applied on Computer
The thermal and electrical properties of graphite sheet have very significant anisotropic properties. The diaphragm structure prepared by special process can obtain XY plane up to 1800W/MK thermal conductivity, Z-axis vertical thermal conductivity
20-30W/MK, which is common copper aluminum foil. 4-6 times, for notebooks, tablets and other products that require strict design space, the heat dissipation problem is the core.
20-30W/MK, which is common copper aluminum foil. 4-6 times, for notebooks, tablets and other products that require strict design space, the heat dissipation problem is the core.
Other Applications
The high quality carbon pyrolytic graphite sheet also can be widely used in PDP, LCD TV, Notebook PC, UMPC, Flat Panel Display,
MPU, Projector, Power Supply, LED lighting and other electronic products graphite heat dissipation materials. Graphite heat
dissipation materials have been widely used in communication industry, medical equipment and other heat dissipation.
MPU, Projector, Power Supply, LED lighting and other electronic products graphite heat dissipation materials. Graphite heat
dissipation materials have been widely used in communication industry, medical equipment and other heat dissipation.
Specification
Product Name | Thermal Graphite Sheet |
Material | Natural Graphite with Additive Polymer |
High thermal conductivity | The thermal conductivity of graphite sheet is 1500-1700w/mk (the highest specification series thermal conductivity is 2.5times that of copper, and 3.9times that of Aluminum |
Flexibility | Easily-worked,could be tiny or complex shape, freedom in design, suitable for curved surface / edge , and bendable (thermal conductivity not affacted) |
High stability | High grade carbon and high chemical stability, enviromentally resistant, no deterioration with age |
Other features | Lightweight/Low thermal resistance |
Packing & Delivery
each with clear film , then into standard export carton
Company Profile
There are about 200 workers in our factory. We are specialized in Thermal conductive materials. Our product lines contain silicon high conductive thermal pads, high conductive thermal grease (paste), High quality synthetic pyrolytic graphite sheet, graphite foil, natural graphite pad, silicone, silicone sealant, silicone shielding pads, EMI gaskets, silicone pads (tapes), vibration-absorbing material, and other electronic materials. OEM and R&D are offered to customers all over the world. We are one of the largest thermal conductive material manufacturers and thermal management solution providers in China.Our quality management system is complied with ISO 9001:2008, and our materials are eco-friendly, with RoHS, REACH, UL 94VO compliant.We always focus on clients' demands, offering best quality products and quick service. We already build up long term partnerships with many famous electronic companies, such as Panasonic, Foxconn, Changhong, Midea, ZTE, Huawei, etc.We will continue to face challenges in future, creating a world-known brand and a top leading technical company in new material industry.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2019,sell to Domestic Market(50.00%),Southeast Asia(30.00%),South America(20.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Thermal silicone conductive pad,thermal graphite sheet,silicone graphite paste,thermal tape,Anti Blue Light Computer Screen Protector
4. why should you buy from us not from other suppliers?
We already build up long term partnerships with many famous electronic companies, ZTE, Huawei, etc.We will continue to face challenges in future, creating a world-known brand and a top leading technical company in new material industry.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,DAF；
Accepted Payment Currency:USD,JPY,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese,Japanese
We are based in Guangdong, China, start from 2019,sell to Domestic Market(50.00%),Southeast Asia(30.00%),South America(20.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Thermal silicone conductive pad,thermal graphite sheet,silicone graphite paste,thermal tape,Anti Blue Light Computer Screen Protector
4. why should you buy from us not from other suppliers?
We already build up long term partnerships with many famous electronic companies, ZTE, Huawei, etc.We will continue to face challenges in future, creating a world-known brand and a top leading technical company in new material industry.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,DAF；
Accepted Payment Currency:USD,JPY,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese,Japanese
