Характеристики



Products Description




Introduction：

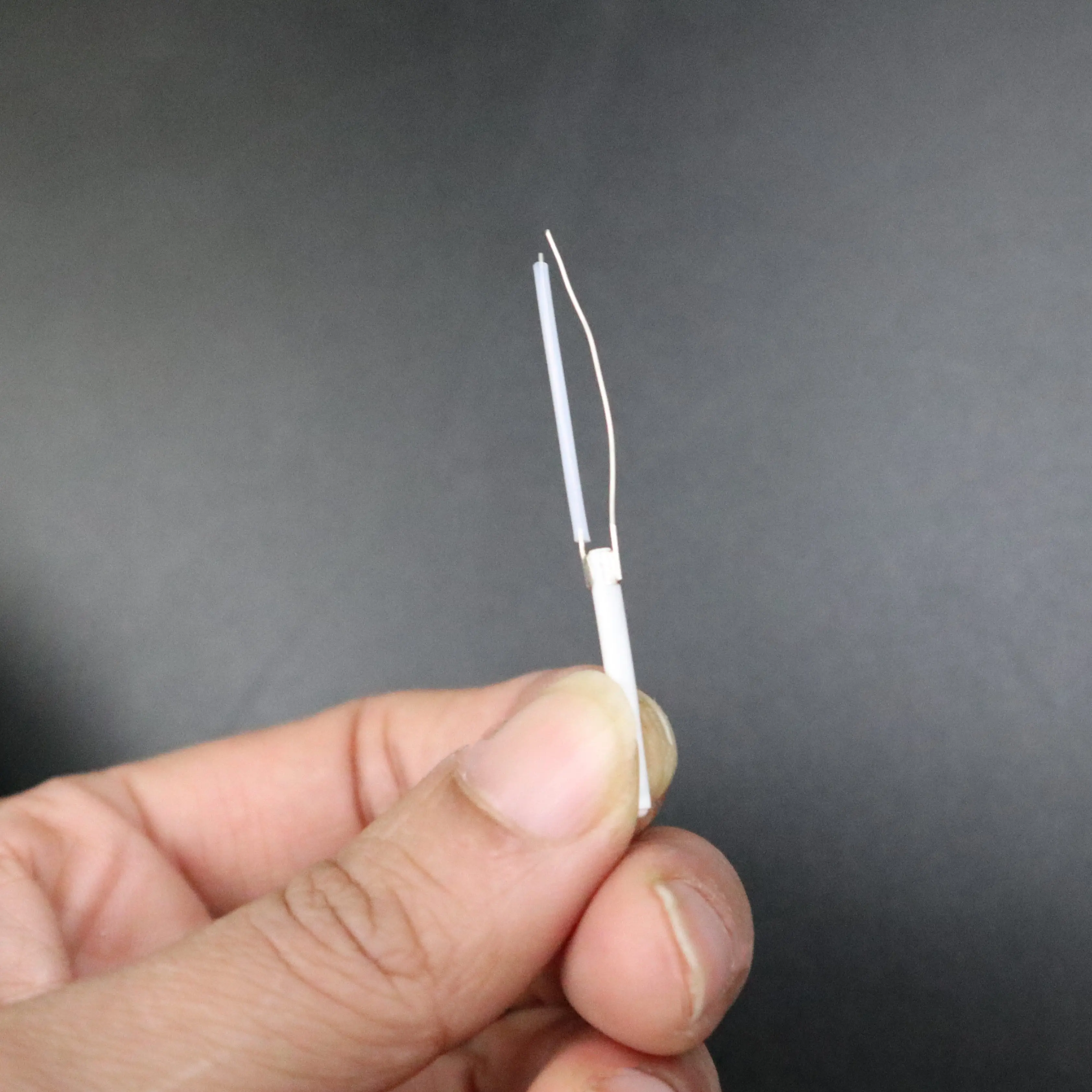

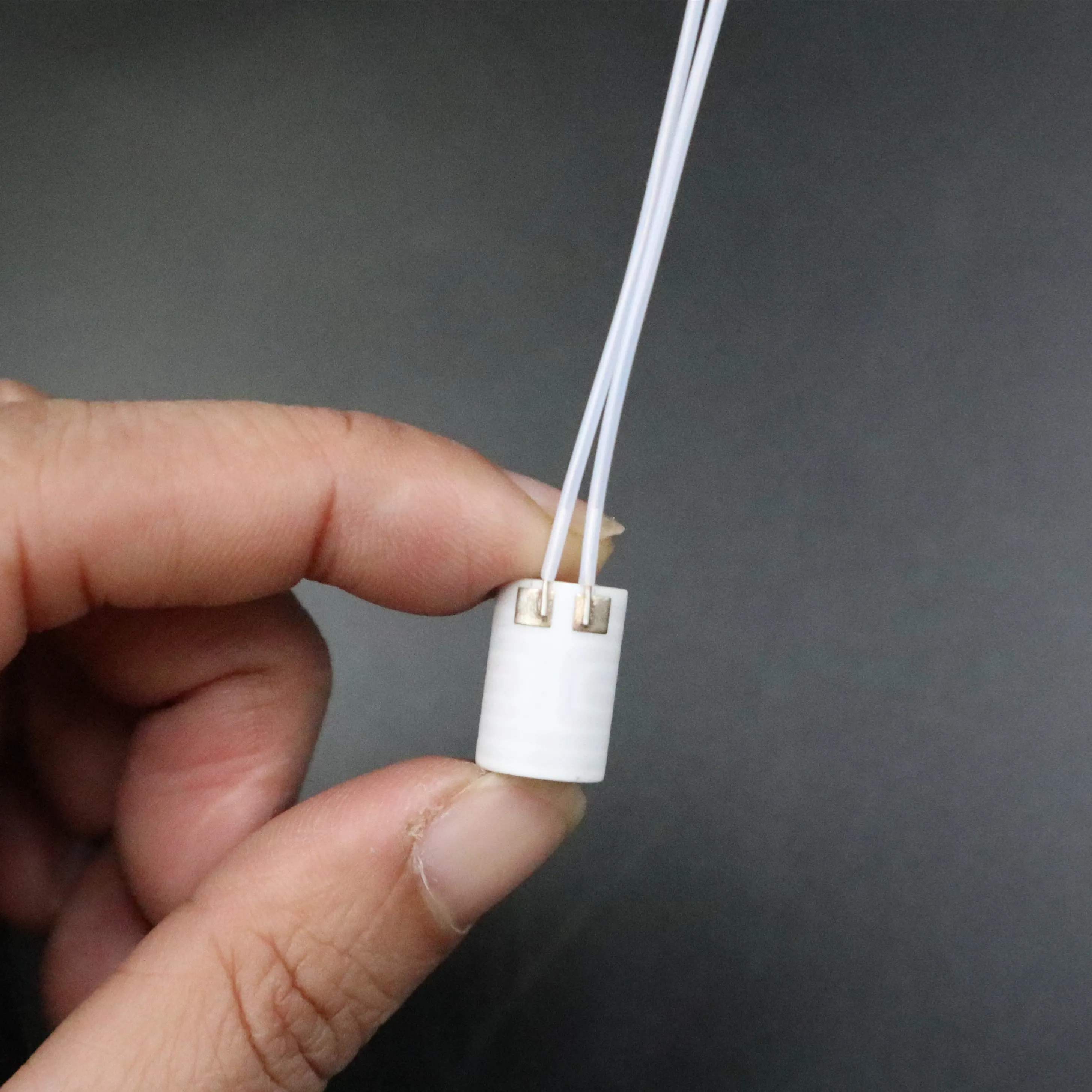

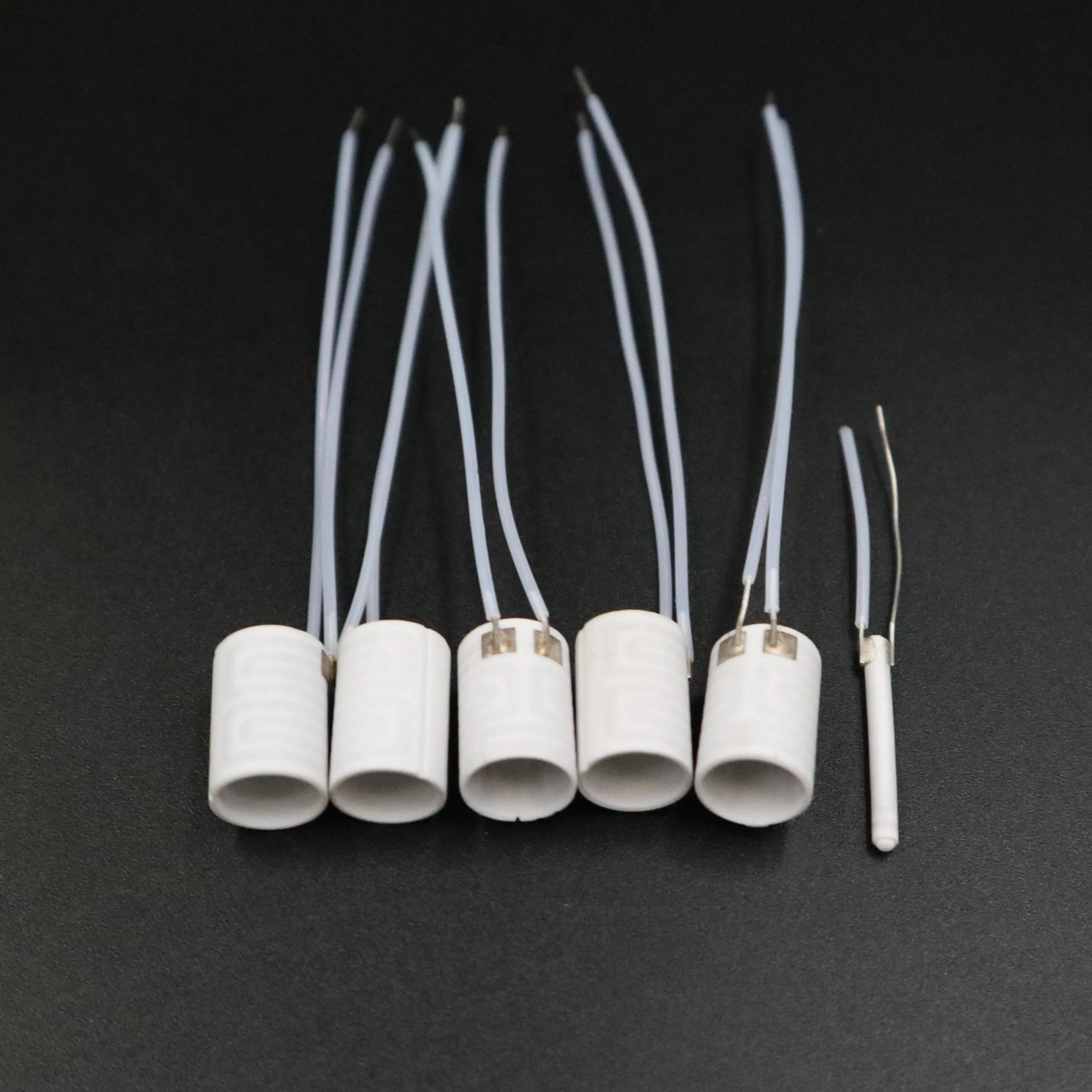

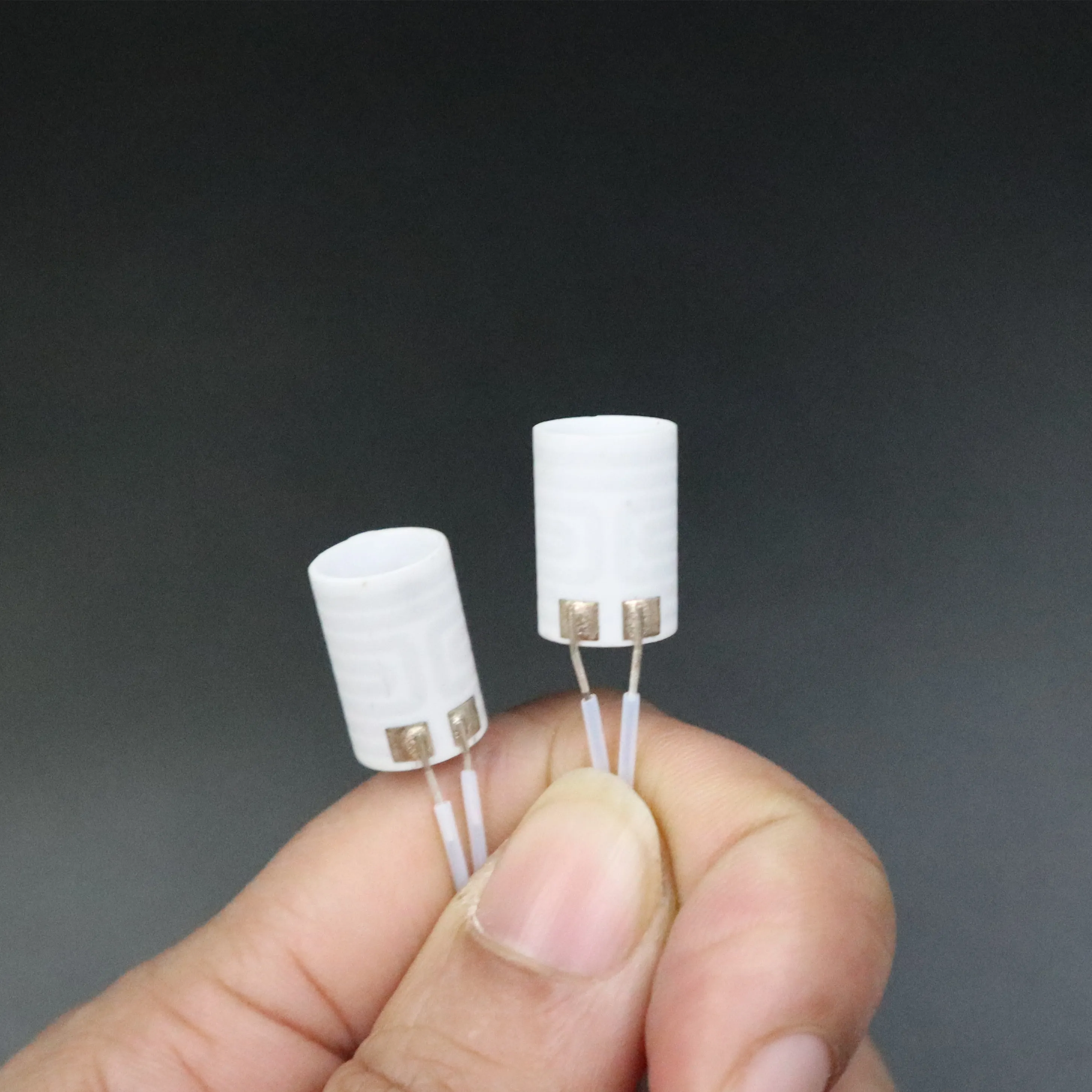

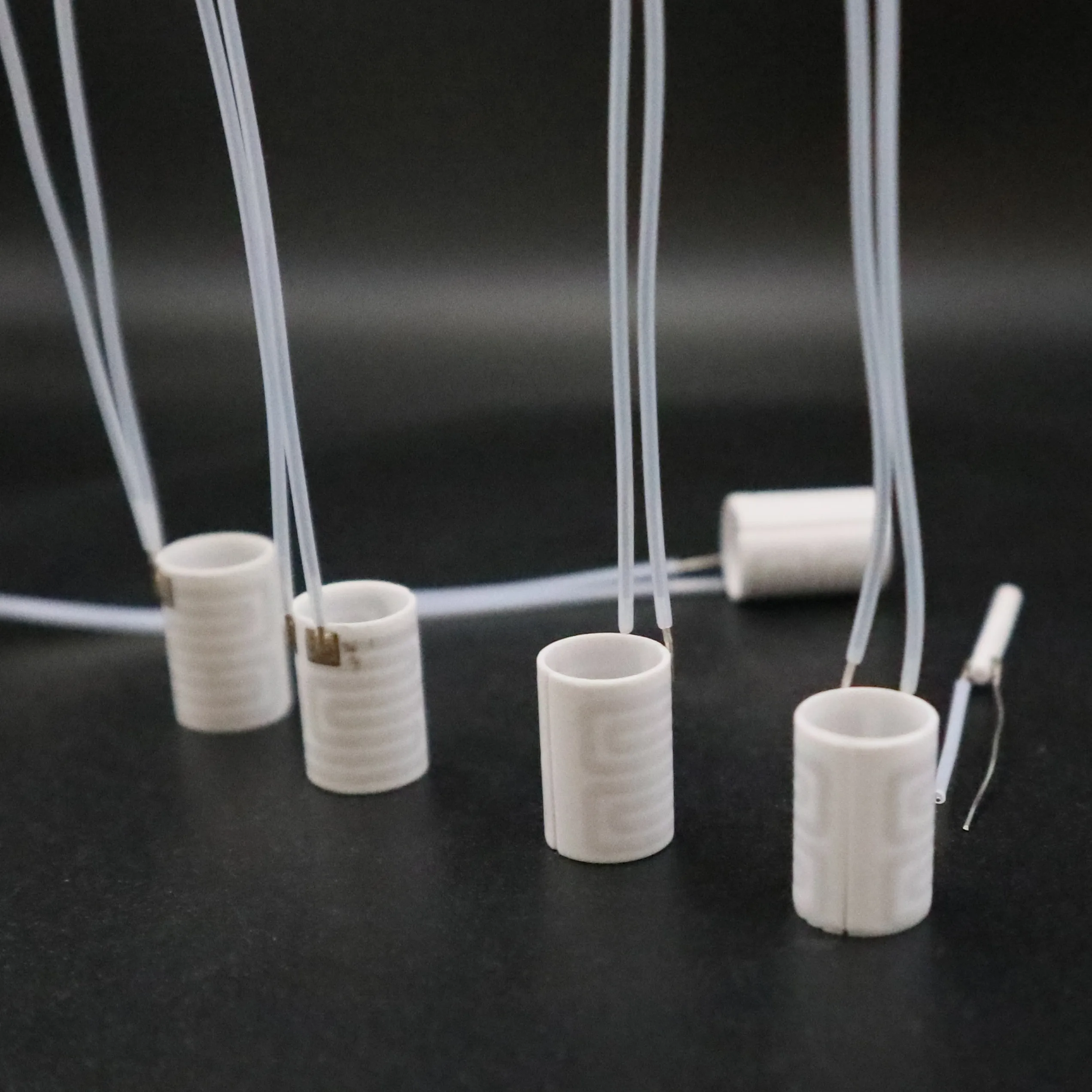

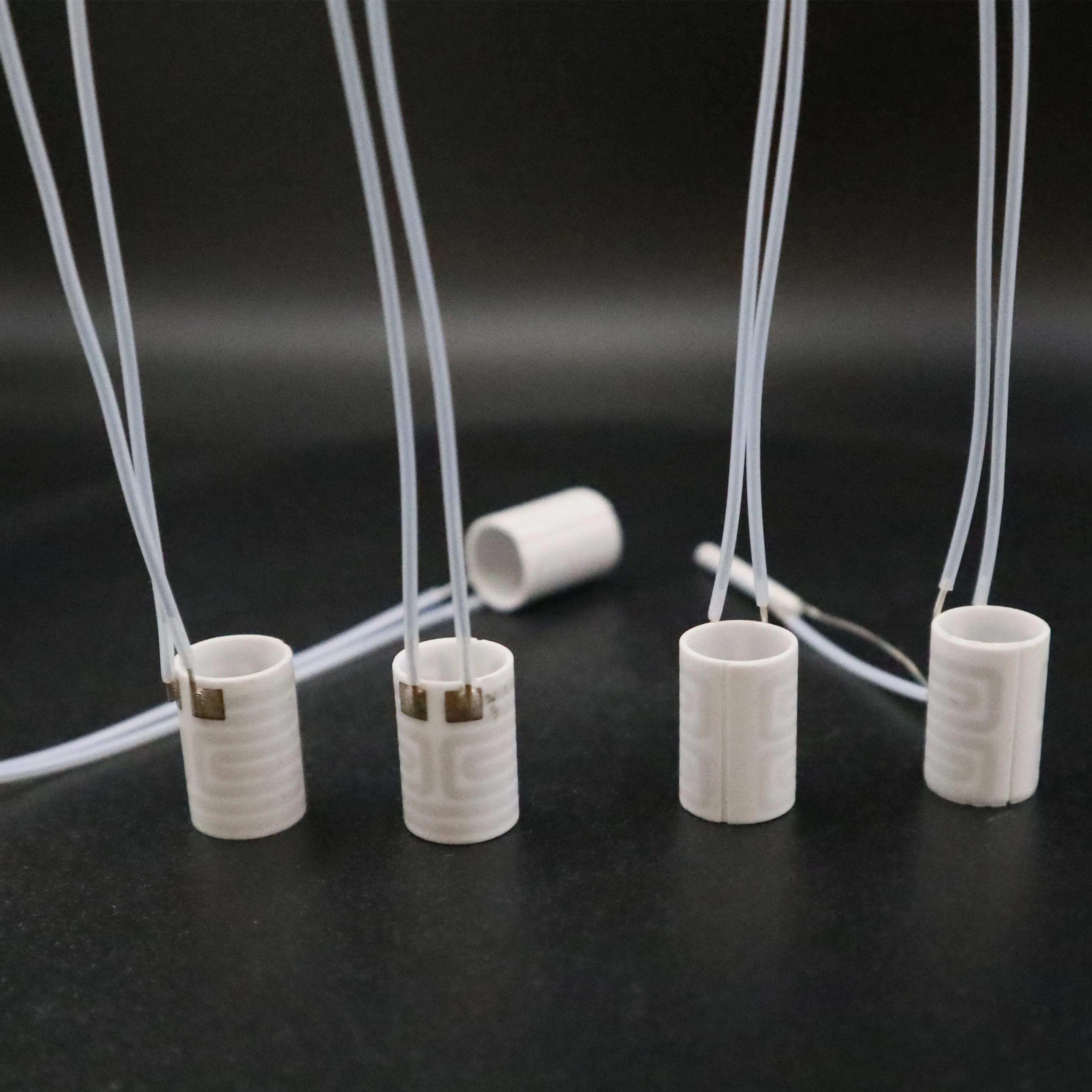

Product name：High Temperature Ceramic Heating Elements ( MCH )
Material: Alumina
Color：White
Size：Customzied
Design: according to the customer’s request, OEM, ODM.
Features：
1) Rapid temperature rise, 10 seconds up to the rated 100℃~230℃; 30 seconds up to 500℃~700℃
2) High thermal efficiency, energy saving, no pollution, in line with environmental requirements.
3) Uniform heat, no open fire, safe to use
4) The heater is in the vacuum state, and the heater is resistant to acid, alkali and harmful gases.
5) Long service life and small power attenuation.
Usage:
Our ceramic heaters can operate in atmospheric and vacuum environment. MCH technology offers significant advantages over metal basic sheath heaters,while the latter has limitations in thermal performance and material compatibility. Compared with PTC, MCH is more energy saving, safer and higher efficient. MCH is widely used as innovative heater in machinery, medical, semiconductor, electronic & electrical industries,etc.


Voltage
DC 3.7V / 5V / 7.4V / 12V Customized
Resistance
0.45~2Ω / Customized
Function
Heating & warming
Operating temperature
＜1100°C
Thermal conductivity
(20℃) 18W / (m·K)
Specific heat
(20℃) 0.78×103 J /(kg·K)
Vickers hardness
(load 500g) 12.3 GPa
Three-point flexural strength
340 MPa
Samples
Available






Properties
Units
Steatite Ceramic
Cordierite Ceramic
Mullite Ceramic
95% Al₂O₃
99% Al₂O₃
Zirconia Ceramic
Silicon Nitride
Colour
White
Yellow
White
White
Ivory
White
Grey
Density
g/cm3
2.7
1.9
2.6
3.5
3.85
6
3.2
Flexural Strength
Mpa
140
30
120
280
340
1150
600
Compressive Strength
MPa
900
350
500
2100
2200
2500
2500
Max Use Temperature
°C
1000
1200
1300
1400
1650
1500
1800
Thermal Condutivity
W(m.K)
2~3
1.3~1.8
2~6
16~28
19~30
2.5
20
Thermal Expansion Cofficient
10-6/°C
7 ~ 9
1.5~3.5
5~6
6.5~7.5
6~8
8~10
3~4
ThermalShock Resistance
△TC
100
300
150
140
150
250
600
Specific Heat
J/kg.K
850
800
900
950
950
500
500
Dielectric Strength
KV/mm
20
—
30
12
10
5
20
Dielectric Constant
Er
6
—
8
9
9
12
6


Production Flow


Raw material
Pressing
Sintering


Polishing
QC/Inspecting
Packing


Company Introduction






Yixing City is the famous pottery capital in China. Most of Chinese ceramic industry is in Yixing. Jiangsu Fist Special Ceramic Co., Ltd is located in Yixing, established in 2016. We are also one of Alibaba's certified high-quality suppliers.
Superiorgeographical location and mature industrial chain of ceramic, we are a manufacturer specialized in developing, producing and selling ceramic materials and products which meet the market demand. We can provide professional OEM & ODM service. Our main products are alumina ceramic, zirconia ceramic, steatite ceramic, cordierite ceramic, mullite ceramic, electronic ceramic, industrial ceramic, daily ceramics, etc. With good quality, reasonable prices and stylish designs, our products are extensively used in machinery, textiles, electronics, automotive, plumbing, seal, humidification, new light source, household appliances, electric heating, solar power and other industries. Good quality and experience service win many customers including domestic and foreign. We warmly welcome new and old customers from all walks of life in the whole world to contact us for future business relationships to achieve mutual success!


Certifications




Our Service


1. We support OEM and ODM；
2. We have professional R & D team and technical support；
3. We provide real-time logistics update information；
4. We have professional QC team to check the quality before delivery;
5. Our customer service will be online 24 hours a day.


FAQ


Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock or customeriziation, it is according to quantity.
Q: How about the payment terms?
A: T/T or L/C are okay. We can negotiate.
Q: How can you get quotation?
A: Please kindly send me your drawing with technical requirement and demand quantity.
If you don't have the drawing,please kindly courier samples to us.We will quote our best price as soon as possible.
Q: How about the shipping&package?
A: The package usually includes bubble wrap, carton, pallent, wooden case, etc. The shipping mode includes express, air and sea transportation. Both we can negotiate and choose the best way.
