Машина для прорезания и высечки цепной
- Категория: Carton Printing Slotting Die-Cutting Machine >>>
- Поставщик: Cangzhou,Gerun,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 14280.38 $* | 14994.16 $* |
| Aug-16-2025 | 14160.54 $* | 14868.33 $* |
| Jul-16-2025 | 11880.83 $* | 12474.29 $* |
| Jun-16-2025 | 13920.95 $* | 14616.54 $* |
| May-16-2025 | 12120.79 $* | 12726.12 $* |
| Apr-16-2025 | 13680.53 $* | 14364.52 $* |
| Mar-16-2025 | 13560.22 $* | 14238.31 $* |
| Feb-16-2025 | 13440.19 $* | 14112.61 $* |
| Jan-16-2025 | 13320.85 $* | 13986.94 $* |
Характеристики

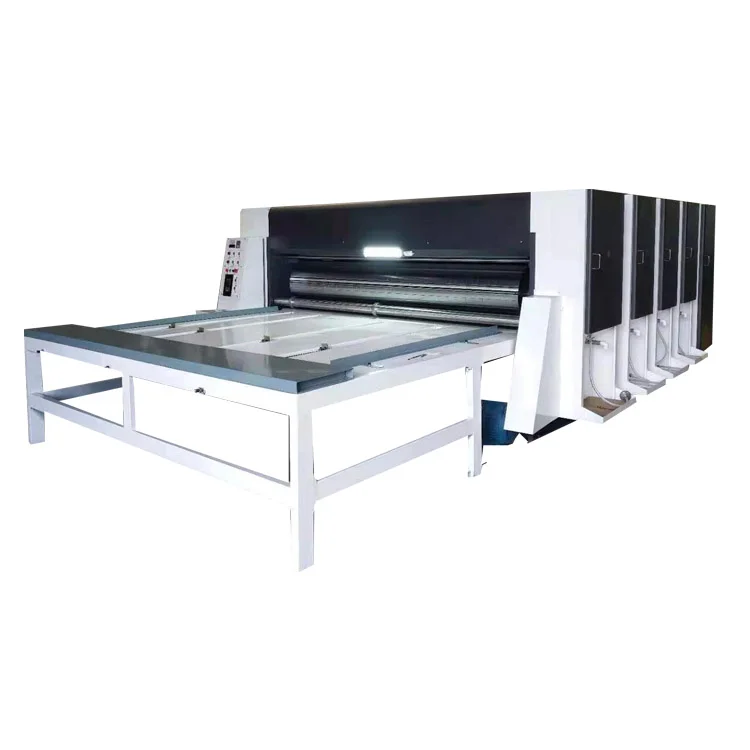

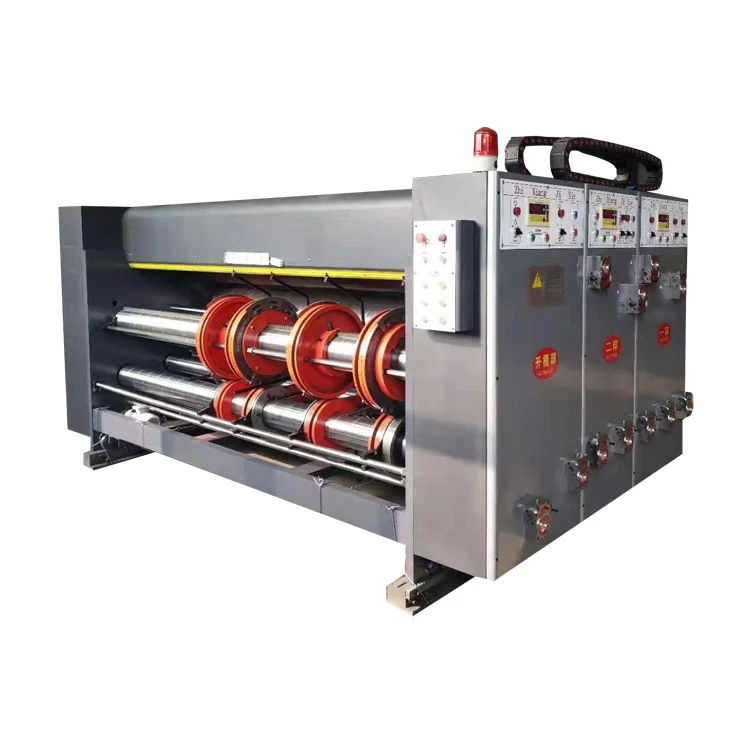

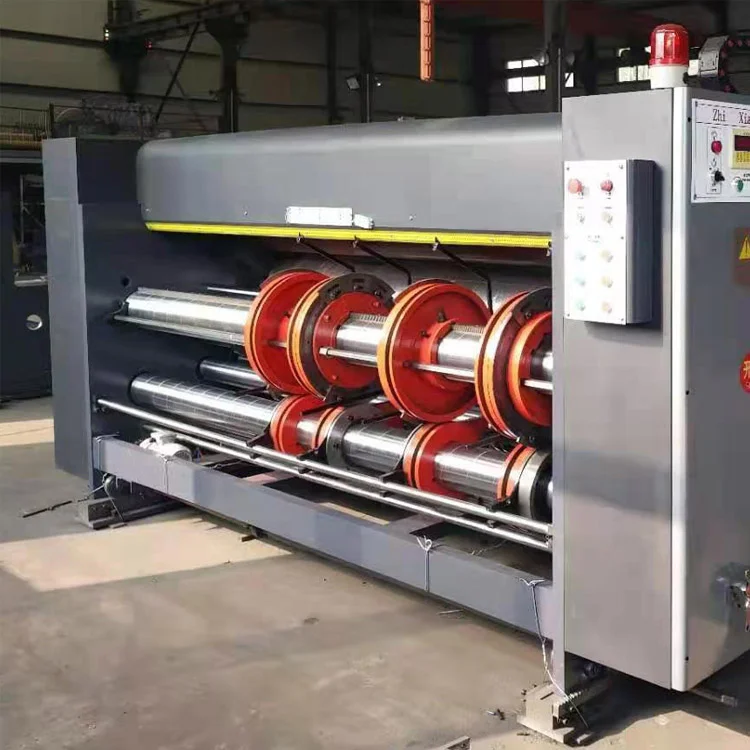

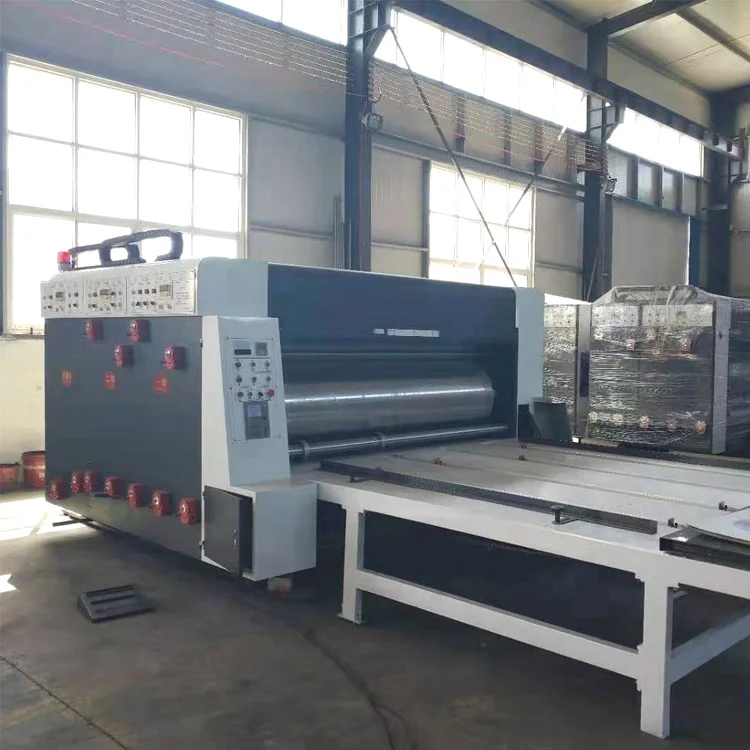

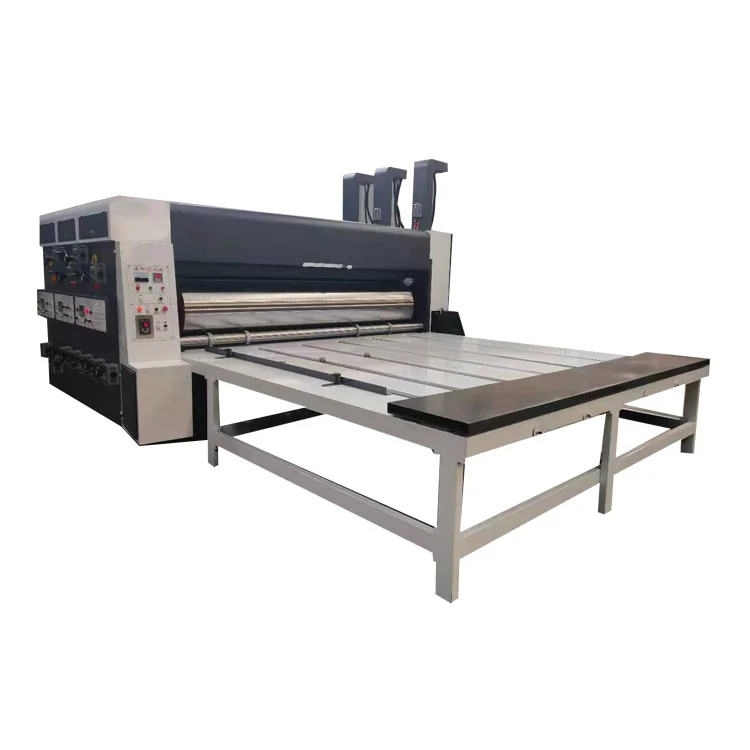

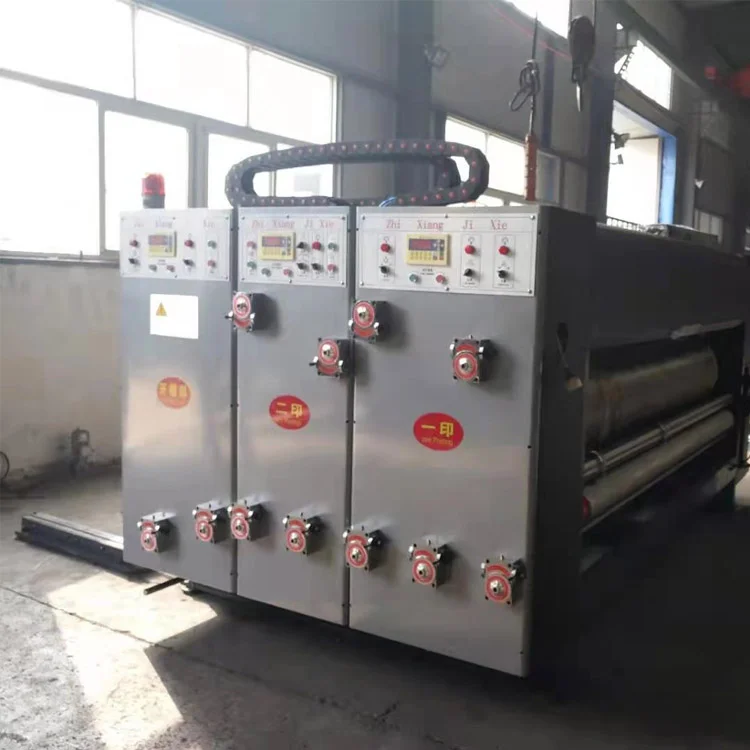

Chain feeder printing slotting and die cutting machine
Machine Introduction:
1. Paper feeding roller: the upper roller uses ginning paper-feeding wheel while the lower roller uses steel ginning roller. The surface is hard chrome-plated, so that the paper can be feed smoothly and the corrugated paperboard will not be damaged.
2. The phase is adjusted digitally non-stopped at 360°. You can input the data according to the error and it will adjust automatically.
3.Ink circulating system:
1)The anilox roller adopts the combined roller of 200/220 steel wire.
2)The rubber roller is made up of natural rubber which is oil-proof, acid-proof and alkali-proof.
3)Halting with the ink well-distribute. The ink circulating system works when the machine stops for a short time. Clean-free to ensure the quality of the printed things and make the color show no difference.
4.Slotting part(optional): the phase in the slotting part can be adjusted electrically at 360°.
5.The whole machine is combined controlled pneumatically with the function of counting, alarming and operating at the back of the machine.
Mian specification:
| model | 1450*2800 |
| max feeding size | 1450*2800mm |
| min feeding size | 350*640mm |
| max printing size | 1450*2600mm |
| power | 5.5kw |
