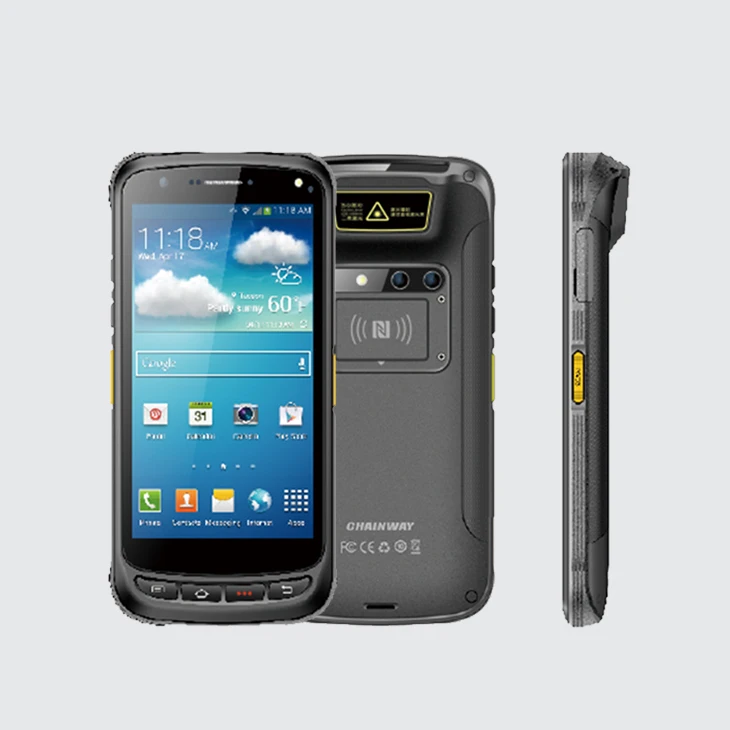

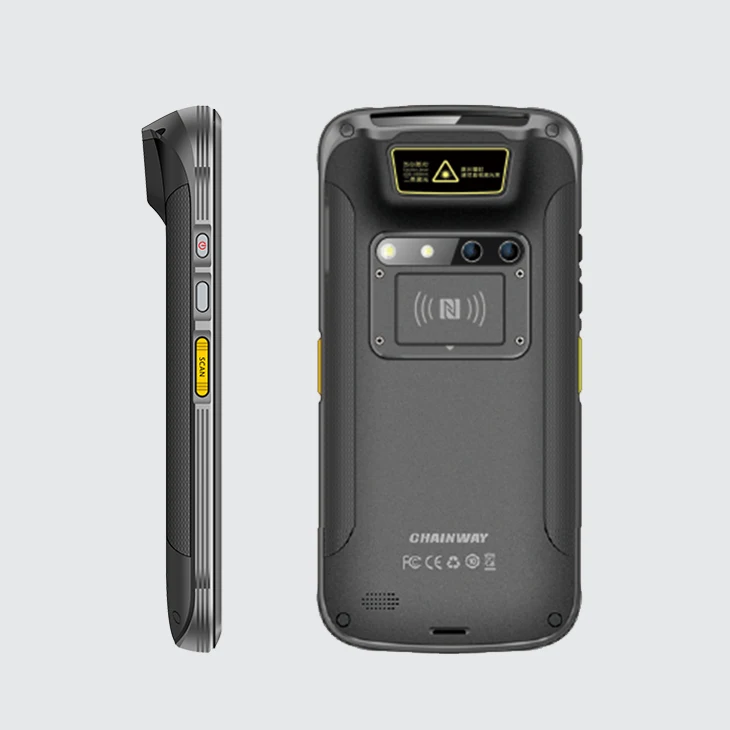

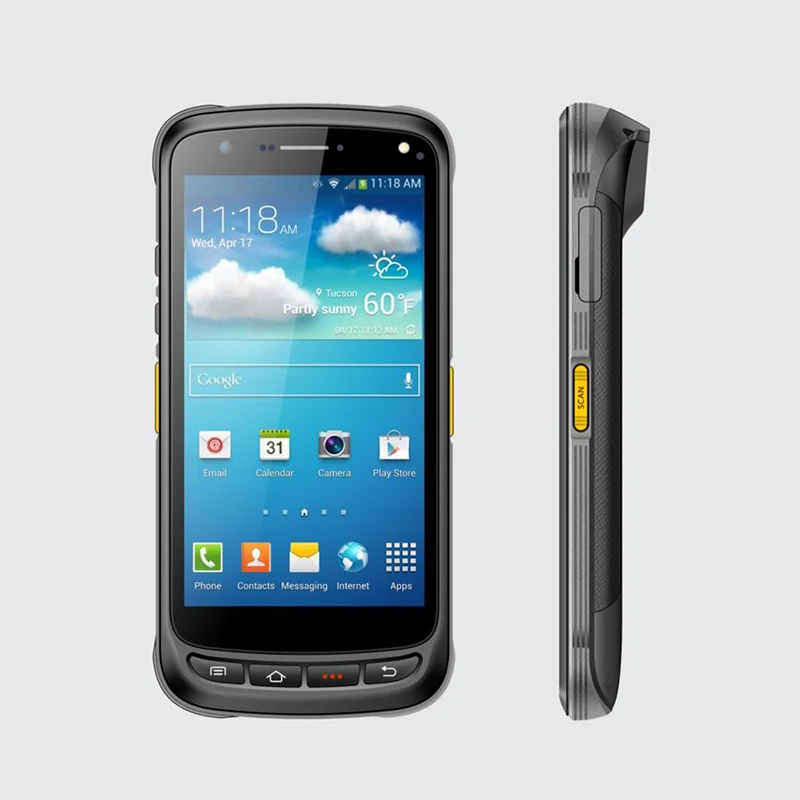

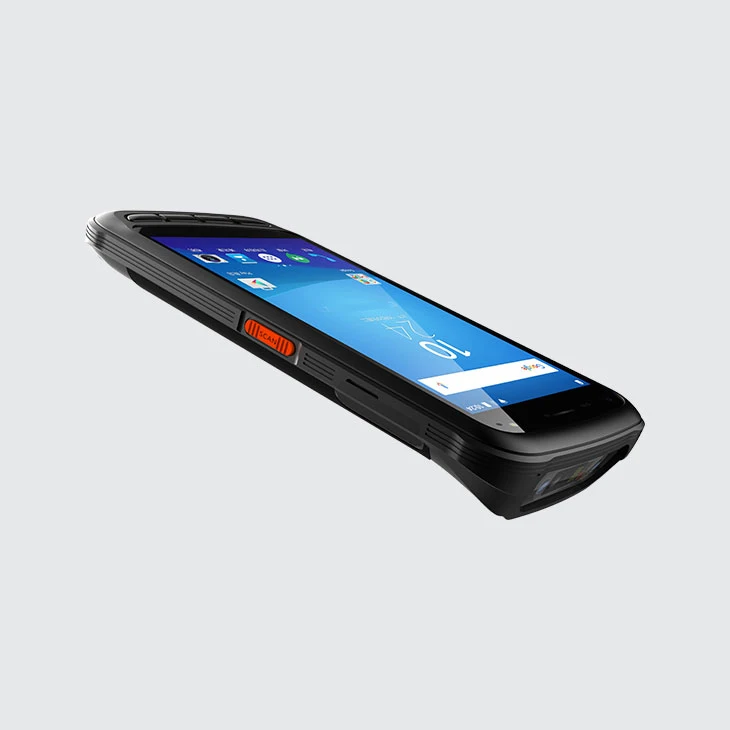

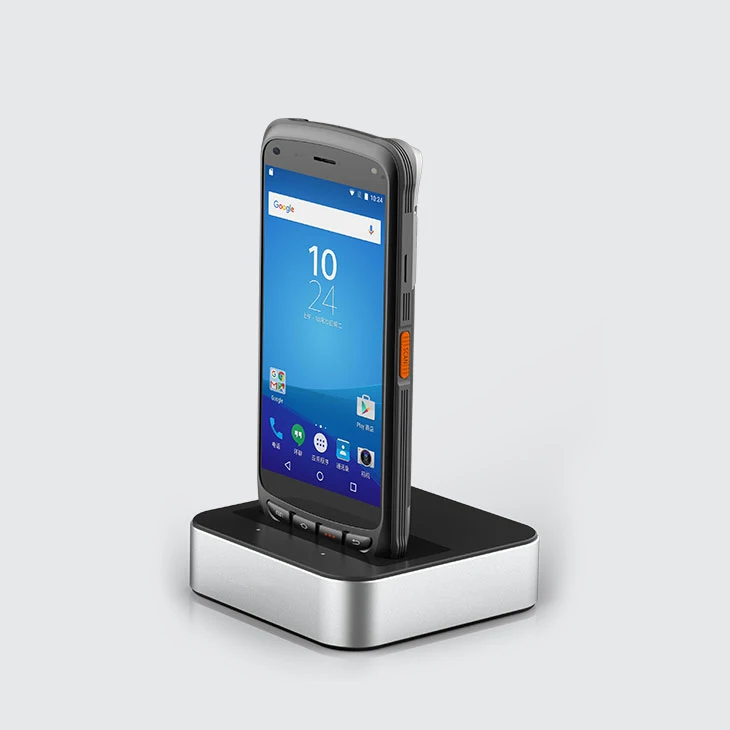

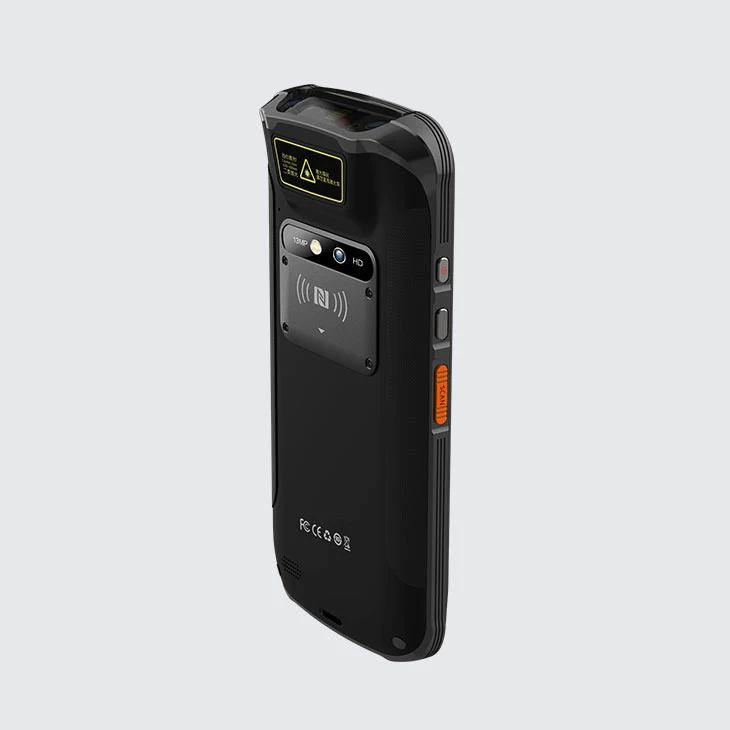

Новый обновленный портативный считыватель 2d-штрих-кодов Chainway C71 Rugged UHF RFID

 Physical Characteristics

  Dimension

  164.2*78.8*17mm/6.46*3.10*0.67in

  Weight

  <260g/9.17oz

  Display

  5.2'' IPS FHD 1920x1080

  Touch Panel

  Corning Gorilla Glass, multi-touch panel,gloves and wet hands supported

  Keypad

  4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key

  Power

  Main battery: Li-ion, rechargeable, 5000mAh

  Audio

  speaker, 2 microphones

  Interfaces

  USB2.0 Type-C, OTG

  Sensors

  Gravity sensor, Light Sensor, Proximity Sensor, Vibration Motor

  Expansion Slot

  2 PSAM slots at most, 1 slot for SIM card, 1 slot for SIM or TF card

  Performance

  CPU

  Cortex-A53 Quad-core 1.3GHz

  RAM+ROM

 3GB+32GB

  Expansion

  Supports up to 32 GB Micro SD card

  Developing Environment

  Operating System

  Android 11

  SDK

  Chainway Software Development Kit

  Language

  Java

  Tool

  Eclipse / Android Studio

  User Environment

  Operating Temperature

  14°Fto 122°F / -10°C to 50°C

  Storage Temperature

  -40°F to 158°F / -40°C to 70°C

  Humidity

  5% - 95%RH (Non-condensing)

  Sealing

  IP67

  Drop Specification

  Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the      operating temperature range

  Tumble Specification

  1000 x 0.5m / 1.64ft. falls at room temperature

  ESD

  ±8KV air discharge, ±4KV conductive discharge

  Communication

  WLAN

  IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna

  WWAN(Europe)

  2G: 850/900/1800/1900MHz;

  3G: 850/900/1900/2100MHz;

  4G: B1, B3, B5, B7, B8, B20, B40

  WWAN(America)

  2G: 850/900/1800/1900MHz;

  3G: 850/900/1700/1900MHz;

  4G: B2, B4, B7, B12, B17

  WWAN (China)

  2G: 900/1800MHz;

  3G: 900/2100MHz ;

  4G: B1, B3, B5, B38, B39, B40, B41

  WWAN (Others)

  Depending on the country's ISP

  GNSS

  GPS/AGPS, GLONASS, BeiDou; internal antenna

  NFC

  Frequency

  13.56MHz

  Protocol

  ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc

  Chips

  M1 card (S50, S70), CPU card, NFC tags, etc.

  Range

  2-4cm

  Camera

  Camera

  13MP autofocus camera with flash

  Barcode Scanners (Optional ,Bar code Scanner)

  2D Imager Scanner

  Honeywell N4313

  1D Symbologies

  UPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc

  2D Symbologies

  PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, DutchPostal (KIX), etc

  Iris(Optional)

  Rate

  <150ms

  Range

  20-40cm

  FAR

  1/10000000

  HF Reader(Optional)

  Frequency

  13.56MHz

  Protocol

  ISO14443A/B, ISO15693

  Chips

  M1 card (S50/S70), M0 (Ultralight), M3 (Desfire D40/D41/D81), CPU_A card,   CPU_B card, ICODE II, TI2048, LRI64K, Others for customization

  Range

  3-8cm
