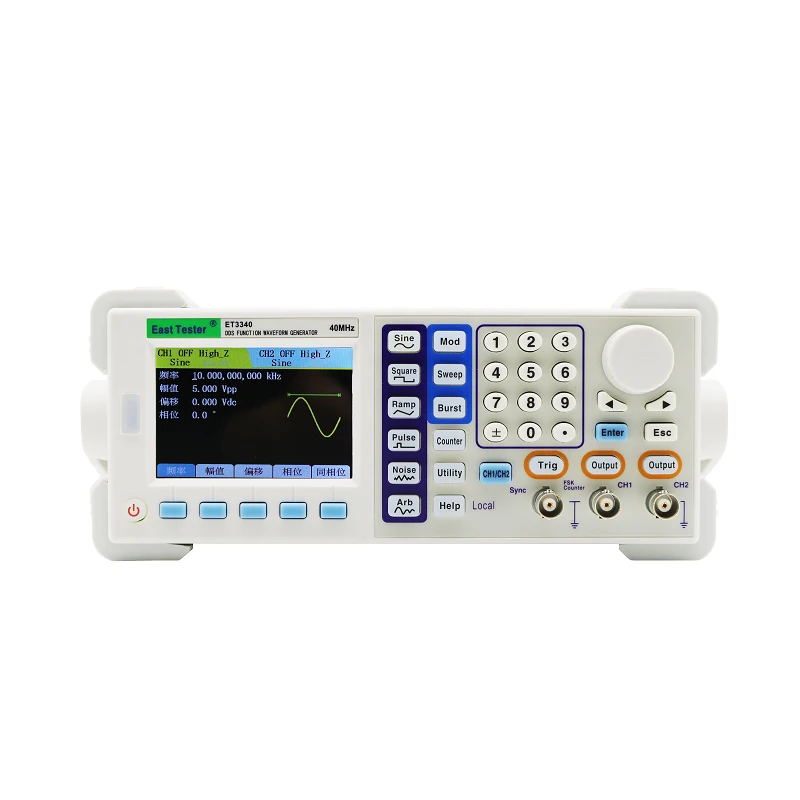

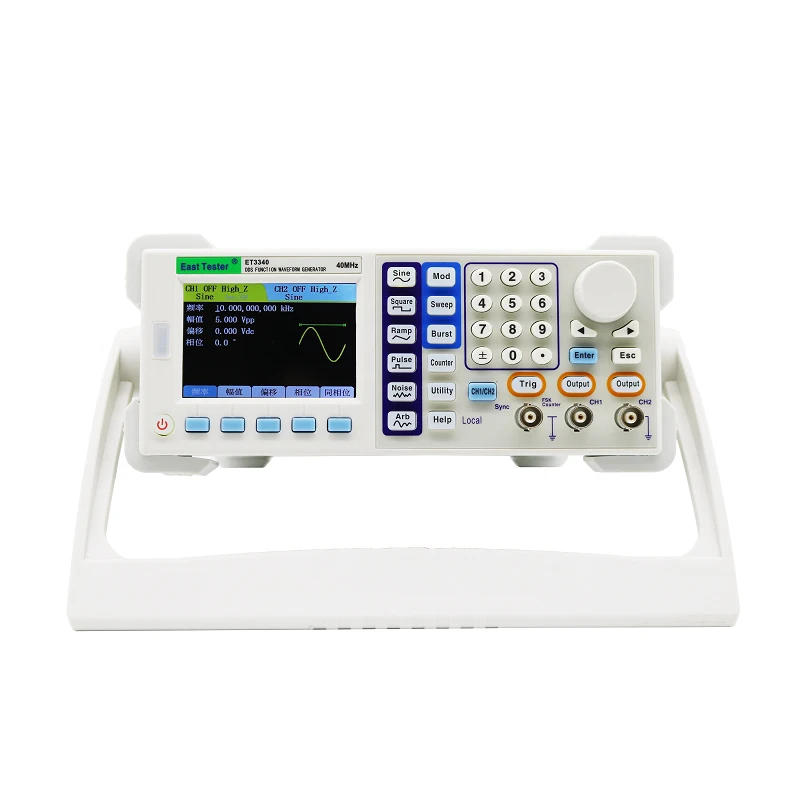

Генератор сигналов Uni-t ET3340 модуль синусоидального сигнала
- Категория: Signal Generators >>>
- Поставщик: Fujian,Tongyang,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 233.94 $* | 245.72 $* |
| Aug-17-2025 | 231.96 $* | 243.54 $* |
| Jul-17-2025 | 194.91 $* | 204.69 $* |
| Jun-17-2025 | 227.4 $* | 238.65 $* |
| May-17-2025 | 198.1 $* | 208.48 $* |
| Apr-17-2025 | 223.71 $* | 234.35 $* |
| Mar-17-2025 | 221.54 $* | 232.56 $* |
| Feb-17-2025 | 220.95 $* | 231.0 $* |
| Jan-17-2025 | 218.68 $* | 229.84 $* |
Характеристики
PRODUCT DETAILS
Frequency Characteristics | ||||||||||
MODEL | ET3315 | ET3325 | ET3340 | ET3360 | ||||||
Sine | 1μHz ~ 15MHz | 1μHz ~ 25MHz | 1μHz ~ 40MHz | 1μHz ~ 60MHz | ||||||
Square | 1μHz ~ 15MHz | 1μHz ~ 15MHz | 1μHz ~ 15MHz | 1μHz ~ 15MHz | ||||||
Triangle | 1μHz ~ 15MHz | 1μHz ~ 15MHz | 1μHz ~ 15MHz | 1μHz ~ 15MHz | ||||||
Pulse | 100μHz ~ 6MHz | 100μHz ~ 6MHz | 100μHz ~ 6MHz | 100μHz ~ 6MHz | ||||||
Arbitrary | 1μHz ~ 6MHz | 1μHz ~ 6MHz | 1μHz ~ 6MHz | 1μHz ~ 6MHz | ||||||
Noise （-3dB） | 7MHz Bandwidth | |||||||||
Frequency Resolution | 1μHz | |||||||||
Frequency Accuracy | ±5ppm | |||||||||
Frequency Stability | ±1ppm/3hour | |||||||||
Frequency Characteristics | ||||||||||
Waveform Types | Sine, square, triangle, pulse, noise and arbitrary waves (including DC). There are 32 kinds of arbitrary waves and 50 kinds of user-defined waves. | |||||||||
Waveform Length | 8192 points | |||||||||
Waveform Sampling Rate | 200 MSa/s | |||||||||
Waveform Vertical Resolution | 13 bits | |||||||||
Sine Wave Characteristics | ||||||||||
Sine Wave | Harmonic Distortion | ≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz) | ||||||||
Total Harmonic Distortion | <0.8%(20Hz ~ 20kHz, 0dBm) | |||||||||
Square Wave Signal Characteristics | ||||||||||
Square Wave | Rise/Fall | <20ns | ||||||||
Overshoot | <5% | |||||||||
Duty Cycle | freq<100kHz: 1%~99%; 100kHz≤freq<5MHz: 20% ~ 80%; 5MHz≤freq: 40% ~ 60%(0.1% resolution) | |||||||||
Pulse Wave Characteristics | ||||||||||
Pulse Wave | Pulse Width | Min 20ns; 1ns resolution | ||||||||
Edge Transition Time | Min 20ns; | |||||||||
Overshoot | <5% | |||||||||
Jitter | 6ns+0.1% Period | |||||||||
Ramp Wave Characteristics | ||||||||||
Ramp Wave | Linearity Degree | ≥98%(0.01Hz~10kHz) | ||||||||
Symmetry | 0.0 ~ 100.0%(resolution 0.1%) | |||||||||
Output Characteristics | ||||||||||
Amplitude | ||||||||||
Amplitude Range | freq＜10MHz | 10MHz≤freq＜30MHz | 30MHz≤freq | |||||||
2mVpp ~ 20Vpp | 2mVpp ~10Vpp | 2mVpp ~5Vpp | ||||||||
Amplitude Resolution | 1mV | |||||||||
Amplitude Stability | ±1% set value±1mVpp（1kHz Sine，0 offset，>10mVpp） | |||||||||
Amplitude Flatness (relative to 1K Sine, 1 Vpp) | ±0.4dB <10MHz ； ±1.0dB ≥10MHz。 | |||||||||
Output Impedance | 50Ω±10%（Typical） | |||||||||
Protection | All the signal output terminal can be shorted within 60s | |||||||||
DC Offset | ||||||||||
Output Amplitude>0.1V | 2mV | |||||||||
Offset Adjusting Range | ±10Vpk，ac + dc | ±0.250Vpk，ac + dc | ||||||||
Offset Resolution | 1mV | |||||||||
Phase characteristics | ||||||||||
Phase Adjusting Range | 0~359.9° | |||||||||
Phase Resolution | 0.1° | |||||||||
External Measurement Function | ||||||||||
Frequency Meter | Frequency measurement range | 1Hz ~ 100MHz | ||||||||
Measurement accuracy | Gate time continuously adjusted between0.01s~10s | |||||||||
Counter Function | Counting region | 0 ~ 4294967295 | ||||||||
Control mode | Manual operation | |||||||||
Input Signal Voltage Range | 2Vpp~20Vpp | |||||||||
Coupled Mode | AC or DC | |||||||||
Pulse Width Measurement | 1ns (resolution), 20s (MAX measuring time) | |||||||||
Period Measurement | 1ns (resolution), 20s (MAX measuring time) | |||||||||
SYNC Output | ||||||||||
Output Channel | CH1 or CH2, default CH1 | |||||||||
Level | TTL | |||||||||
Impedance | 50Ω | |||||||||
Rise/Fall Time | < 25ns | |||||||||
Maximum Frequency | 25MHz | |||||||||
AM Modulation | ||||||||||
Output Channel | CH1 or CH2, default CH1 | |||||||||
Carrier Wave | Sine, square, ramp, pulse and arbitrary waveforms (excluding DC) | |||||||||
Source | Internal/External | |
Modulation Wave | Sine, square, triangle and ramp | |
Modulation Frequency | 2mHz~20kHz | |
Modulation Depth | 0%~120% | |
FM Modulation | ||
Output Channel | CH1 or CH2, default CH1 | |
Carrier Wave | Sine, square, ramp, pulse and arbitrary waveforms (excluding DC) | |
Source | Internal/External | |
Modulation Wave | Sine, square, triangle and ramp | |
Modulation Frequency | 2mHz~20kHz | |
Frequency Offset | 0~Maximum carrier frequency | |
PM Modulation | ||
Output Channel | CH1 or CH2, default CH1 | |
Carrier Wave | Sine, square, ramp, pulse and arbitrary waveforms (excluding DC) | |
Source | Internal/External | |
Modulation Wave | Sine, square, triangle and ramp | |
Modulation Frequency | 2mHz~20kHz | |
Phase Offset | 0°~ 360° | |
ASK Modulation | ||
Output Channel | CH1 or CH2, default CH1 | |
Carrier Wave | Sine, square, ramp, pulse and arbitrary waveforms (excluding DC) | |
Source | Internal/External | |
Modulation Wave | Square wave of 50% duty ratio | |
Keying Frequency | 2mHz~1MHz | |
Modulation Amplitude | 0~Carrier Amplitude | |
FSK Modulation | ||
Output Channel | CH1 or CH2, default CH1 | |
Carrier Wave | Sine, square, ramp, pulse and arbitrary waveforms (excluding DC) | |
Source | Internal/External | |
Modulation Wave | Square wave of 50% duty ratio | |
Keying Frequency | 2mHz~1MHz | |
Hop Frequency | Carrier frequency range | |
PSK Modulation | ||
Output Channel | CH1 or CH2, default CH1 | |
Carrier Wave | Sine, square, ramp, pulse and arbitrary waveforms (excluding DC) | |
Source | Internal/External | |
Modulation Wave | Square wave of 50% duty ratio | |
Keying Frequency | 2mHz~1MHz | |
Modulation Phase | 0°~ 360° | |
Frequency Sweep | ||
Output Channel | CH1 or CH2, default CH1 | |
Types | Linearity/Logarithm | |
Sweep Frequency Time | 1ms ~ 500.000s | |
Start/Stop Frequency | 1µHz~Maximum carrier frequency | |
Sweep Direction | Forward, Backward | |
Trigger Source | Manual operating, internal, external | |
Burst Characteristics | ||
Output Channel | CH1 or CH2, default CH1 | |
Carrier Wave | Sine, square, ramp, pulse and arbitrary waveforms (excluding DC) | |
Pulse Count | 1~65535 or infinite, gated | |
Start/Stop Phase | 0~360° | |
Internal Period | 1μs~500s | |
Gating Source | External | |
Trigger Source | Internal, external, manual operating | |
Trigger Input | ||
Signal Range | 2Vpp~20Vpp | |
Coupling | AC or DC | |
Pulse Width | >100ns | |
Reaction Time | <500ns（Burst） | |
<10μs（Sweep） | ||
Modulation Input | ||
Impedance | 1MΩ | |
Signal range | ±2.5V ac+dc | |
