Wheel Alignment
Экономичное выравнивание колес автомобиля для

Экономичное выравнивание колес автомобиля для

Категория: Wheel Alignment >>>
Поставщик: Lawrence,Engineering,Company

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.36 $*	0.84 $*
Aug-18-2025	0.62 $*	0.66 $*
Jul-18-2025	0.53 $*	0.91 $*
Jun-18-2025	0.11 $*	0.16 $*
May-18-2025	0.35 $*	0.42 $*
Apr-18-2025	0.60 $*	0.8 $*
Mar-18-2025	0.95 $*	0.97 $*
Feb-18-2025	0.78 $*	0.53 $*
Jan-18-2025	0.78 $*	0.20 $*

Характеристики

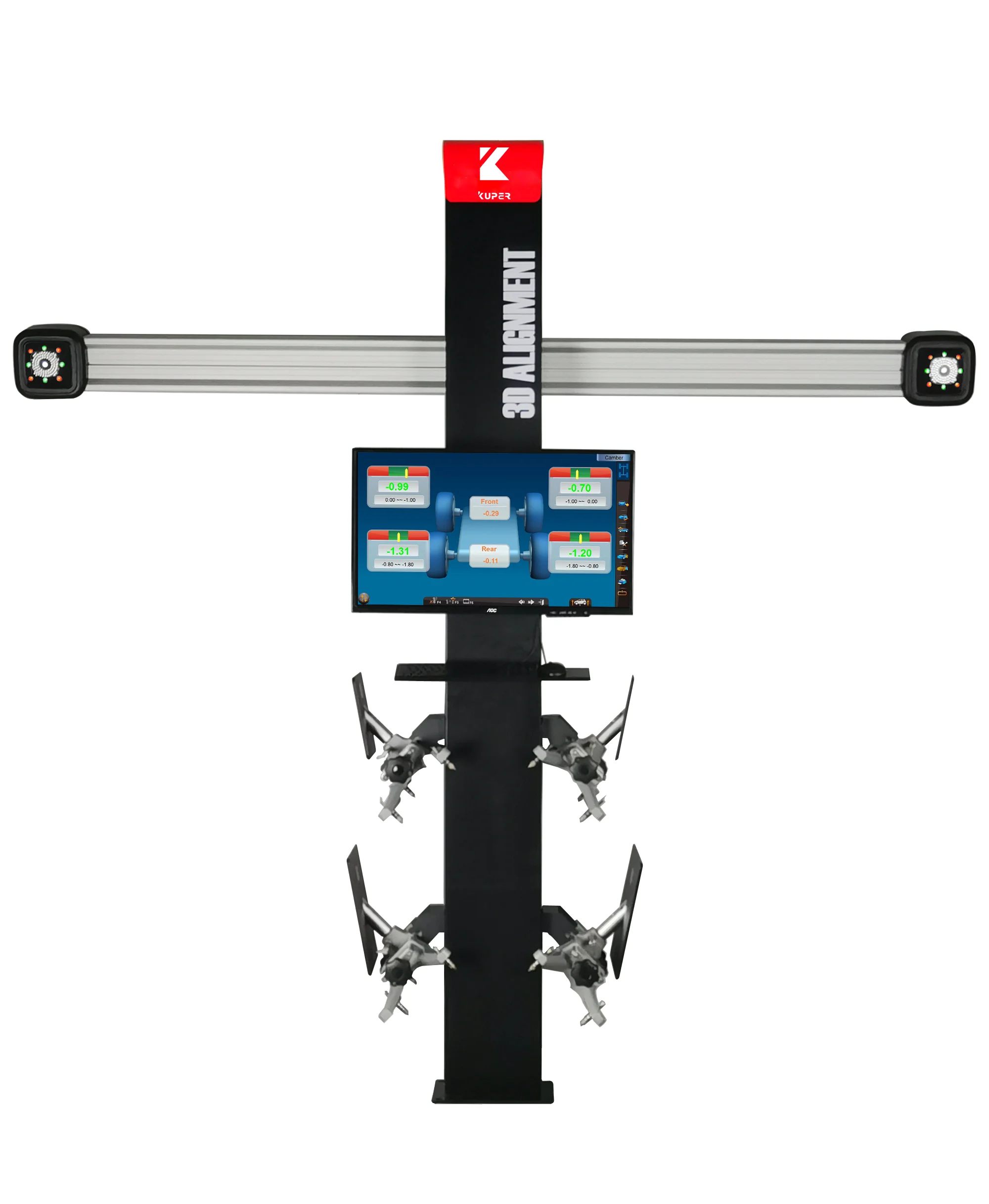

3D WHEEL ALIGNMENT FEATURES

1.3D instructional video

2.Support the adjustment for two post lift and mini scissor lift

3.More than 50 thousand car models

4.1.3 Mega Pixel HD camera

5.Ultra-thin aluminum alloy target

6.Image stabilizing system

7.Durable lamp bead

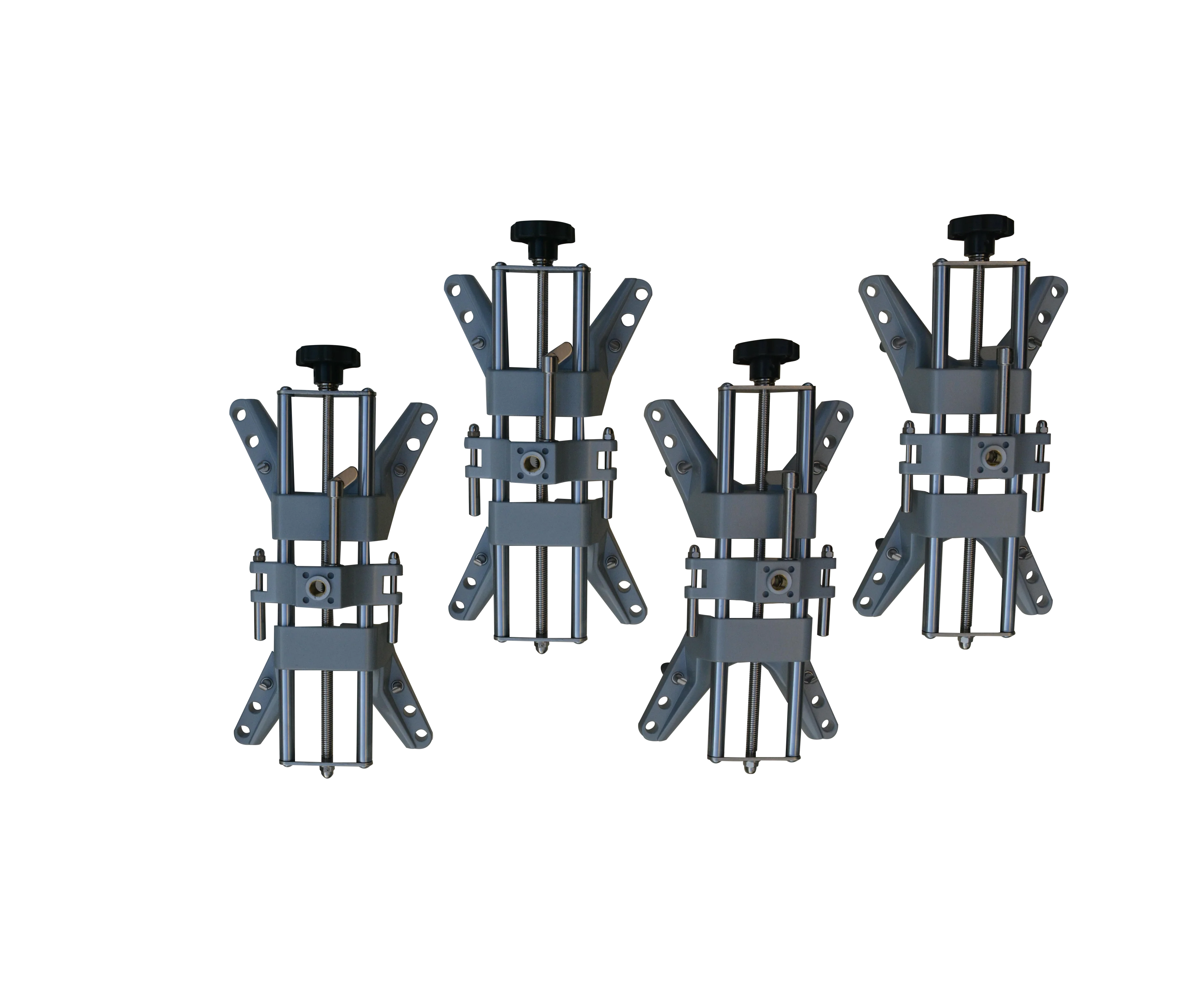

8.Four-point wheel clamp

You May Like

What is Excellent Wheel Alignment

Wheel Alignment Powerful Calculation System

With powerful calculation system, which supports to clamp the tire by any direction and the use of touchless wheel clamping system. Even the tire pressure is insufficient, it can still get the best measurement data.

It can measure on the ground and adjust in higher position, as well as support the measurement and adjustment on 2-post and mini scissor lift by manual camera beam lifting system.

Support with different O.S: WindowsXP, Windows7, Windows10. Support for 32-bit and 64-bit systems.Free upgrade and installation system to ensure users can use the software smoothly. Remote control service is available to ensure customers running business effectively any time.

Software Advantage

Product Parameter

Measurement Range and Accuracy

Items

Camber

Caster

S.A.I

Toe

Setback

Thrust Angle

Wheel base

Track Width

Range

±45°

±40°

±30°

±15°

＜6m

＜3m

Accuracy

±0.01°

±5m

Measurement Functions

Basic Measurement: Toe, Camber, Caster, Kingpin Inclination, Setback, Thrust Angle,Included Angle.

Additional Functions: Max Turning Angle, Toe-out-on turn, Wheel Roll Radius Measurement , Tire Rotations Rate, Axle Offset, Wheel Offset, Track Width/Wheelbase, Vehicle Lifting Measurement, Alignment Platform Level Detection, Toe Constant Value Measurement,Two Wheel Measurement (optional), Ride Height Measurement (optional).

Why Choose Us

FAQ

Q: Can computer and camera beam be installed in different room ?

A: Yes.We will provide different install solution according to your workshop condition.

Q:Cane we use 220V/60HZ as power supply ?

A:Yes,additional cost needed .

Q: How to update the database?

A:Freely wholelife through online .

Q:Can you customize logo, color, interface on cabinet and software interface?

A:Yes.As long as the LOGO function for your request if you want to add or remove any function and database bank can be yours name also.

Q:Can I be exclusive representative?

A:We are looking for long term exclusive distributor in the whole world.Welcome to join Lawrence!

Q:Can I buy wheel aligner kit ?

A:Yes ,but please be noted that our software can only operated with our own target plates and cameras.

Q:Can I get 2 years warranty or longer warranty ?

A:We offer 1 year warranty for free.2 year warranty with extra money.

Q:Can I pay in RMB currency?

A:Yes, but we need to add extra 20% based on the current price. Because we need to pay more tax ,so we suggest you pay in US dollars.

Q:How to calibrate the camera and target plates ?

A:For camera ,useless they are totally destroyed or crashed to deformation .They don't need calibration. Camera calibration need calibration bar. Target plates calibration is simple .The calibration finished in few minutes, following software instruction.

Q:Do I need to Re-Calibrate after equipment arrived and installed ?

A:No need, we already calibration well in factory before departure.

Q:Where Calibration Data Your Battle-Axe Designed ?

A:Inside of camera processor instead of inside software ,this design will save after service time for customer when their computer break.

Q:What is delievery time ?

A:2 working days upon receiption of down payment .

Q:Could you send me a demo software ?

A:Yes. Contact us for download linkage.

Q:Could you translate the software language to our native language ?

A:We already have Spanish, English ,Portuguese, Japanese and Chinese language .If you need other language we can add it for you ,or you can help us transfer(we prefer this way ), We will offer you discount as your efforts .

Q:How to installation ?
A:Through video show training.

Q:How long is the lifetime of the machine ?

A:At least ten years, under good preservation .
