Tamer бренд среднее напряжение бронированные алюминиевые одножильные термоусадочные кабельные соединения изоляционный


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.32 $* 0.85 $*
Aug-16-2025 0.77 $* 0.84 $*
Jul-16-2025 0.18 $* 0.49 $*
Jun-16-2025 0.25 $* 0.96 $*
May-16-2025 0.44 $* 0.22 $*
Apr-16-2025 0.22 $* 0.32 $*
Mar-16-2025 0.37 $* 0.85 $*
Feb-16-2025 0.62 $* 0.45 $*
Jan-16-2025 0.2 $* 0.38 $*

Характеристики



Product Description

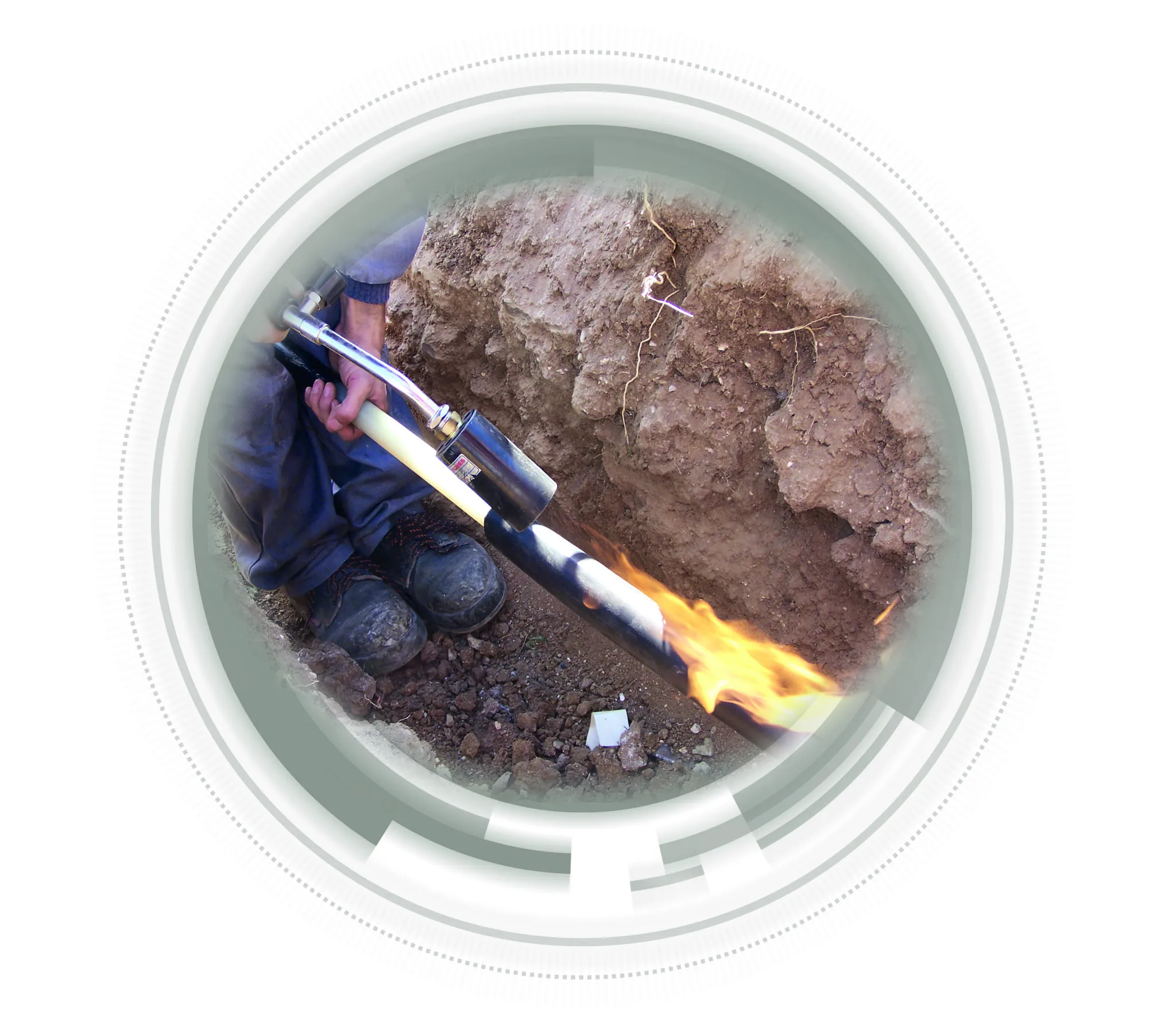

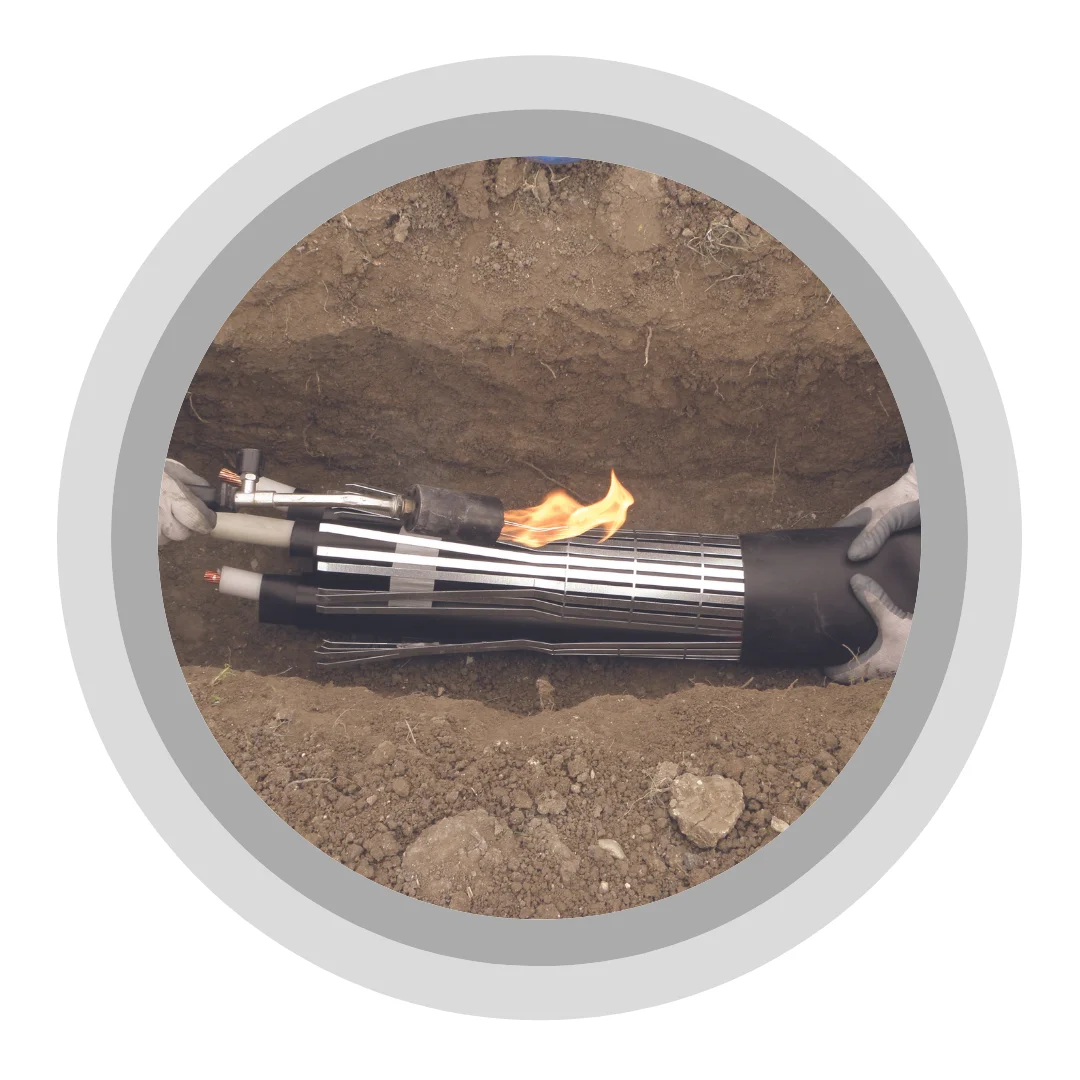

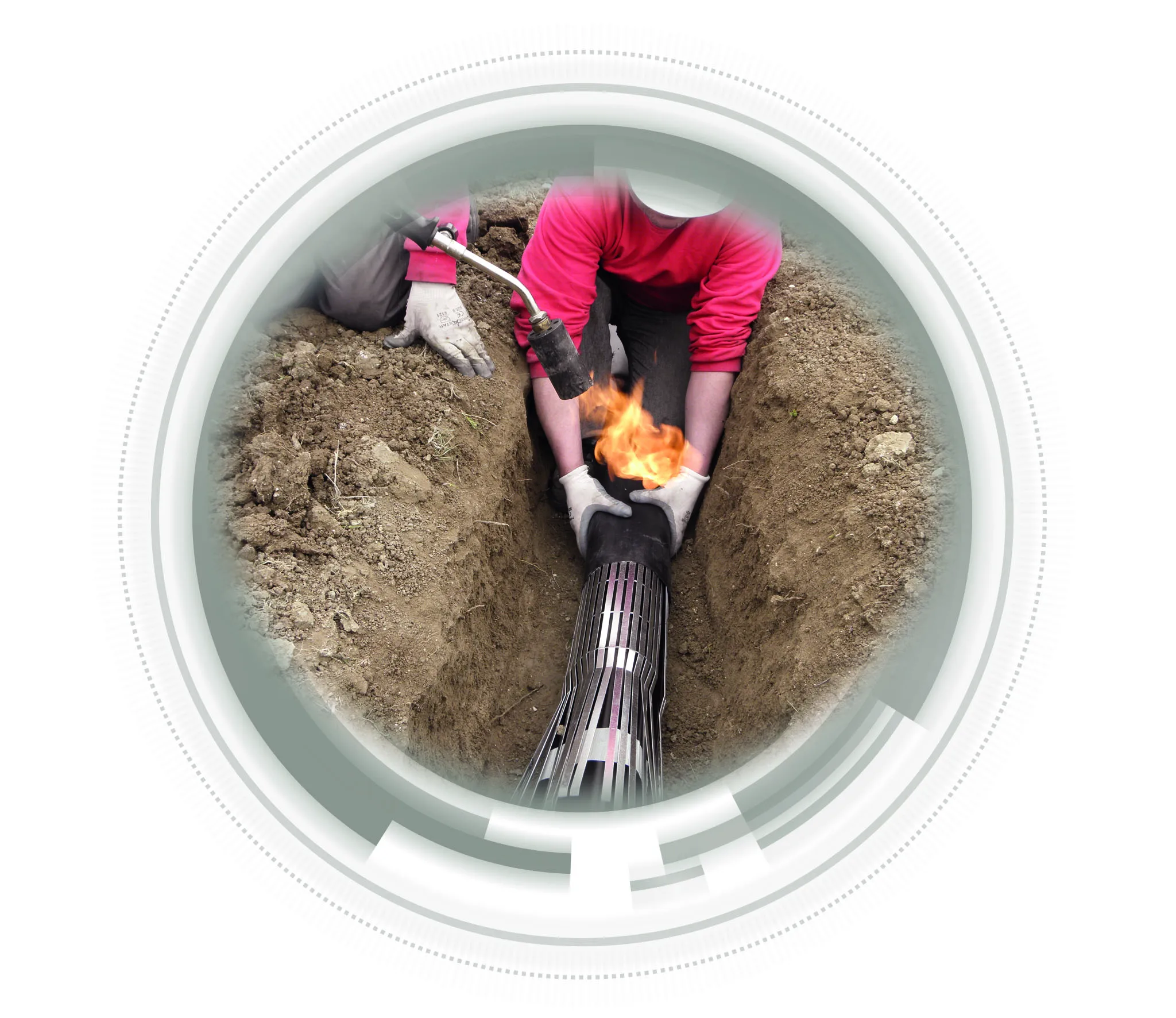

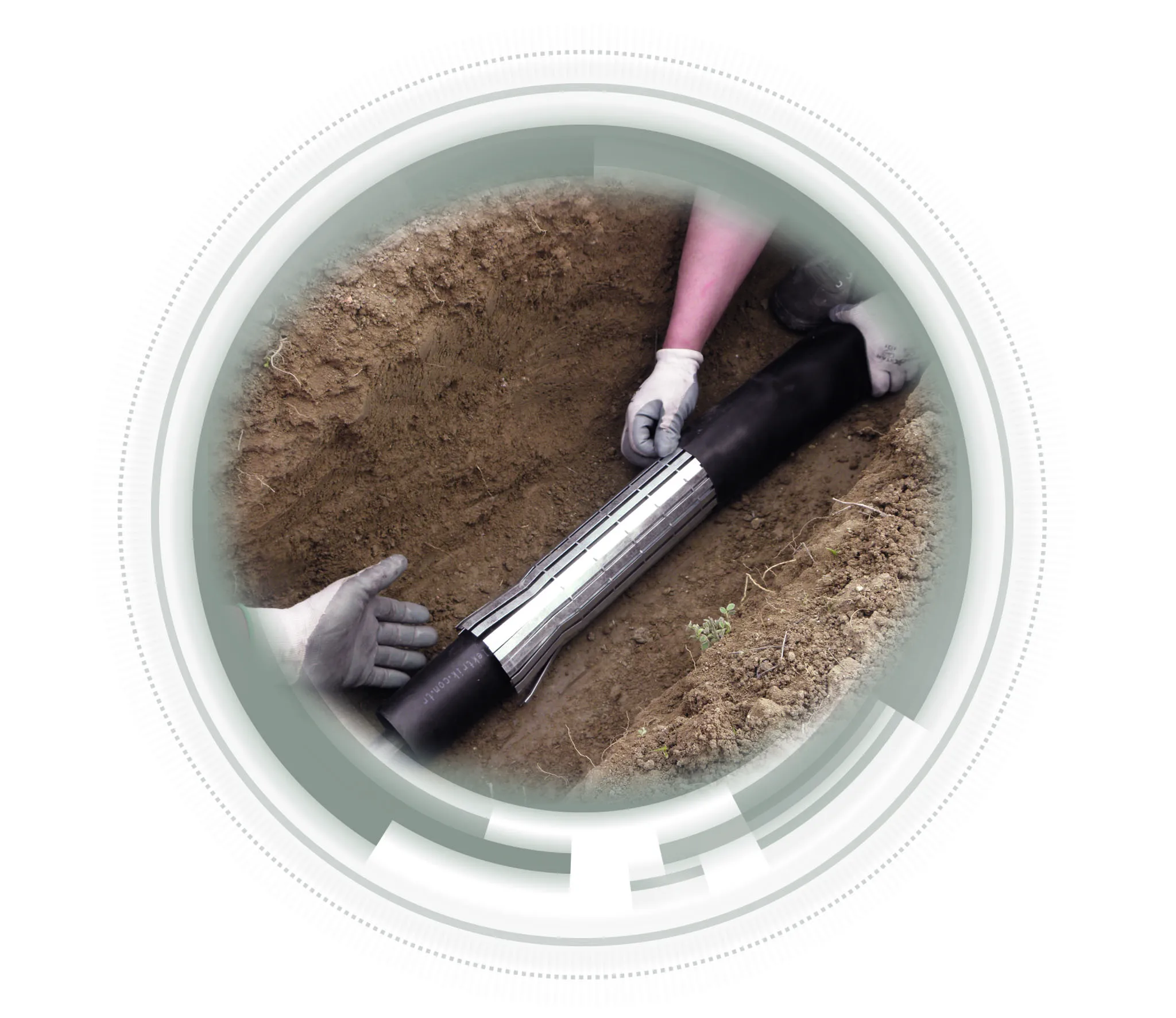

Straight heat shrinkable cable joints are used for jointing power insulation connections, convenient for connection of underground, ground energy cables, underground electrical distribution, any moisture ambient and under water. Resin layer blocks to water, humidity and moisture to pass through the cable and prevents the formation of a short circuit.During the mounting of heat shrinkable joint, do not apply the fire on the tube surface not fixed, must apply with circular movements.Stress control tube, dual wall tube, insulation tube, earthing mesh and other important accessories provide high reliability and stability to the connection.

SUITABLE CABLE TYPES;
* N2XSYRY, CU/XLPE/CWS/PVC/SWA/PVC, N2XSYNA2XSYRY, AL/XLPE/CWS/PVC/SWA/PVC, NA2XSY
* Use for, PVC insulations, XLPE, armour cables, mining, airport lighting cables.
TECHNICAL DATA;
* Appropriate RoHS Standards.


Product Name
Medium Voltage Armoured Aluminum Single Core Heat Shrinkable Cable Joints
Place of Origin
Turkey, Ankara
Brand Name
Tamer
Model Number
ZIBA6 125
Conductor Material
Copper
Cross Section
1x25+16
Standard
EN 50393
Certification
CE Certificate
Insulation Material
PE
Jacket
PE
Number of Conductors
1
Usage
Underground, Waterproof, Underwater, Submercial
Color
Black
Keywords
Armoured Heat Shrinkable Cable Joints
MOQ
50pcs
Rated Voltage
3.5-6 kV
Tensile Strength
12Mpa
Water Absorption
ASTM D 570 ≤0,5 %
Joint Hardness
45- 50 Shores D
Joint Shrink Point
110°C - 125°C
Tensile Strength
12Mpa
Break Down Elongatison
≥400%
Adhesive Melting Point
90°C
Continuous Operating Temperature
-55°C-110°C
Application
Straight Heat Shrinkable cable joints are used for jointing power insulation connections, convenient for connection of underground, ground energy cables, underground electrical distribution, any moisture ambient and underwater. resin layer blocks to water, humidity and moisture to pass through the cable and prevents the formation of a short circuit.
Suitable Cable Types
N2XSYRY, CU/XLPE/CWS/PVC / SWA /PVC, NXSY
NA2XSYRY, AL/XLPE/CWS/PVC / SWA /PVC, NAXSY
Use for, PVC insulations, XLPE, armour cables, mining, airport lighting cables






Related Products






Company Profile




The company was founded by Hasan Tamer in Ankara in 1975 for the manufacturing of metal sheet products used in electricity distribution networks. After the manufacturing of metal sheets which continued until the year 1980, the company has started dealing with the wholesale and retail marketing of the electricity products which is still continuing today. The manufacturing works were started in 1996 in Ostim and now it is continuing in Saraykoy-Kahramankazan within a closed area of 8200 m2 . The variety of the range of products has been given utmost care by the expert staff from the year 1996 and in this respect; ISO 9001 Quality certificate was received by the company and pursuant to this ISO 14001 Environmental Management System certificate was received in 2007, ISO 45001 occupational Safety and Health and the company also has RoHS documents, CE and all TSE Product certificates. The product range of the company is composed of; Low and Medium Voltage class; Protolin Resin&Prosil Insulation Fluids, Resin and Heat Shrinkable Cable Joints, Heat Shrinkable and Silicone Terminations, Cable Lugs&Connectors, Heat Shrinkable Tubes/Sleeves, Heat Shrinkable Thin Wall Tubes, LV &MV Bushing Coverings, VHD type Coverings and Overhead-Line Protection, Cable Accessories.






Our Expo








Certificates




FAQ




1. who are we?
We are based in -, Turkey, start from 1995,sell to Mid East(25.00%),Southern Europe(18.00%),Western Europe(18.00%),Eastern Europe(17.00%),Northern Europe(17.00%),Africa(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
LV & MV Cable Accosseries,Cable Termination,Cable Joint,Resin Insulation Components,Cable Lugs and Connectors

4. why should you buy from us not from other suppliers?
Tamer Electric Company,the manufacturing products (such as LV&MV class;Resin and Heat Shrink Cable Joints&Terminations&Tubes, Cable Accessories,etc.)works were started in 1975 and now it is continuing with keeping the customer satisfaction at utmost level.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,GBP;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language Spoken:English




Packing & Delivery




- 1 unit in per packet according to joint size.
- Approximetly 11 pallets in per 20 CBM Container.
- Min 1 pallet load in track.
- Packaging is done on demand.
