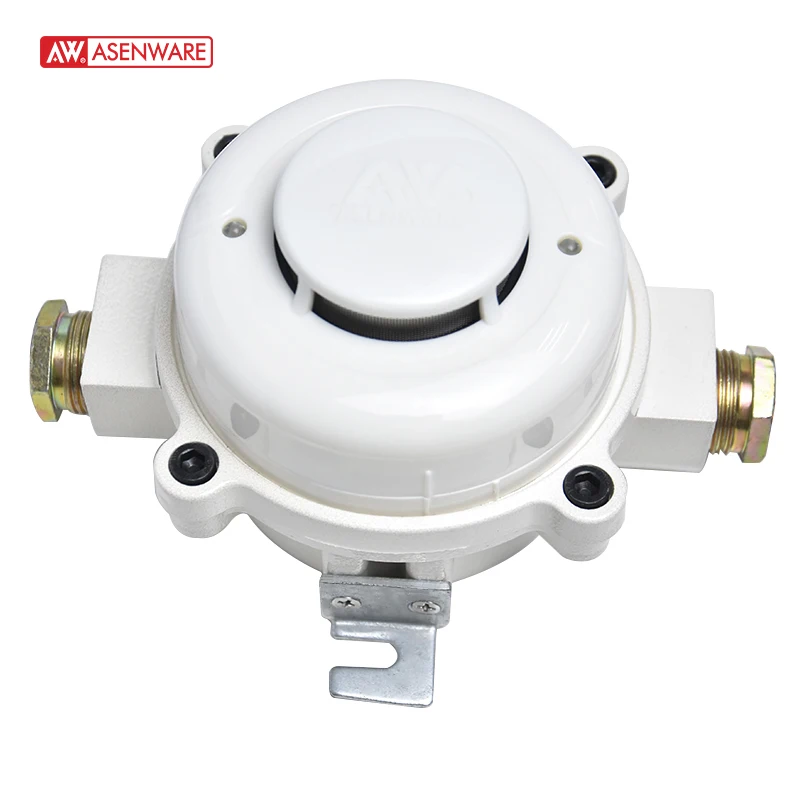

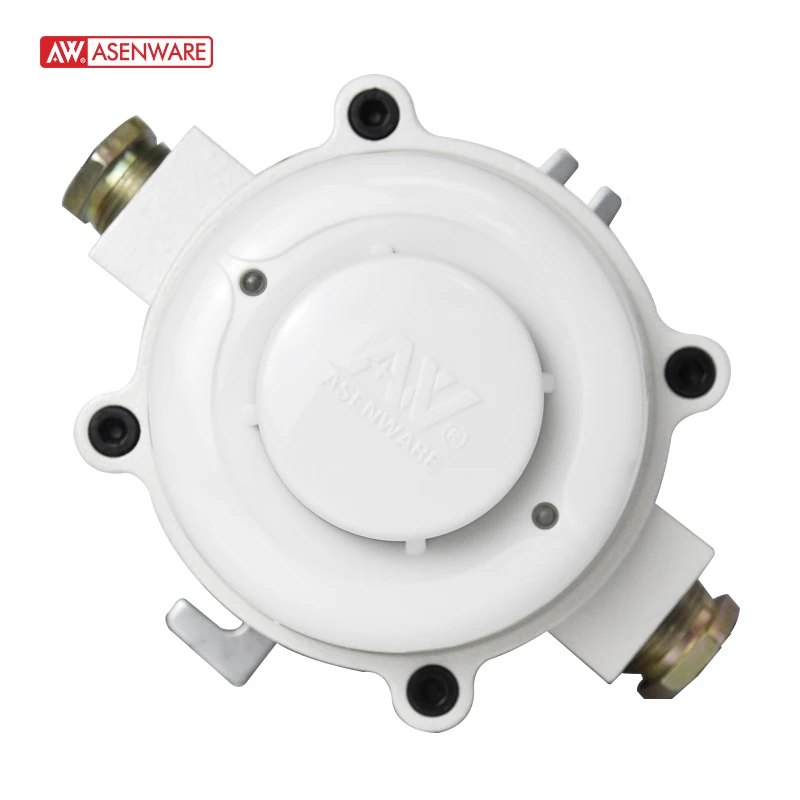

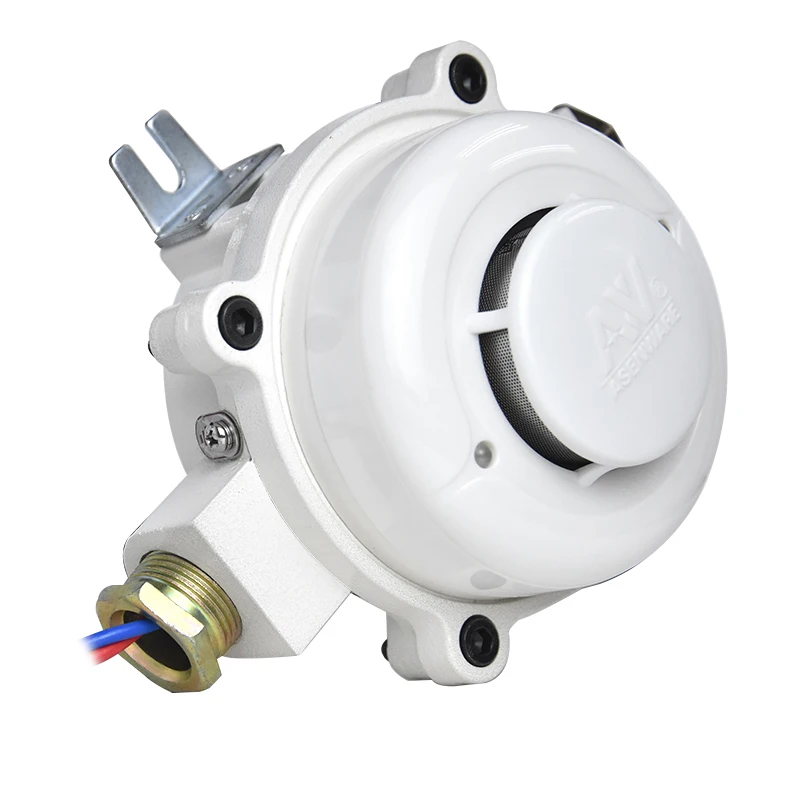

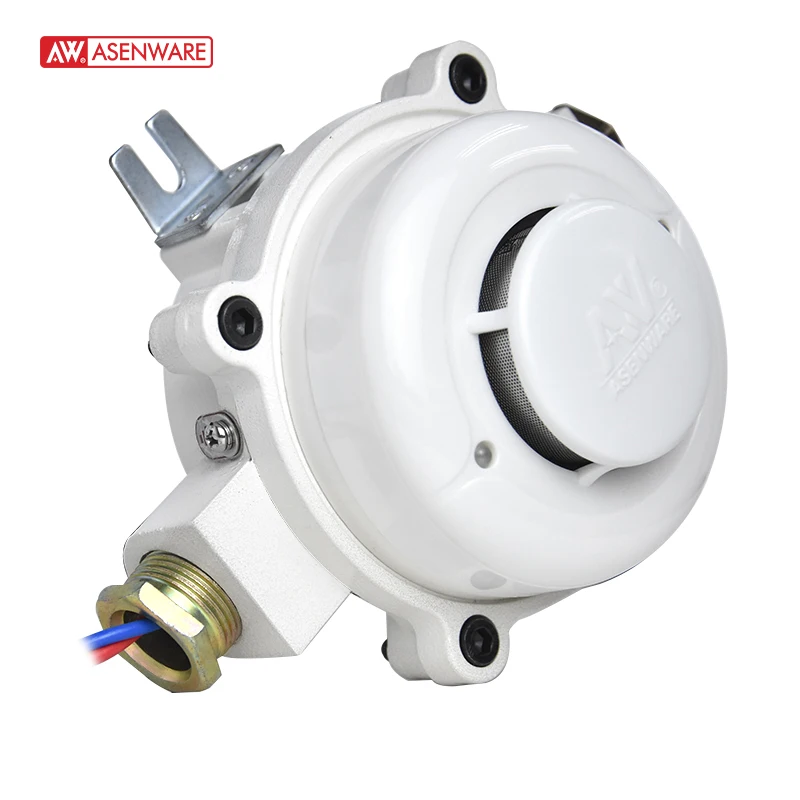

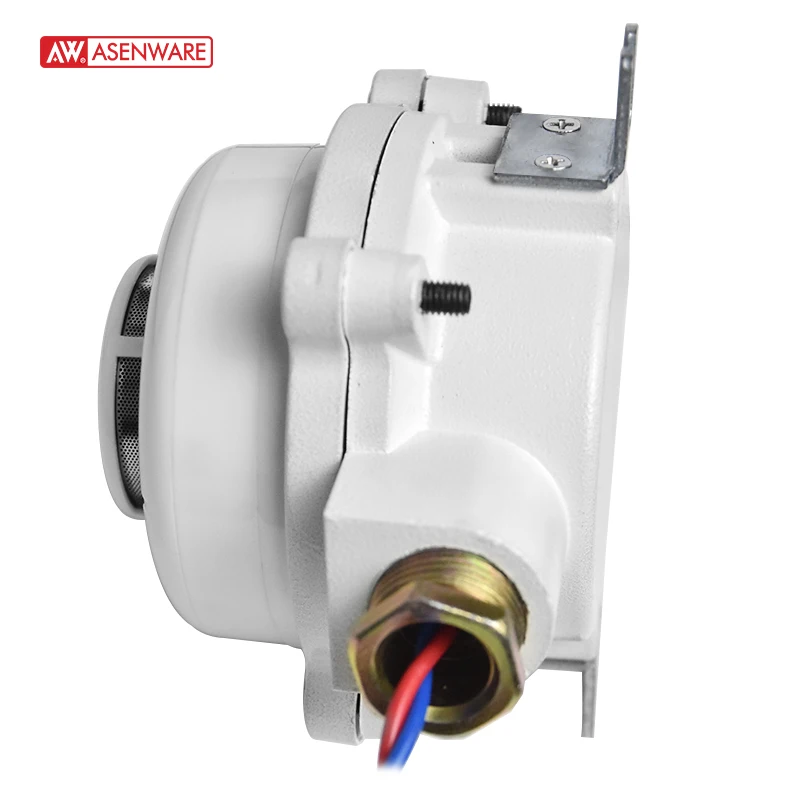

Asenware ATEX explosion proof фотоэлектрический детектор дыма AW-CSD381EX для oildept туннель метро и взрывоопасных
- Категория: Fire Alarm >>>
- Поставщик: Zhongshan,Guta,Fire,Equipment,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 62.20 $* | 63.8 $* |
| Jul-19-2025 | 50.72 $* | 51.51 $* |
| Jun-19-2025 | 61.60 $* | 62.9 $* |
| May-19-2025 | 61.12 $* | 62.92 $* |
| Apr-19-2025 | 49.59 $* | 50.80 $* |
| Mar-19-2025 | 60.50 $* | 61.73 $* |
| Feb-19-2025 | 59.29 $* | 60.66 $* |
| Jan-19-2025 | 59.81 $* | 60.84 $* |
Характеристики
Product Description
Features:
LED indicator
Excellent explosion-proof performance
Meets all requirements of latest EN54-7:2000 and EN54-5:2000
Easy Installation
Excellent explosion-proof performance
Meets all requirements of latest EN54-7:2000 and EN54-5:2000
Easy Installation
Model | AW-CSD381EX |
Main Voltage | DC24V±3V (no polarity) |
Operating current | Monitor:150µA Alarm:≤30mA |
Alarm Relay Output | Normally Open and Closed |
Smoke Alarm Sensitivity | 0.10dB/m~0.27 dB/m |
Ex-Atex Protection Level | Gb/ExibDtDA21IP65T85 |
Materials and colors | CAST IRON，ABS, White |
Mating Host | AW-CFP2166 fire alarm control panel |
Outlet Interface | G20 |
Environmental | Temperature range: -10 to 50°C Humidity: 5 to 95% RH, non-condensing |
Size | 150mm* 150mm* 110mm |
Weight | about 1.2kg |
Bus quiescent current | ≤400μA |
Bus quiescent current Outlet thread | 2-G3/4 |
Alarm confirmation light | red, flashing during inspection, always on when alarm |
Atmospheric pressure | 80kPa～110kPa |
Why Choose Us
Certificate
Company Profile
*Asenware(guta fire) was found since 2005 .Now we have 16-year history and reputation.
*From 1 desk 1 man to 6000 m’ factory and over 200 employees. We are developing very fast
*Have a full R&D team as a reliable backing. We never stop upgrading and creating new products.
*Free after-sale and provide technical support until your problems are solved.
*All products can be customized/OEM.
*lnternational certificates including LPCB, TUV, Atex and CE.
*Exported to over 100 countries and finished more than 3500 projects.
*From 1 desk 1 man to 6000 m’ factory and over 200 employees. We are developing very fast
*Have a full R&D team as a reliable backing. We never stop upgrading and creating new products.
*Free after-sale and provide technical support until your problems are solved.
*All products can be customized/OEM.
*lnternational certificates including LPCB, TUV, Atex and CE.
*Exported to over 100 countries and finished more than 3500 projects.
Projetct
Exhibition
FAQ
1.What’s the payment term?
We support:USD: TT、LC、Alibaba Trade Assurance by visa,master card.
RMB: Alipay/Wechat pay
RMB: Alipay/Wechat pay
2. Do you accept sample order?
Yes, we welcome sample order for testing. Pls fell free to contact us no matter how many products you want.
3.Can I add my logo on the products?
Yes, OEM and ODM service approved.
4.What’s your warranty?
2 years for fire alarm and suppression system
1 year for fighting systems like fire pump, fire valve, and fire hose and cabinet. Last year, we visited our Philippines customer and their project already installed 5 years but still working well
5.Can I have a visit to your factory before the order?
Sure, welcome to our factory. Please just contact us when you come.
6. What delivery ways we can use?
Carton box-fire alarm product
Wooden box-fire fighting product
Customized packing
Wooden box-fire fighting product
Customized packing
7.What is the trade term?
Our trade terms are avaible for EXW, FOB, CIF, CNF, DDP.
Contact us
