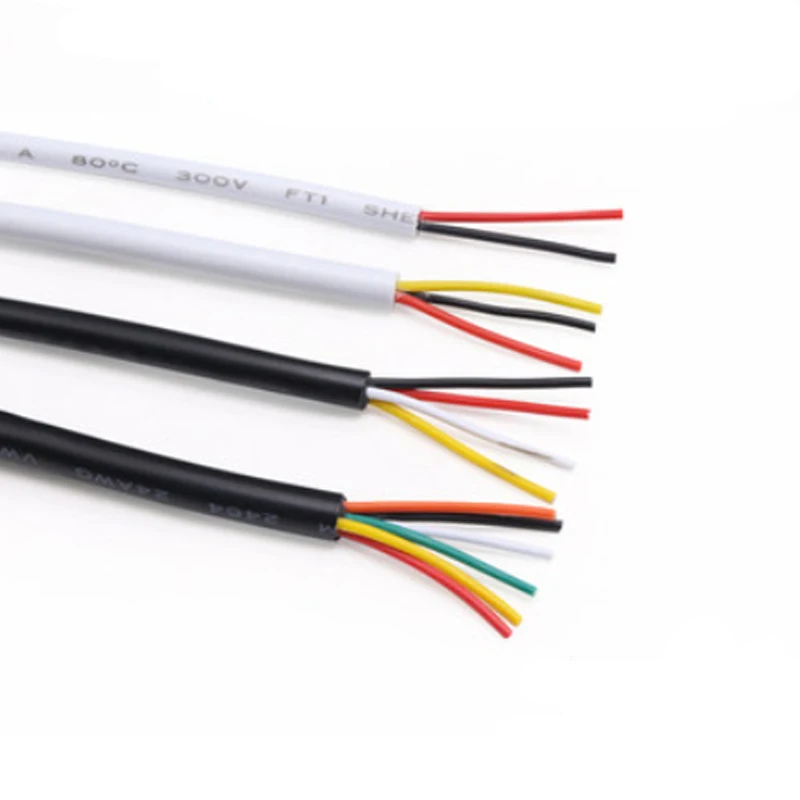

Медный кабель управления сигналом UL2464 24AWG/2C od3.0

Описание и отзывы

Трекер стоимости

Характеристики

UL2464 Conductor 24AWG/2C OD:3.0mm guage Copper Signal Control Cable

CONDUCTOR				INSULATION		SHIELD	JACKET		Max.Resistance
AWG	(No./mm)	DIA. (mm)	(No.)	Thickness (mm)	O.D. (mm)	Material	Thickness (mm)	O.D. (mm)	Ω/KM (At 20℃)
26	7/0.16	0.48	2	0.25	1.0	Al-mylar	0.76	3.7±0.10	150
			3	0.25	1.0	Al-mylar	0.76	3.9±0.10
			4	0.25	1.0	Al-mylar	0.76	4.2±0.10
24	11/0.16	0.62	2	0.26	1.2	Al-mylar	0.76	4.0±0.10	94.2 94.2
			3	0.26	1.2	Al-mylar	0.76	4.1±0.10
			4	0.26	1.2	Al-mylar	0.76	4.2±0.10
22	17/0.16	0.76	2	0.27	1.3	Al-mylar	0.76	4.3±0.10	59.4
			3	0.27	1.3	Al-mylar	0.76	4.5±0.10
			4	0.27	1.3	Al-mylar	0.76	4.9±0.10
20	21/0.18	0.94	2	0.28	1.5	Al-mylar	0.76	4.7±0.10	37.4
			3	0.28	1.5	Al-mylar	0.76	5.0±0.10
			4	0.28	1.5	Al-mylar	0.76	5.4±0.10
