ELP вариофокальная 2 8-12 мм 5-50 зум usb веб-камера мини Размер 4k камера Профессиональная


Поделиться:


Цена:87,20 $ - 105,40 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-15-2025 110.86 $* 112.72 $*
Jul-15-2025 90.13 $* 92.55 $*
Jun-15-2025 109.35 $* 111.21 $*
May-15-2025 108.80 $* 110.58 $*
Apr-15-2025 86.5 $* 88.43 $*
Mar-15-2025 106.54 $* 108.14 $*
Feb-15-2025 105.78 $* 107.59 $*
Jan-15-2025 104.64 $* 106.77 $*

Характеристики



Product Description


Features:

* 4K 3840*2160 High resolution USB 4K HD webcam
* 1/2.8” IMX415 sensor for high quality image
* With HD 2.8-12mm/5-50mm manuals zoom and focus varifocal CS lens
* High frame rate - MJPEG 3840*2160 30fps
* MJPEG/YUY2 dual outpu format optional
* Mini board size 38x38mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.

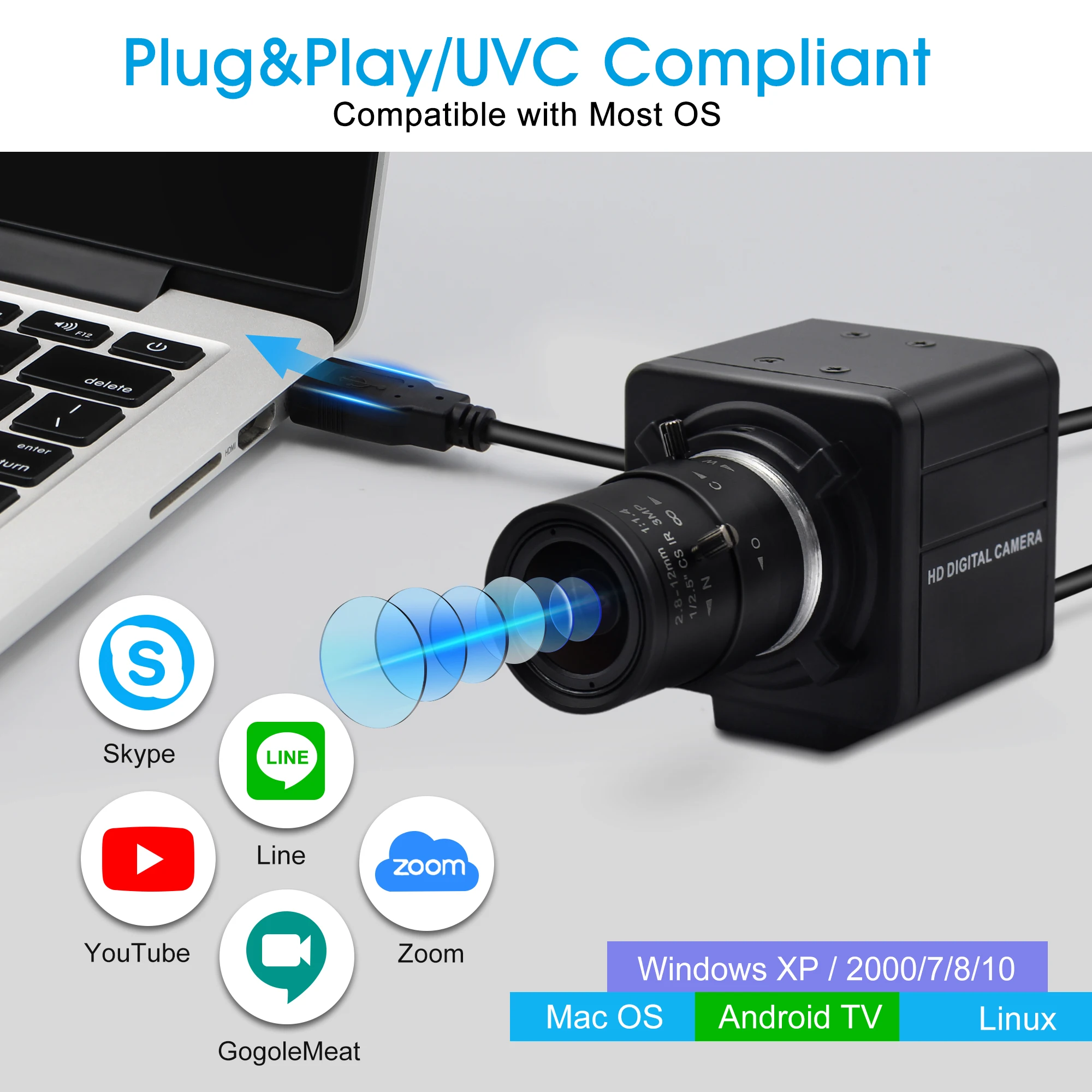

* UVC compliant - support Windows, Linux, Android system with UVC


Specification:


Model NO.:
ELP-USB4K03-MFV(2.8-12mm)
Image Sensor
SONY IMX415 (1/2.8” )
Max. Resolution
3840(H) *2160 (V)
Sensitivity
1000mV/Lux-sec
Pixel Size
1.45µmx1.45µm
Compression format
MJPEG / YUY2(YUYV)
Resolution & frame
3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG
2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG
1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE
1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG
640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG
3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2
2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2
1920x1080@ 5fps YUY2/1280x960@5fps YUY2
1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2
640x480@ 30fps YUY2 / 320x240@ 30fps YUY2
Center definition
1000LW/PH (Center)
S/N Ratio
30dB
Sensitivity
0.65V/lux-sec@550nm
Minimum illumination
0.2lux
Shutter Type
Electronic rolling shutter / Frame exposure
Connecting Port type
USB2.0 High Speed
AEC
Support
AEB
Support
AGC
Support
Auto Focus
Support
Adjustable parameters
Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White
Balance, Exposure
Lens Parameter
CS 2.8-12mm (5-50mm optional)
Power supply& connector
USB BUS POWER 4P-2.0mm socket
Power Voltage
DC5V
Power Current
200mA

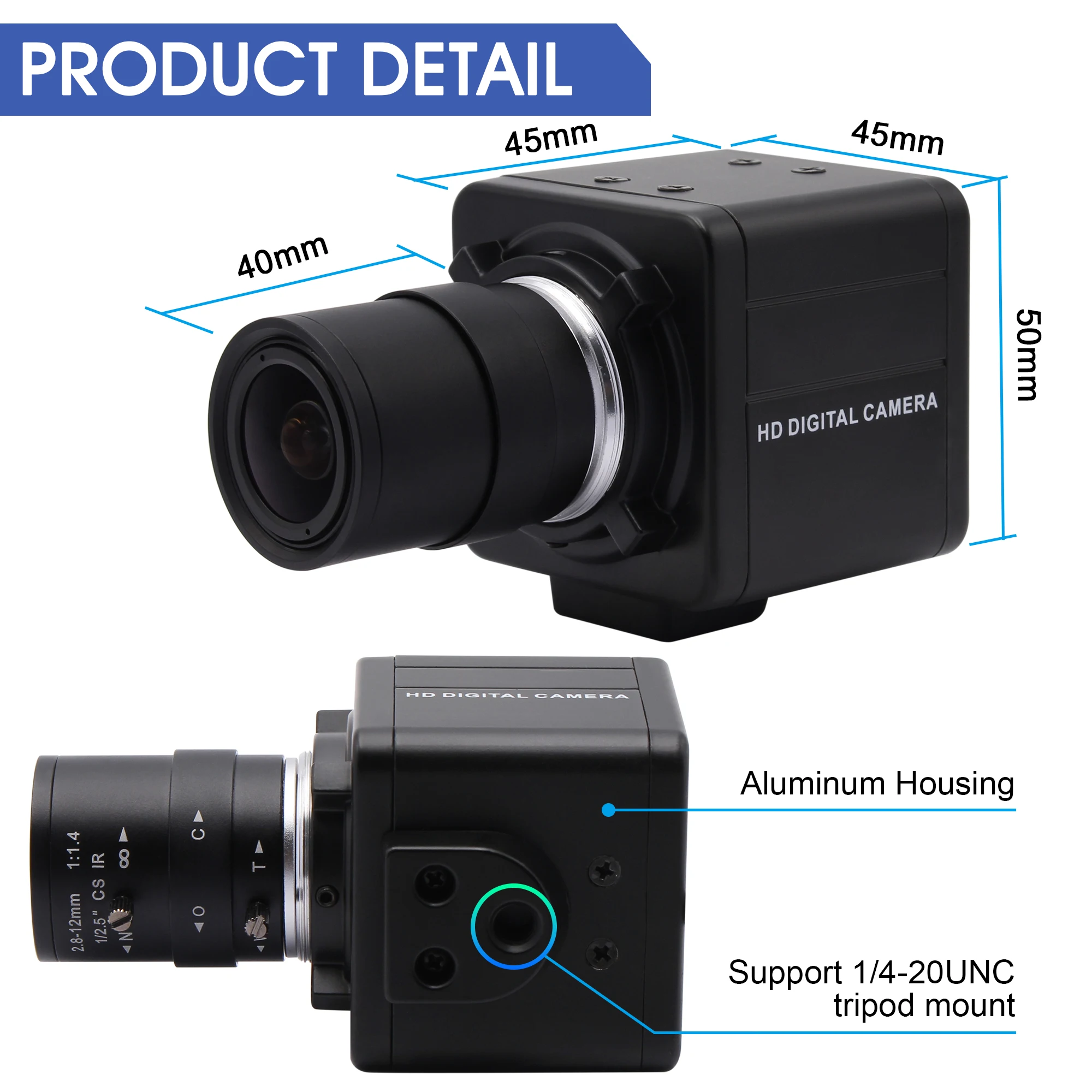

Dimension
See the image as below
Storage Temperature
-20°C to 70°C
Work Temperature
0°C to 60°C
USB Cable
Standard with 3M(2M/1M/5M optional)
Operating System support
Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC


Products Details:



-Ultra HD Webcam 3480x2160
-Sony IMX415 Sensor
-UVC Free Driver , Plug & Play



-Built-in Microphone
-High Quality Sensor
-USB Free Driver



-Mini USB Camera
-Aluminum box case
-With 2.8-12mm lens (CS 5-50mm optional)



-4K Ultra HD USB Web Camera
-High Resolution



-Standard with 3m Cable
-Support WIN, Linux, Android, MAC OS system


Product Usage


ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.




Packing&Shipping


About Package:
All products will be packed with high quality color box,with one or two cameras inside .

Package for :Camera module without case, 2PCS/ Box, 48 Boxes(96PCS)/Carton, Dimension:39x36x32cm
Package for Camera with case,
1PCS/ Box, 48 Boxes (48PCS)/Carton, Dimension: 39x36x32cm

For quantity order of more than 100pcs, we can also customize box according to customer's request.





Related Products




Company Introduction






FAQ


1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module with more than 14 years' experience.
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
We can provide you test software for windows, please contact us, you can also use other softwares such as followings:
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
