В качестве заземляющего винта Заземляющий Винт Регулируемый кронштейн заземляющий винт для крошечного дома на
- Категория: Anchors >>>
- Поставщик: Xiamen,Angels,Solar,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1309.87 $* | 1374.37 $* |
| Aug-16-2025 | 1298.12 $* | 1363.15 $* |
| Jul-16-2025 | 1089.25 $* | 1143.59 $* |
| Jun-16-2025 | 1276.63 $* | 1340.30 $* |
| May-16-2025 | 1111.29 $* | 1167.86 $* |
| Apr-16-2025 | 1254.68 $* | 1317.70 $* |
| Mar-16-2025 | 1243.96 $* | 1305.87 $* |
| Feb-16-2025 | 1232.29 $* | 1294.36 $* |
| Jan-16-2025 | 1221.17 $* | 1282.80 $* |
Характеристики
Ground Screw Ground Anchor Post Ground Anchor 2000Mm
Customer Design

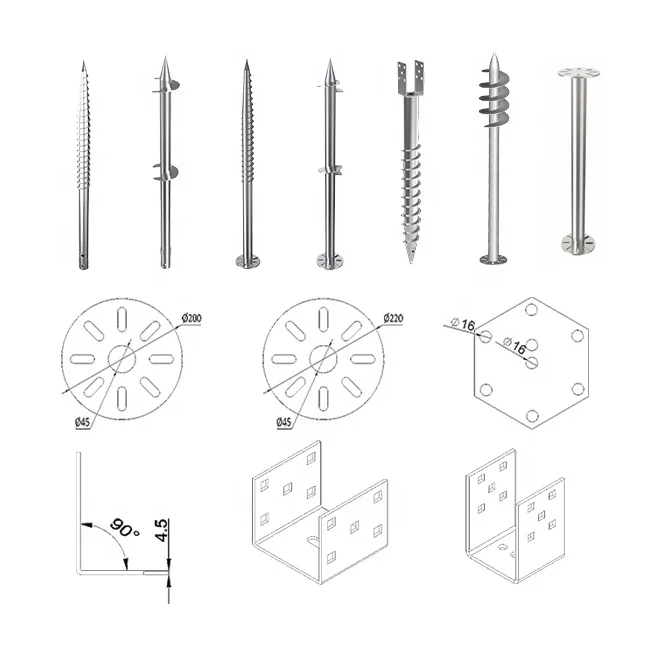

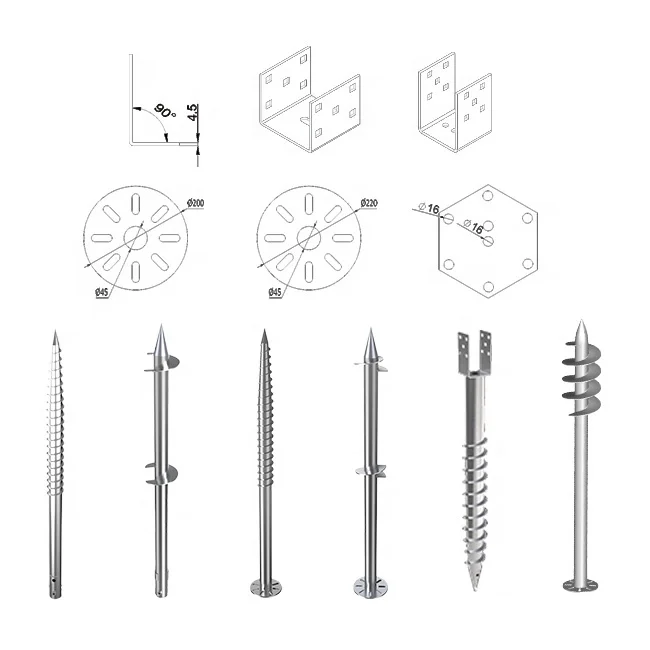

Ground Screw Length / Thickness / Diameter / Flange Type can be customized
Leenth*φ*Thickness | Weight | Packing | Total Weight |
L1600*76*3.0 | 9.8 kg | 180 PC/pallet | 1800kg |
L1800*76*3.0 | 10.72kg | 160 PC/pallet | 1750kg |
L2000*76*3.0 | 11.8 kg | 150 PC/pallet | 1805kg |
L2200*76*3.0 | 12.8kg | 140 PC/pallet | 1830kg |
L2500*76*3.0 | 14.25kg | 120 PC/pallet | 1745kg |
L2800*76*3.0 | 15.7kg | 110 PC/pallet | 1760kg |
L3000*76*3.0 | 16.8kg | 110 PC/pallet | 1885kg |

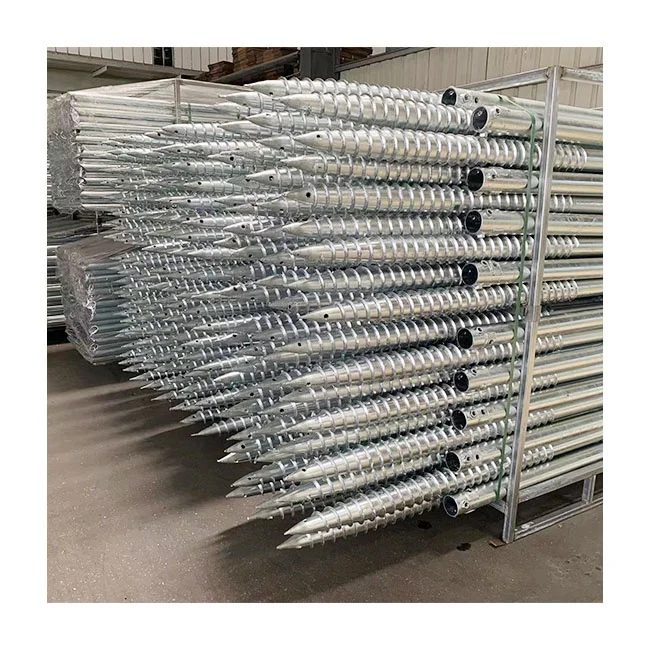

Our engineers design efficient ground screw anchors to have certain attachments or have specialized ends to penetrate hard surfaces for your outdoor space.
Ground Screw is widely used in medium to large-scale solar farm installation. Material of ground screw is Q235B steel. The hot-dip galvanized treatment over ground screw surface ensures the ground screw to be anti-corrosive.

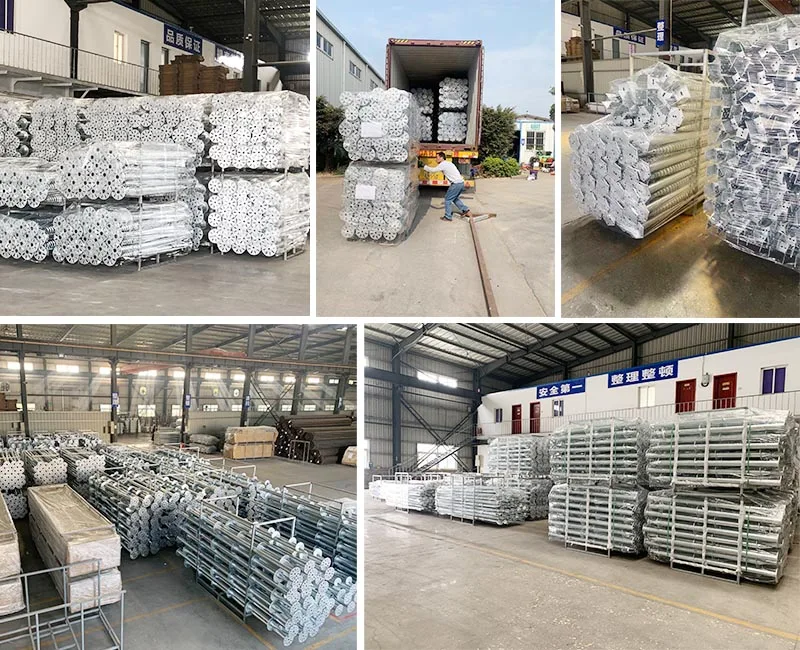

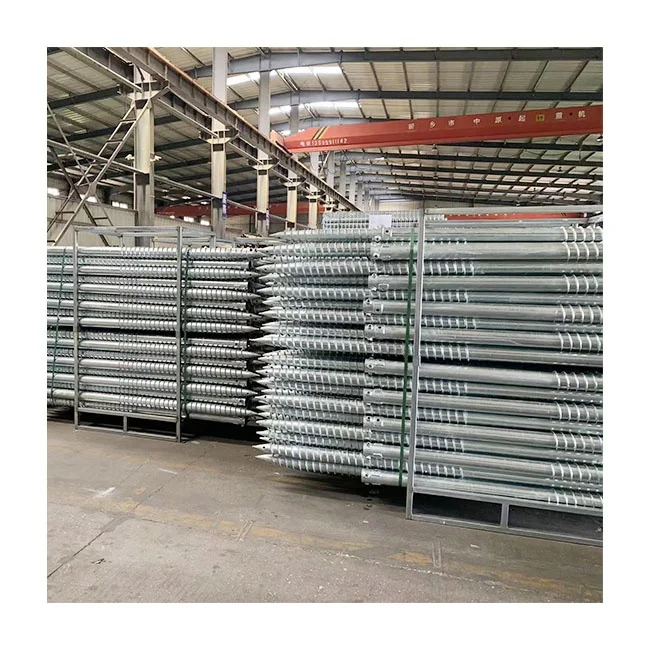

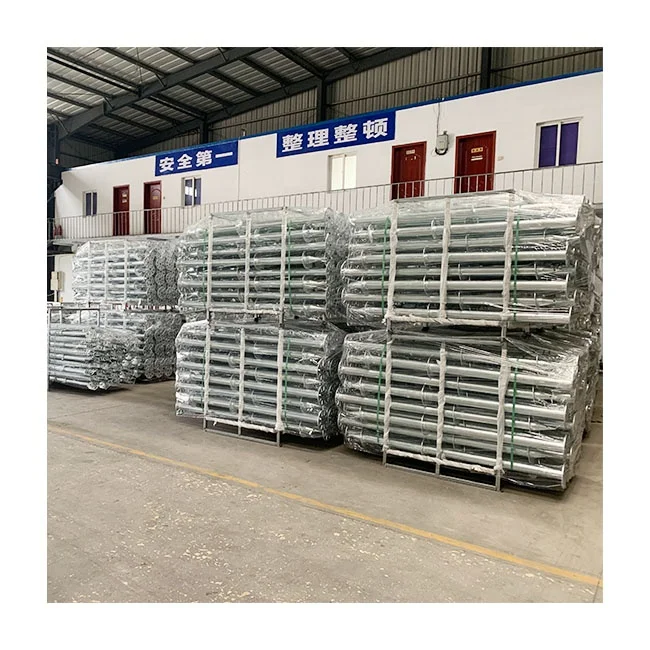

Our Factory
Xiamen Angels Solar is a professional solar mounting solution and product provider, with own galvanized-steel and aluminum factory that have been in operation for 12+ years and supplying for other solar mounting companies for years. Our strength lies in having own factory and years of experience in producing galvanized-steel and aluminum structures and ODM of solar mounting structures, being professional in the whole quality control and inspection process,and a dedicated team of engineers experienced in designing solar mounting structures.
Manufacturing Process
