Холодная комната прогулка в кулер холодильная камера супермаркет ресторан замороженные морепродукты для рыбы
- Категория: Refrigeration & Heat Exchange Parts >>>
- Поставщик: Hangzhou,Sino-Cold,Sci-Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 4165.6 $* | 4373.34 $* |
| Aug-17-2025 | 4130.53 $* | 4337.70 $* |
| Jul-17-2025 | 3465.79 $* | 3638.37 $* |
| Jun-17-2025 | 4060.64 $* | 4263.85 $* |
| May-17-2025 | 3535.55 $* | 3712.4 $* |
| Apr-17-2025 | 3990.1 $* | 4190.10 $* |
| Mar-17-2025 | 3955.45 $* | 4153.44 $* |
| Feb-17-2025 | 3920.39 $* | 4116.95 $* |
| Jan-17-2025 | 3885.79 $* | 4079.42 $* |
Характеристики

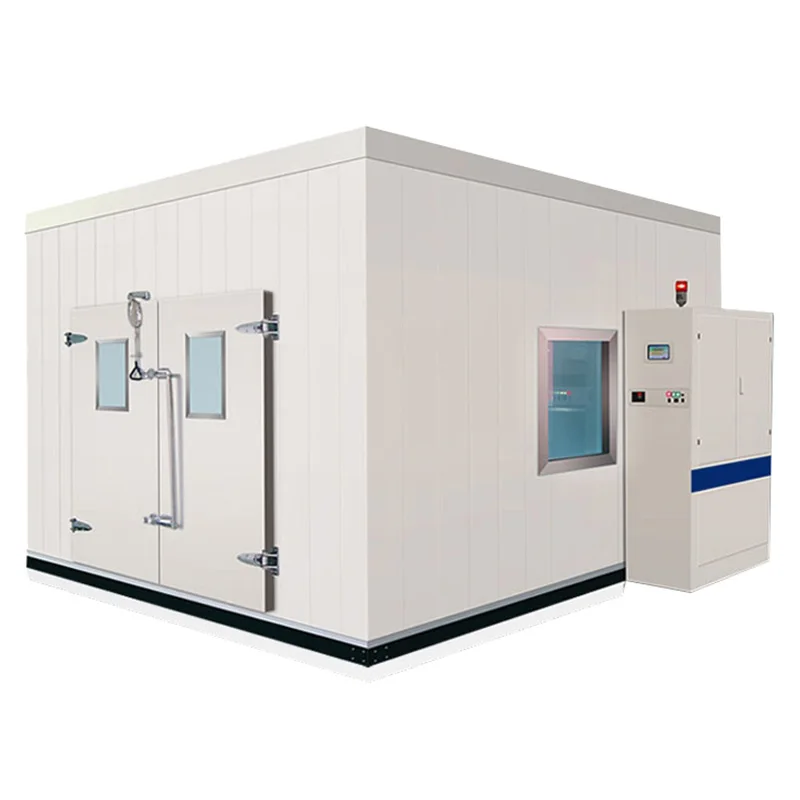

Cold storage is the widely used professional cold storage room to store Fish / Beer / Fruit and toiletries. It is very suitable
for restaurants, supermarkets, shopping malls.
Cold storage room (also called walk in cooler ) is widely used in Fishery, fruit and vegetables, Supermarket, Hotel and
Restaurant, etc. The temperature range of cooler goods walk in freeze is usually keeping in -10~+15°C by insulation and cooling system,With the help of walk in freezer, the stored fruit and vegetables is not perishable and the taste is good.
for restaurants, supermarkets, shopping malls.
Cold storage room (also called walk in cooler ) is widely used in Fishery, fruit and vegetables, Supermarket, Hotel and
Restaurant, etc. The temperature range of cooler goods walk in freeze is usually keeping in -10~+15°C by insulation and cooling system,With the help of walk in freezer, the stored fruit and vegetables is not perishable and the taste is good.
Cold room dimension | Customized |
Wall panel | Polyurethane Foam Insulated Panels |
Temperature | On demand |
Voltage | 110v,220v,380V,420v,440v |
Condensing Unit | Bitzer, Copeland, etc. |
Unit cooler | Customized |

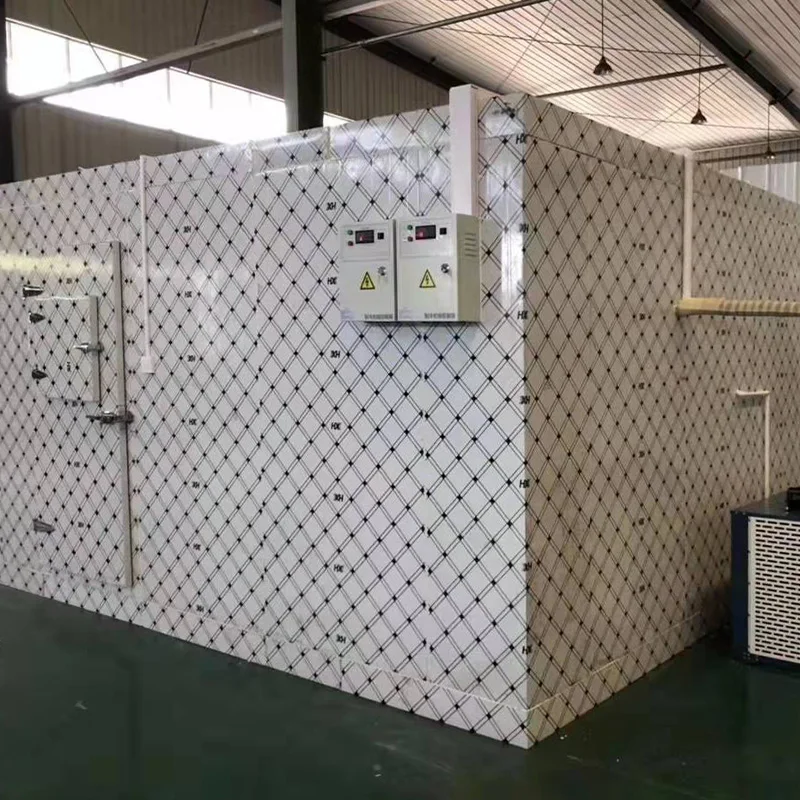

Cold storage panel
Panel | Polyurethane foam insulation panel,42kg/m³ fire resistance |
Thickness of Panel | 75mm,100mm, 120mm |
Panel Connection | Cam lock connection |
Surface Steel | Color steel or stainless steel option |
Application for example | Room Temperature |
Fruit & Vegetable | -5 to 10 ℃ |
Chemical factory,medicine | 0 to 5 ℃ |
Ice cream, ice storage room | -10 to -5 ℃ |
Frozen meat storage | -25 to -18 ℃ |
Fresh meat storage | -40 to -30 ℃ |
1. Outer materails specification of Polyurethane Foam Insulated Sandwich Panels Prices.
1) Two sides: painted steel sheet, stainless steel sheet and hot-galvanized steel sheet for customers' option.
2) Thickness(mm): 100~120mm.
3) Color: According to customer requirement, default is milk white.
4) Width: 960mm.
5) Length:According to customer requirement,the max length is 11m.
1) Two sides: painted steel sheet, stainless steel sheet and hot-galvanized steel sheet for customers' option.
2) Thickness(mm): 100~120mm.
3) Color: According to customer requirement, default is milk white.
4) Width: 960mm.
5) Length:According to customer requirement,the max length is 11m.
Cold storage door
Type of Door | Sliding door, hinged door option, size can be customized |
Thickness of Door | 100mm,for options |
Accessories | Heating Wire and Escape Device |

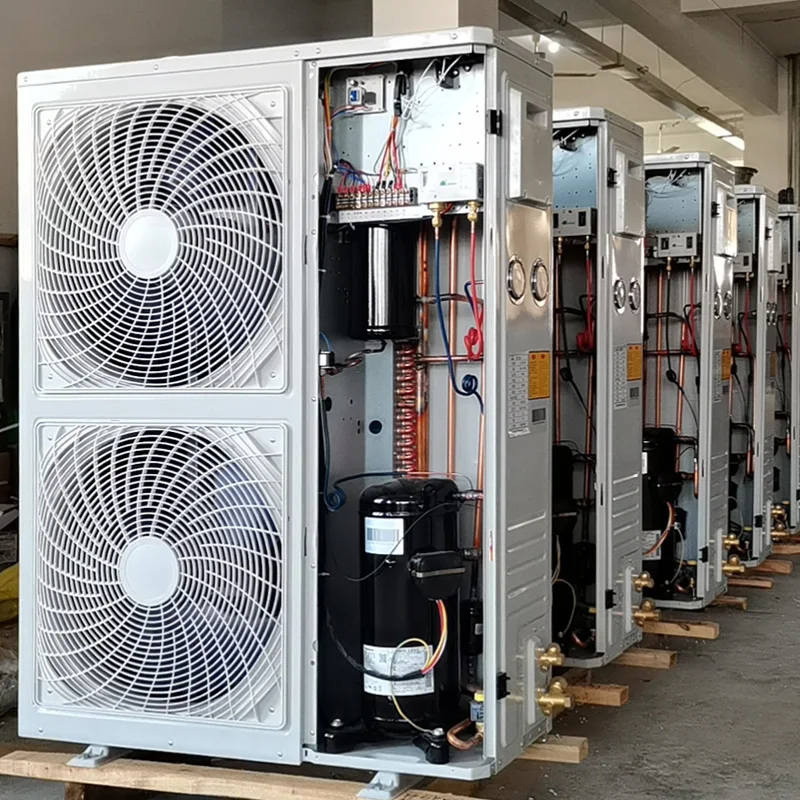

Condensing Unit for cold storage
1.Configuration of condensing unit:
Compressor, condenser, axial fan with external rotor, liquid receiver, HP/LP controller, HP/LP gauge, dry filter, solenoid valve, sight glass, check valve, junction box, etc.
2.Brand of compressor: American Original Copeland compressor.
3.Refrigerant: R507, R407C, R404A, R410A
Compressor, condenser, axial fan with external rotor, liquid receiver, HP/LP controller, HP/LP gauge, dry filter, solenoid valve, sight glass, check valve, junction box, etc.
2.Brand of compressor: American Original Copeland compressor.
3.Refrigerant: R507, R407C, R404A, R410A

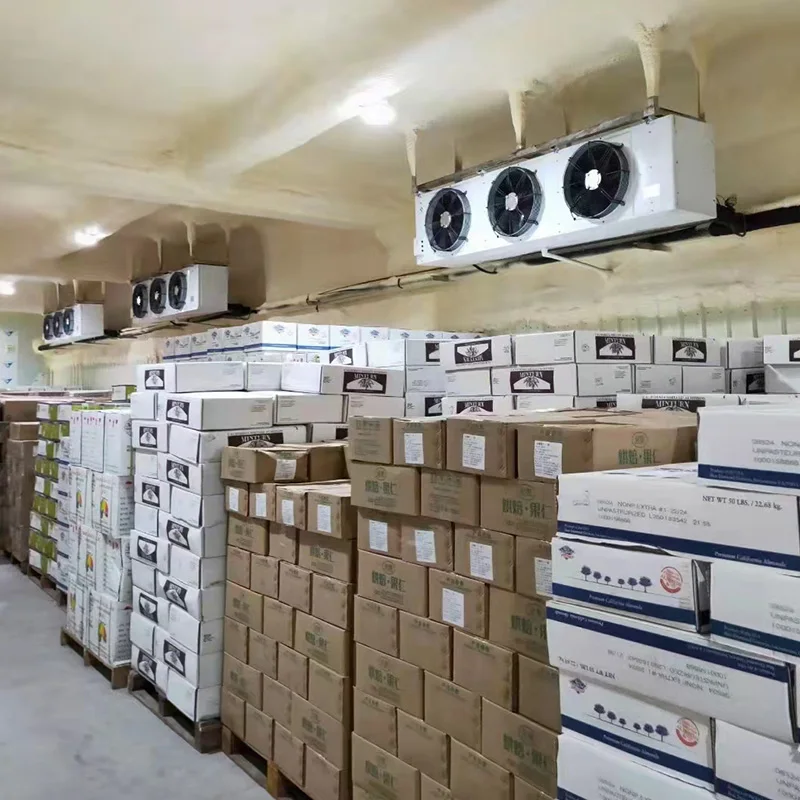

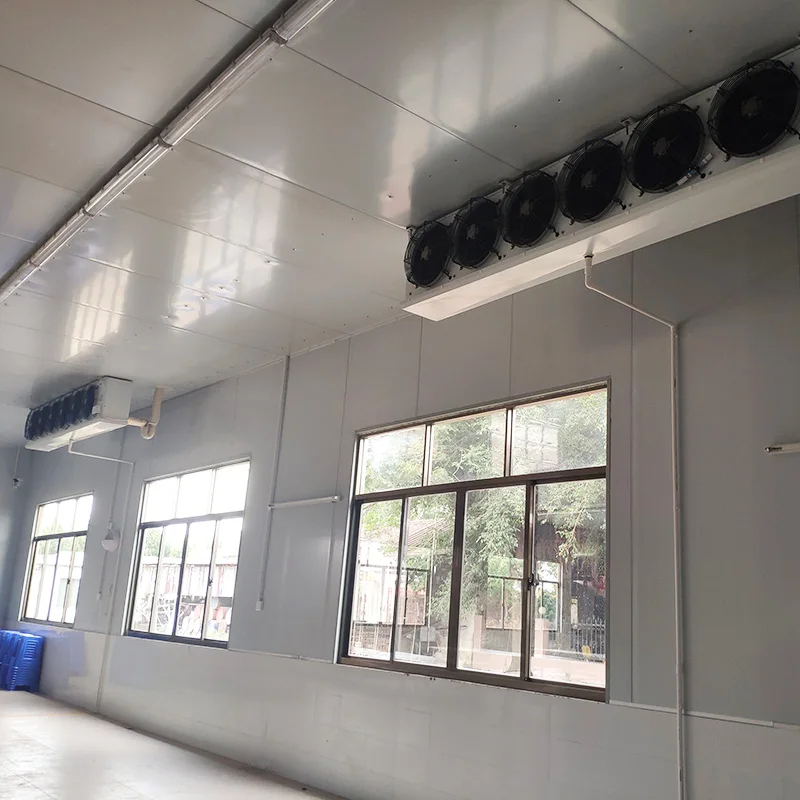

Unit Cooler for cold storage
1. Axial Fan: Chinese famous brand axial fan, stable quality, more quiet, more efficient, design with waterproof, enough safety; Copper pipe data: 15.88 mm.
2. Fin Data: Hydrophilic aluminum fin, better anti-corrosion.
3. More Details: Stainless steel screw, Stainless steel defrost tube, Spaying plastics for surface…
2. Fin Data: Hydrophilic aluminum fin, better anti-corrosion.
3. More Details: Stainless steel screw, Stainless steel defrost tube, Spaying plastics for surface…
Condenser For Cold Room 1. Cabinet is steel plate with plastic spray, corrosion-proof and pleasant looking.
2. Mechanically expanded pipes with AL fins good heat transfer performance.
3. Air Cooled condenser have done 2.8 Mpa gas pressure and pollution clear before leave factory.
4. R22, R134A, R404A, R407C etc are optional.
5. Large air flow and low speed Built-in motor with low noise and nice looking.
6. It is widely use in big capacity condensing unit, large windward acreage and high heat exchange efficiency, with external motor.
2. Mechanically expanded pipes with AL fins good heat transfer performance.
3. Air Cooled condenser have done 2.8 Mpa gas pressure and pollution clear before leave factory.
4. R22, R134A, R404A, R407C etc are optional.
5. Large air flow and low speed Built-in motor with low noise and nice looking.
6. It is widely use in big capacity condensing unit, large windward acreage and high heat exchange efficiency, with external motor.
Cold Storage Danfoss Expansion Valve
R410A Danfoss Cold Storage Expansion Valve Refrigeration Spare Parts
Cold Room Electric Control Box
Temperature display,temperature controlling（refrigeration/heat mode)，compressor start delay protection, it can run periodically with the on-off rate when the temperature sensor is broken. 2 defrost modes (electrie heat, hot gas),3 defrost start mode (time altemation, accumulative compressor running time, real time clock), 2 defrost end mode (timing, controlled by both temperature and time),dripping, manual defrost, 7 fan running modes (fan ahead or delay start delay stop, temperature controlling start and stop,time controlling start and stop,always on, always off, run or stop when defrosting) sensor error alarm,one extemal alamm input, password. real time clock,C/F unit change.
Sino-Cold is a professional refrigerator full supply chain solution provider, specializing in designing and producing refrigeration equipment. The main products include cold room solution, semi-hermetic, hermetically sealed refrigerant compressors and condenser units, various kinds of air-cooled condensers, air coolers and related accessories. It is our consistent principles and pursuits to produce high quality products, provide excellent after-sale service and establish sincere credibility. Our company has been awarded the ISO9001International Quality Management System Certification. All the products have obtained the production license of national refrigeration industry.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2019,sell to Africa(20.00%),Southeast Asia(15.00%),Mid East(15.00%),Eastern Asia(15.00%),South Asia(10.00%),North America(5.00%),South America(5.00%),Western Europe(5.00%),Northern Europe(5.00%),Southern Europe(3.00%),Central America(2.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
1: Polyurethane board factory, will go through a simple assembly with, easy to install。
2: Before the equipment leaves the factory, each equipment will be tested to keep the pressure and reduce the solder joint and leakage
3.what can you buy from us?
Refrigeration Equipment，compressor, Condensing unit
4. why should you buy from us not from other suppliers?
Refrigeration Solution Provider, Excellent Supply Chain Integration Ability
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Arabic,French,Russian,Korean,Italian
