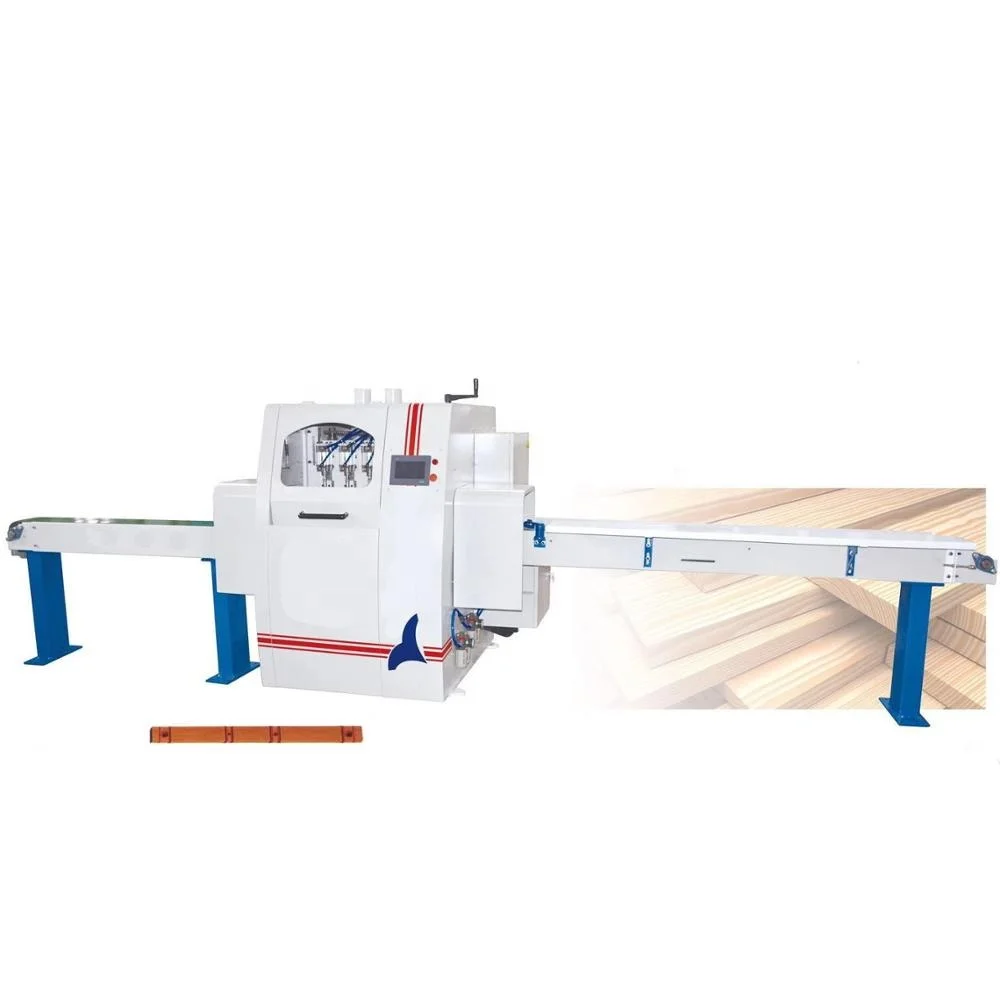

Wood Furniture Cutting Machine Optimizing Cross Cut Saw





Feature and Specification

1. OCC244 riving down feeding rollers design for a smooth material feeding,even twisted of warped material can be fed quickly through the machine and accurately positioned

2. High quality pneumatic components and electrical parts for reliable and stable performance

3. Saw spindle and feeding wheels are driven by synchronized teeth belt ,ensures minimum power loss and exact transmission.

4. Liftable cutter unit driven by serve moters for better precision and efficiency. Compared with manufal cut, it is about 4 times efficience.

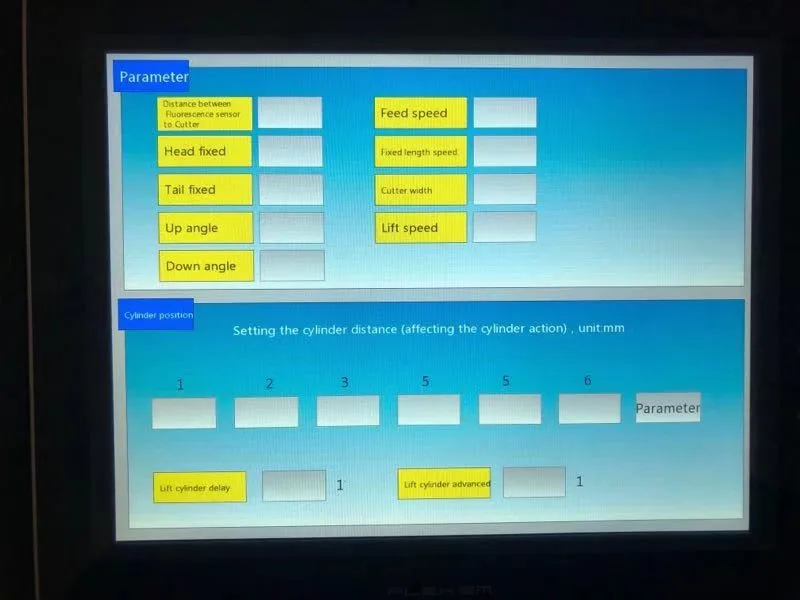

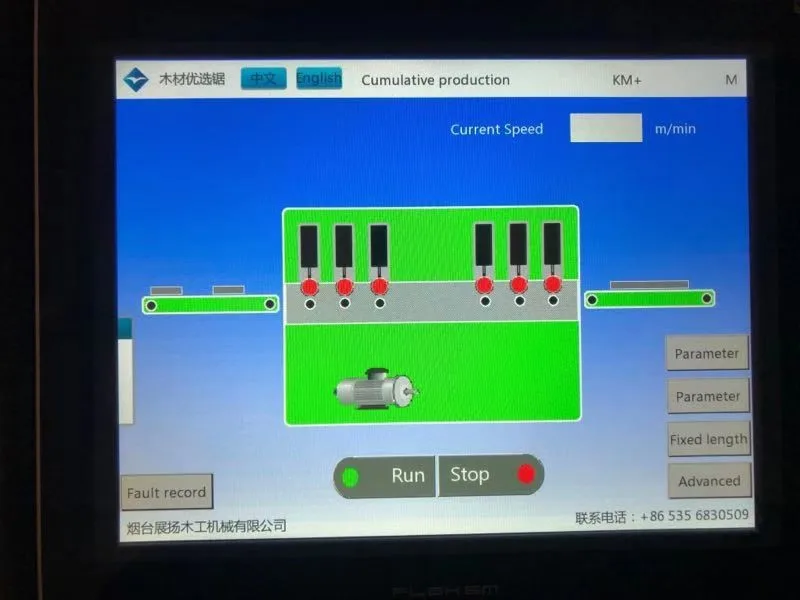

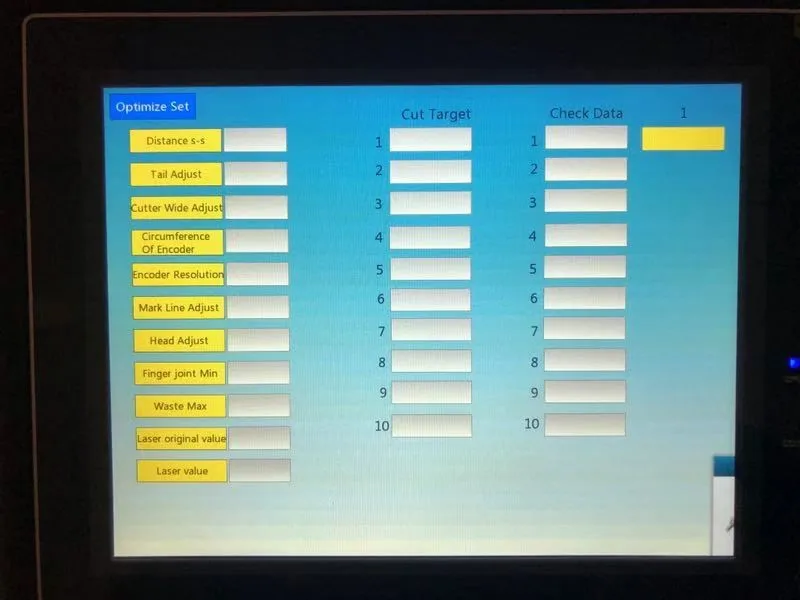

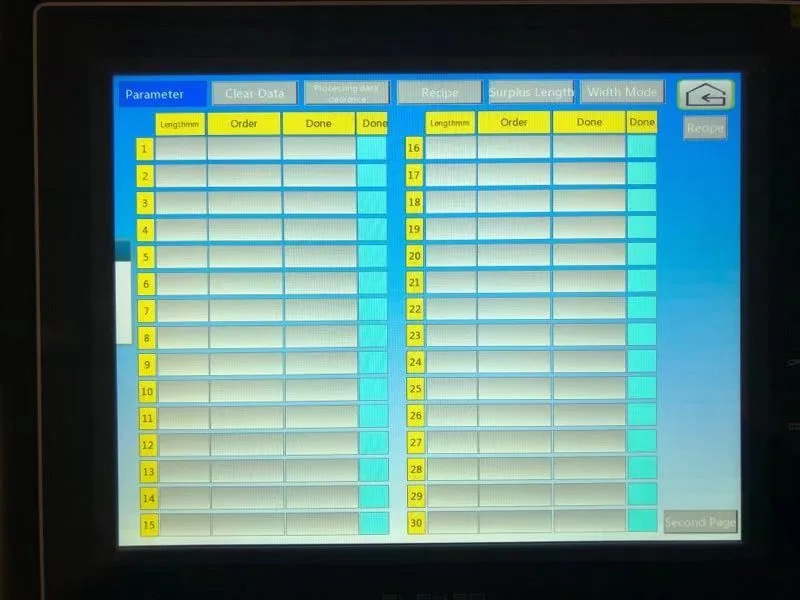

5. Optimizing cut. Depand on the high performance PLC control unit, can cut according to the optimized cutting list, which can save profile and improve usage of profiles.

6. Profile defact remove, can remove the defects of profile. Sicj as knots, tear-outs and rots, etc.

7. Romote control that protect operator from hurt by the machine.



Technical Parameters

Model	MJD244	MJD245
Spindle moter power	5.5kW	5.5kW
Saw blade diameter	Φ405mm	Φ505mm
Rotate speed	4000 r/min	4000 r/min
Max cutting section	75*125mm / 50*180mm	75*125mm / 50*300mm
Max cutting thickness	75mm	75mm
Workpiece length	≥250mm	≥250mm
Serve feeding motor	4.5kW * 2 Sets.	4.5kW * 2 Sets.
Max feeding speed	100 m/min	100 m/min
Max processing speed	25-30 m/min	25-30 m/min
Upper press wheel	6 pieces	6 pieces
Lower press wheel	6 pieces	6 pieces
Width of feeding conveyor	200mm	280mm
Overall size	6000*1400*1550mm	6000*1400*1550mm
Weight	1600kg	1800kg
