OEM Промышленный паспорт 2d сканер штрих-кода модуль Встроенный Plug and Play
- Категория: Scanners >>>
- Поставщик: Guangzhou,Jingxin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 38.48 $* | 40.21 $* |
| Aug-20-2025 | 38.87 $* | 40.33 $* |
| Jul-20-2025 | 32.33 $* | 34.1 $* |
| Jun-20-2025 | 37.9 $* | 39.44 $* |
| May-20-2025 | 32.81 $* | 34.63 $* |
| Apr-20-2025 | 36.80 $* | 38.3 $* |
| Mar-20-2025 | 36.45 $* | 38.37 $* |
| Feb-20-2025 | 36.80 $* | 38.80 $* |
| Jan-20-2025 | 36.61 $* | 38.91 $* |
Характеристики
Product Description
Image sensor | 1280 pixels(H)*800 pixels(V) |
Illumination Aiming | Aiming:617nm;illumination: 5600K White LED |
Scanning distance | 40mm-320 mm @UPCA-13 mil 100%,PCS 90% |
Scan Angle | 54°(H)x33°(V) |
Min. resolution | 0.1mm(4mil)@Code 39, PCS=90% |
Scanning Method | Button Trigger,Auto-sensing, continuous scanning |
Interface | USB HID Keyboard USB Virtual COM Port RS-232 (9.6~115.2Kbps) |
Symbologies | 2D: PDF417,MicroPDF417, Data Matrix, QR Code, Micro QR Code ((default off), Maxicode, Aztec, support cell phone screen reading code) 1D: UPC A / UPC E ,EAN 8 / EAN 13 ,Code 128 ,Code 39 ,Code 93 ,Code 32,Code 11 ,Codabar ,Plessey ,MSI ,Interleaved 2 of 5 ,IATA 2 of 5 ,Matrix 2 of 5 ,Straight 2 of 5 ,Pharmacode ,RSS-14 ,RSS-14 Expanded,RSS-14 Limited ,Composite Code -A, Composite Code-B,Composite Code -C,etc. |
Typical Depth of Field | Code 39 (4mil) 65mm-115mm Code 39(5 mil) 55mm-145mm 100%UPCA (13 mil) 40mm-320mm Code 39(20 mil) 40mm-400mm PDF417 (6.8mil) 40mm-200mm DataMatrix (10mil) 50mm-250mm QR Code (20mill) 60m-340m (Reading performance may be degraded by barcode quality or environmental factors) |
Scanning accuracy | 1D : ≥4 mil 2D : ≥7 mil |
Symbol Contrast | ≥30% （UPC/EAN 100%） |
Scan Angle | 54°(H)x33°(V) |
Operating Voltage | 3.3 VDC+/-10%@ 150 mA |
Operating current | 250 mA +/-5% |
Dimensions | 28mm * 20.5mm *11.8mm |
Weight | 5g |
Environmental | Operating Temperature:-20°to 50°C Storage Temperature -40°to 70°C Humidity：5% to 95% (non-condensing) Ambient Light :0~8,600Lux (fluorescent) 0~100,000Lux (daylight) |
International Certification | FCC, CE ,RoHS |
Warranty | 2 Years |

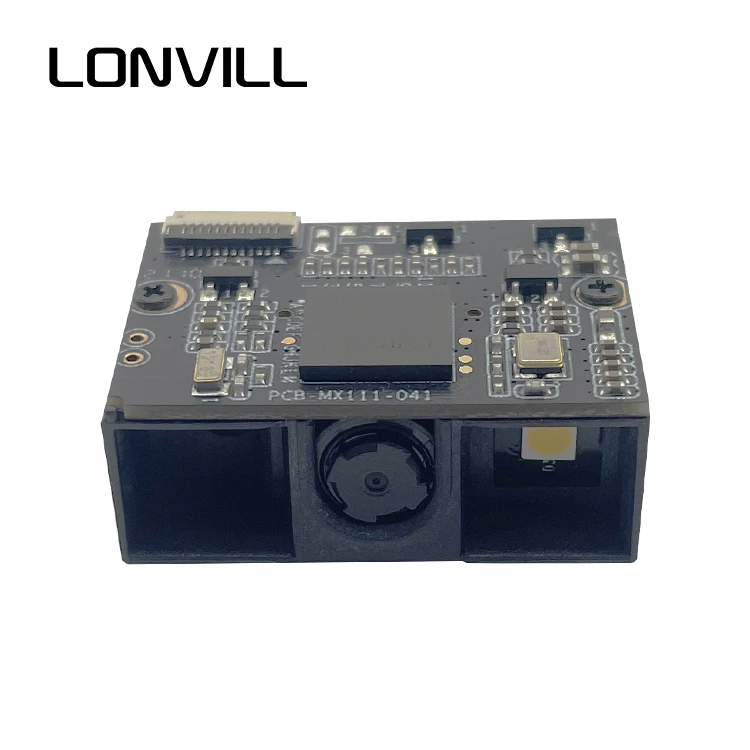

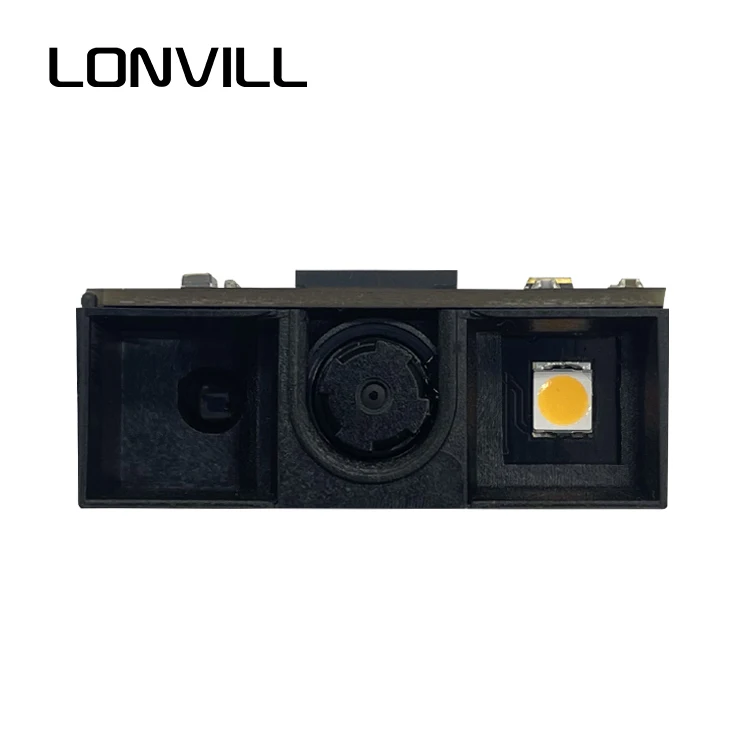

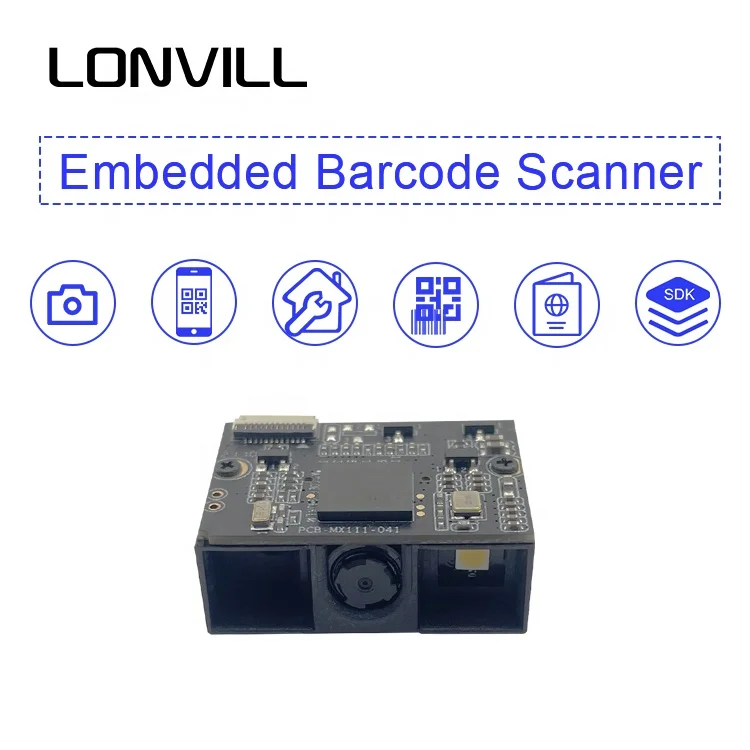

Embedded Barcode Scanner
With millions of pixels, it can accurately scan screen barcodes, barcodes on passports, most of the international common barcodes, support secondary development, 2-year warranty.
Excellent decoding capability, it can scan OCR on passport or license card. We will confirm this with your sample OCR code. Please kindly contact us when you need to scan such OCR code.
Multiple transmission interfaces
USB HID Keyboard
USB Virtual COM Port
RS-232 (9.6~115.2Kbps)
USB Virtual COM Port
RS-232 (9.6~115.2Kbps)

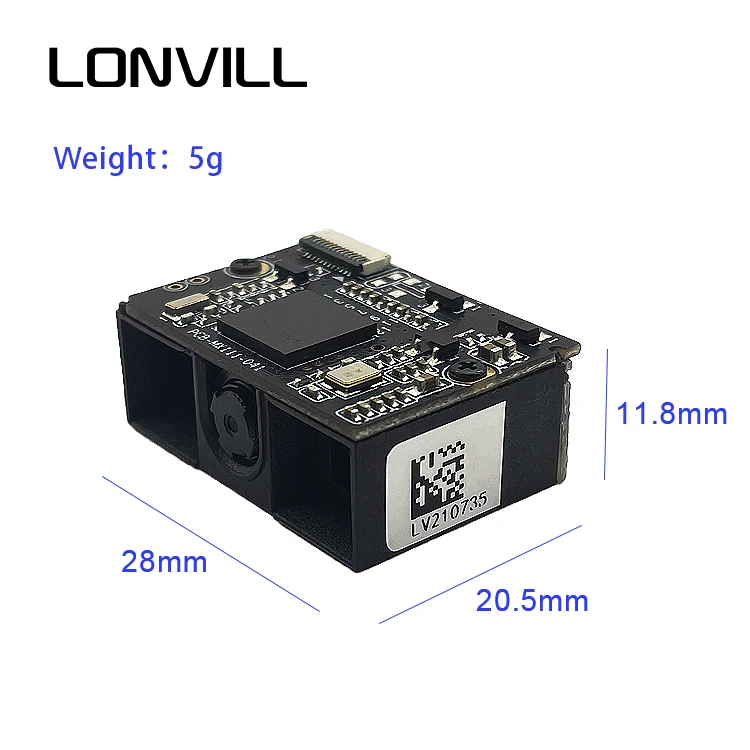

Extremely small size and light weight
It supports all mainstream 1D and 2D code.Such as QR Code PDF417,Data Matrix, Maxicode, Aztec, UPC,EAN,ISBN,RSS-14,etc. Can also scan metal barcodes, broken barcodes, reflective barcodes, etc.
Company Profile
ABOUT US
Guangzhou Jingxin Technology Co., Ltd., is attach to Rakinda Group, was founded in 2015, and located in
Panyu District, Guangzhou City. As a global IOT application solution provider, Jingxin is expert in providing Internet
of Things technology application solutions and related products for enterprises. Our main products include: QR Code
Scanner Module, 1 D and 2 D Barcode Scanner, Desktop Scanner, Handheld Barcode Scanner, Android PDA,
RFID Reader, Barcode Printer, and Barcode Software System etc. Besides, we are making great efforts to develop
new products to meet different requirements, we have obtained ISO9001, CE, FCC and various patent certificates.
Our products are exported to clients in such main countries and regions as USA,Pakistan,Vietnam,Brazil, India,
Poland, Australia, Canada etc.
We have professional R & D team and strong technical support and experience in intelligent firmware R & D. Our
core firmware products in mobile payment and intelligent community have been used successfully in public tran-
sport, logistics, manufacturing sector, shops, catering industry, medical industry and government pubilc service
area and receive good market feedback.
Our core values is Professional, Innovation, Integrity, Win-win. Jingxin insists on improving and perfecting the
functions of products and business modes. We will keep the leading position in the field of manufacturing intelligent
equipment. We believe that we will realize a win -win cooperation with clients through continuous innovation to
push forward people's intelligent life style.
Panyu District, Guangzhou City. As a global IOT application solution provider, Jingxin is expert in providing Internet
of Things technology application solutions and related products for enterprises. Our main products include: QR Code
Scanner Module, 1 D and 2 D Barcode Scanner, Desktop Scanner, Handheld Barcode Scanner, Android PDA,
RFID Reader, Barcode Printer, and Barcode Software System etc. Besides, we are making great efforts to develop
new products to meet different requirements, we have obtained ISO9001, CE, FCC and various patent certificates.
Our products are exported to clients in such main countries and regions as USA,Pakistan,Vietnam,Brazil, India,
Poland, Australia, Canada etc.
We have professional R & D team and strong technical support and experience in intelligent firmware R & D. Our
core firmware products in mobile payment and intelligent community have been used successfully in public tran-
sport, logistics, manufacturing sector, shops, catering industry, medical industry and government pubilc service
area and receive good market feedback.
Our core values is Professional, Innovation, Integrity, Win-win. Jingxin insists on improving and perfecting the
functions of products and business modes. We will keep the leading position in the field of manufacturing intelligent
equipment. We believe that we will realize a win -win cooperation with clients through continuous innovation to
push forward people's intelligent life style.
Our Advantages
Exhibition and Certification
Shipping
FAQ
Q1: Are you a self-owned factory or a trader?
A: We have 21 years of industry experience, we have our own factory and R & D center, and we are the senior agent of many well-known brands at the same time.
Q2: What are the advantages of your brand?
A: In 2017 and 2020, we were successively awarded the "High-tech Enterprise Certificate" by the State. And obtained the ISO9001 quality management system certification.
Q3: Do you offer OEM customized service?
A: Yes, we provide OEM services, providing digital solutions for the Internet of Things for various industries.
Q4: How long is your warranty? Do you provide after-sale service?
A: Our warranty period is 1 year, provide lifetime free after-sales service, support online technical operation guidance.
Q5: Do you carry out agent cooperation abroad? What services are available?
A: Of course, we sincerely recruit global cooperative agents, we provide wholesale prices, regional market protection and after-sales technical training and other services.
Q6: How can I get the price?
A: Please directly send online inquiry or launch online consultation, or email to us, or leave your contact information and email, we will contact you as soon as possible.
Q7: What is your lead time?
A: It depends on the quantity of your order and the quantity we have in stock.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantites.
Q8: Can I get a sample before order in bulk? What is your MOQ ?
A: Yes, We support sample order,Pls feel free to contact us.
A: We have 21 years of industry experience, we have our own factory and R & D center, and we are the senior agent of many well-known brands at the same time.
Q2: What are the advantages of your brand?
A: In 2017 and 2020, we were successively awarded the "High-tech Enterprise Certificate" by the State. And obtained the ISO9001 quality management system certification.
Q3: Do you offer OEM customized service?
A: Yes, we provide OEM services, providing digital solutions for the Internet of Things for various industries.
Q4: How long is your warranty? Do you provide after-sale service?
A: Our warranty period is 1 year, provide lifetime free after-sales service, support online technical operation guidance.
Q5: Do you carry out agent cooperation abroad? What services are available?
A: Of course, we sincerely recruit global cooperative agents, we provide wholesale prices, regional market protection and after-sales technical training and other services.
Q6: How can I get the price?
A: Please directly send online inquiry or launch online consultation, or email to us, or leave your contact information and email, we will contact you as soon as possible.
Q7: What is your lead time?
A: It depends on the quantity of your order and the quantity we have in stock.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantites.
Q8: Can I get a sample before order in bulk? What is your MOQ ?
A: Yes, We support sample order,Pls feel free to contact us.
