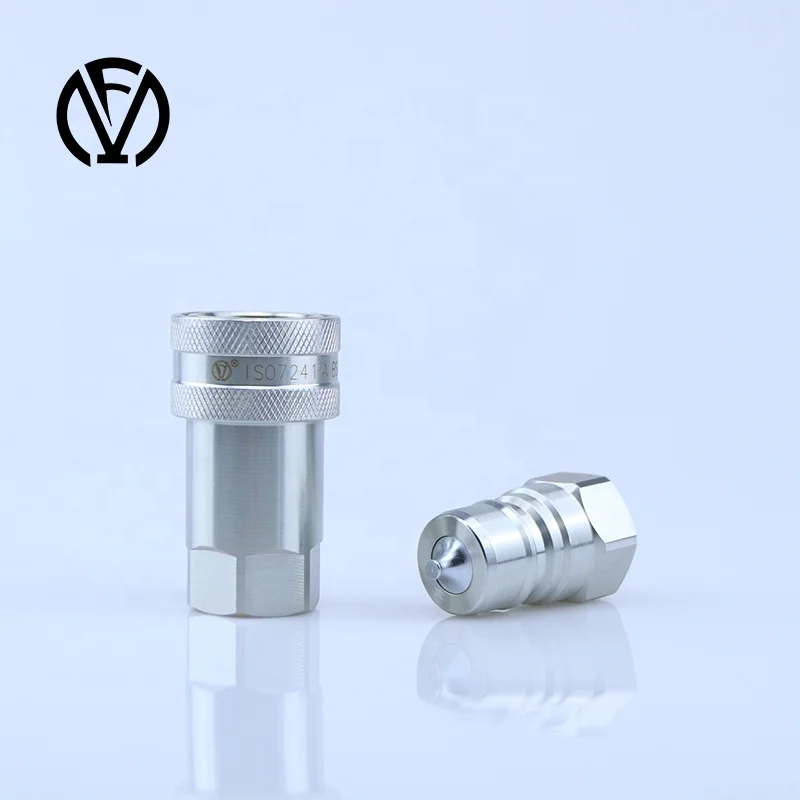

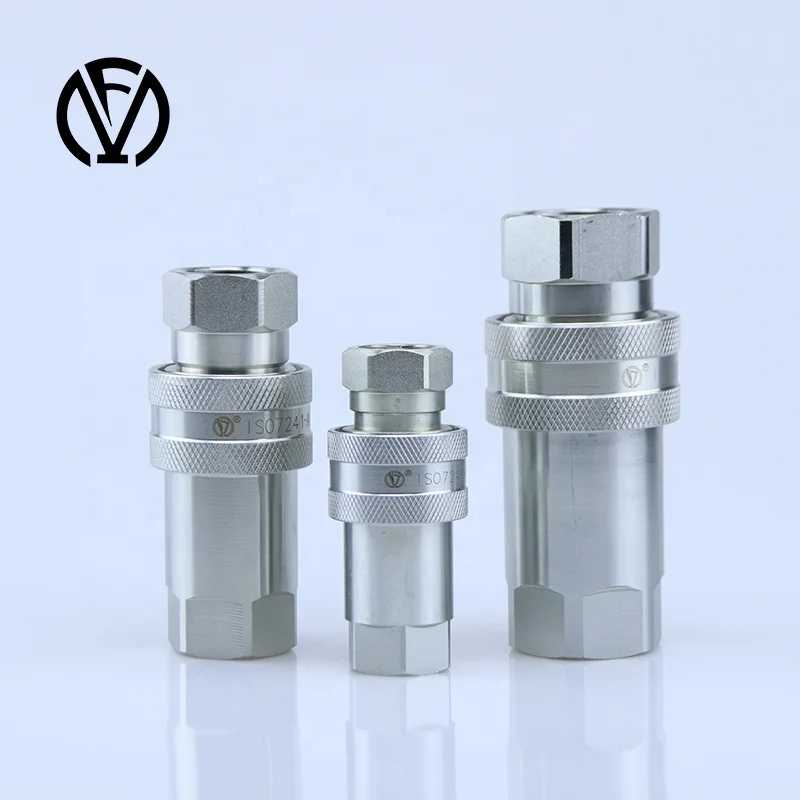

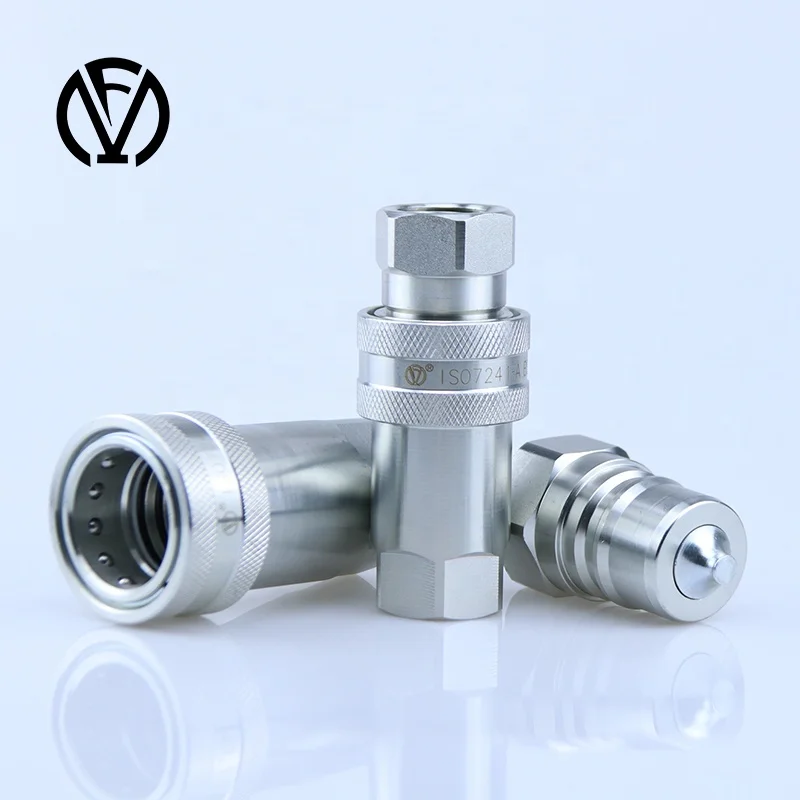

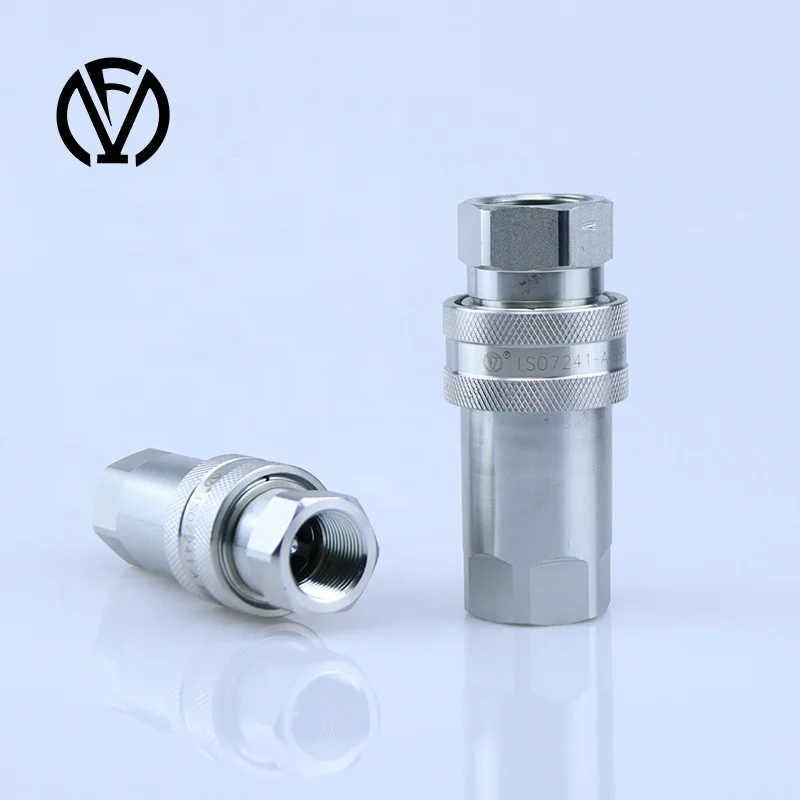

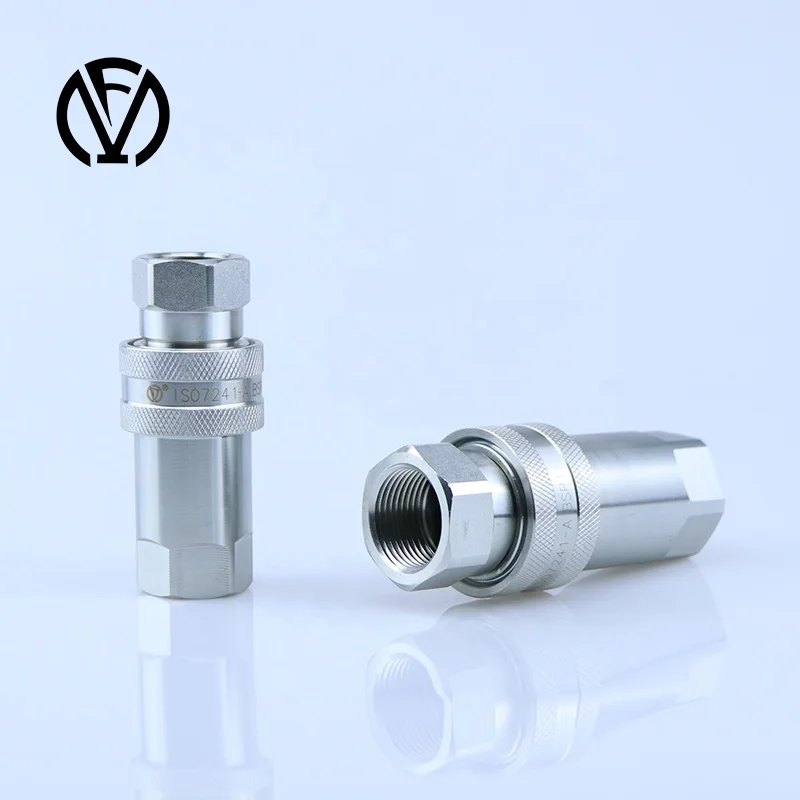

ISO7241-A H001 3/8 дюйма BSP NPT из углеродистой стали с гидравлической быстроразъемными
- Категория: Pipe Fittings >>>
- Поставщик: Hebei,Feiman,Machinery,Parts,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 4.84 $* | 4.28 $* |
| Jul-18-2025 | 3.78 $* | 3.72 $* |
| Jun-18-2025 | 4.53 $* | 4.28 $* |
| May-18-2025 | 4.18 $* | 4.81 $* |
| Apr-18-2025 | 3.58 $* | 3.16 $* |
| Mar-18-2025 | 4.92 $* | 4.14 $* |
| Feb-18-2025 | 4.96 $* | 4.44 $* |
| Jan-18-2025 | 4.16 $* | 4.44 $* |
Характеристики
Products Description
Applications and features.
1 .The H001 Series hydraulic quick couplings are mainly used for construction equipment, forestry equipment, hydraulic machinery and oil equipment and other required hydraulic applications.
2. Poppet valves are available to prevent uncoupled leakage. Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. H001 series conforms to the standard of ISO7241-A.
5. Compatible with PARKER 6600 Series ,FASTERANV Series AEROQUIP 5600 Series and HANSEN HA 15000 Series.
2. Poppet valves are available to prevent uncoupled leakage. Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. H001 series conforms to the standard of ISO7241-A.
5. Compatible with PARKER 6600 Series ,FASTERANV Series AEROQUIP 5600 Series and HANSEN HA 15000 Series.
Product name | Open and Close Type Hydraulic Quick Couplings | ||||||||||||||
Part No. | H001 | ||||||||||||||
Body size（In） | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |||||||
Rated Pressure(PSI) | 5000 | 4000 | 4000 | 3000 | 3000 | 3000 | 2000 | 2000 | |||||||
Rated flow(L/Min) | 11.34 | 22.68 | 45.36 | 105.84 | 189 | 332.64 | 831.6 | 846.72 | |||||||
Material | Carbon steel, stainless steel, brass or according to customer's requirements | ||||||||||||||
Application | Construction equipment，forestry equipment，hydraulic tools，oil equipment，steel mill machinery and other industry required hydraulic connection | ||||||||||||||
Standard | ISO7241-A | ||||||||||||||
Temperture Range | -20℃~80℃ | ||||||||||||||
Machining Process
Application
Packing And Shipping
Transaction Details
